3-Bedroom, 1657 Sq Ft Contemporary Plan with Covered Front Porch

Main image for house plan # 11231

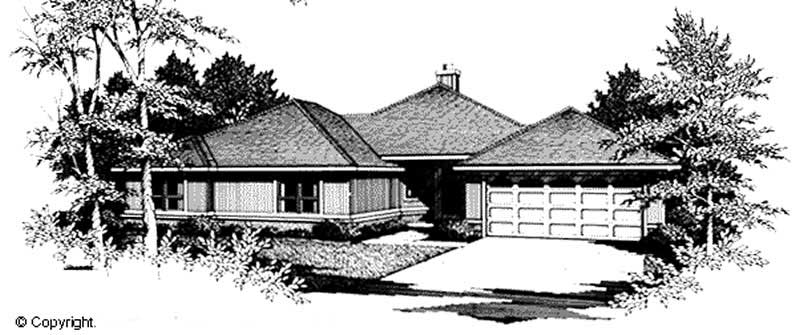

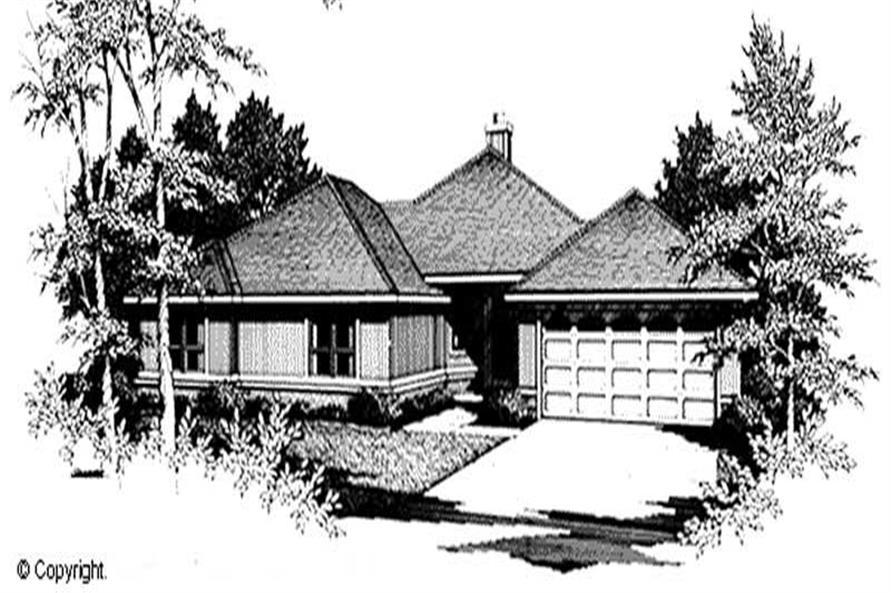

3-Bedroom, 1657 Sq Ft Contemporary Home Plan - 174-1063 - Main Exterior

About Plan # 174-1063

About Plan # 174-1063

1657 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 68' 0" WIDTH 56' 0" DEPTH 2 GARAGE BAY
These Ranch Houseplans have a very contemporary style.

Each plan set includes the following:

  • Exterior elevations
  • Floor plan (with ceiling joists sizes)
  • Cross-sections
  • Cabinet elevations
  • Foundation plan
  • Roof plan
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

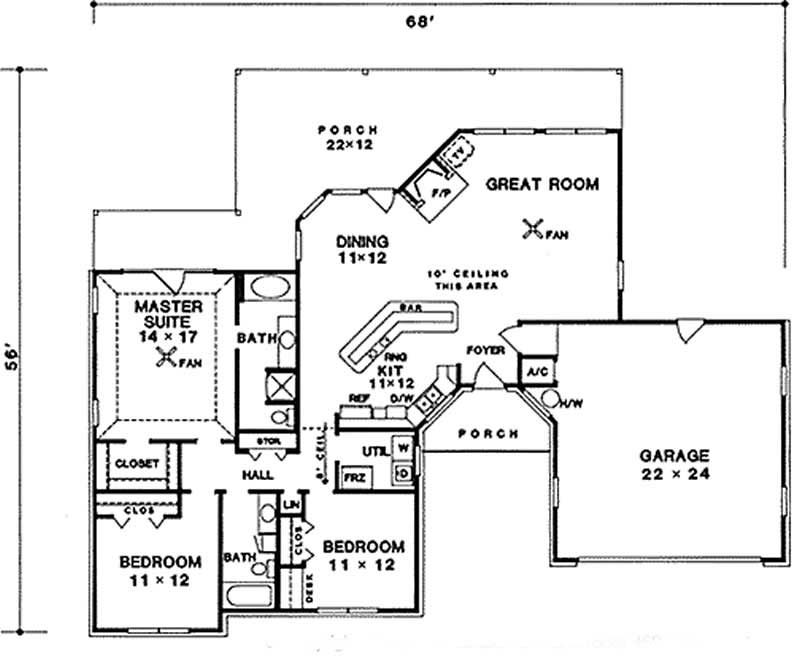

Home Plan: #174-1063 Floor Plan First Story - first Floor Plan First Story of Contemporary Plan #174-1063
Home Plan: #174-1063 Floor Plan First Story - first Floor Plan First Story of Contemporary Plan #174-1063
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 174-1063
Floors:
1
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1657
Main Floor:
1657
Unfinished Sq Ft:

Dimensions

Width:
68' 0"
Depth:
56' 0"

Architectural Styles

Ranch
Contemporary

Exterior Wall Material

Wood Siding

Garage Type

Attached Garage

PRICING OPTIONS

Three full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Six full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

A NON-modifiable, print-only PDF that is emailed. Includes a complete set of working drawings delivered in a digital format. Print as many sets as you need. No shipping costs. Comes with a license to build one home.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
