2-Bedroom, 2842 Sq Ft Craftsman Plan with Master Bathroom

Craftsman home (ThePlanCollection: Plan #170-3216)
2-Bedroom, 2842 Sq Ft Craftsman House Plan - 170-3216 - Front Exterior

About Plan # 170-3216

About Plan # 170-3216

2842 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 37' 0" WIDTH 92' 0" DEPTH 2 GARAGE BAY
This remarkable Craftsman style home has 2,842 square feet of living space. The two-story floor plan includes 2 bedrooms and 2 bathrooms.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FRAMING SECTION
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. It includes cabinet and stair details.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

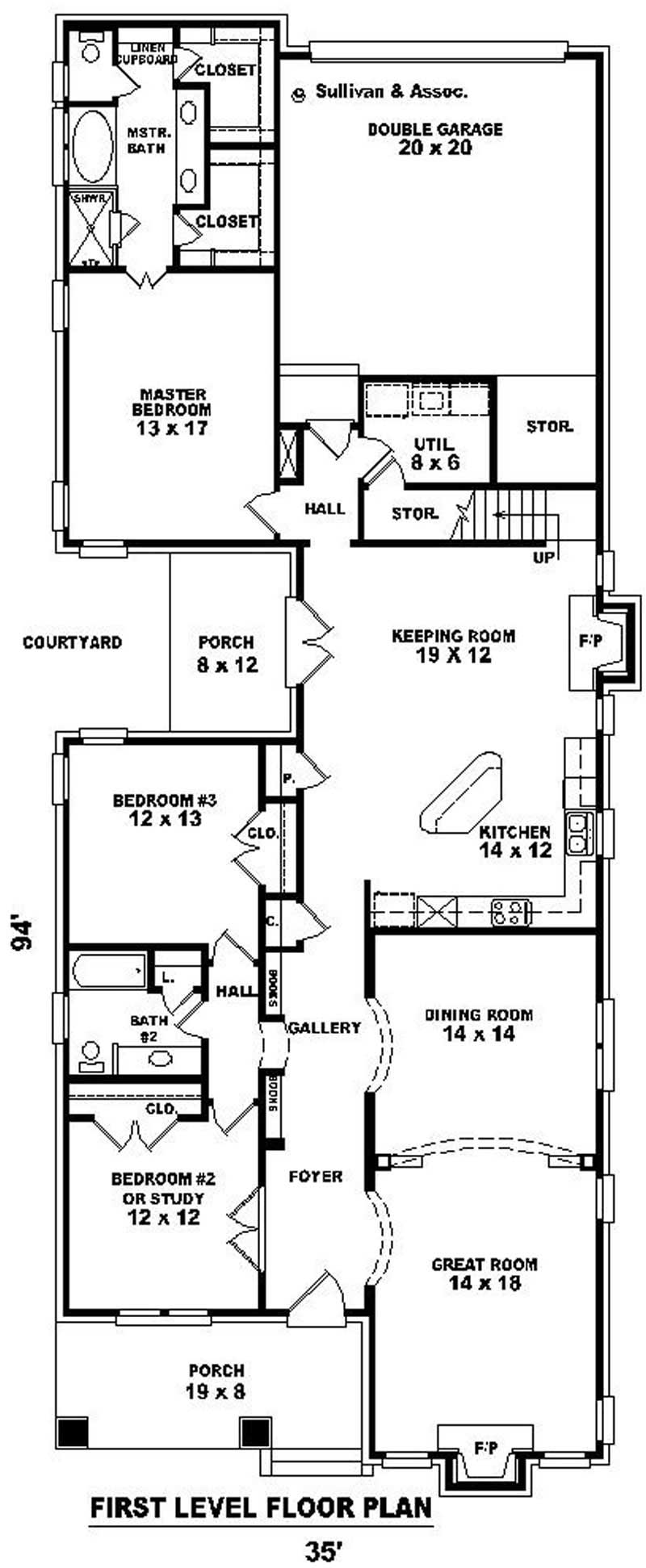

Home Plan: #170-3216 Floor Plan First Story - home Floor Plan First Story of Craftsman Plan #170-3216

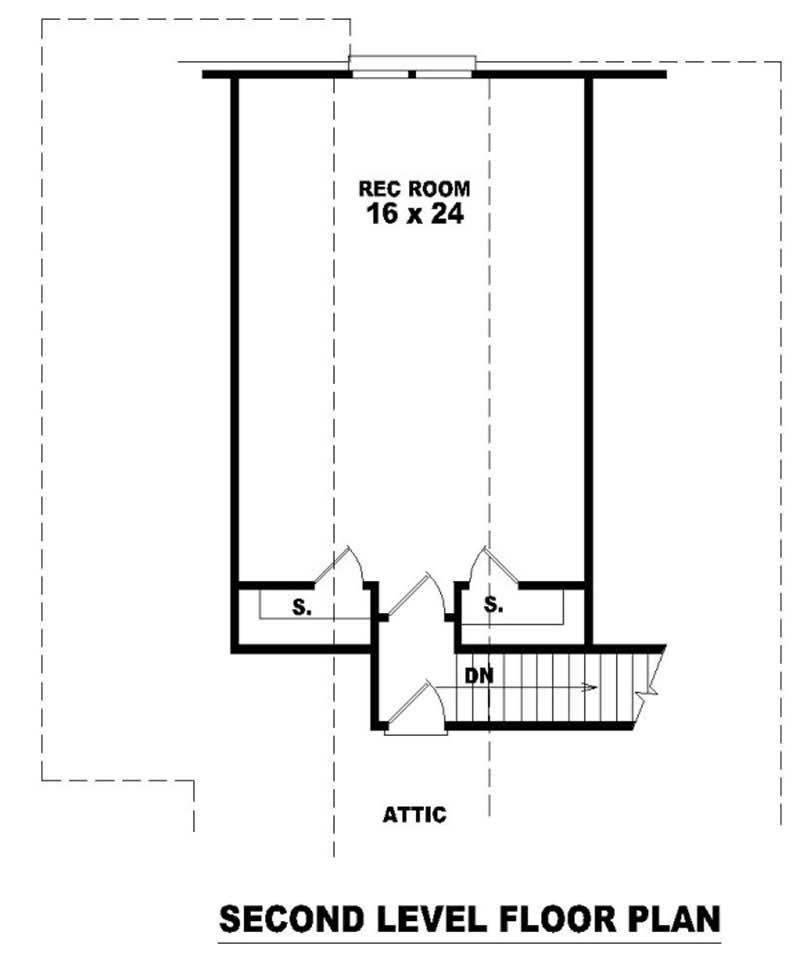

#170-3216 Floor Plan Second Story - home Floor Plan Second Story of Craftsman Plan #170-3216
Home Plan: #170-3216 Floor Plan First Story - home Floor Plan First Story of Craftsman Plan #170-3216
#170-3216 Floor Plan Second Story - home Floor Plan Second Story of Craftsman Plan #170-3216
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 170-3216
Floors:
1
Bedrooms:
2
Full Baths:
2

Square Footage

Heated Sq Feet:
2842
Main Floor:
2348
Upper Floor:
494
Unfinished Sq Ft:

Dimensions

Width:
37' 0"
Depth:
92' 0"
Ridge Height:
25' 0"

Architectural Styles

Craftsman

Exterior Wall Material

Brick

Roof Pitch

Other

Ceiling Height

10 Foot Ceiling

Exterior Wall Framing

2x4

Building Lot Type

Narrow Lot Design

Additional Notes from Designer

PLEASE NOTE: Some plans may take 2-3 weeks to receive! Additionally, not ALL plans from this designer are available in CAD or PDF, some additional charges may apply. Contact us with any questions or concerns BEFORE ordering! Thank you!

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans. The disks will be shipped to you.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
