2–5-Bed, 3321–5564 Sq Ft Craftsman with His & Her Walk-in Closets

Luxury Craftsman House - Plan #161-1042.
Home Interior Photograph
Home Interior Photograph
Home Plan Rear Elevation
Home Exterior Photograph for these luxury house plans.

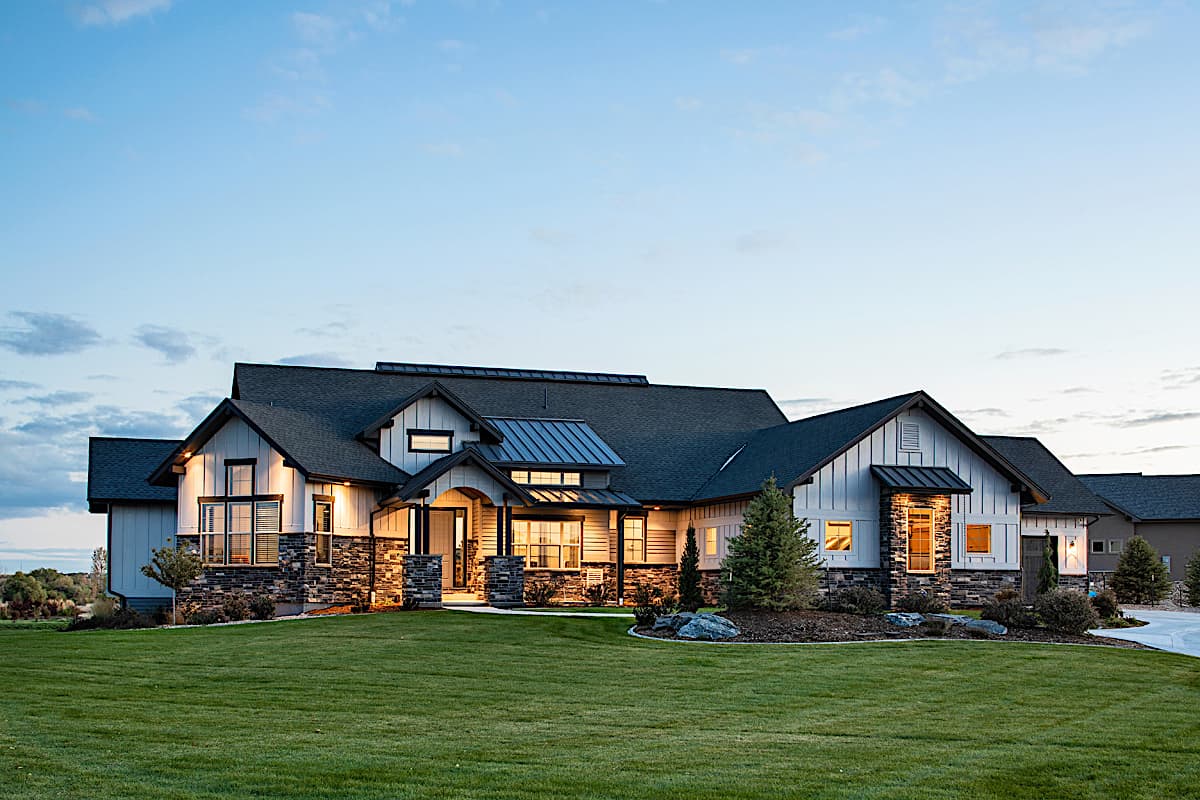

2–5-Bedroom, 3321–5564 Sq Ft Craftsman House Plan - 161-1042 - Front Exterior
Home Interior Photograph
Home Interior Photograph
Home Plan Rear Elevation
Home Exterior Photograph for these luxury house plans.

About Plan # 161-1042

About Plan # 161-1042

3321 SQUARE FEET 2 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 87' 9" WIDTH 113' 8" DEPTH 3 GARAGE BAY

This Luxury house has both Craftsman and Country style influences but with modern amenities. Its large main floor plan has an open design throughout the living areas – perfect for family living and entertaining. Especially unique is its large and open kitchen design with easy access to both the dining and living areas – as well as the decks and covered BBQ porch. The home also includes an impressive master suite. The walkout basement has plenty of space to play and relax – including a media and billiards area – plus 3 additional bedrooms if you choose to finish it according to the suggested floor plan.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL PLAN: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • FRONT PERSPECTIVE: Artist’s sketch to provide an idea of what the house would look like once built and landscaped.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

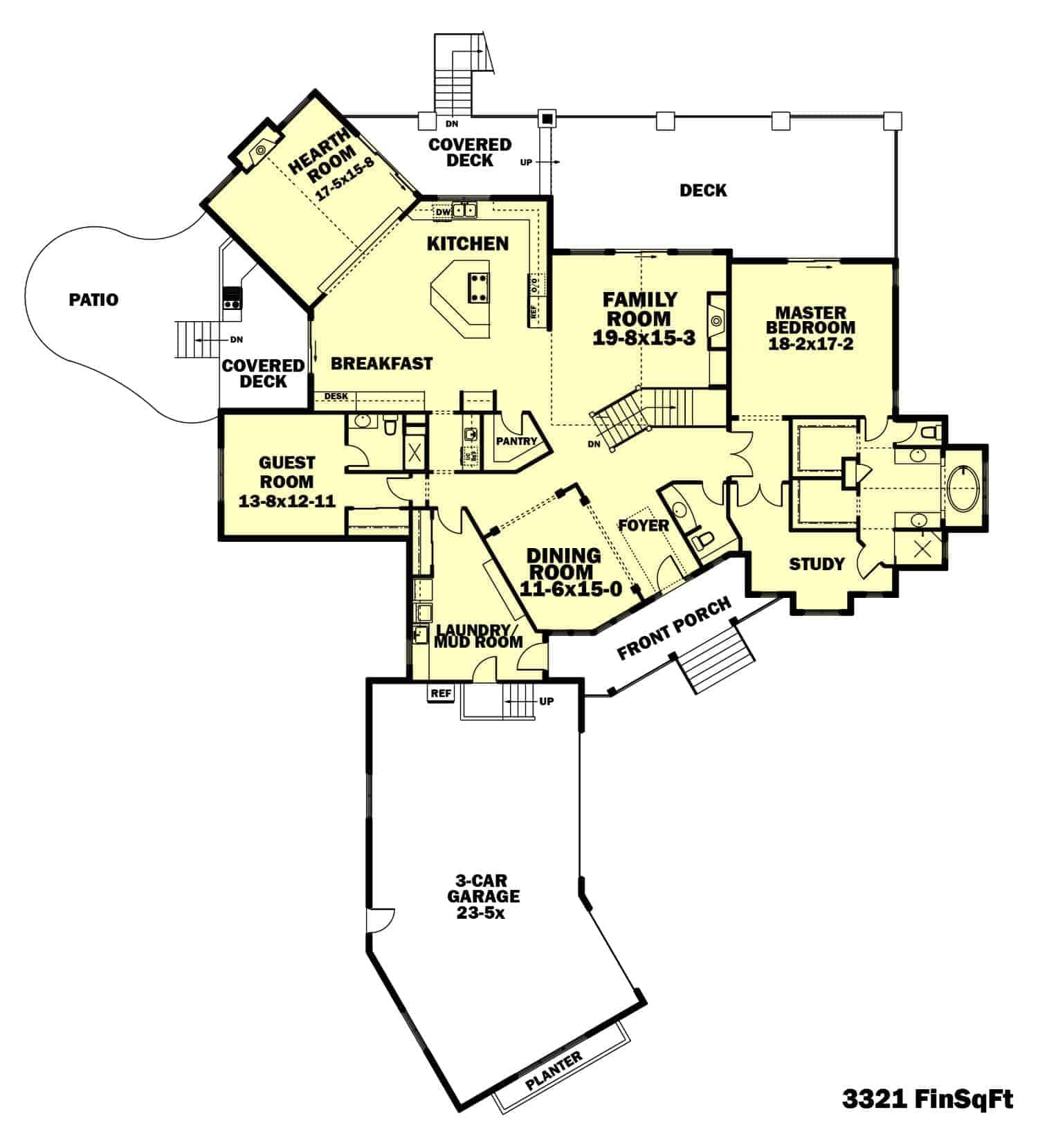

Home Plan: #161-1042 Floor Plan First Story - main level Main Level of Craftsman Plan #161-1042

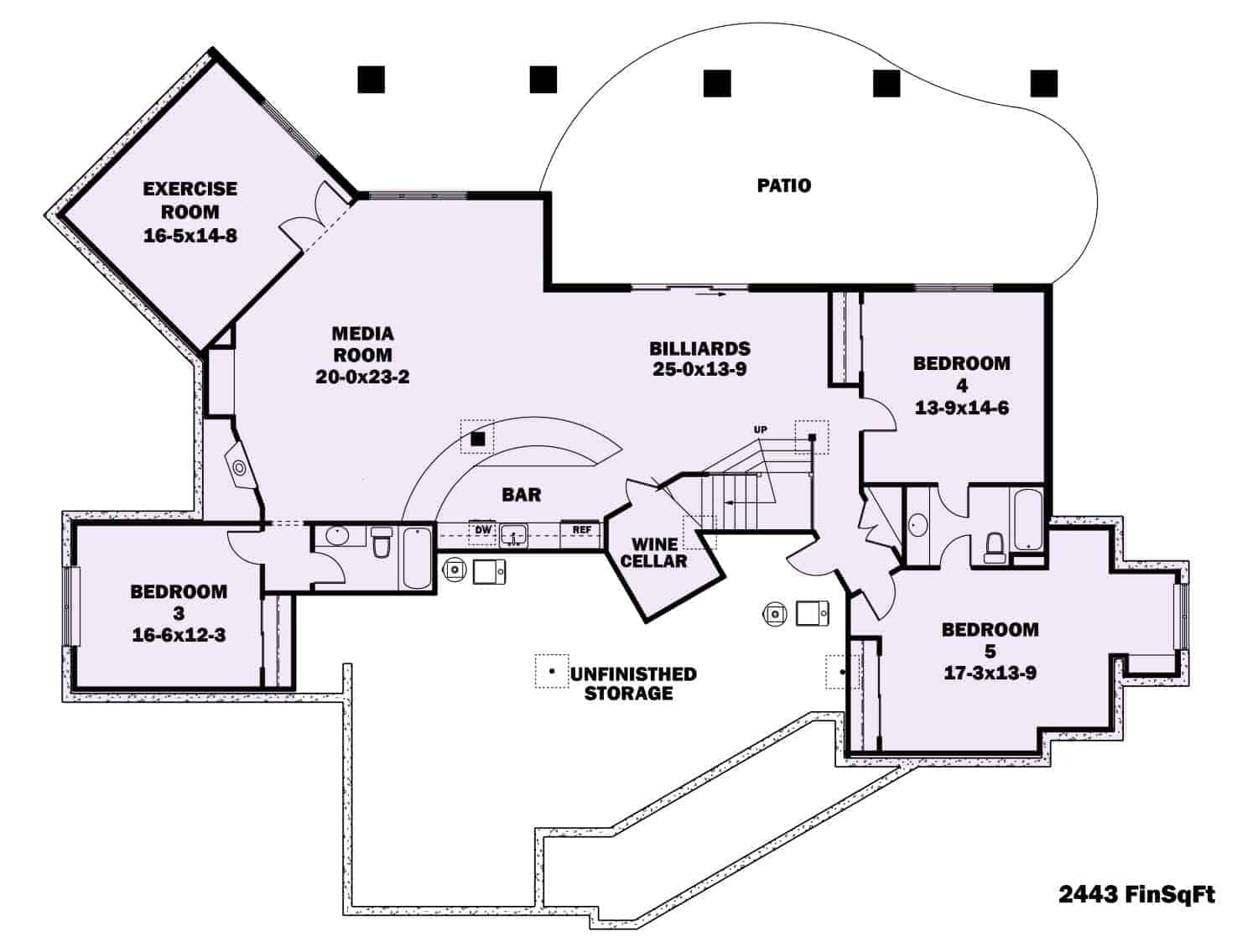

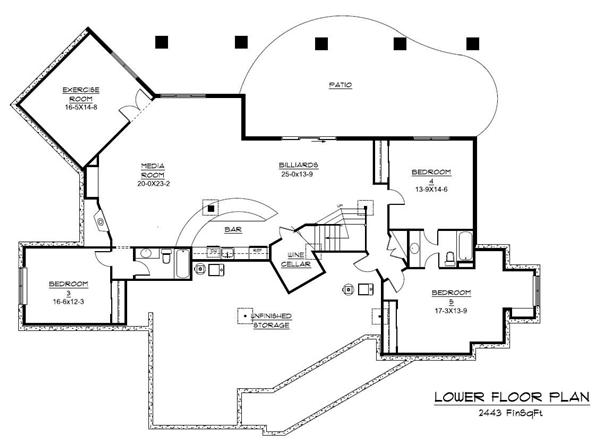

#161-1042 Floor Plan Basement - basement Floor Plan Basement of Craftsman Plan #161-1042
Home Plan: #161-1042 Floor Plan First Story - main level Main Level of Craftsman Plan #161-1042
#161-1042 Floor Plan Basement - basement Floor Plan Basement of Craftsman Plan #161-1042
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 161-1042
Floors:
1
Bedrooms:
2
Full Baths:
2
Half Baths:
1

Square Footage

Heated Sq Feet:
3321
Main Floor:
3321
Unfinished Sq Ft:
Lower Floor:
2243

Dimensions

Width:
87' 9"
Depth:
113' 8"
Ridge Height:
28' 6"

Architectural Styles

Country
Craftsman
Luxury
Rustic

Exterior Wall Material

Brick

Roofing Type

Gable
Hip

Roofing Material

Asphalt Shingles

Roof Pitch

10/12
12/12

Ceiling Height

10 Foot Ceiling

Special Feature

Color Photos
Dining Room
Fireplace
Guest Room
Home Office
Interior Photos
Main Level Laundry
Mud Room
Open Floor Plan
Split Bathroom
Storage
Vaulted Ceilings

Garage Type

Attached Garage
Courtyard Entry

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x6

Building Lot Type

Down Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Patio
Sundeck

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

 Please note there is no smaller version of this home. The home can only be reduced by a maximum of 10%. If more square footage is needed to be taken off, it is advised that the CAD File be purchased to work with someone locally to make the changes.


PLEASE NOTE! This designer's plans do NOT come with framing!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
