4-Bedroom, 8484 Sq Ft Mediterranean Home with In-Law Suite

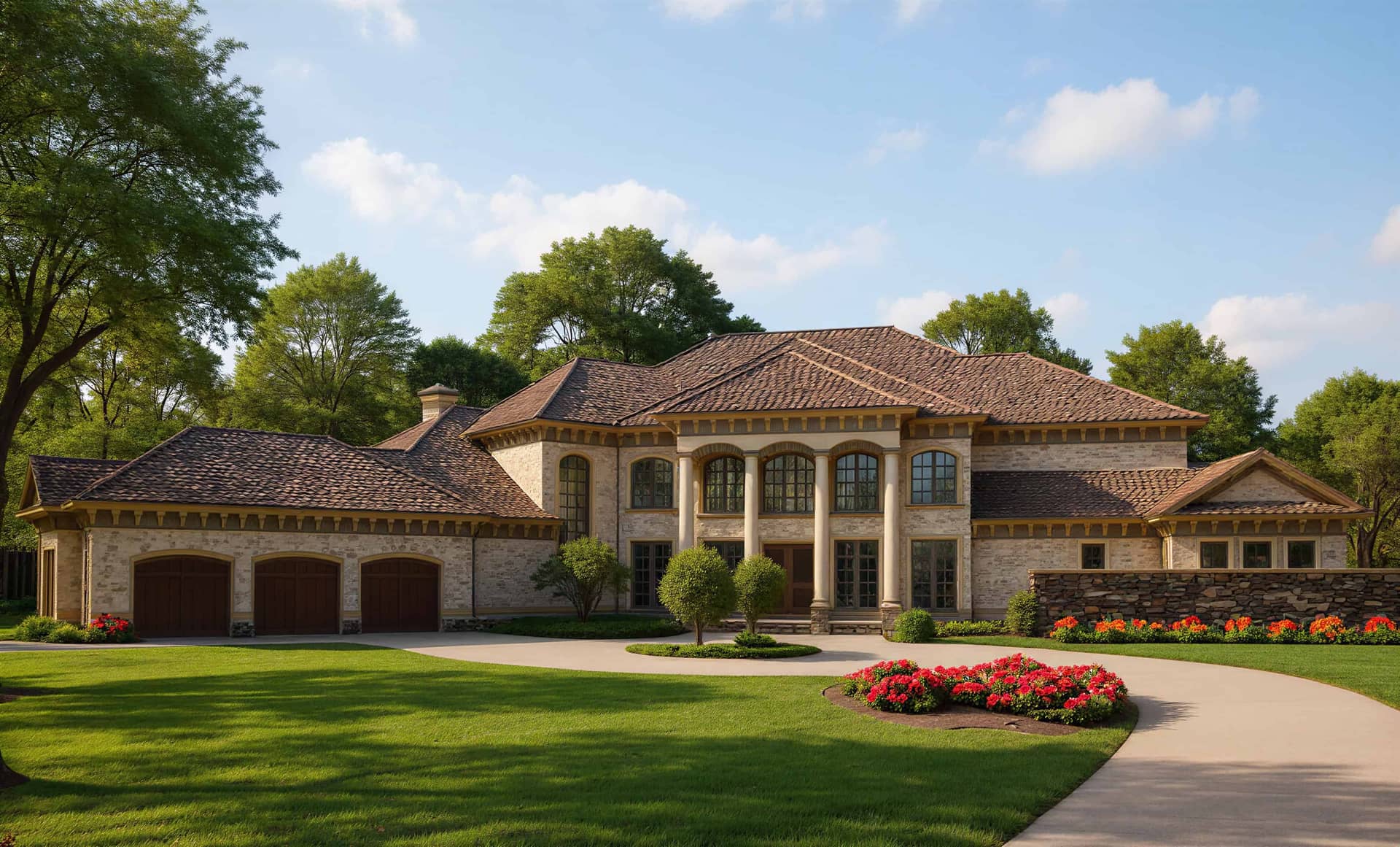

Front elevation of Luxury home (ThePlanCollection: House Plan #153-1143)

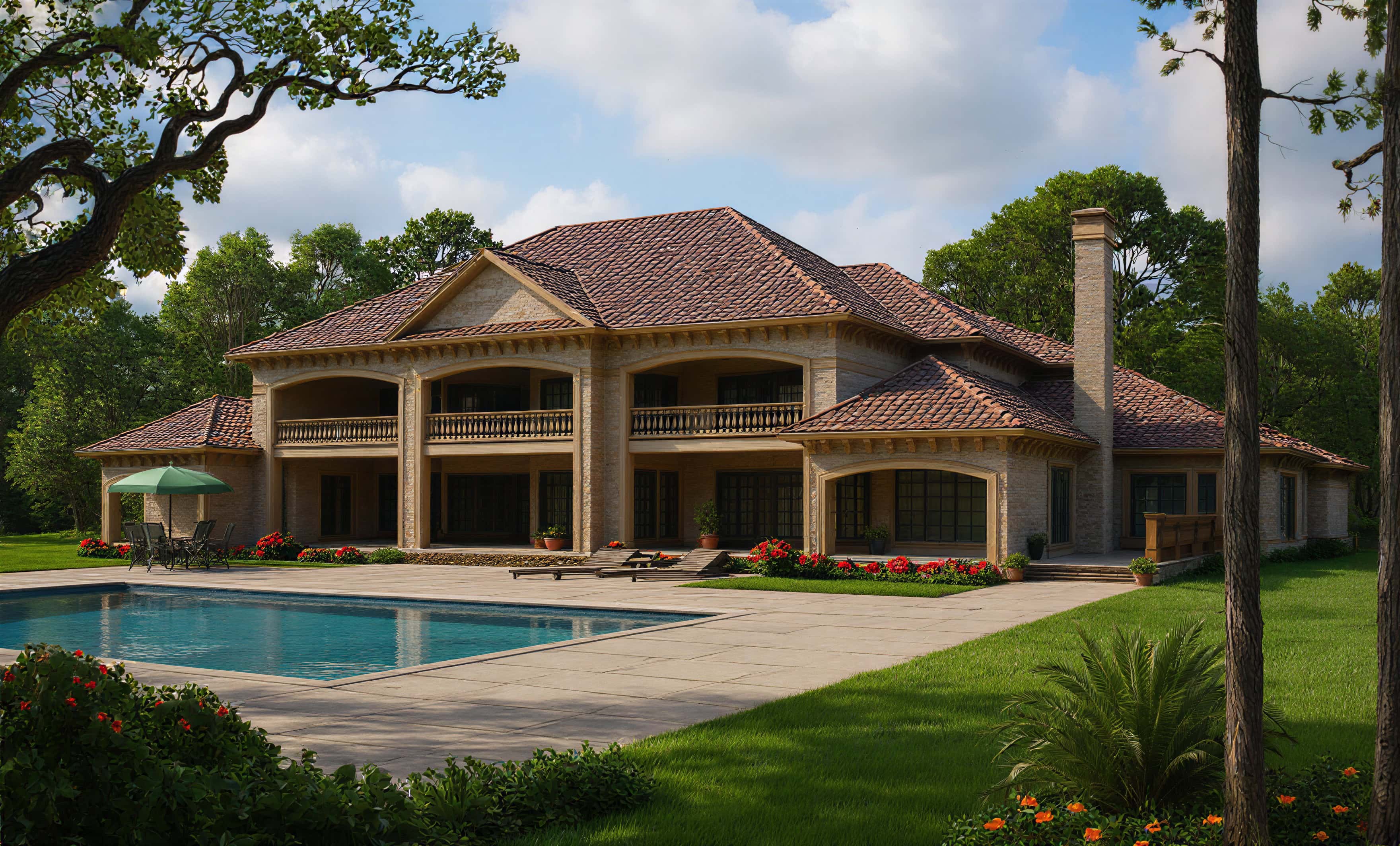

Home Plan Rear Elevation for this set of house plans.
4-Bedroom, 8484 Sq Ft Luxury House Plan - 153-1143 - Front Exterior
Home Plan Rear Elevation for this set of house plans.

About Plan # 153-1143

About Plan # 153-1143

8484 SQUARE FEET 4 BEDROOMS 4 FULL BATH 2 HALF BATH
2 FLOOR 146' 5" WIDTH 111' 7" DEPTH 3 GARAGE BAY

If you are looking for elegance, flares, and beauty, look no further than this luxurious home totaling 8484 living square feet. This estate is the essence of what the founders of the Mediterranean style had in mind for a house plan. As you enter on the main level, you will notice many wonderful architectural flares including the spiral staircase on either side of the grand foyer, the balcony connecting the two on the second level, and the arched opening into the fantastic great room. The exterior lanai has endless possibilities, lined with arched openings and even having an optional outdoor kitchen. The master suite is located in the east wing of the main floor plan. This master suite has an exclusive sitting area, a master bath, and large closet areas. This wing of the house also has an extremely convenient exercise room, perfect for use in the early mornings or late nights without inconveniencing anyone else. The main floor plan also has a laundry room, a study or office, a dining room, and a kitchen. The kitchen has a breakfast area, hearth room, kitchen island, pantry, and butler's pantry.

Continuing to the southwest wing of the home is the guest wing, fully equipped with a convenient bathroom and covered porch area. If you thought that this plan couldn't get any better, think again!

The second-floor plan has a spacious covered porch extending out of the game room. The second floor also has commodities such as a home theater room with elevated seating included similar to that which is found in actual movie theaters, a second-floor laundry room, and a craft room. This floor plan also has two bedrooms and plenty of storage space. This plan is the epitome of what a luxurious Mediterranean style house plan should be.

Each plan set includes the following:

  • floorplan

  •  4 side exterior elevations,

  • electrical plan,

  • birds-eye view of the roof,

  • foundation plan,

  • and some miscellaneous details.

    Please Note

    We do not offer plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

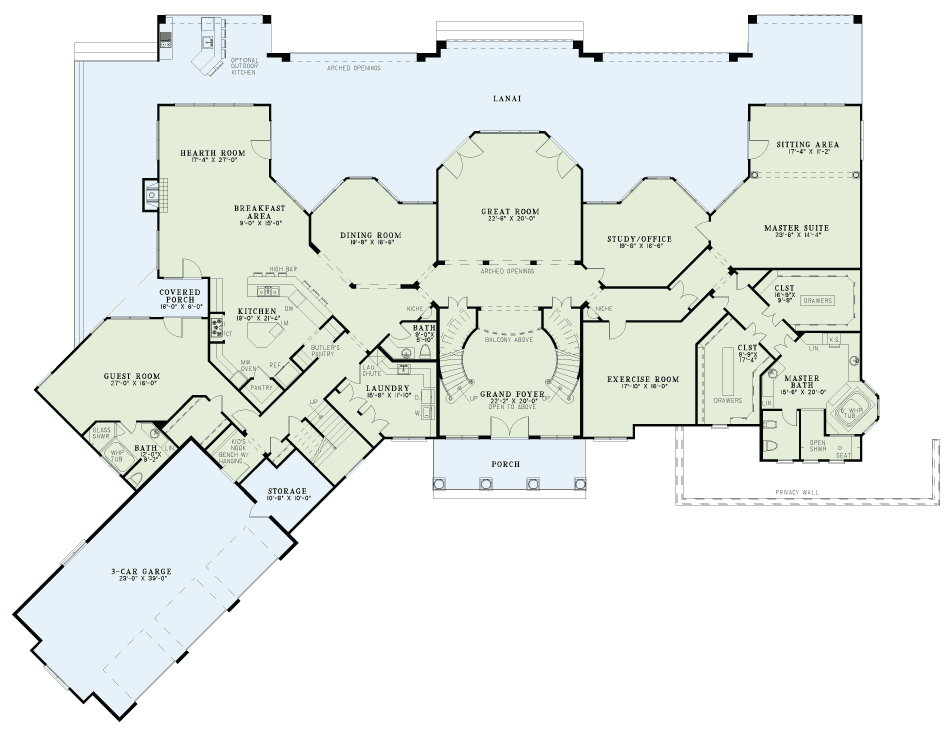

Home Plan: #153-1143 Floor Plan First Story - main level Floor Plan Main Level of Luxury Plan #153-1143

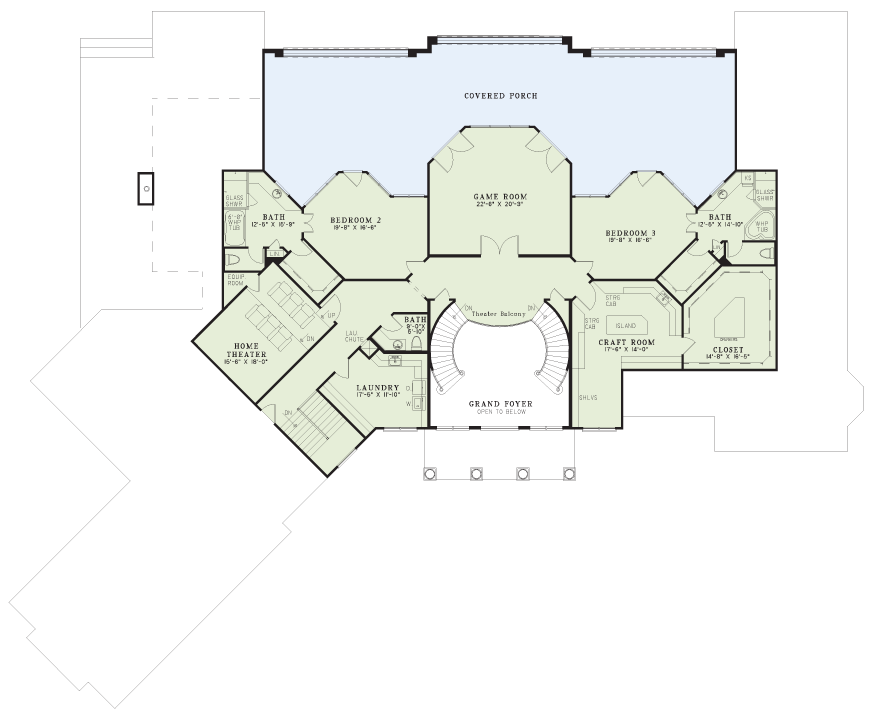

#153-1143 Floor Plan Second Story - upper level Floor Plan Upper Level of Luxury Plan #153-1143
Home Plan: #153-1143 Floor Plan First Story - main level Floor Plan Main Level of Luxury Plan #153-1143
#153-1143 Floor Plan Second Story - upper level Floor Plan Upper Level of Luxury Plan #153-1143
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 153-1143
Floors:
2
Bedrooms:
4
Full Baths:
4
Half Baths:
2
Garage :
3

Square Footage

Heated Sq Feet:
8484
Main Floor:
5492
Unfinished Sq Ft:

Dimensions

Width:
146' 5"
Depth:
111' 7"
Ridge Height:
41' 2"

Architectural Styles

Mediterranean
Luxury
Transitional
California Style
In-Law Suite

Roofing Type

Hip

Roof Pitch

8/12

Ceiling Height

10 Foot Ceiling

Special Feature

In Home Gym
Fireplace
Dining Room
Guest Room
Home Office
Game Room
Main Level Laundry
Home Theater
Media Room
Split Bathroom
Storage
Exercise Room
Open Floor Plan

Garage Type

Attached Garage
Courtyard Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Flat Site
View Lot

Kitchen Features

Kitchen Island
Butler's Pantry
Nook/Breakfast Area
Walk-in Pantry
Outdoor Kitchen
Peninsula/Eating Bar

Porches and Exterior Features

Courtyard
Covered Front Porch
Covered Rear Porch
Covered Lanai

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet
Sitting Area
Split Master Bedroom

Additional Notes from Designer

PLEASE NOTE: Plans by this designer do NOT usually come with FRAMING - some plans may have framing available for an extra fee - please contact us to find out about a specific plan & we will check with the designer!! Additionally: For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. If you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions! PLEASE NOTE: Multi-licenses are available. Please contact us with any que

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
