1-Bedroom, 784 Sq Ft Country Plan with Nook/Breakfast Area

This image shows the Country/Ranch Style of this house plan.
1-Bedroom, 784 Sq Ft Country Home Plan - 146-1781 - Main Exterior

About Plan # 146-1781

About Plan # 146-1781

784 SQUARE FEET 1 BEDROOMS 1 FULL BATH 0 HALF BATH
1 FLOOR 32' 0" WIDTH 31' 0" DEPTH 0 GARAGE BAY
Big on style and sophistication, this well-proportioned home will meet the high expectations of prospective owners. The sense of space is expanded in the Great Room by the vaulted ceiling and open kitchen. The window seat in the kitchen is a great spot to enjoy a cup of coffee. The deck extends living to the outdoors.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

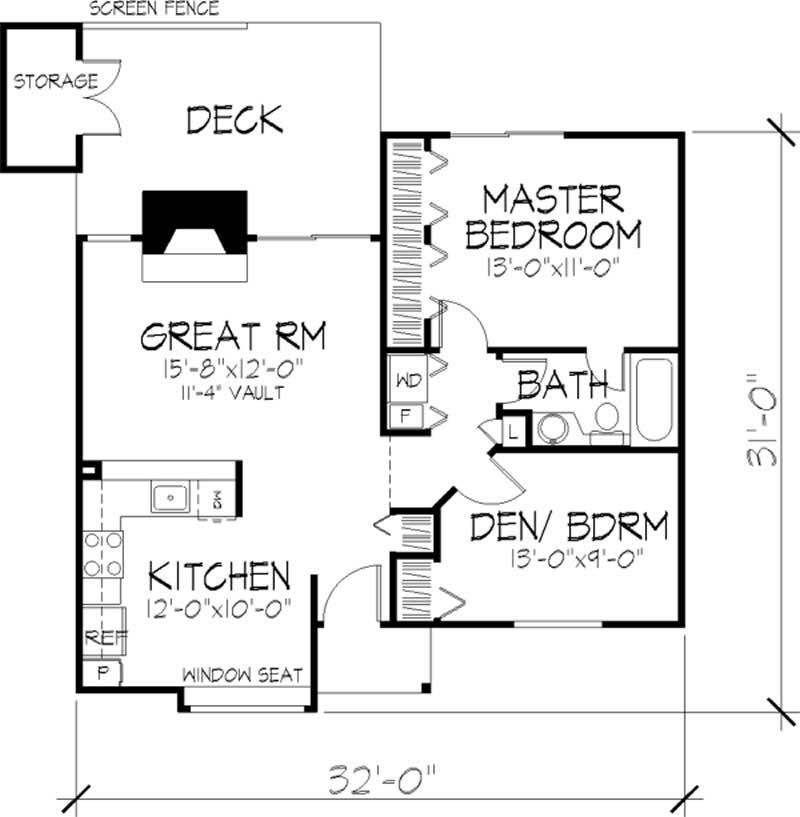

Home Plan: #146-1781 Floor Plan First Story - first story Floor Plan First Story of Country Plan #146-1781
