4-Bedroom, 7425 Sq Ft Country Plan with Master Bathroom

Main image for luxury country manor home. (House Plan #115-1120)
Home Plan Rear Elevation

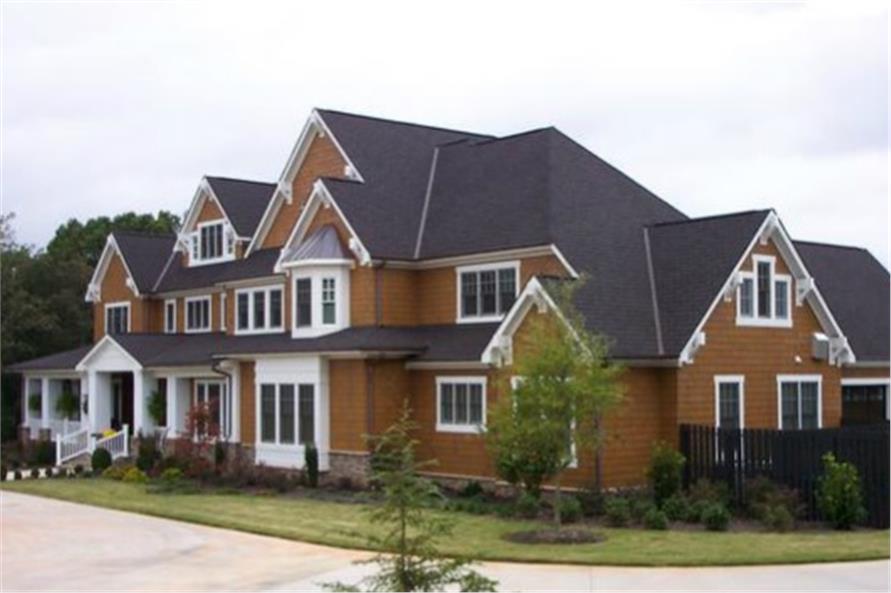

115-1120: Home Exterior Photograph left

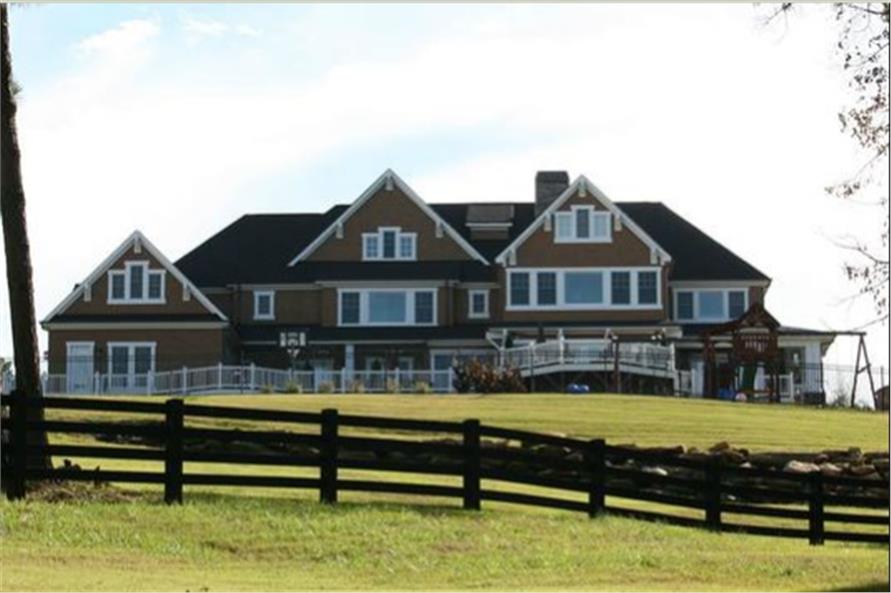

115-1120: Home Exterior Photograph rear

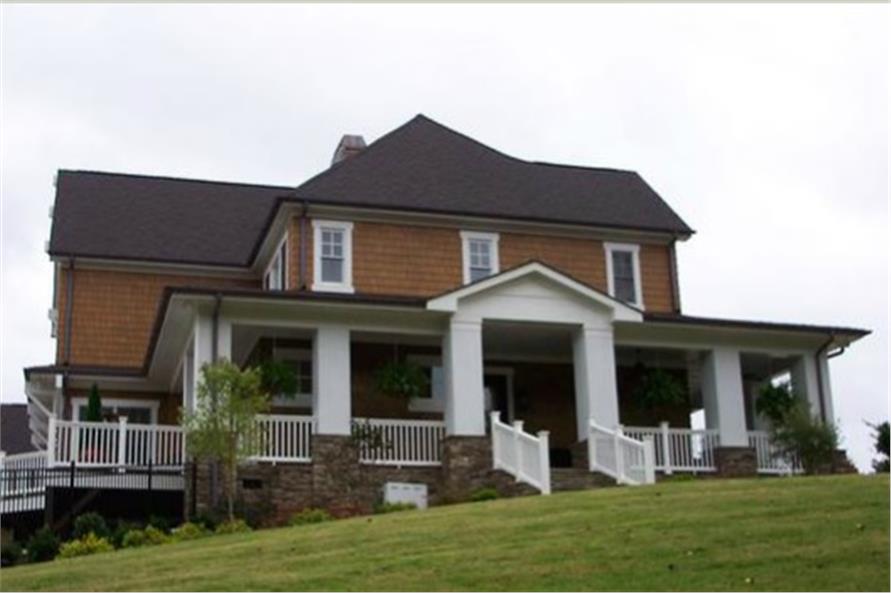

115-1120: Home Exterior Photograph right
115-1120: Home Interior Photograph-Dining Room
115-1120: Home Interior Photograph-Living Room
4-Bedroom, 7425 Sq Ft Country House Plan - 115-1120 - Front Exterior
Home Plan Rear Elevation
115-1120: Home Exterior Photograph left
115-1120: Home Exterior Photograph rear
115-1120: Home Exterior Photograph right
115-1120: Home Interior Photograph-Dining Room
115-1120: Home Interior Photograph-Living Room

About Plan # 115-1120

About Plan # 115-1120

7425 SQUARE FEET 4 BEDROOMS 4 FULL BATH 2 HALF BATH
3 FLOOR 118' 0" WIDTH 62' 0" DEPTH 4 GARAGE BAY

This is a luxurious Craftsman style Country house plan with big rooms and plenty of amenities. The wrap around porch provides outdoor living space and expands the interior square footage. The foyer is flanked by the living and dining rooms. The great room ahead is defined by the large center-piece fireplace. The kitchen is open and as big as they come. The house plans also call for a butler's pantry and a walk-in pantry, to extend the kitchen storage and preparation options. The oversized laundry room has plenty of counter space for crafts as well. A guest suite also resides on the main floor. The upper floor is dedicated to the bedrooms, offering seclusion and privacy. A large bonus room gives room for expansion. A third story houses office space and more storage.

Each plan set includes the following:

  • DETAIL SHEET: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • FLOOR PLAN: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • FOUNDATION PLAN: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information.
  • ROOF PLAN: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
  • FRONT, REAR, AND SIDE ELEVATIONS: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • BUILDING SECTION SHEET: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

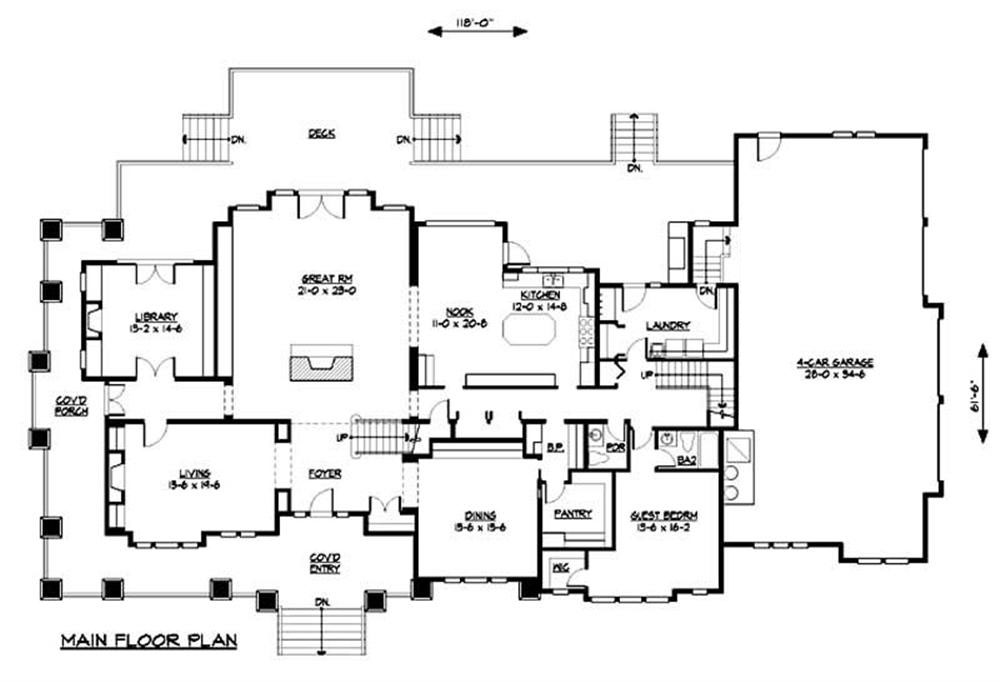

Home Plan: #115-1120 Floor Plan First Story - first story Floor Plan First Story of Country Plan #115-1120

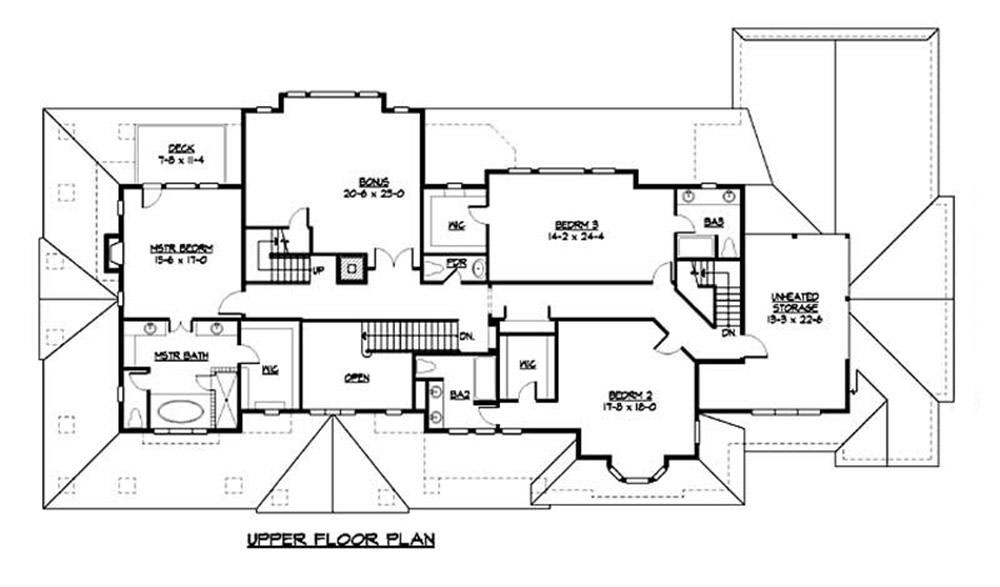

#115-1120 Floor Plan Second Story - second story Floor Plan Second Story of Country Plan #115-1120

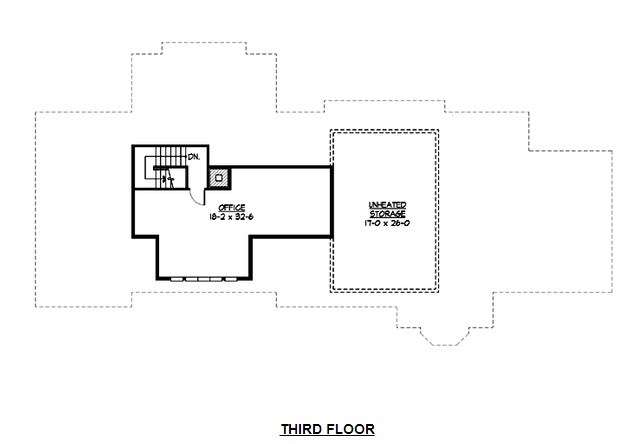

#115-1120 Floor Plan Third Story - third story Floor Plan Third Story of Country Plan #115-1120
