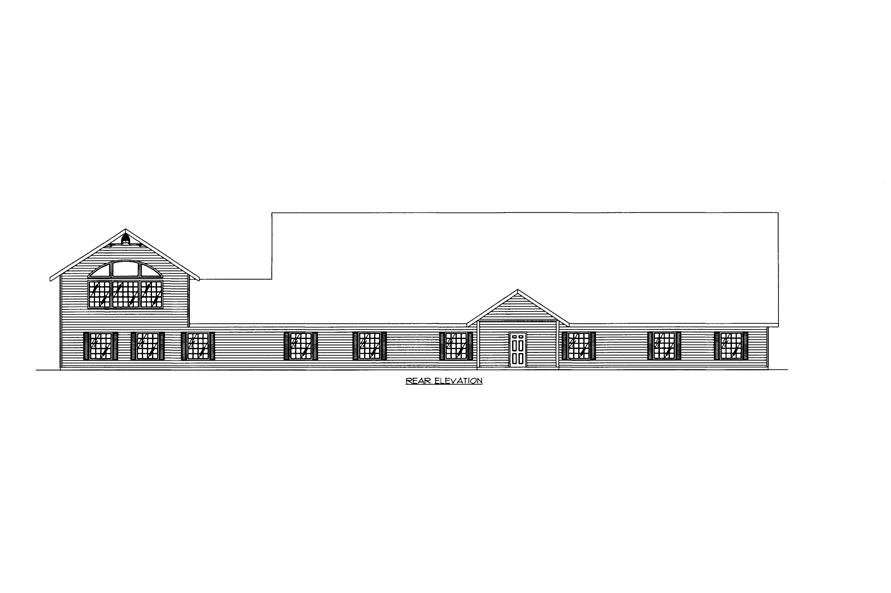

132-1283: Home Plan Rear Elevation
15-Bedroom, 7903 Sq Ft Luxury House Plan - 132-1283 - Front Exterior

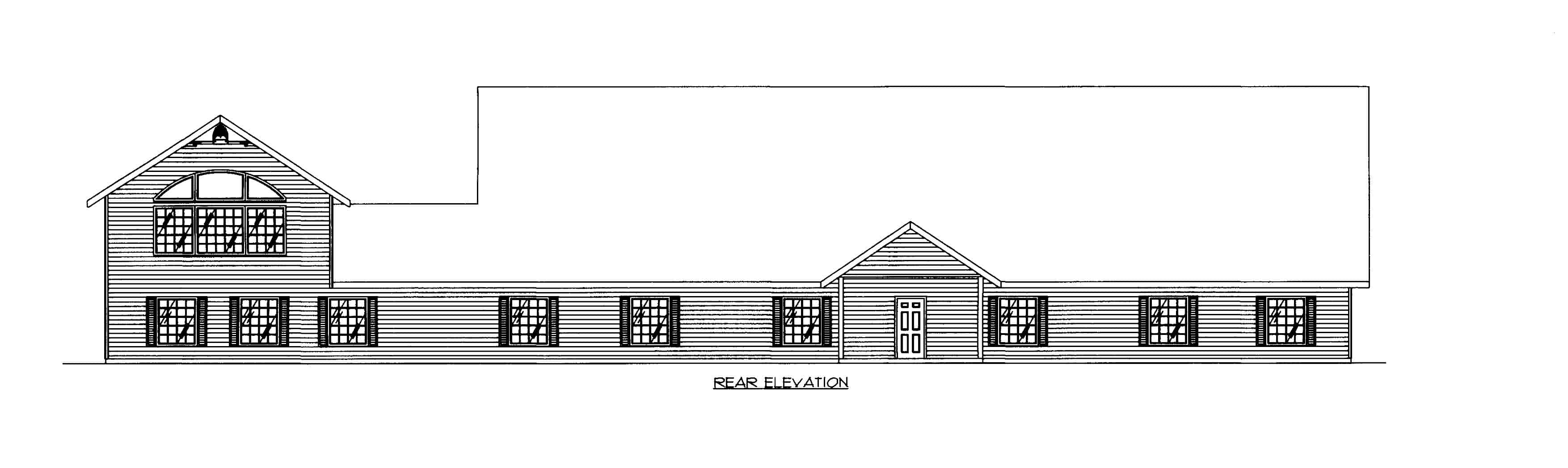

132-1283: Home Plan Rear Elevation

About Plan # 132-1283

About Plan # 132-1283

7158 SQUARE FEET 15 BEDROOMS 1 FULL BATH 17 HALF BATH
1 FLOOR 137' 2" WIDTH 64' 0" DEPTH 0 GARAGE BAY

*Standard Frame Construction *Assisted Living Home *15 Bedrooms *Large Meeting Room *Large Office *Large Dining Room *Large Great Room With Fireplace *Covered Porch *Large Kitchen With Pantry *Double Laundry Room

The Overall Depth with the Covered Patio 74'

The Depth of the House Only is 64'

The Overall Width is 137' and 2''





Each plan set includes the following:

  • Exterior elevations: shows the home on all four sides, calls out exterior finishes, rooflines, window and door locations.
  • Floor plans: includes interior and exterior dimensions, window/door schedule, wall framing details.
  • Foundation plan: shows footing, stem wall, and slab placement, including all connection details.
  • Floor and roof framing plans show truss/rafter placements, including all beams/connection details.
  • Cross-sections: cut-through view of the structure from roof to foundation, shows framing, plate heights, insulation, etc.
  • Electrical layout
  • General notes/details to cover the entirety of the project

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

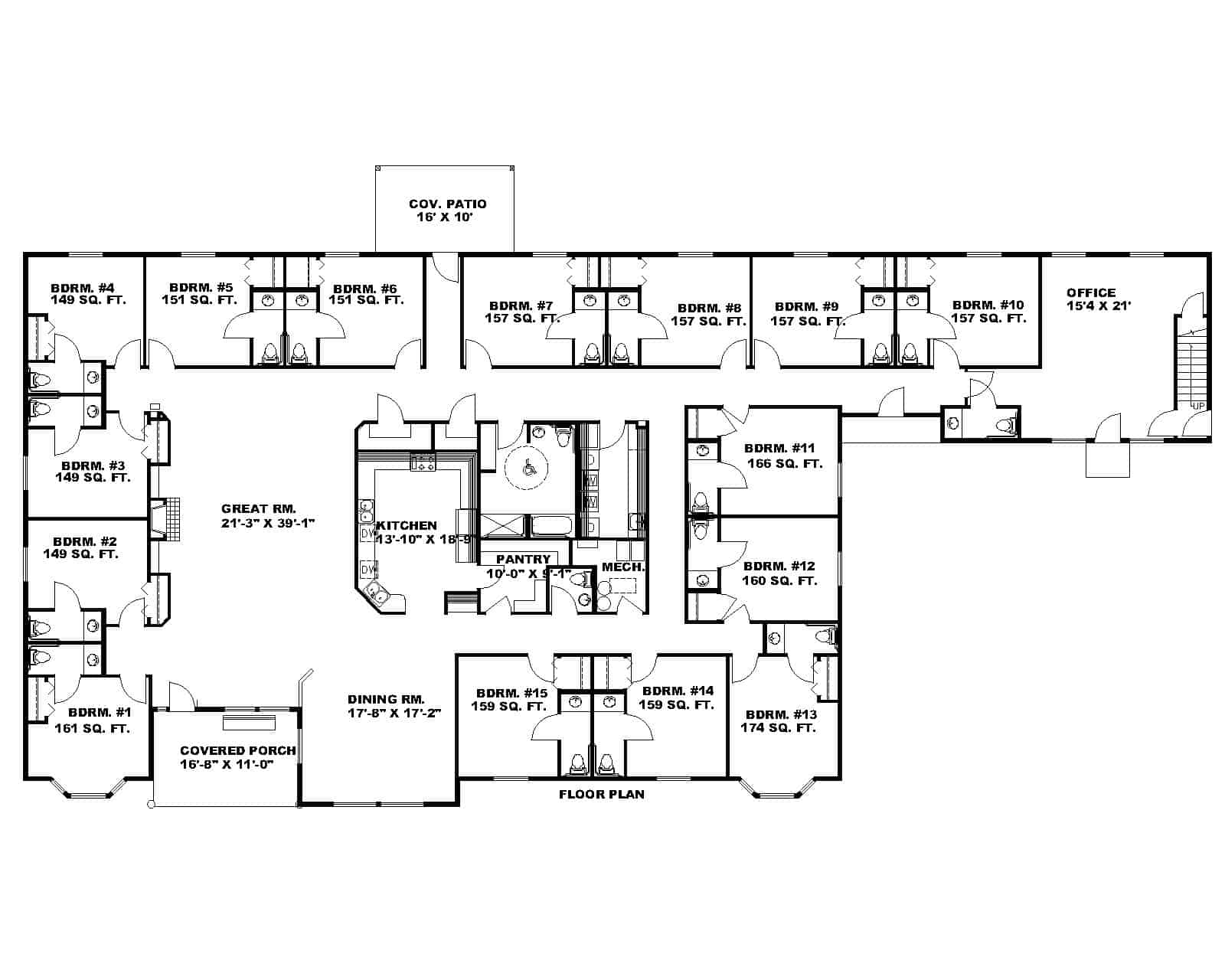

Home Plan: #132-1283 Floor Plan First Story - first story Main Level of Luxury Plan #132-1283
