4-Bedroom, 6624 Sq Ft Multi-Unit Home Plan - 101-1724 - Main Exterior

About Plan # 101-1724

About Plan # 101-1724

6624 SQUARE FEET 4 BEDROOMS 3 FULL BATH 2 HALF BATH
1 FLOOR 104' 0" WIDTH 70' 4" DEPTH 3 GARAGE BAY
All specs are per unit. Total square footage, width, and depth are both units combined.

Each plan set includes the following:

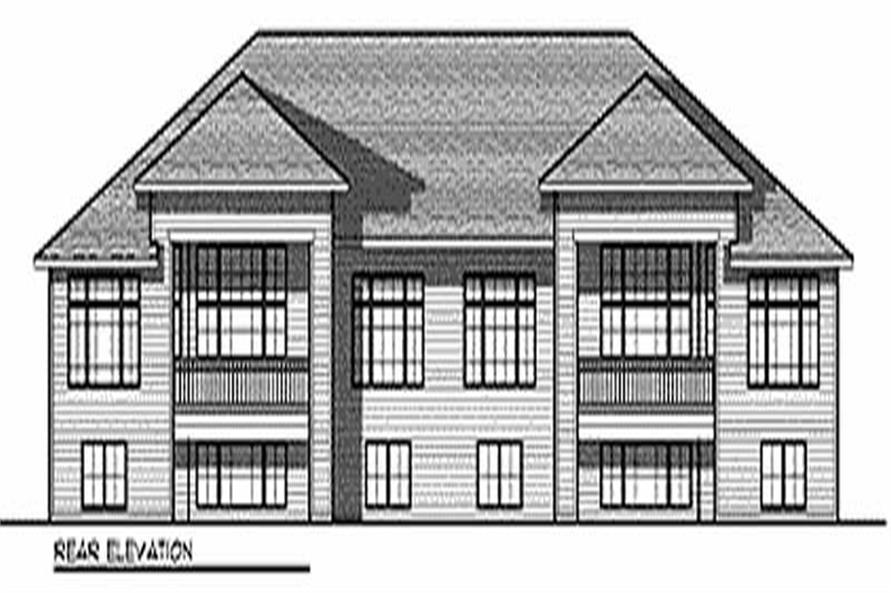

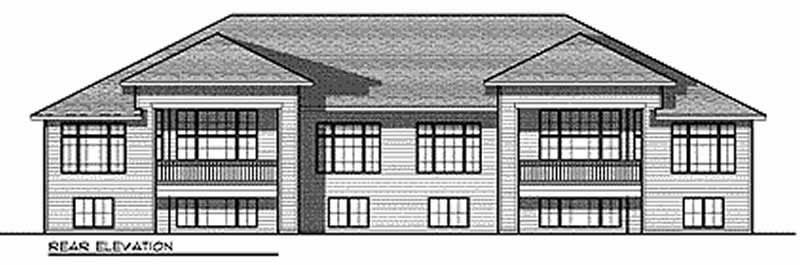

  • Front, Back & Side Elevations
  • Floor Plans
  • Electrical Layout (location of outlets, switches, etc. - it does not have wiring schematics)
  • Roof Plan (Birdseye view)
  • Foundation Layout
  • Wall & Stair Sections
  • Cross Section
  • Kitchen Layout
  • General Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and locations.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

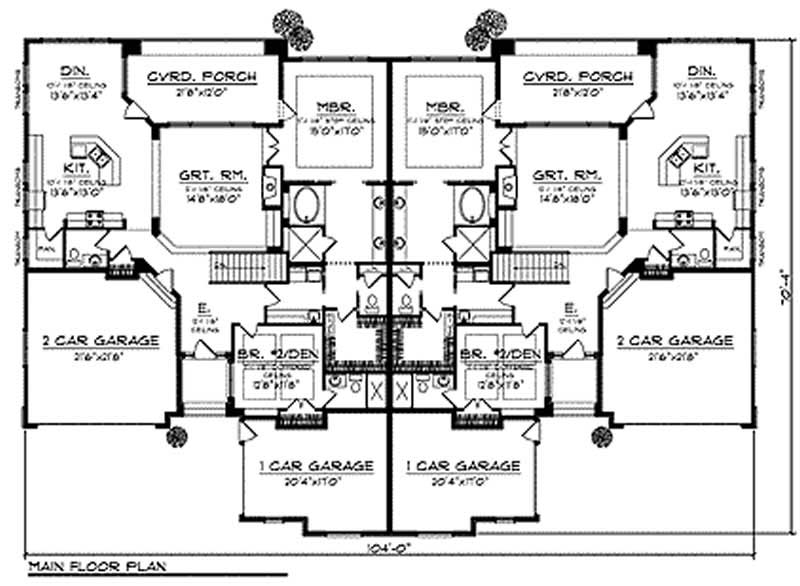

Home Plan: #101-1724 Floor Plan First Story - main Floor Plan First Story of Multi-Unit Plan #101-1724

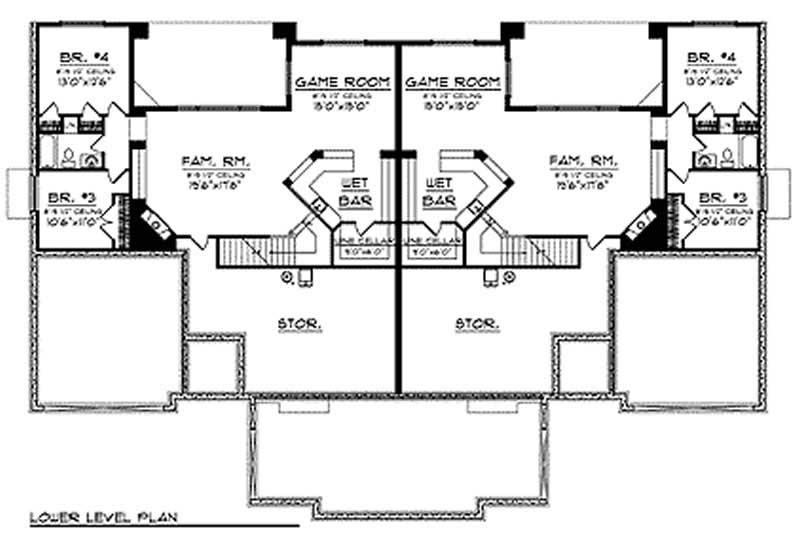

#101-1724 Floor Plan Basement - lower Floor Plan Basement of Multi-Unit Plan #101-1724

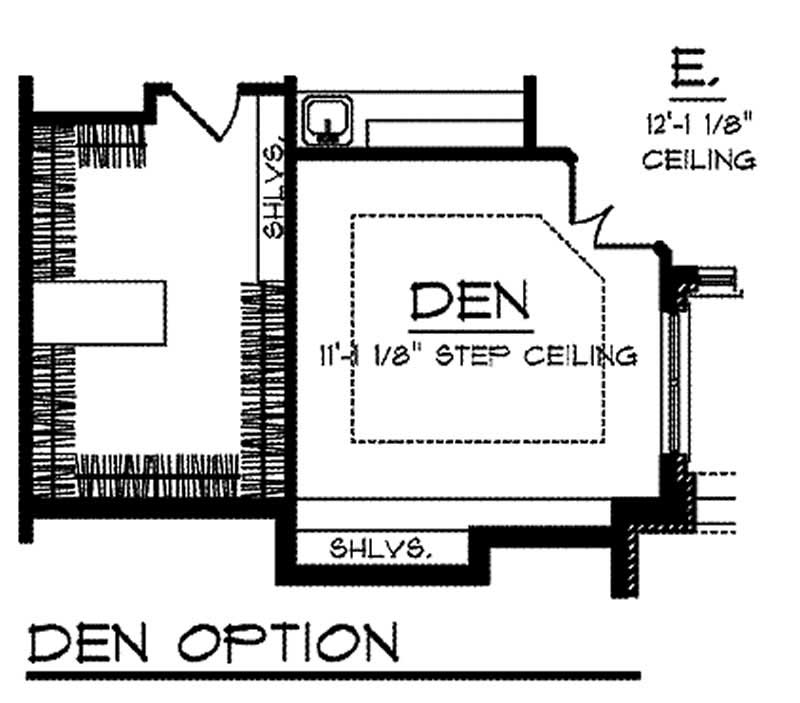

#101-1724 Floor Plan Bonus Room - den option Floor Plan Bonus Room of Multi-Unit Plan #101-1724
Home Plan: #101-1724 Floor Plan First Story - main Floor Plan First Story of Multi-Unit Plan #101-1724
#101-1724 Floor Plan Basement - lower Floor Plan Basement of Multi-Unit Plan #101-1724
#101-1724 Floor Plan Bonus Room - den option Floor Plan Bonus Room of Multi-Unit Plan #101-1724
