Duplex Plan with Fireplace and Patio Space

About House Plan #146-2075

648

Sq Ft

1

Bedrooms

1

Baths

0

Half Baths

0

Cars

2

Stories

62' 0'

Width

47

Depth

Starting at$1425.00What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Free Cost Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

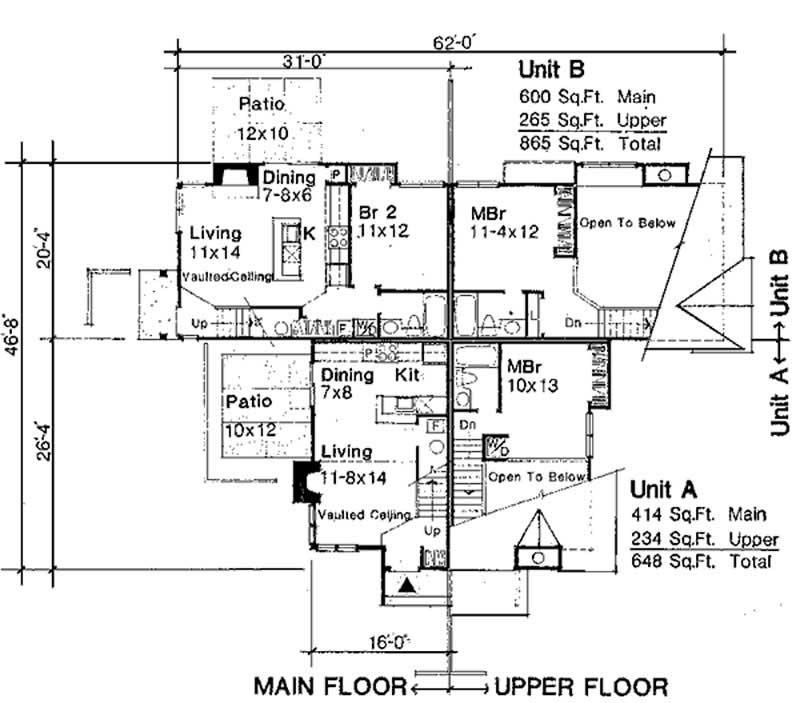

Main Level

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

House Plan Description

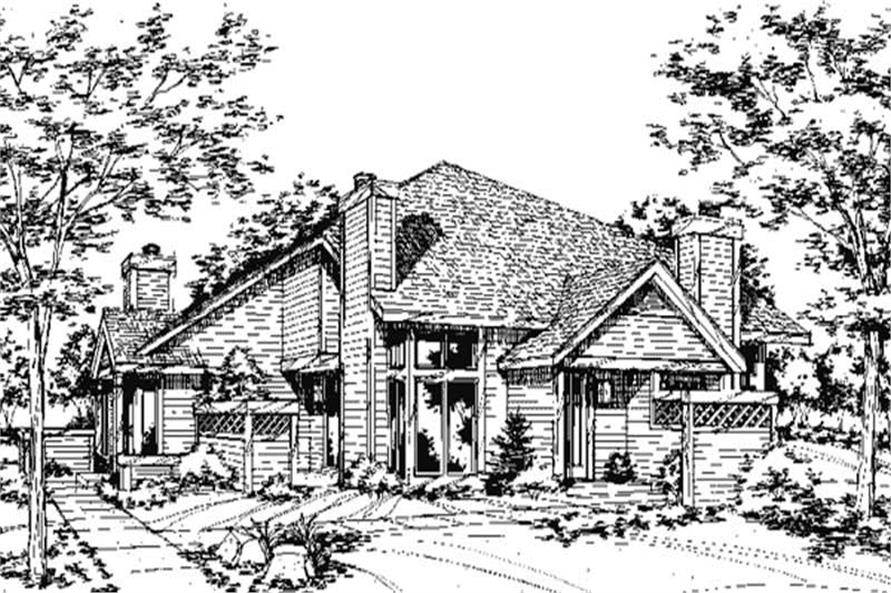

This pleasant multi-unit design enjoys all the comfort and privacy of a single-family home, while affording you all the efficiencies of low-cost living. The open kitchen design allows for an ample dining area which opens to the rear patio, and the adjoining living room features a fireplace and a vaulted ceiling. The upstairs master bedroom enjoys a private bath and a loft overlooking the living room, and a second bedroom on the main floor sleeps children or guests comfortably.

Home Details

Summary

Plan #:146-2075

Starting at:$1425.00

Floors:2

Bedrooms:1

Full Baths:1

Half Baths:0

Garage:

Square Footage

Heated Area:648 Sq. Ft.

First Floor:414 Sq. Ft.

Second Floor:234 Sq. Ft.

Unheated Area:

Dimensions

Ridge Height:30' 0''

Architectural Styles

1 1/2 Story

Exterior Wall Material

Wood Siding

Roofing Type

Hip

Special Feature

FireplaceGuest Room

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Foundation plan

Exterior elevations

Floor plans

Cross-sections

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
