1-Bedroom, 4823 Sq Ft Contemporary Plan with Family Room

Front elevation of Contemporary home (ThePlanCollection: House Plan #162-1003)

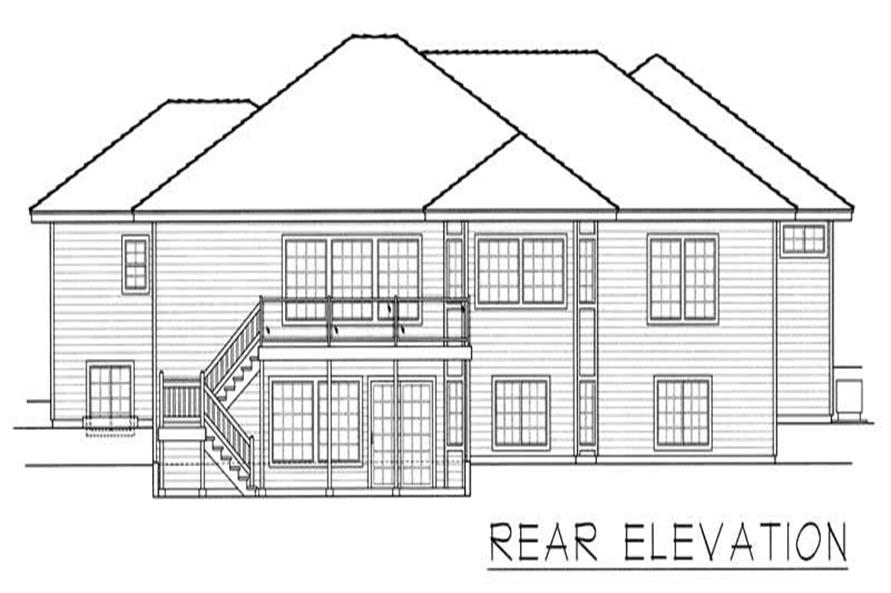

House Plan RDI-2583R1-DB Rear Elevation
1-Bedroom, 4823 Sq Ft Contemporary Home Plan - 162-1003 - Main Exterior
House Plan RDI-2583R1-DB Rear Elevation

About Plan # 162-1003

About Plan # 162-1003

4823 SQUARE FEET 1 BEDROOMS 3 FULL BATH 1 HALF BATH
1 FLOOR 76' 6" WIDTH 69' 0" DEPTH 3 GARAGE BAY

This home is perfect for a large family that wants to fit all the luxurious amenities in a neighborhood lot. All the rooms are large and spacious and the main floor has nine-foot-high ceilings. The master suite is comfortably big and the master bath features a lavish spa. Across the house is a large guest room/mother-in-law suite with a private bath and sitting area. The kitchen enjoys plenty of storage and counter space. The basement is finished with a family room, kitchenette, and five more bedrooms.

Each plan set includes the following:

  • Exterior Elevations
  • Floor Plans
  • Foundation Plan
  • Roof Framing Plan
  • Building Sections
  • Wall Sections
  • Stair Detail
  • Cabinet Elevations
  • Notes
  • Electrical Layout
  • Door & Window Sizes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

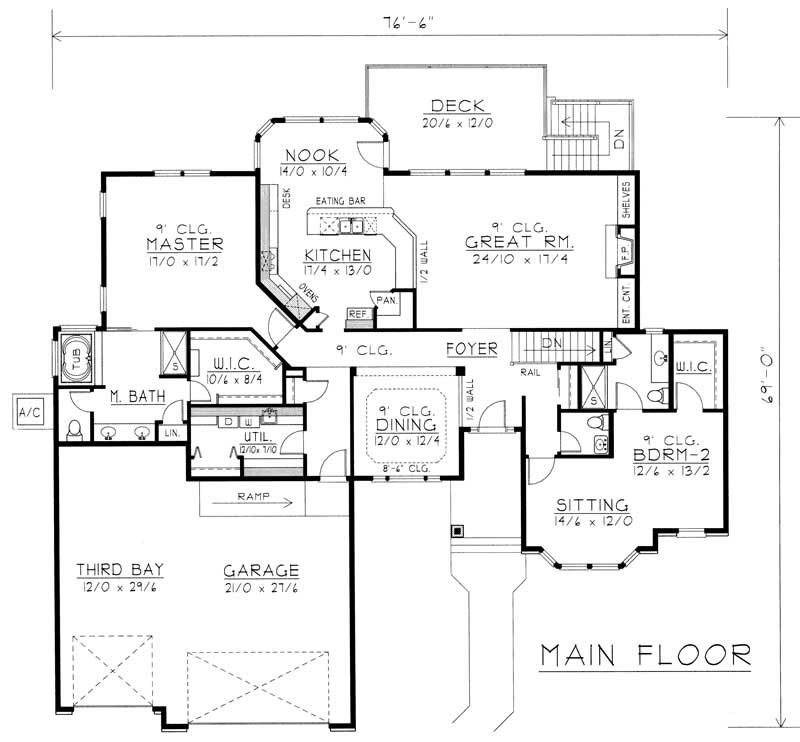

Home Plan: #162-1003 Floor Plan First Story - main Floor Plan First Story of Contemporary Plan #162-1003

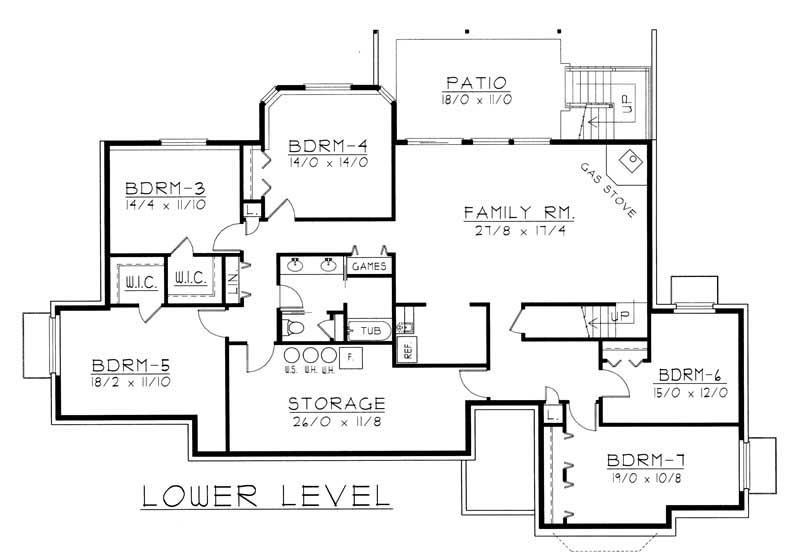

#162-1003 Floor Plan Basement - basement Floor Plan Basement of Contemporary Plan #162-1003
Home Plan: #162-1003 Floor Plan First Story - main Floor Plan First Story of Contemporary Plan #162-1003
#162-1003 Floor Plan Basement - basement Floor Plan Basement of Contemporary Plan #162-1003
