5-Bedroom, 4793 Sq Ft European Plan with Covered Front Porch

Main image for house plan # 11083
FRONT ELEVATION

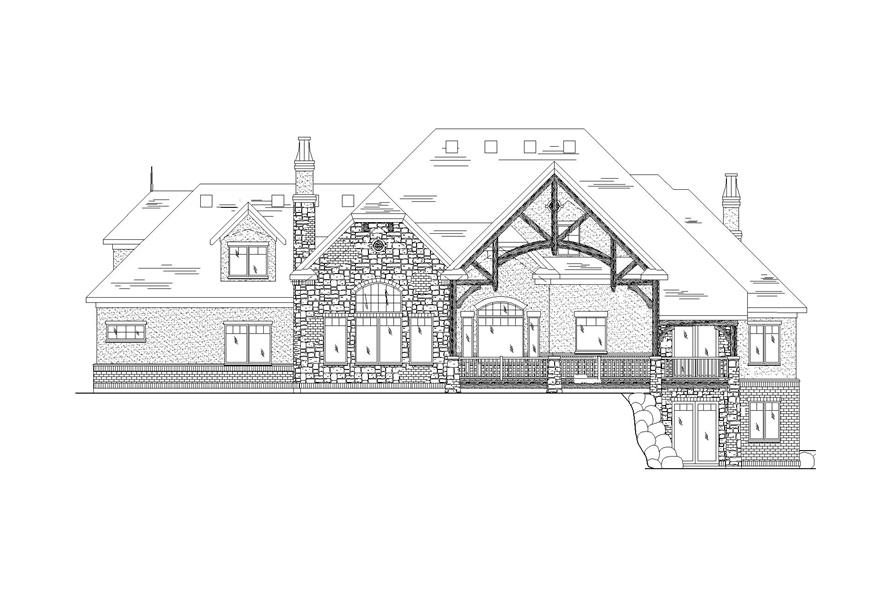

135-1198: Home Plan Rear Elevation
135-1198: Home Exterior Photograph-Front Door
5-Bedroom, 4793 Sq Ft European Home Plan - 135-1198 - Main Exterior

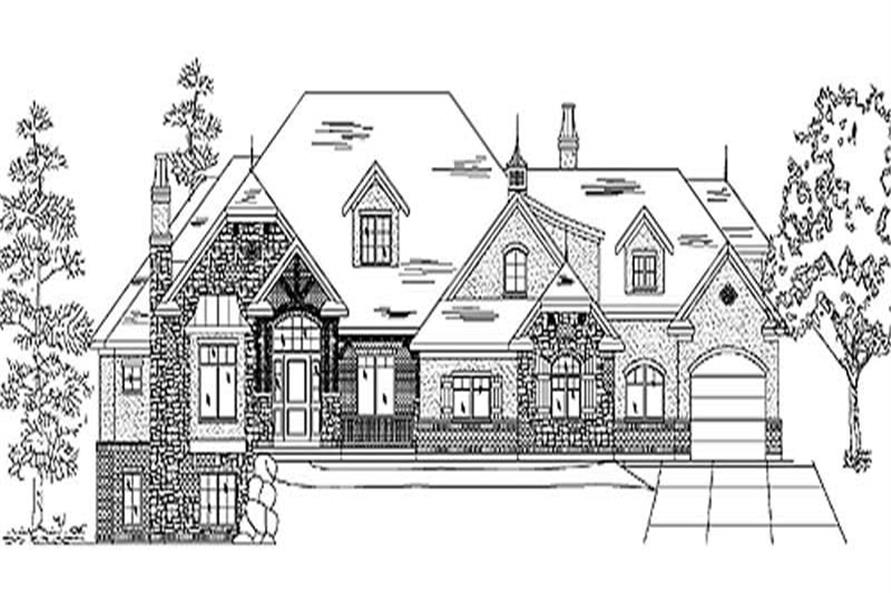

FRONT ELEVATION

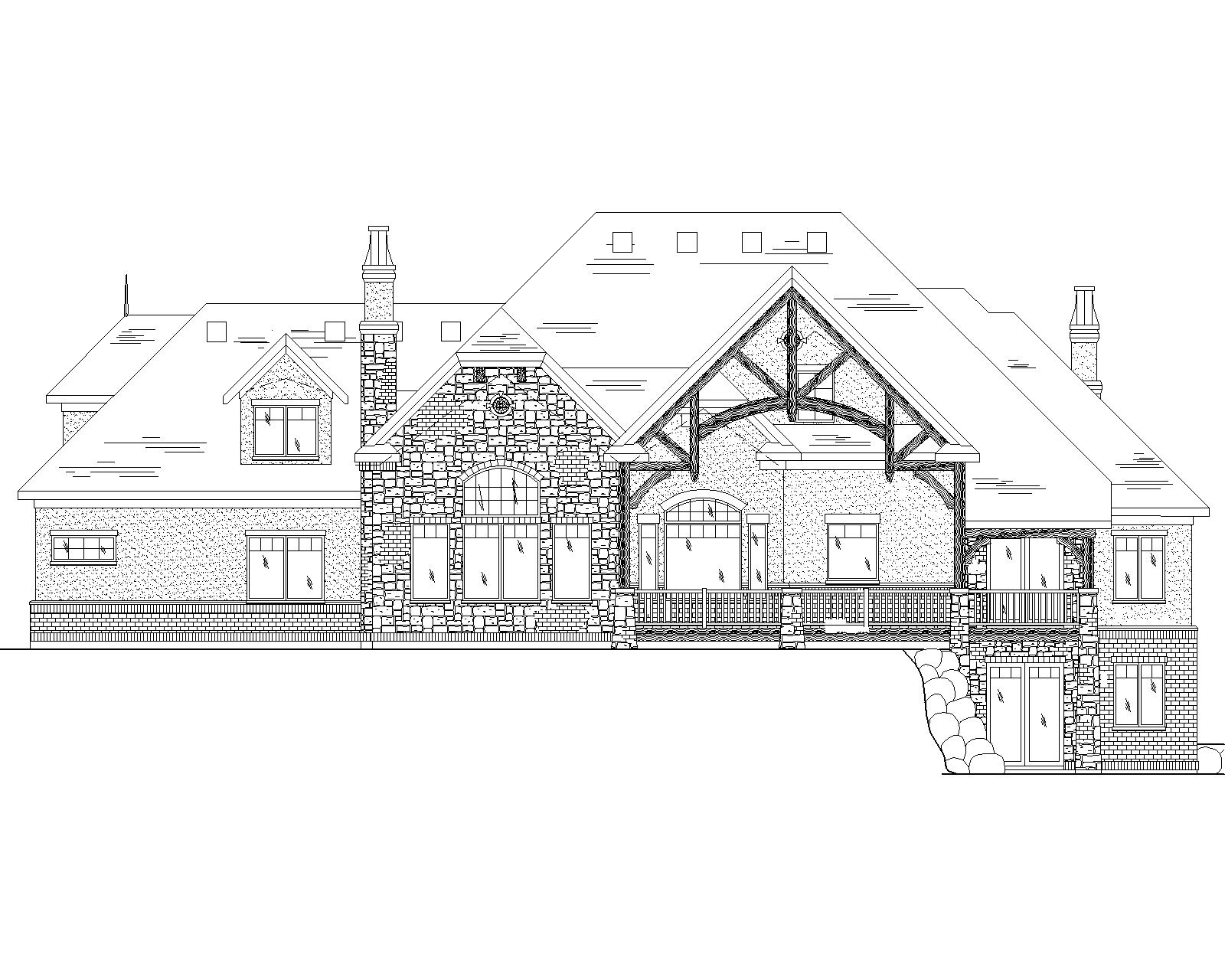

135-1198: Home Plan Rear Elevation
135-1198: Home Exterior Photograph-Front Door

About Plan # 135-1198

About Plan # 135-1198

4793 SQUARE FEET 5 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 90' 6" WIDTH 65' 10" DEPTH 3 GARAGE BAY

European House Plans

Each plan set includes the following:

  • FLOOR FRAMING PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF FRAMING PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

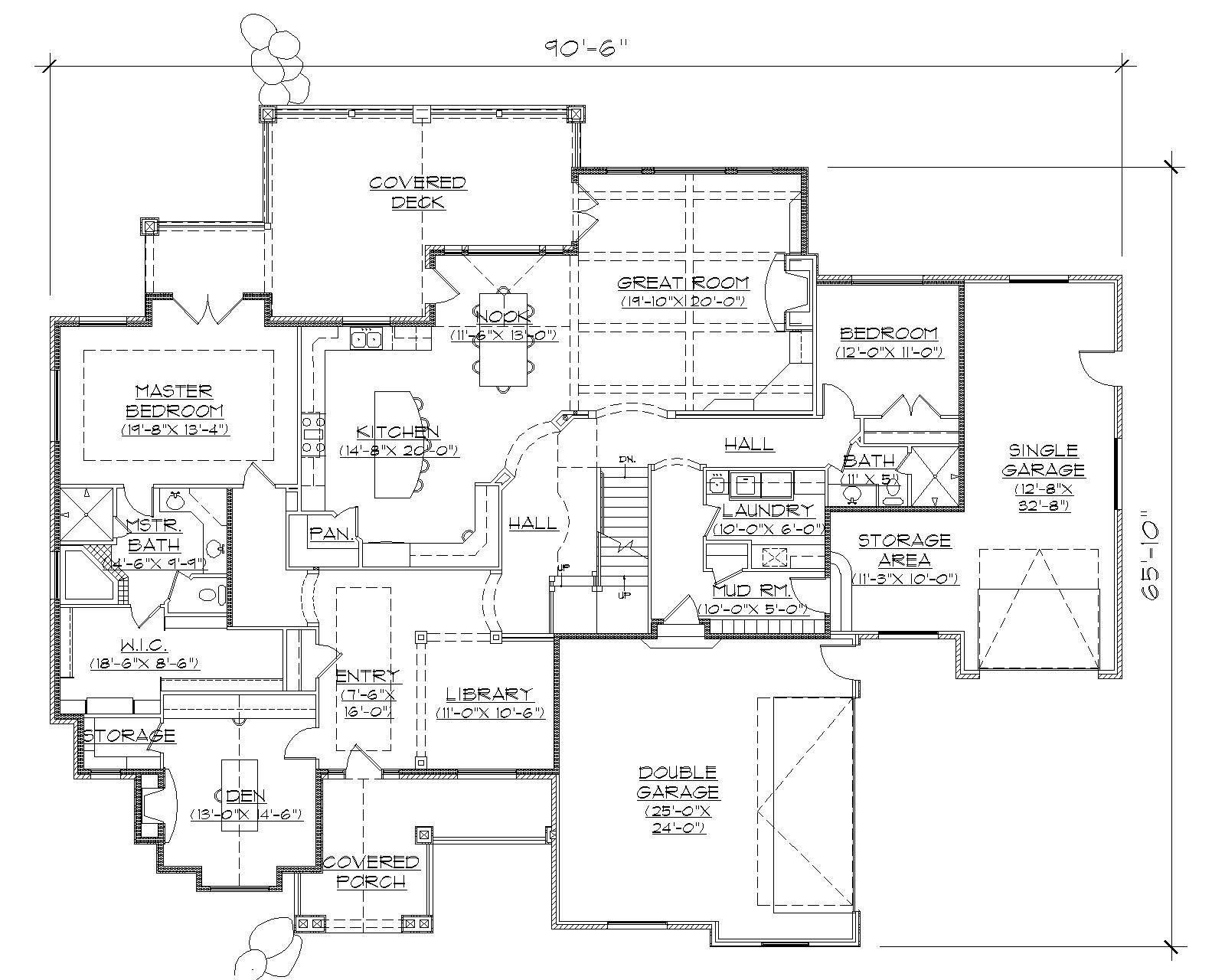

Home Plan: #135-1198 Floor Plan First Story - main Floor Plan First Story of European Plan #135-1198

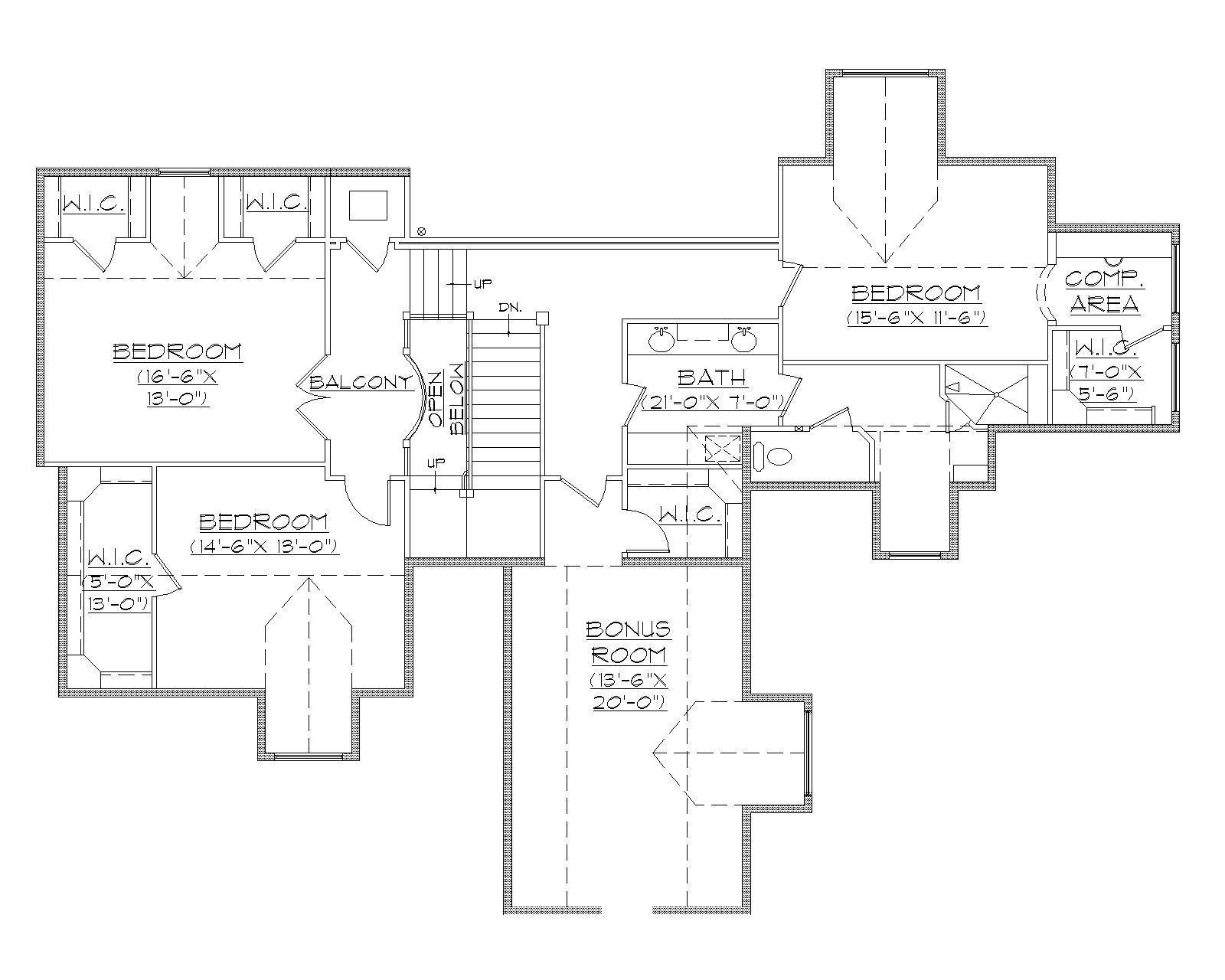

#135-1198 Floor Plan Second Story - second Floor Plan Second Story of European Plan #135-1198

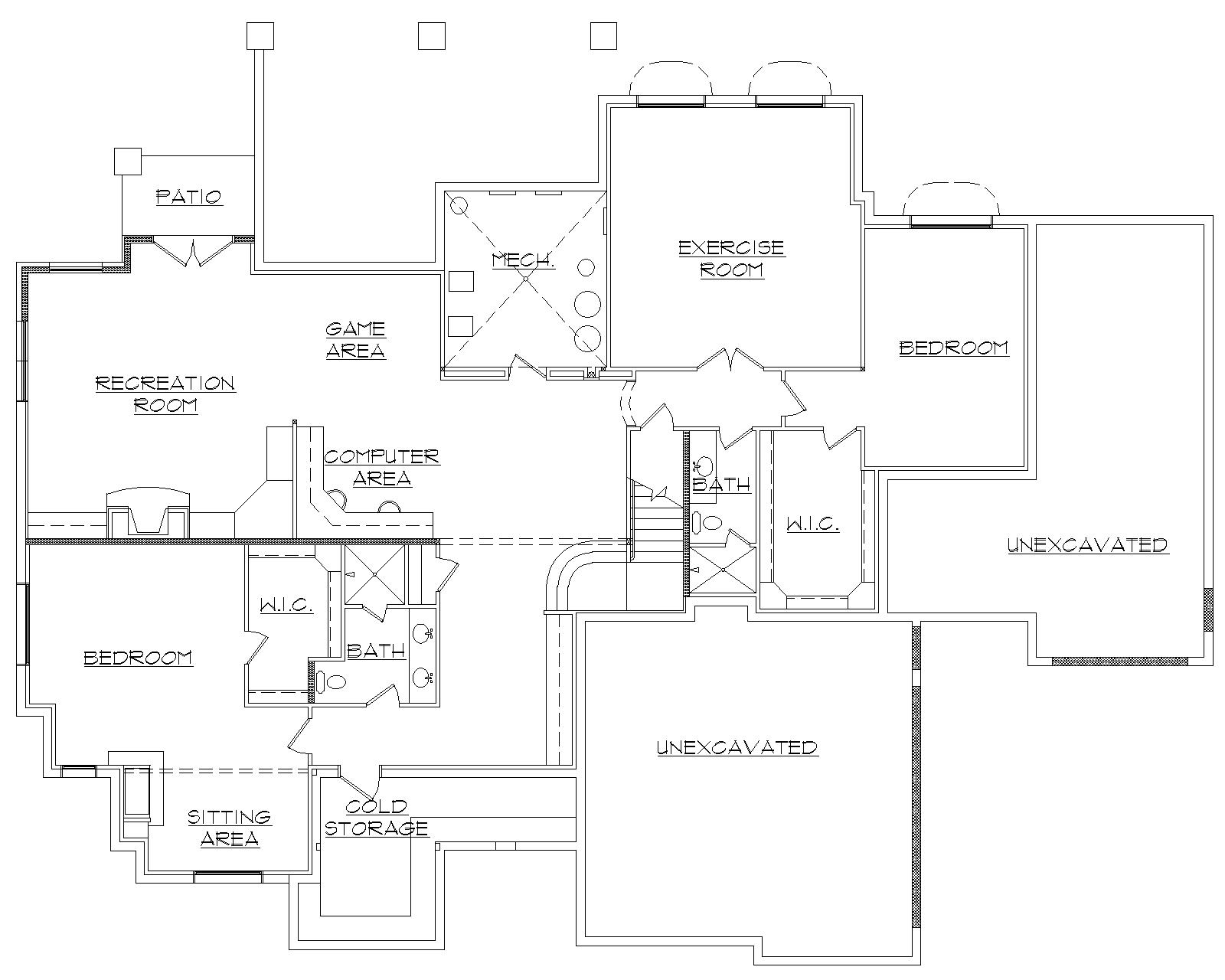

#135-1198 Floor Plan Basement - basement Floor Plan Basement of European Plan #135-1198
Home Plan: #135-1198 Floor Plan First Story - main Floor Plan First Story of European Plan #135-1198
#135-1198 Floor Plan Second Story - second Floor Plan Second Story of European Plan #135-1198
#135-1198 Floor Plan Basement - basement Floor Plan Basement of European Plan #135-1198
