7-Bedroom, 4240 Sq Ft Luxury Plan with Main Floor Master

Color Rendering of this house plan

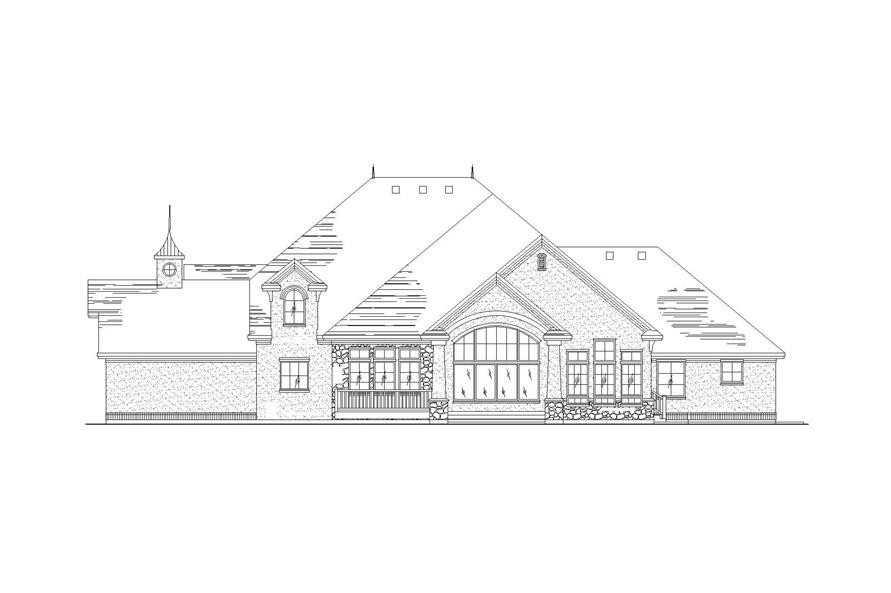

Home Plan Rear Elevation
7-Bedroom, 4240 Sq Ft Luxury House Plan - 135-1061 - Front Exterior

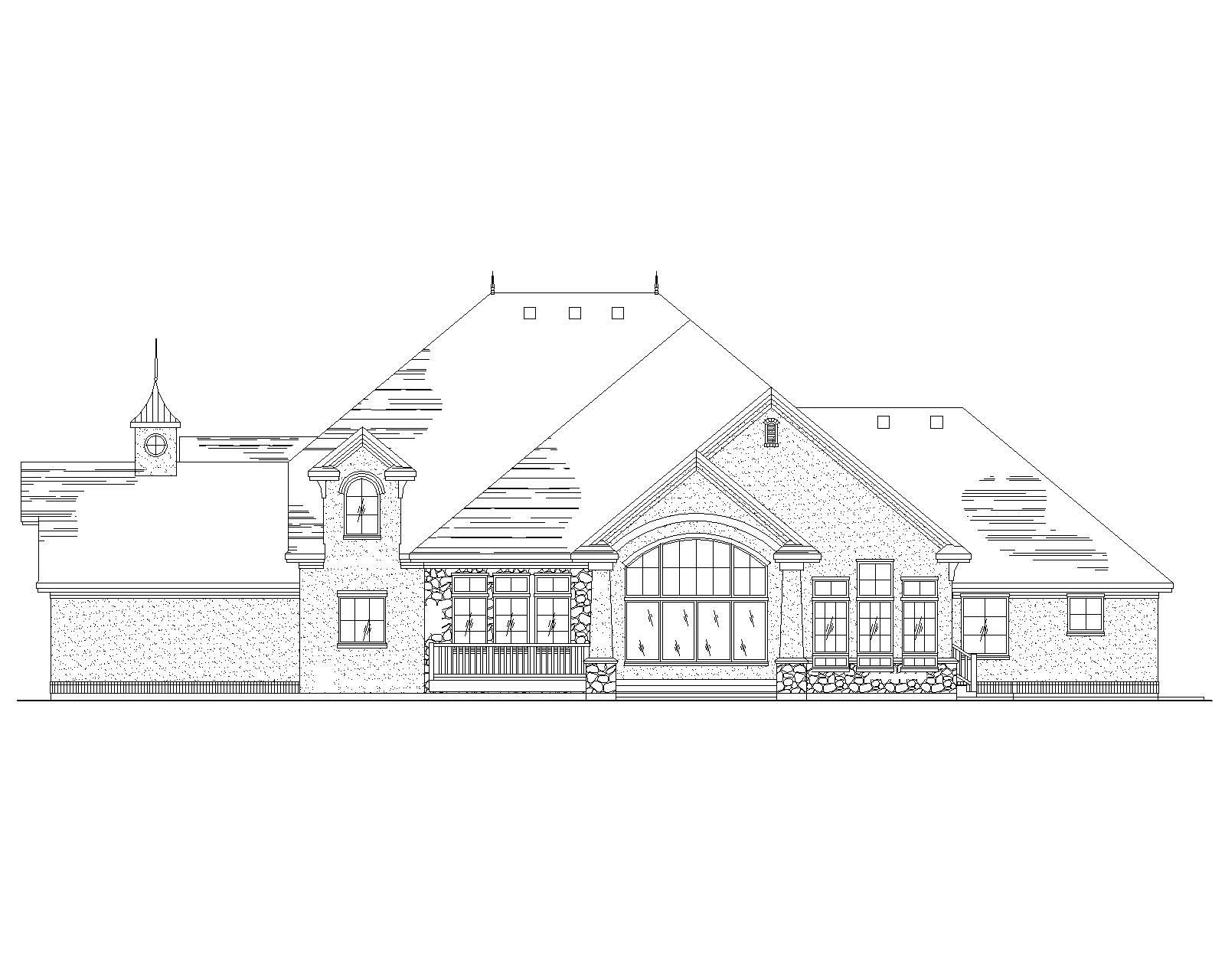

Home Plan Rear Elevation

About Plan # 135-1061

About Plan # 135-1061

4240 SQUARE FEET 7 BEDROOMS 5 FULL BATH 0 HALF BATH
2 FLOOR 93' 4" WIDTH 75' 7" DEPTH 3 GARAGE BAY

A luxurious Traditional style plan awaits an owner worthy of its splendor. It has a master bedroom that will suit only the best. A den will only be complete with a library of knowledge to company it. The designer knew this and has provided the means to do so. A long hall has beautiful vistas of the main floor on both sides. The basement features three bedrooms and a game room.

Each plan set includes the following:

  • FLOOR FRAMING PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF FRAMING PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

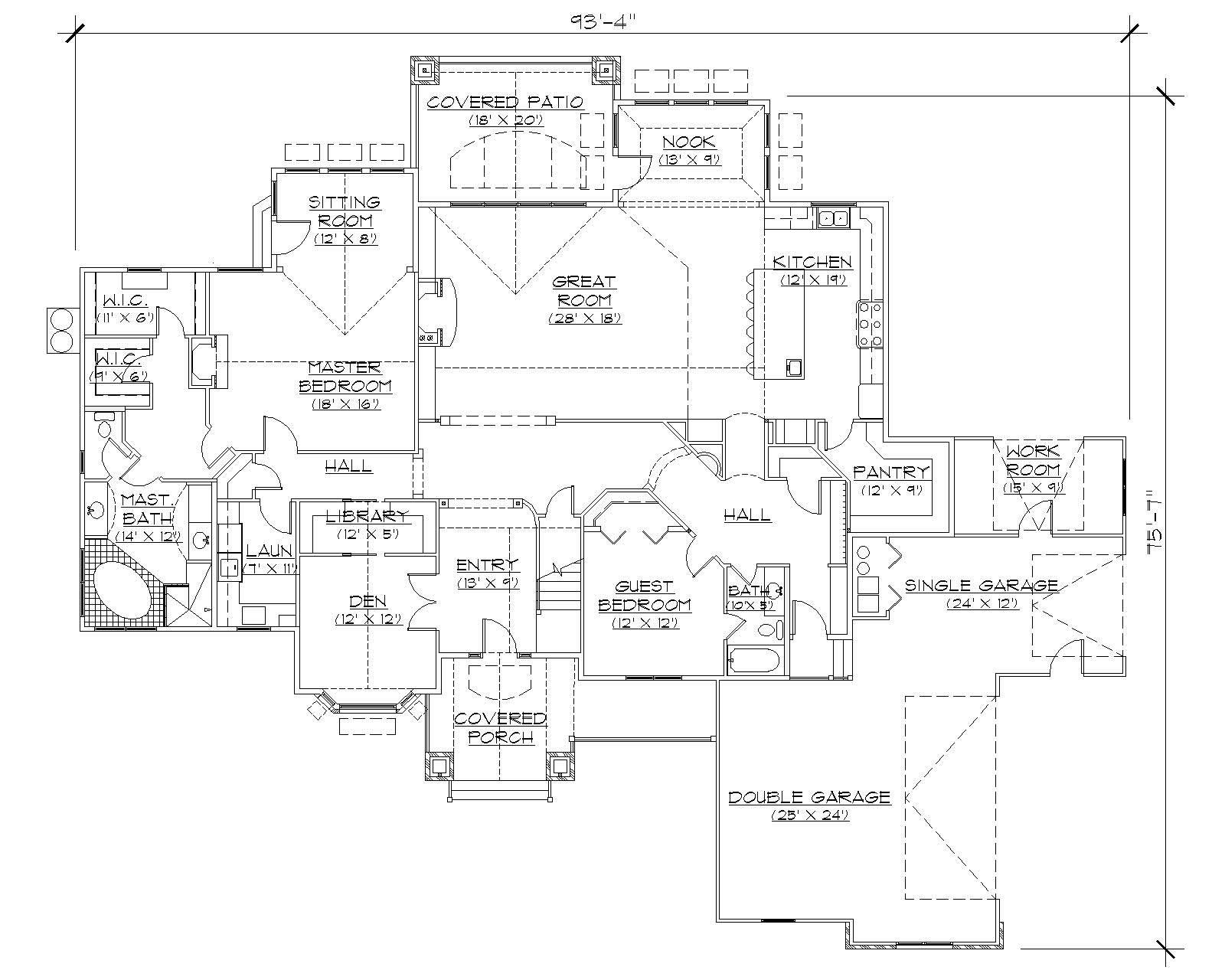

Home Plan: #135-1061 Floor Plan First Story - first story Floor Plan First Story of Luxury Plan #135-1061

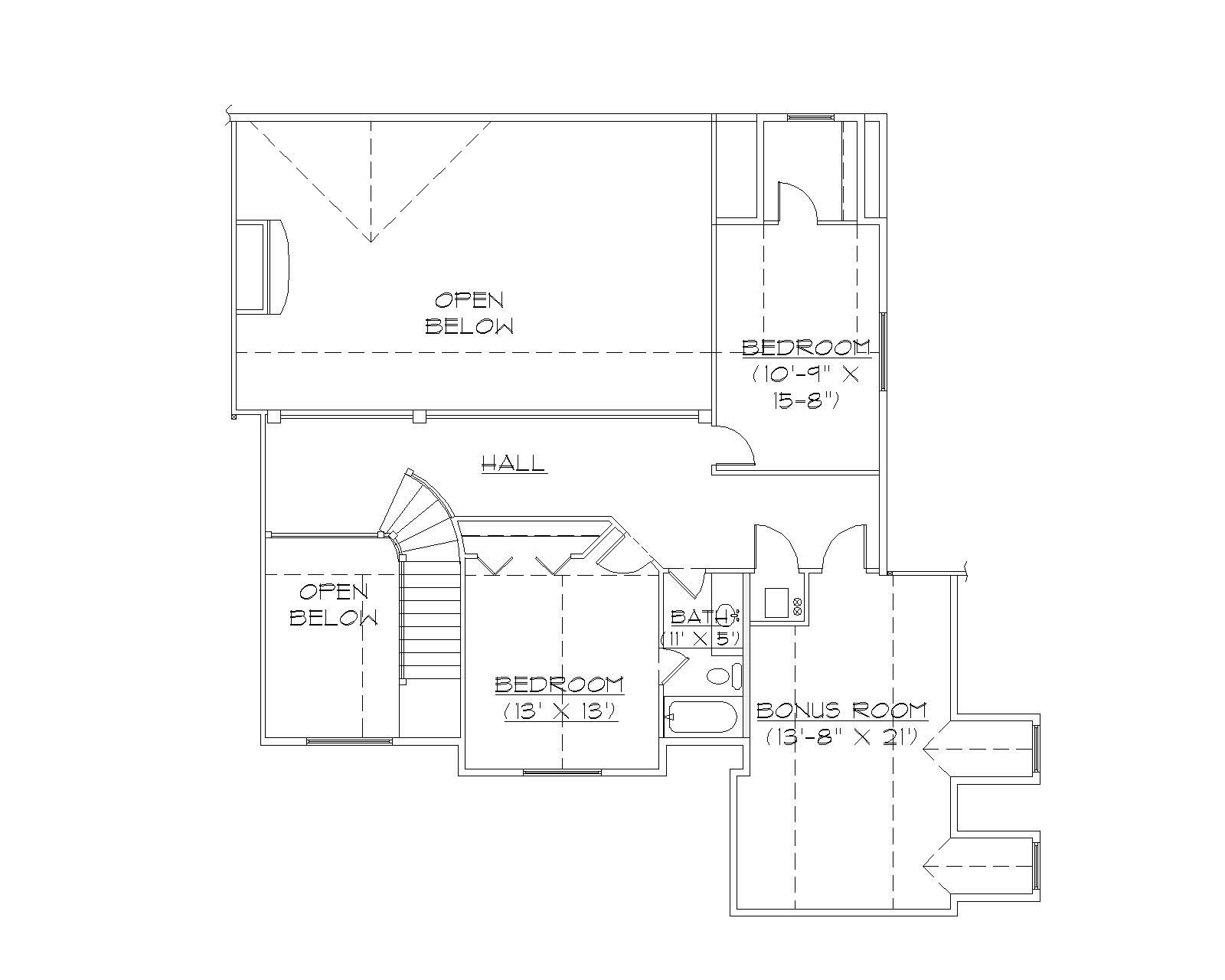

#135-1061 Floor Plan Second Story - second story Floor Plan Second Story of Luxury Plan #135-1061

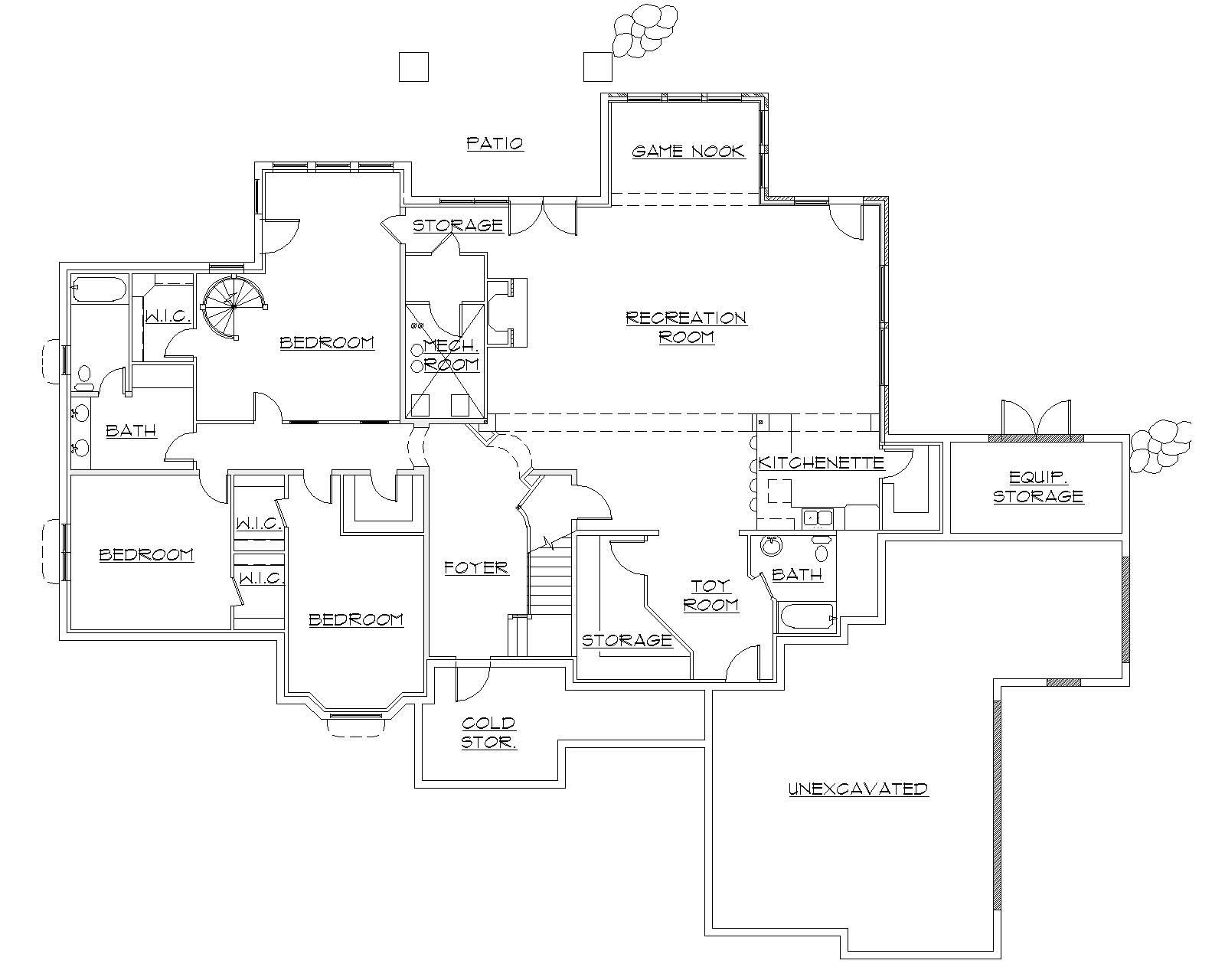

#135-1061 Floor Plan Basement - basement Floor Plan Basement of Luxury Plan #135-1061
Home Plan: #135-1061 Floor Plan First Story - first story Floor Plan First Story of Luxury Plan #135-1061
#135-1061 Floor Plan Second Story - second story Floor Plan Second Story of Luxury Plan #135-1061
#135-1061 Floor Plan Basement - basement Floor Plan Basement of Luxury Plan #135-1061
