3-Bedroom, 3950 Sq Ft European Plan with Nook/Breakfast Area

Color photo of Mediterranean Homeplans CLS-4000.
Home Interior Photograph

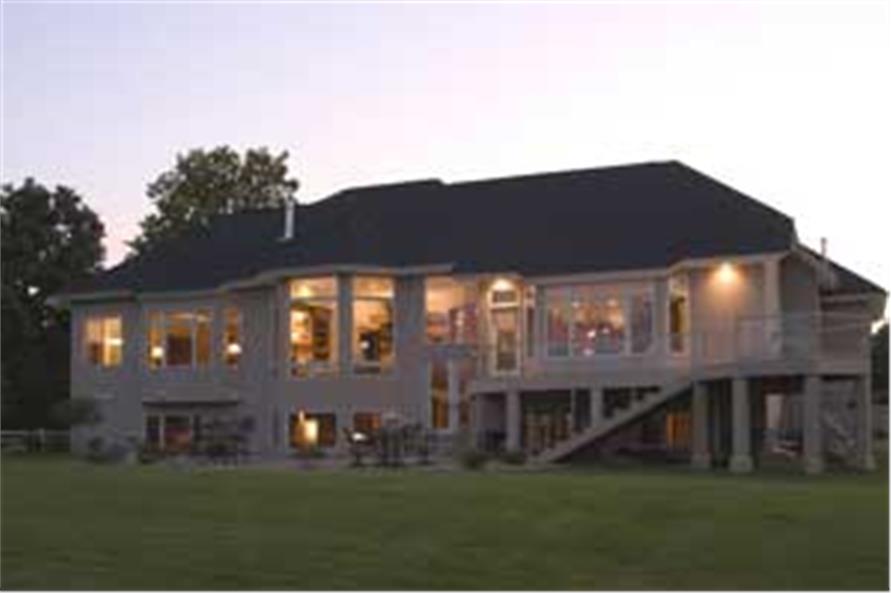

Home Plan Rear Elevation
Home Interior Photograph

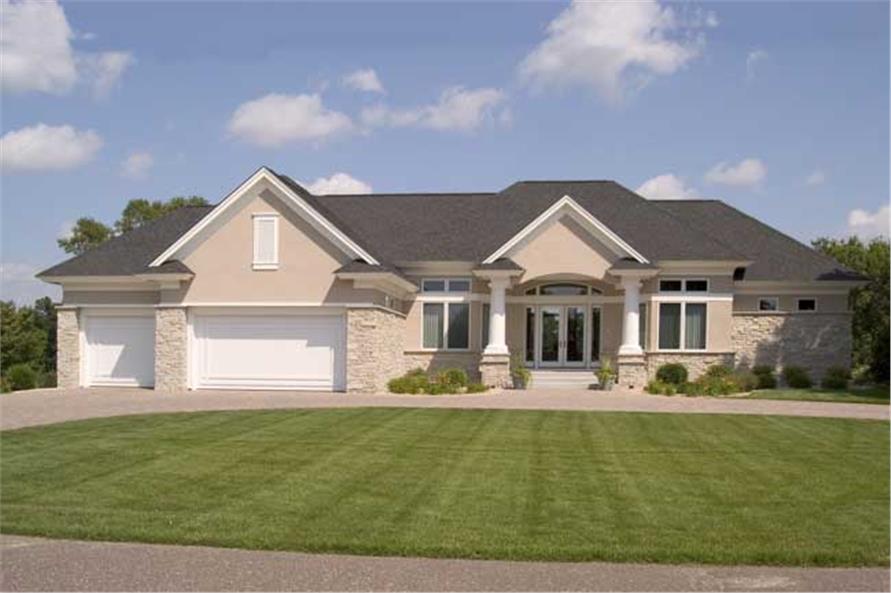

Home Exterior Photograph
Home Interior Photograph
Home Exterior Photograph
3-Bedroom, 3950 Sq Ft European House Plan - 165-1079 - Front Exterior
Home Interior Photograph
Home Plan Rear Elevation
Home Interior Photograph
Home Exterior Photograph
Home Interior Photograph
Home Exterior Photograph

About Plan # 165-1079

About Plan # 165-1079

3950 SQUARE FEET 3 BEDROOMS 4 FULL BATH 0 HALF BATH
1 FLOOR 87' 0" WIDTH 53' 0" DEPTH 3 GARAGE BAY

Upon entry, you'll be impressed by the huge bay window that lights up the Great Room, as well as the column-framed dining room and the library with a double-door entry. The left wing hosts the informal living areas, including the island kitchen and the cozy hearth room. In the right wing, the master suite features every luxury, including a double-door entry, a stepped ceiling, a bay window, a private bath and a walk-in closet. The basement boasts its own family room and wet bar, which serve its two secondary bedrooms.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

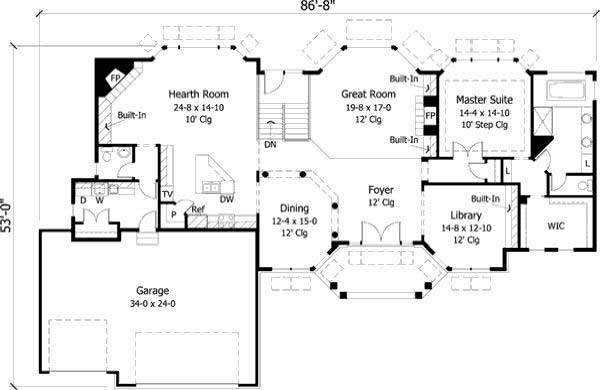

Home Plan: #165-1079 Floor Plan First Story - first story Floor Plan First Story of European Plan #165-1079

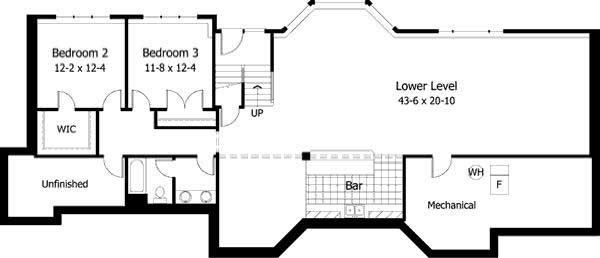

#165-1079 Floor Plan Second Story - second story Floor Plan Second Story of European Plan #165-1079
