3-Bedroom, 3654 Sq Ft Luxury Plan with His & Her Walk-in Closets

Luxury home (ThePlanCollection: Plan #153-1199)
EXTERIOR ELEVATIONS
3-Bedroom, 3654 Sq Ft Luxury Home - Plan #153-1199 - Main Exterior
EXTERIOR ELEVATIONS

About Plan # 153-1199

About Plan # 153-1199

3654 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 81' 7" WIDTH 97' 2" DEPTH 3 GARAGE BAY

This stately Luxury style home with Mediterranean characteristics (Plan #153-1199) has 3654 square feet of living space. The 1-story floor plan includes 3 bedrooms and 3 bathrooms.

Each plan set includes the following:

  • FLOOR PLAN(S): Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.

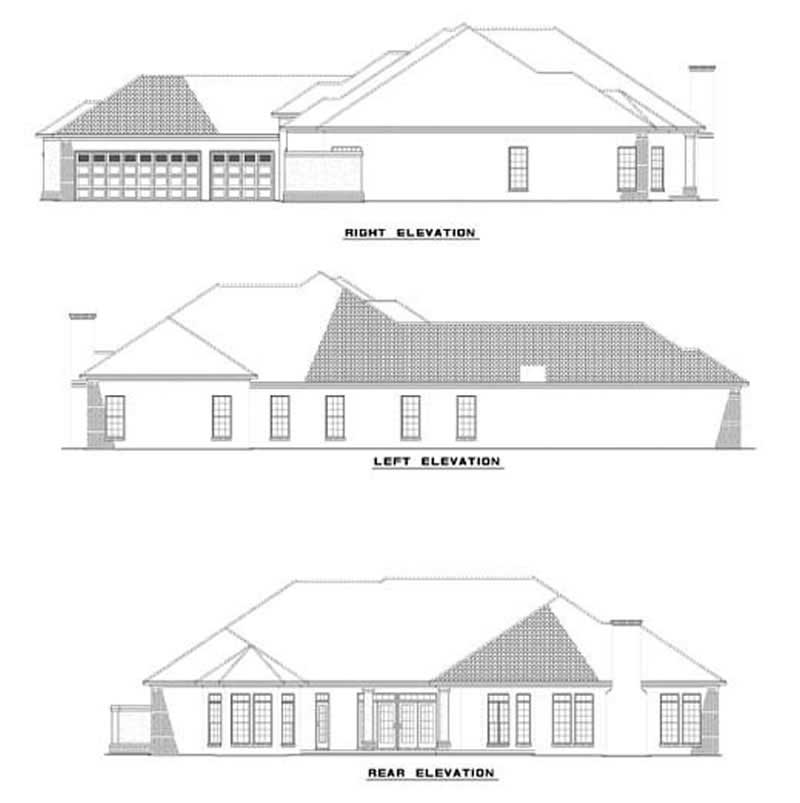

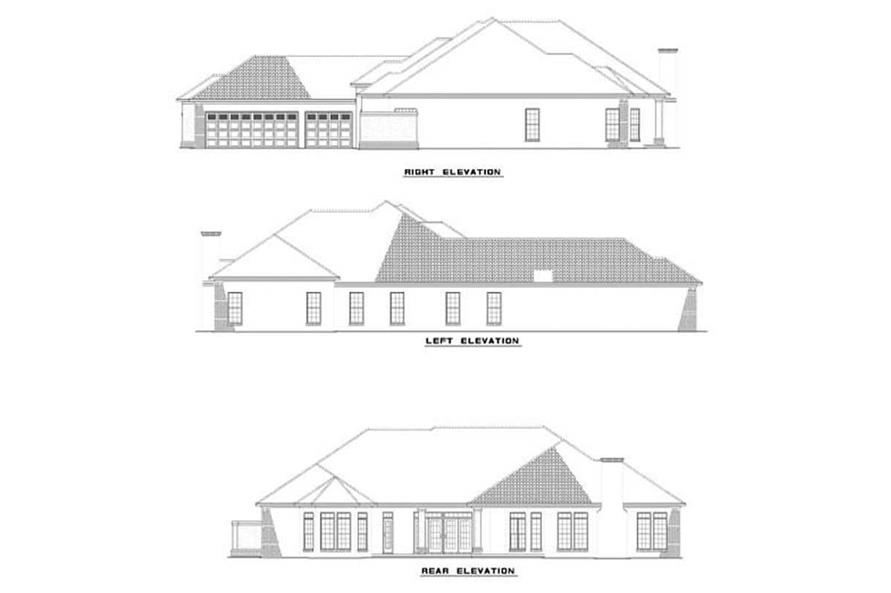

  • EXTERIOR ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF OVERVIEW PLAN: Dimensioned bird's-eye view of the roof showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • BUILDING SECTIONS AND MISCELLANEOUS DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.
  • KITCHEN AND BATH ELEVATIONS: Showing the kitchen and bath details such as cabinets.
  • ELECTRICAL DIAGRAM: Bird's-eye view of rooms defining the location of lights, fans, switches, etc.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

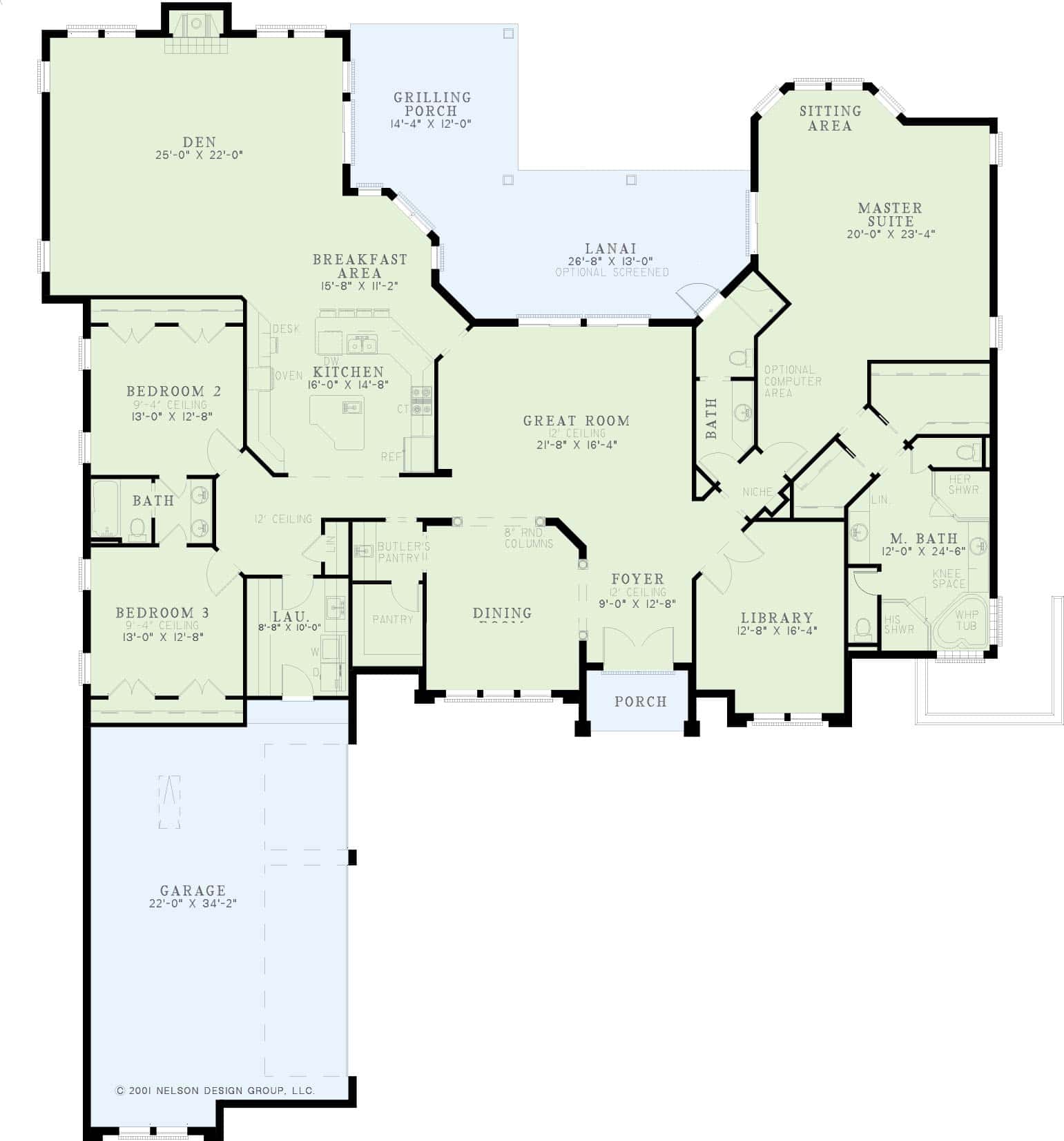

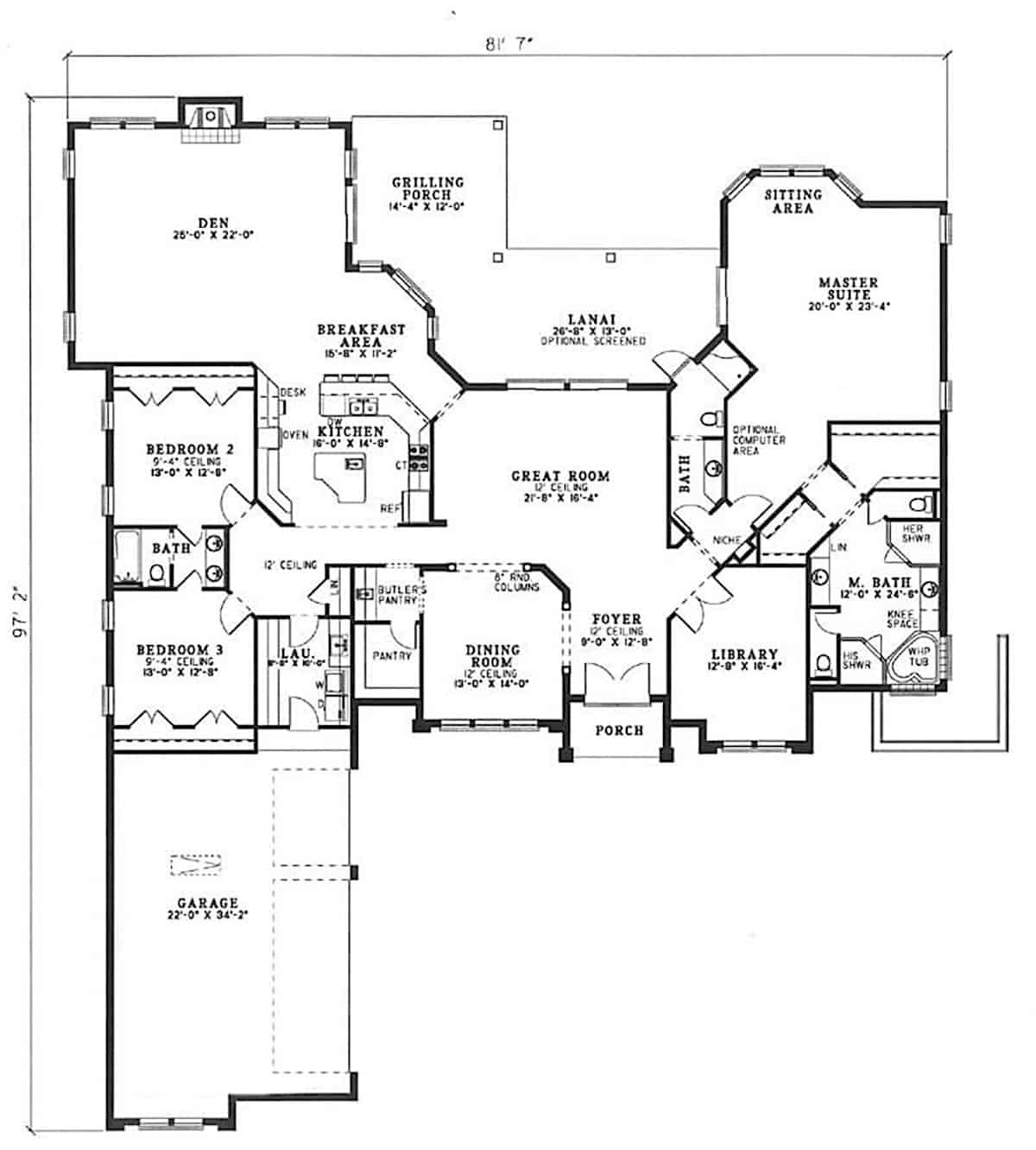

Home Plan: #153-1199 Floor Plan First Story - main level Floor Plan Main Level of Luxury Plan #153-1199
Home Plan: #153-1199 Floor Plan First Story - main level Floor Plan Main Level of Luxury Plan #153-1199
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 153-1199
Floors:
1
Bedrooms:
3
Full Baths:
3
Garage :
3

Square Footage

Heated Sq Feet:
3654
Main Floor:
3654
Unfinished Sq Ft:
Garage :
812
Porch :
528

Dimensions

Width:
81' 7"
Depth:
97' 2"
Ridge Height:
24' 6"

Architectural Styles

California Style
Concrete Block/ ICF Design
Florida Style
Luxury
Mediterranean
Transitional

Exterior Wall Material

Brick

Roofing Type

Hip

Roofing Material

Tiles

Roof Pitch

8/12

Ceiling Height

10 Foot Ceiling
12 Foot Ceiling

Special Feature

Den
Dining Room
Family Room
Fireplace
Library
Main Level Laundry
Open Floor Plan
Split Bathroom

Garage Type

Attached Garage
Courtyard Entry

Exterior Wall Framing

Concrete

Building Lot Type

Flat Site

Kitchen Features

Butler's Pantry
Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Lanai
Covered Rear Porch
Portico

Master Suite Features

Main Floor Master
Master Bathroom
Sitting Area
Split Master Bedroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE: Plans by this designer do NOT usually come with FRAMING - some plans may have framing available for an extra fee - please contact us to find out about a specific plan & we will check with the designer!! Additionally: For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. If you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions! PLEASE NOTE: Multi-licenses are available. Please contact us with any questions.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.

Package & Price Help
