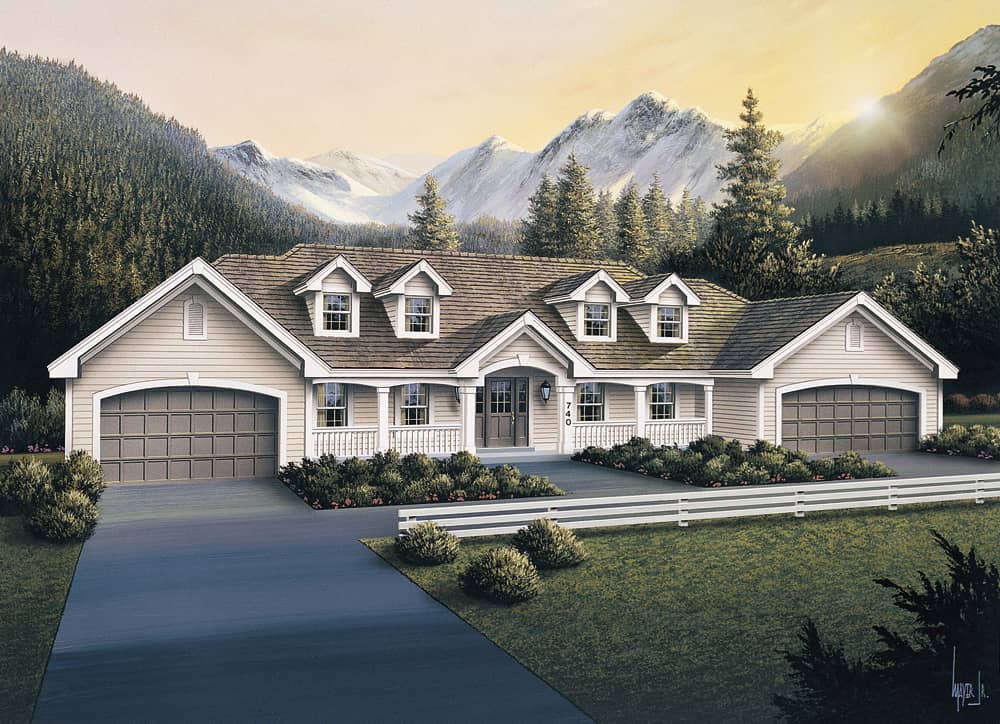

Multi-Unit House Plan #138-1105: 3 Bedrm, 1742 Sq Ft Per Unit Home

About House Plan #138-1105

3484

Sq Ft

6

Bedrooms

4

Baths

0

Half Baths

4

Cars

1

Stories

81' 0'

Width

49

Depth

Starting at$1350.00What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Free Cost Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

Share Plans

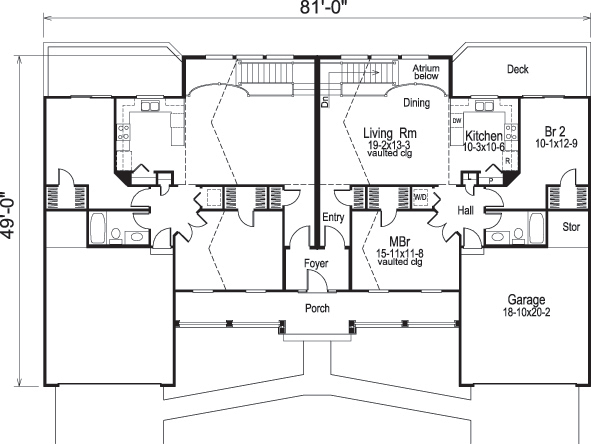

Floor Plan Main Level

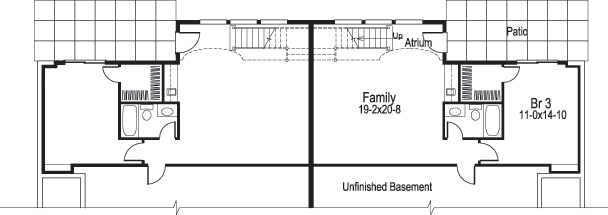

Floor Plan Basement

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

PLEASE NOTE: Not all plans from this designer can be modified! Please check before sending in a mod request. Thank you!

This Duplex has a total of 3484 heated square feet (1742 sq ft per unit). The total heated square footage for the main level is 2208 sq ft (1104 sq ft per unit). The total square heated square footage for the lower level is 1276 sq ft (638 sq ft per unit).

House Plan Description

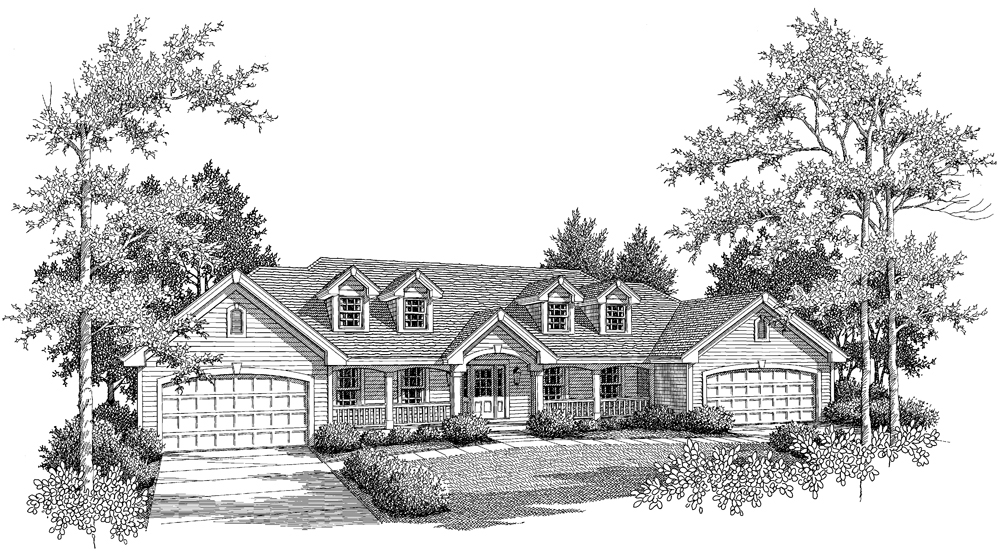

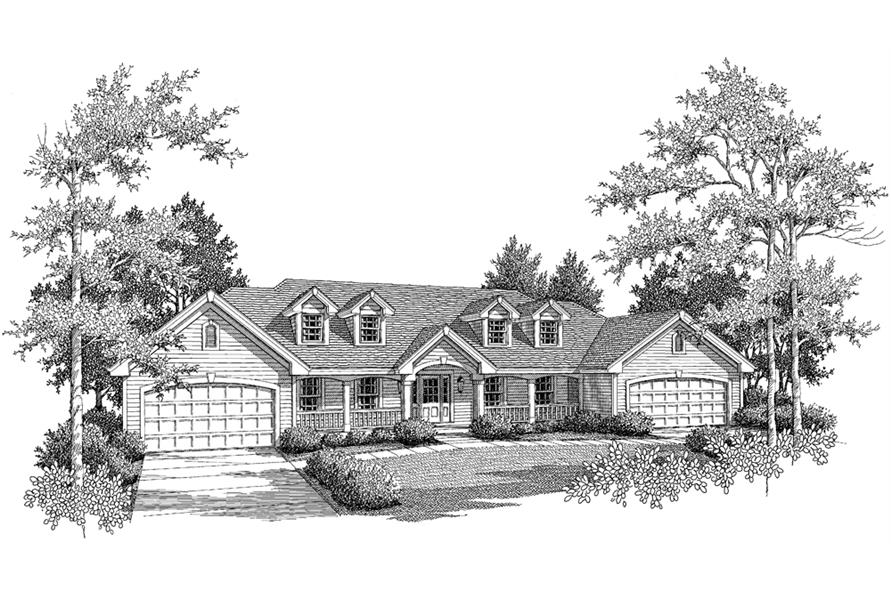

This lovely Multi-Unit style home with Ranch influences (Multi-Family House Plan #138-1105) has 1742 square feet of living space per unit. The 1 story floor plan includes 3 bedrooms per unit.

Home Details

Summary

Plan #:138-1105

Starting at:$1350.00

Floors:1

Bedrooms:6

Full Baths:4

Half Baths:0

Garage:

Square Footage

Heated Area:3484 Sq. Ft.

Basement:1276 Sq. Ft.

First Floor:2208 Sq. Ft.

Unheated Area:

Dimensions

Architectural Styles

Ranch Duplex/Multi-Unit

Exterior Wall Material

Vinyl SidingWood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Special Feature

Dining RoomFamily RoomMain Level LaundryStorageVaulted CeilingsOpen Floor Plan

Garage Type

Attached Garage

Exterior Wall Framing

2x4

Kitchen Features

Nook/Breakfast AreaEat-In Kitchen

Porches and Exterior Features

Covered Front PorchSundeckPatio

Master Suite Features

Main Floor MasterWalk In Closet

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Cover sheet

Foundation plan

Floor plans

Exterior elevations

Roof plan

Details Sheet

Sections

Interior elevations

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
