3-Bedroom, 3340 Sq Ft Craftsman Plan with Covered Front Porch

This is the front elevation for these Traditional Home Plans.

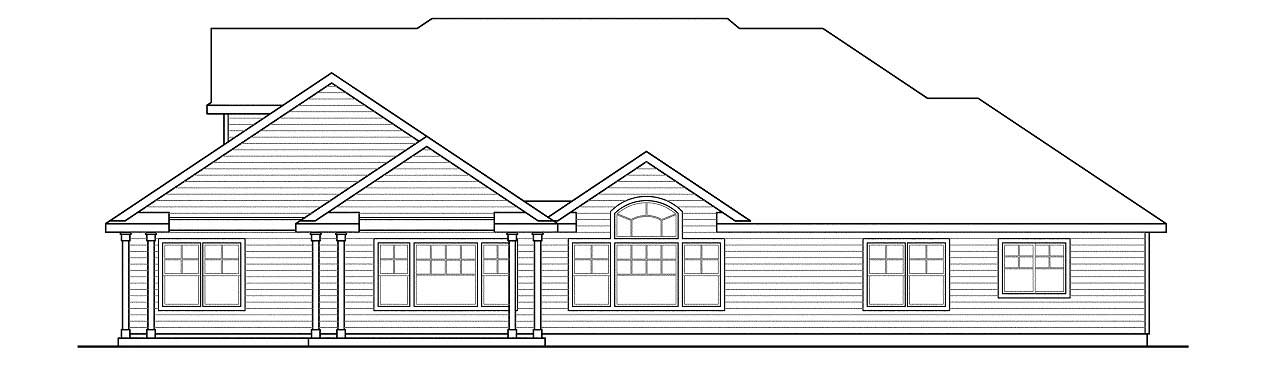

Home Plan Rear Elevation
3-Bedroom, 3340 Sq Ft Craftsman House Plan - 108-1529 - Front Exterior
Home Plan Rear Elevation

About Plan # 108-1529

About Plan # 108-1529

3340 SQUARE FEET 3 BEDROOMS 3 FULL BATH 1 HALF BATH
2 FLOOR 81' 0" WIDTH 87' 0" DEPTH 3 GARAGE BAY
European home plans. Windows fill most of the rear wall of the vaulted great room at the heart of this comfortably spacious European-style home plan. From the kitchen, you can watch TV or converse with family and friends in the great room, or the dining room. Extra rooms include: a guest room and a hobby room on the main floor, and a den and an unfinished bonus room upstairs. The generous use of stone veneer combines with a richly gabled front façade to give the #108-1529 a distinctly European look. Its lofty, gently arched opening links bold columns that flank the entry portico. More stone veneer wraps across the front as wainscoting, and fills the entire face of the gabled extension closest to the street. Sidelights brighten the foyer, which ends at a wide coat closet and an arched passageway leading to the family room. A hallway to the deluxe owners' suite and a convenient mini-bathroom is around the corner to the left of the foyer. The wide opening on the foyer's right feeds into what could be a hobby room, library, or whatever suits. Windows fill most of the rear wall of the vaulted great room at the heart of the home. A fireplace nestles into a corner by the windows, and a home entertainment center lines the inner wall. From the kitchen, you can watch TV or converse with family and friends in the great room or the dining room. A wrap-around counter is the only separation. The raised outer rim of the counter provides a visual barrier which hides the inevitable clutter of an active kitchen. The section that fronts the dining room widens out into an eating/conversation bar. Counters wrap around all four sides of the gourmet kitchen, anchored by a large cook-top work island. Second floor stairs climb up from a juncture on the edge of the kitchen, which also has links to a large utility room, a guest suite, and a two-car garage with extra space for storage or a workbench. A bedroom, den and full bathroom are upstairs in the #108-1529, plus an unfinished bonus room over the garage.

Each plan set includes the following:

  • ARTIST'S RENDERING: An artist's drawing of the home, usually viewed from the front, and general construction notes.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of the house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • MAIN FLOOR PLAN: Each plan set is drawn at 1/4"=1' scale. Showing the placement and dimensions of all walls, windows, and doors. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • SECOND FLOOR PLAN (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • FOUNDATION PLAN: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details.
  • ROOF FRAMING PLAN: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc.
  • SECTIONS AND DETAILS: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation. Specific details such as fireplaces, stairways, decks, etc. are drawn at 1/2" = 1' scale, and appear as needed throughout the prints. These details can be helpful for the contractor.
  • ELECTRICAL PLAN: A schematic layout of all lighting, switches, and electrical outlets.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

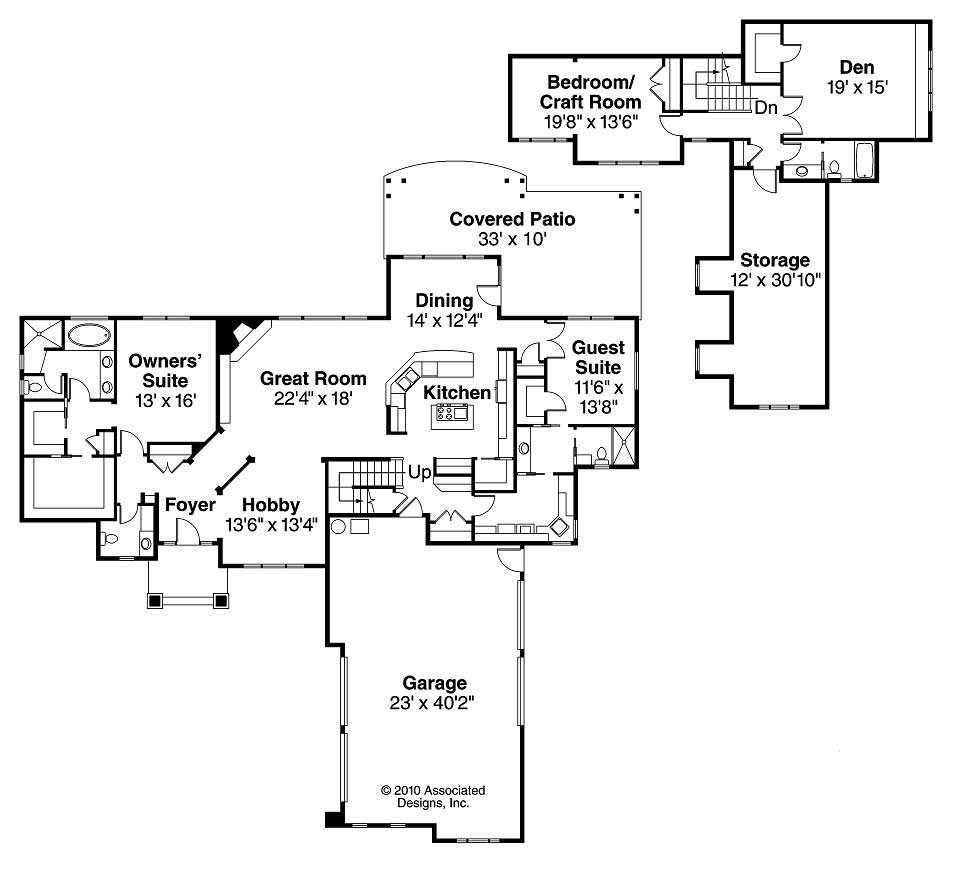

Home Plan: #108-1529 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #108-1529
Home Plan: #108-1529 Floor Plan First Story - first story Floor Plan First Story of Craftsman Plan #108-1529
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 108-1529
Floors:
2
Bedrooms:
3
Full Baths:
3
Half Baths:
1

Square Footage

Heated Sq Feet:
3340
Main Floor:
2453
Upper Floor:
887
Unfinished Sq Ft:
Bonus Room:
442

Dimensions

Width:
81' 0"
Depth:
87' 0"
Ridge Height:
25-11' 0"

Architectural Styles

Traditional
Craftsman

Exterior Wall Material

Rock/Stone
Wood Siding

Roofing Type

Hip
Gable/Dormer

Roofing Material

Asphalt Shingles

Roof Pitch

8/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Guest Room
Main Level Laundry
Storage
Den
Workshop

Garage Type

Attached Garage
Courtyard Entry
Side Entry

Exterior Wall Framing

2x6

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar
Eat-In Kitchen

Porches and Exterior Features

Patio

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE!! For this designer, The PDF that comes with the PRINT Packages (5 set+PDF and 8 set+PDF) is NOT Modifiable - it is for printing ONLY! PLEASE NOTE!! Optional Foundations (foundations that cost extra money) will take 5-10 business days to complete.

PRICING OPTIONS

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

Eight printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 8 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
