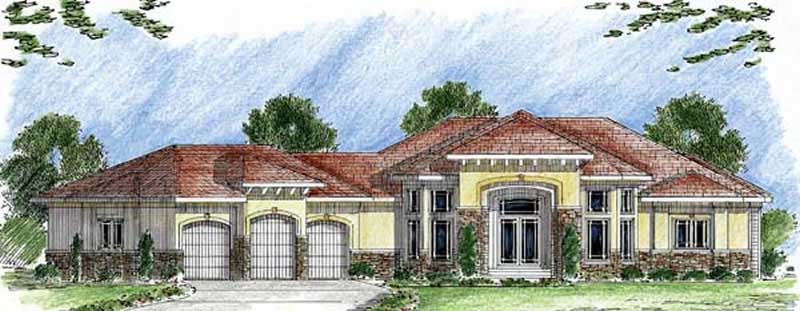

2-Bedroom, 2688 Sq Ft Mediterranean Plan with Main Floor Master
Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.
About House Plan #100-1023
How much will it cost to build?
Estimate your costs based on your location and materials.
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.

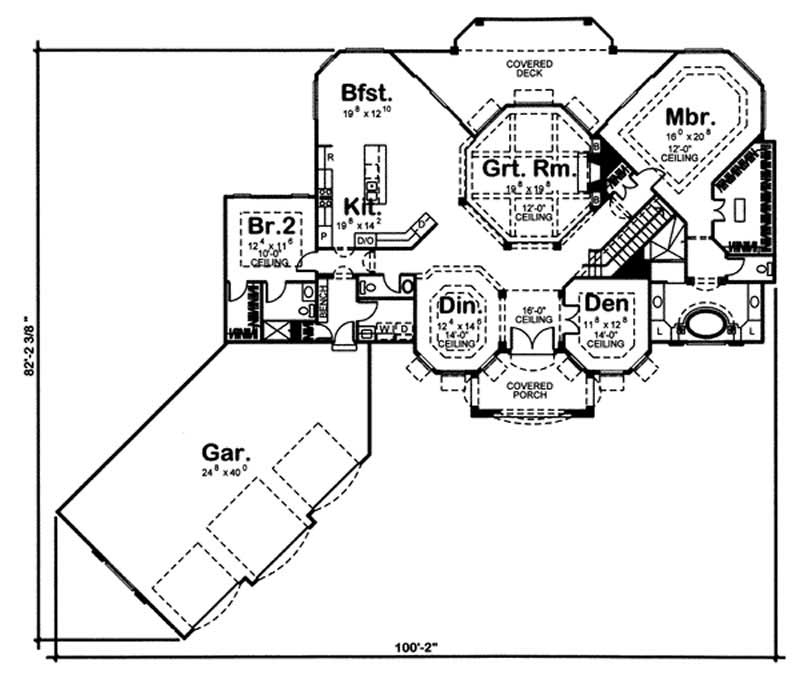

Floor Plans
Can I modify this plan?
Yes! This plan can be customized—contact us for a free quote.
Additional Notes from Designer
PLEASE NOTE! If you order an optional foundation and a materials list, the materials list will NOT include the optional foundation, only the standard foundation. The designer can provide an updated materials list for a fee, so please ask for a quote!
House Plan Description
The #100-1023 home plan is a single story, Mediterranean style house plan with 2688 total living square feet. This house plan has 2 bedrooms, 2 bathrooms, and a 3 car garage. You enter this home plan through the covered porch which leads you to the great room. The great room has a 12' ft. ceiling. To the left of the great room is the breakfast and kitchen area as well as a bedroom. To the right is the master wing of the house plan. To the back of the great room is the covered deck, perfect for you to reach the full potential with your back yard. This home plan is a beautiful...
Home Details
How much will it cost to build?
Estimate your costs based on your location and materials.
What’s Included
Cover Sheet: Shows the front elevation and typical notes and requirements. Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurements Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor. Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation. Roof Plan Typical wall section Typical stair section Cabinets are shown on all plans. What’s Not Included
Architectural or Engineering Stamp - handled locally if required.Site Plan - handled locally when required.Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.Energy calculations - handled locally when required.Additional Information
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
Home Details
How much will it cost to build?
Estimate your costs based on your location and materials.
