4-Bedroom, 2308 Sq Ft Southwest Plan with Walk In Closet

Main image for house plan # 19748
DR HOUSE PLANS
4-Bedroom, 2308 Sq Ft Southwest Home Plan - 125-1209 - Main Exterior
DR HOUSE PLANS

About Plan # 125-1209

About Plan # 125-1209

2308 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 69' 0" WIDTH 65' 0" DEPTH 3 GARAGE BAY
One of our favorite house plans featuring an open floor plan, three car garage, and large pantry.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY

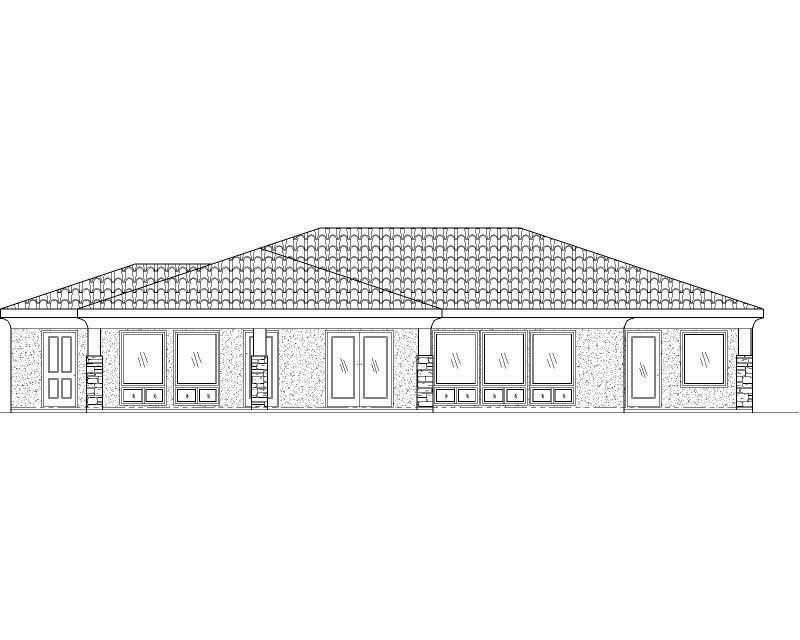

  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • DETAIL SHEET

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

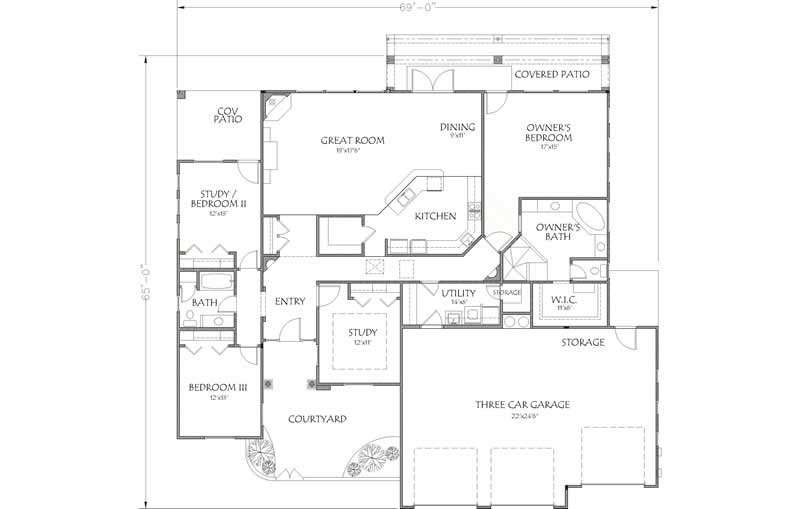

Home Plan: #125-1209 Floor Plan First Story Floor Plan First Story of Southwest Plan #125-1209
Home Plan: #125-1209 Floor Plan First Story Floor Plan First Story of Southwest Plan #125-1209
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 125-1209
Floors:
1
Bedrooms:
4
Full Baths:
2

Square Footage

Heated Sq Feet:
2308
Main Floor:
2308
Unfinished Sq Ft:
Garage :
915

Dimensions

Width:
69' 0"
Depth:
65' 0"

Architectural Styles

Southwest

Exterior Wall Material

Stucco

Roof Pitch

4/12

Ceiling Height

9 Foot Ceiling

Exterior Wall Framing

2x4

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.
