4-Bedroom, 2263 Sq Ft Cape Cod Plan with Peninsula/Eating Bar

Main image for house plan # 14674
Rear Elevation

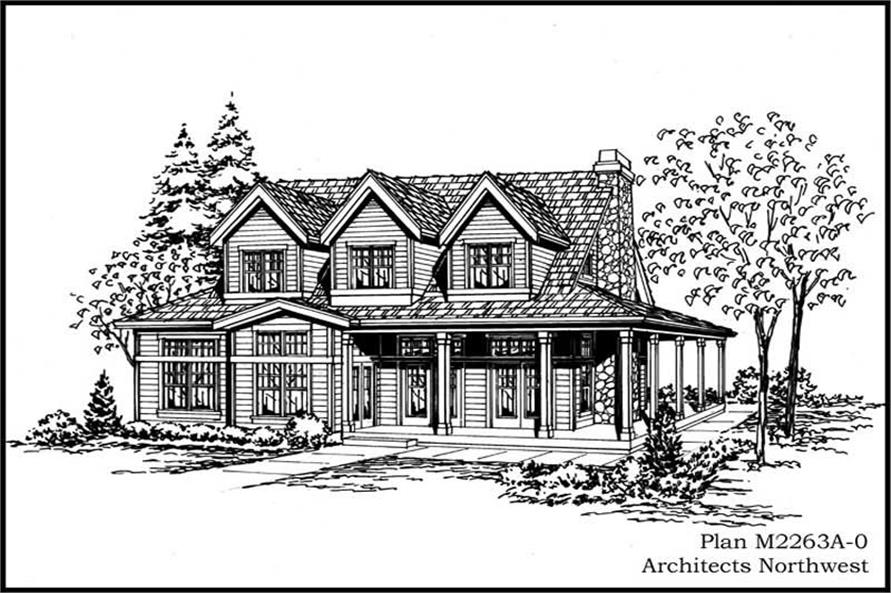

4-Bedroom, 2263 Sq Ft Cape Cod House Plan - 115-1391 - Front Exterior

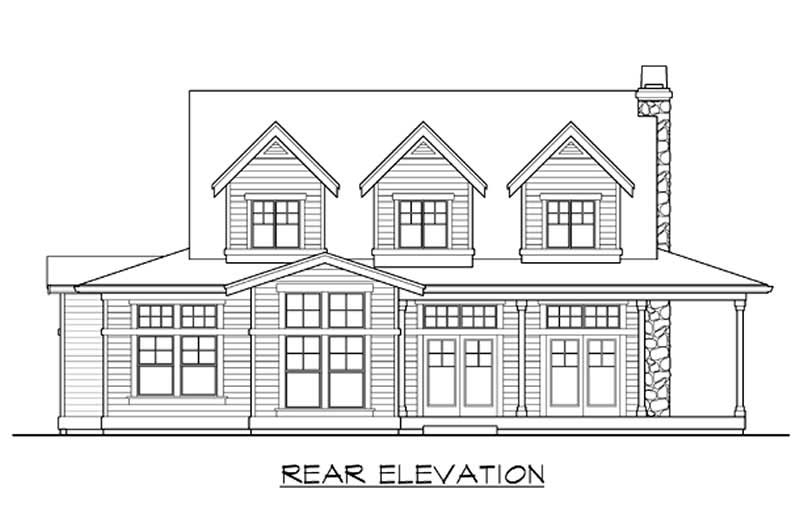

Rear Elevation

About Plan # 115-1391

About Plan # 115-1391

2263 SQUARE FEET 4 BEDROOMS 2 FULL BATH 1 HALF BATH
2 FLOOR 56' 0" WIDTH 40' 0" DEPTH 0 GARAGE BAY
This beautiful Country Style and amazing houseplan has many great features to offer you. There is an enjoyable covered porch as you make your way through the entrance where you could have barqcues with your family. This open floor plan allows plenty of room for a relaxing and invitable atomosphere. The kitchen is very open and provides plenty of room for cooking a large meal for those special holidays. In the great room you have a large amount of space to entertain and enjoy the warmth of the fireplace. The master bedroom is located on the main floor. In the master suite you have the luxury of having your own walk-in closet along with a relaxing master bathroom.

Each plan set includes the following:

  • DETAIL SHEET: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • FLOOR PLAN: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • FOUNDATION PLAN: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information.
  • ROOF PLAN: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
  • FRONT, REAR, AND SIDE ELEVATIONS: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • BUILDING SECTION SHEET: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

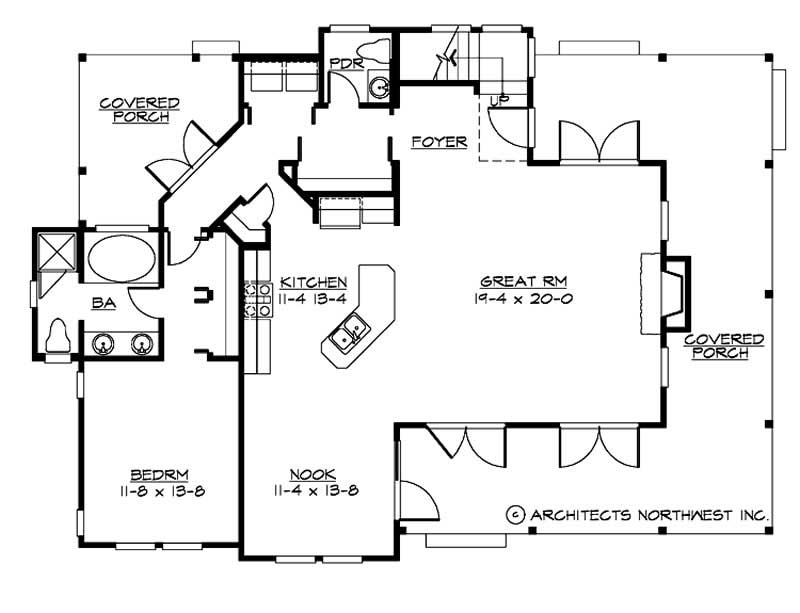

Home Plan: #115-1391 Floor Plan First Story - main Floor Plan First Story of Cape Cod Plan #115-1391

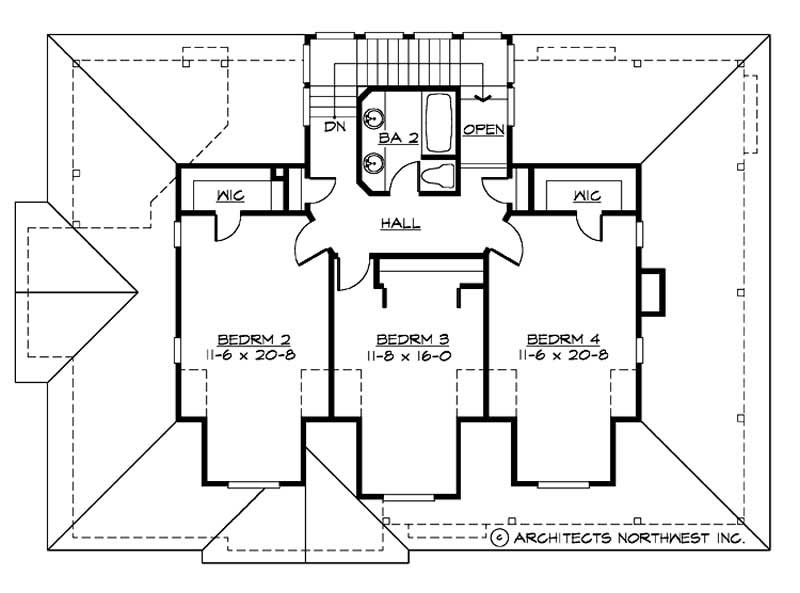

#115-1391 Floor Plan Second Story - second Floor Plan Second Story of Cape Cod Plan #115-1391
