About Plan # 132-1183

About Plan # 132-1183

1855 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 34' 1" WIDTH 69' 11" DEPTH 2 GARAGE BAY
*Standard Frame Construction *Good-Sized Living Room *Eating Bar In Kitchen *Kitchen Pantry *Den *Covered Entry *2-Car Garage *Walk-In Closet In Master Suite *Double Sinks In Master Bedroom

Each plan set includes the following:

  • Exterior elevations: shows the home on all four sides, calls out exterior finishes, rooflines, window and door locations.
  • Floor plans: includes interior and exterior dimensions, window/door schedule, wall framing details.
  • Foundation plan: shows footing, stem wall, and slab placement, including all connection details.
  • Floor and roof framing plans show truss/rafter placements, including all beams/connection details.
  • Cross-sections: cut-through view of the structure from roof to foundation, shows framing, plate heights, insulation, etc.
  • Electrical layout
  • General notes/details to cover the entirety of the project

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

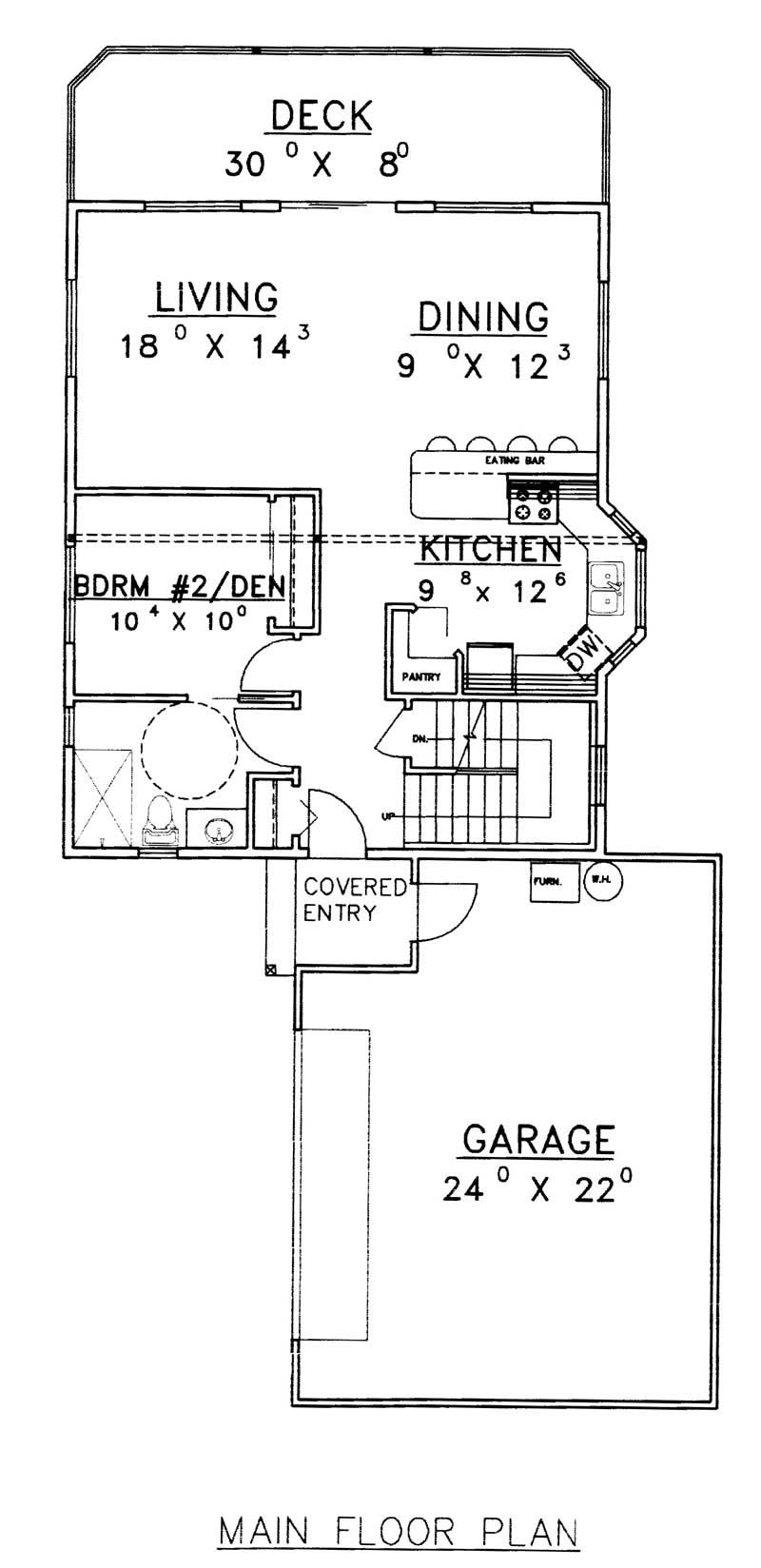

Home Plan: #132-1183 Floor Plan First Story - first level Floor Plan First Story of Vacation Homes Plan #132-1183

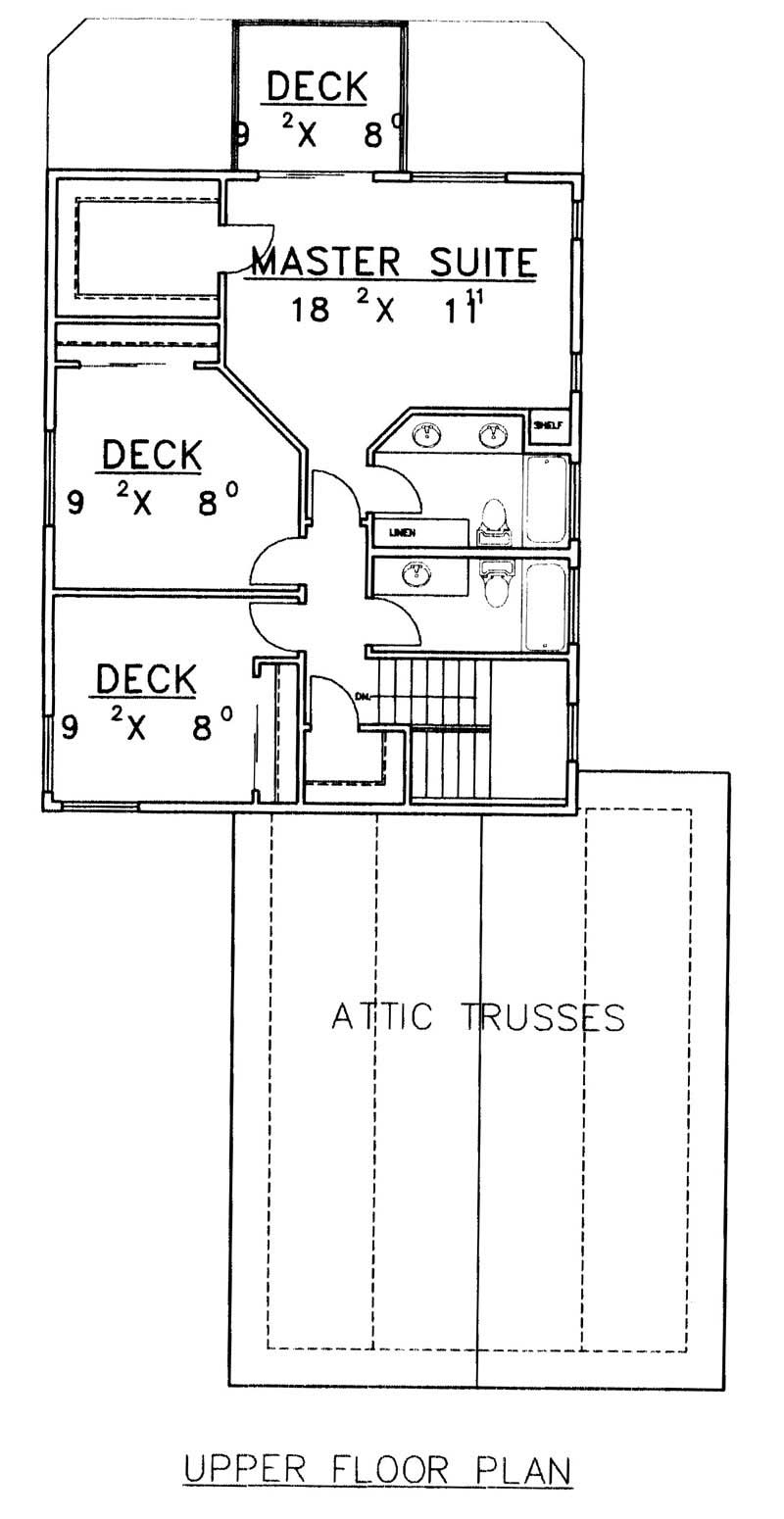

#132-1183 Floor Plan Second Story - upper level Floor Plan Second Story of Vacation Homes Plan #132-1183
Home Plan: #132-1183 Floor Plan First Story - first level Floor Plan First Story of Vacation Homes Plan #132-1183
#132-1183 Floor Plan Second Story - upper level Floor Plan Second Story of Vacation Homes Plan #132-1183
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 132-1183
Floors:
1
Bedrooms:
4
Full Baths:
3

Square Footage

Heated Sq Feet:
1855
Main Floor:
903
Upper Floor:
312
Unfinished Sq Ft:
Lower Floor:
952
Bonus Room:
312
Garage :
623

Dimensions

Width:
34' 1"
Depth:
69' 11"
Ridge Height:
27'11' 0"

Architectural Styles

Vacation Homes

Exterior Wall Material

Aluminum Siding
Vinyl Siding
Wood Siding

Roof Pitch

7/12

Ceiling Height

9 Foot Ceiling

Garage Type

Attached Garage

Exterior Wall Framing

2x6

Building Lot Type

Narrow Lot Design

Additional Notes from Designer

PLEASE NOTE! The CAD - Unlimited package is NOT an unlimited license - it is a license to build up to 5 homes. ATTENTION! Printed sets can ONLY be sent via ground shipping. NO priority or express shipping is available. ATTENTION! Printed sets can ONLY be sent by ground - NO priority or express shipping on printed sets!
