5-Bedroom, 1821 Sq Ft Ranch Plan with Nook/Breakfast Area

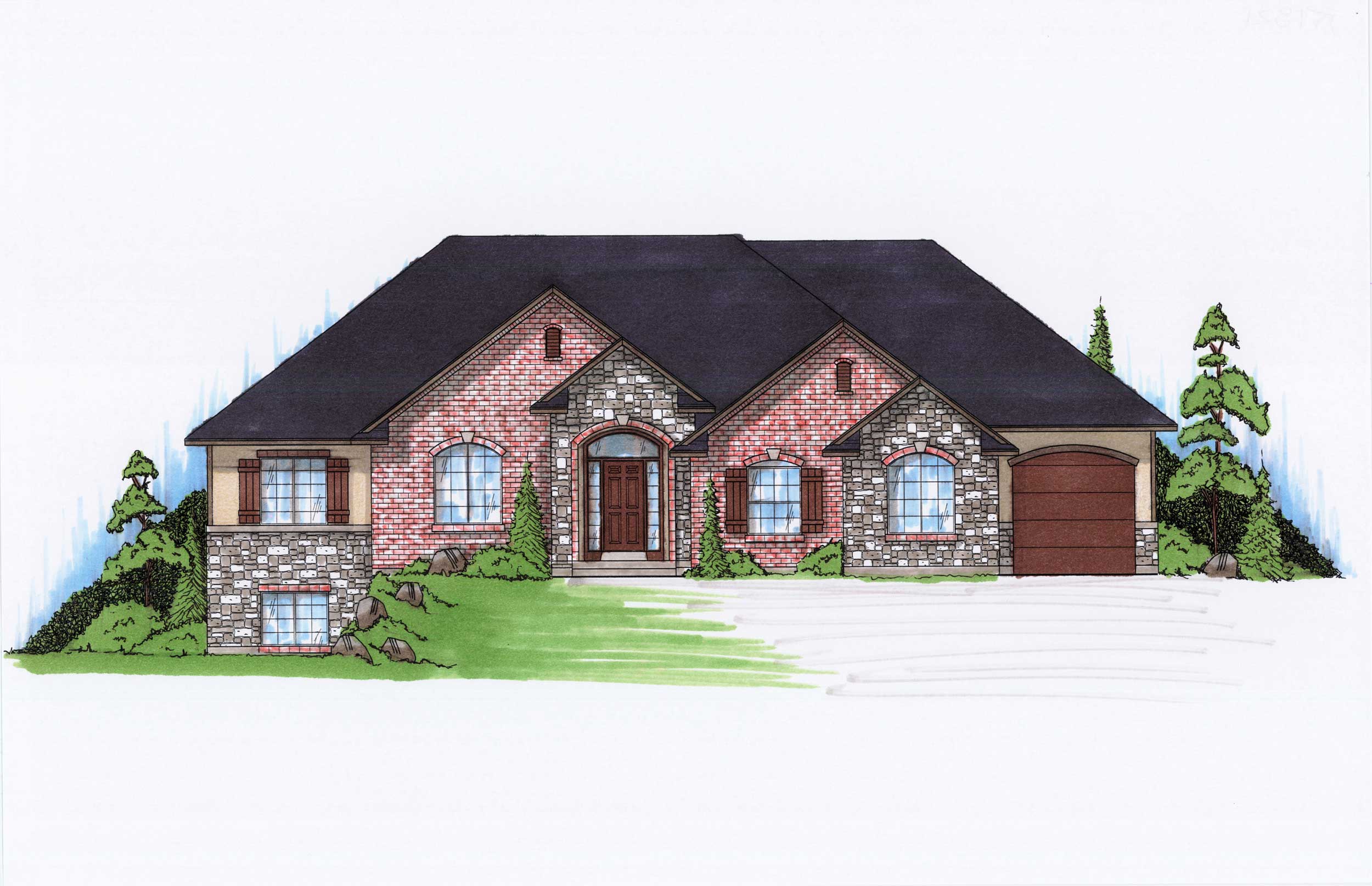

Color Rendering of this house plan

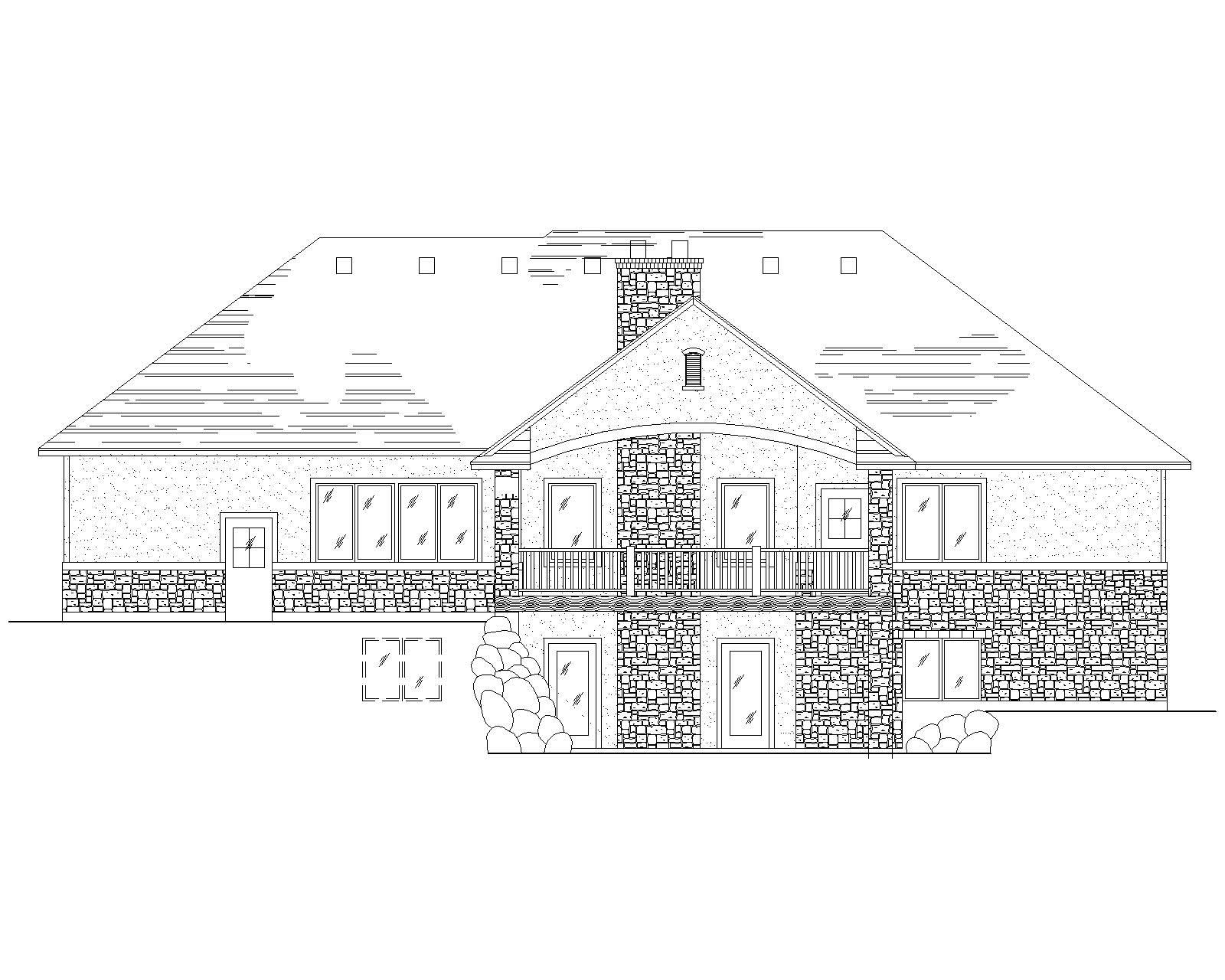

Home Plan Rear Elevation
5-Bedroom, 1821 Sq Ft Ranch House Plan - 135-1166 - Front Exterior

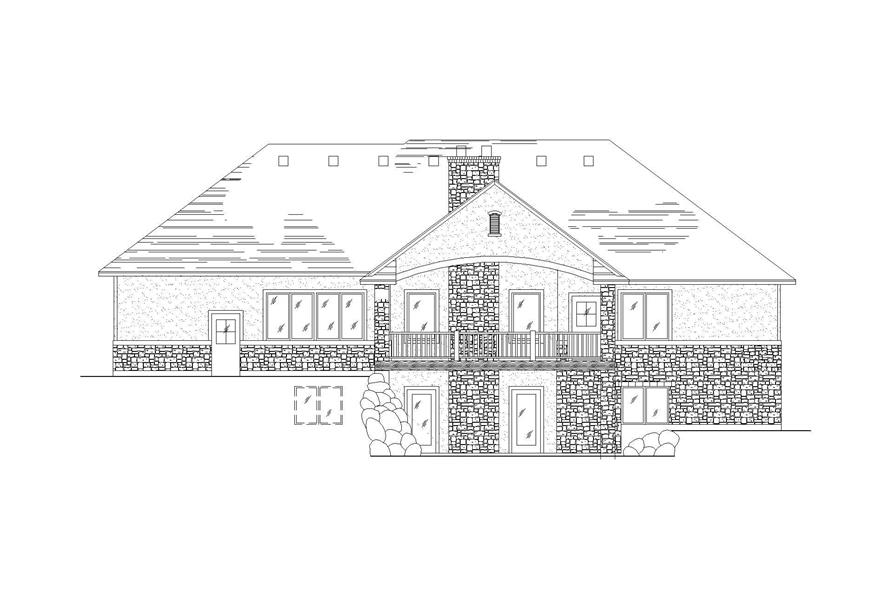

Home Plan Rear Elevation

About Plan # 135-1166

About Plan # 135-1166

1821 SQUARE FEET 5 BEDROOMS 3 FULL BATH 1 HALF BATH
1 FLOOR 70' 3" WIDTH 56' 6" DEPTH 3 GARAGE BAY

House Plan Description

R1821 is a Traditional house featuring a large master suite that has the walk-in closet and bathroom wrapping around the bedroom. This plan has a daylight basement with a wet bar on the side of the game room and two bedrooms sharing a bathroom.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

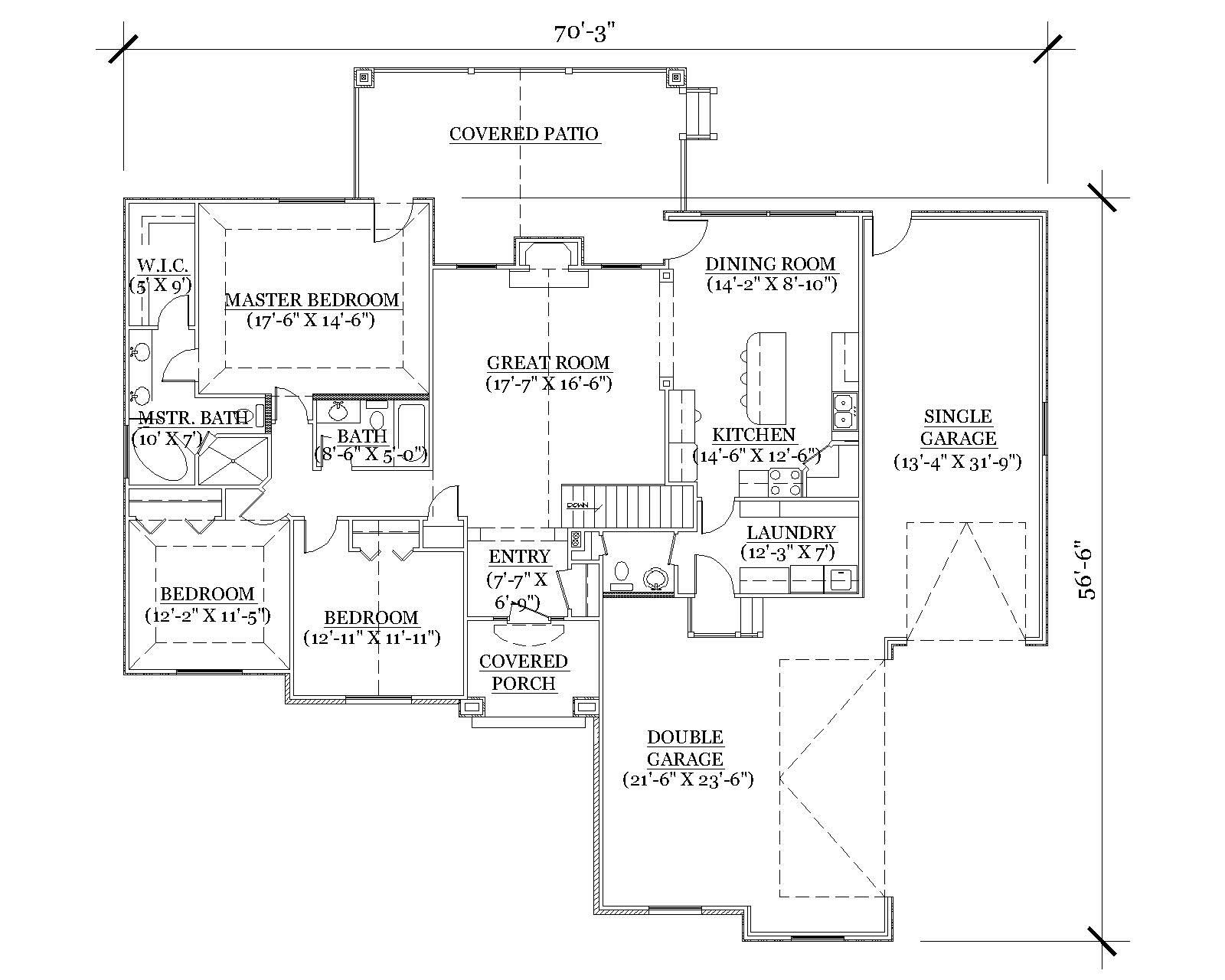

Home Plan: #135-1166 Floor Plan First Story - first story Floor Plan First Story of Ranch Plan #135-1166

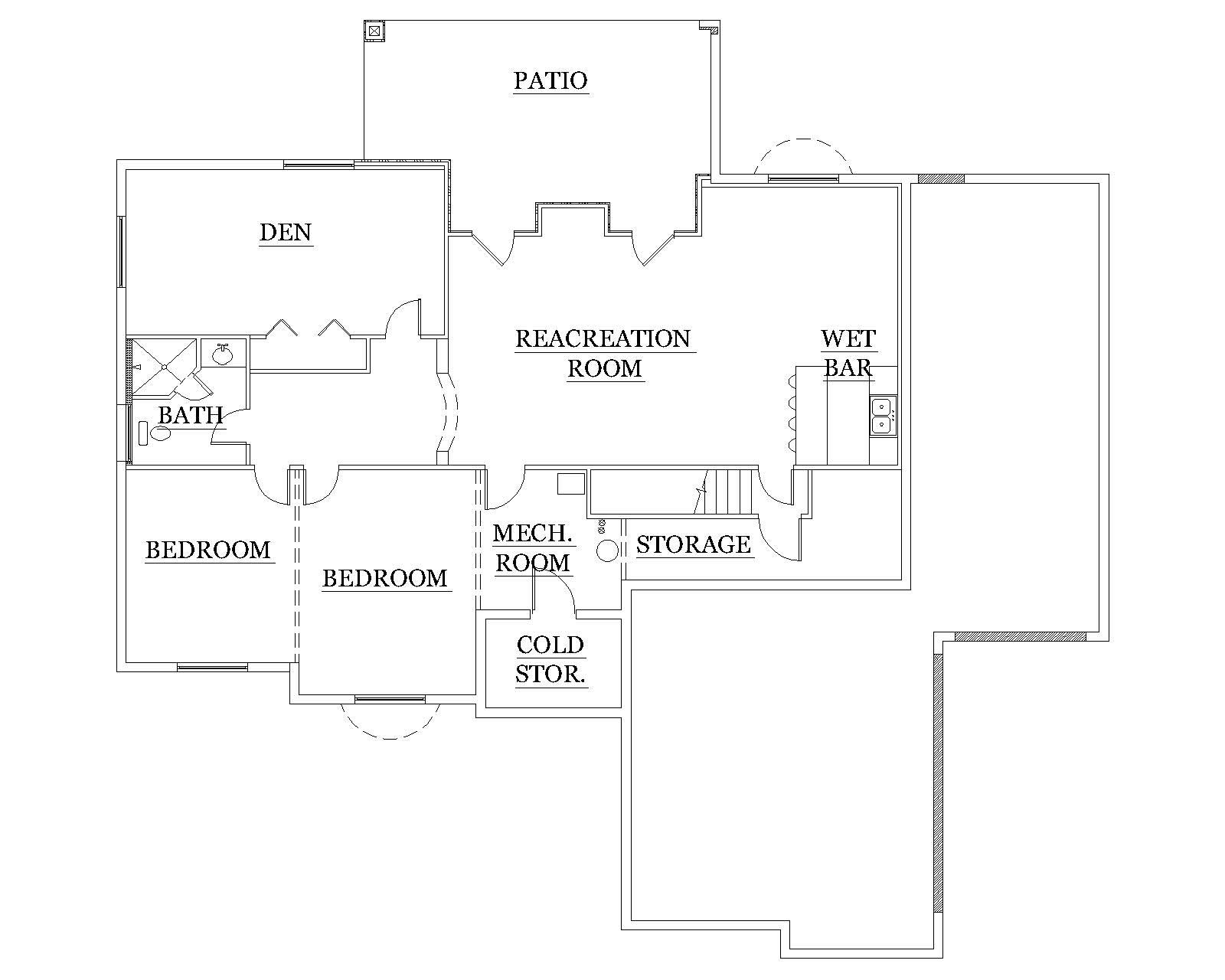

#135-1166 Floor Plan Basement - basement Floor Plan Basement of Ranch Plan #135-1166
Home Plan: #135-1166 Floor Plan First Story - first story Floor Plan First Story of Ranch Plan #135-1166
#135-1166 Floor Plan Basement - basement Floor Plan Basement of Ranch Plan #135-1166
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 135-1166
Floors:
1
Bedrooms:
5
Full Baths:
3
Half Baths:
1

Square Footage

Heated Sq Feet:
1821
Main Floor:
1821
Unfinished Sq Ft:
Lower Floor:
1544

Dimensions

Width:
70' 3"
Depth:
56' 6"
Ridge Height:
24'10"' 0"

Architectural Styles

Traditional

Exterior Wall Material

Brick

Roofing Type

Hip

Roof Pitch

9/12

Ceiling Height

9 Foot Ceiling

Special Feature

Den
Dining Room
Fireplace
Game Room
Storage

Garage Type

Front Entry
Side Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Building Lot Type

Side Slope Site

Kitchen Features

Kitchen Island
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
