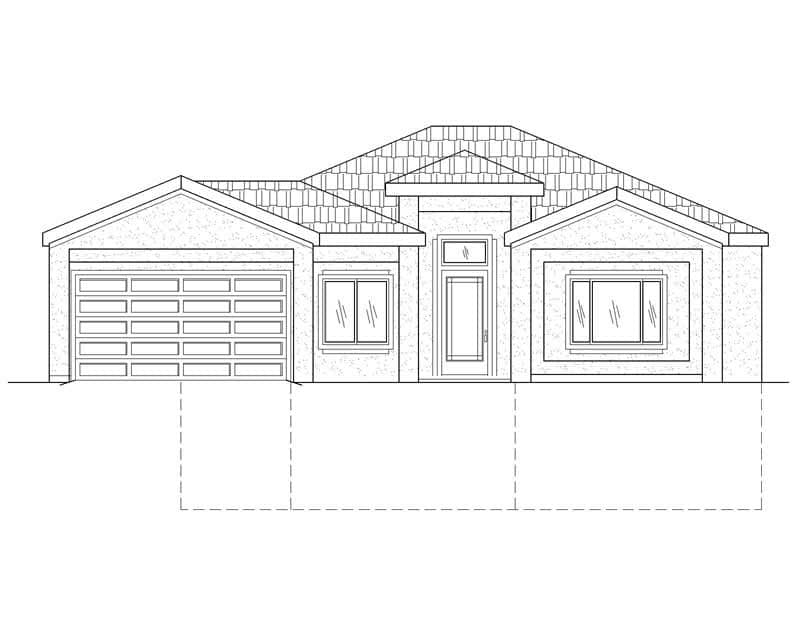

4-Bedroom, 1560 Sq Ft Contemporary Home Plan - 125-1016 - Main Exterior

About Plan # 125-1016

About Plan # 125-1016

1560 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 54' 0" WIDTH 53' 0" DEPTH 2 GARAGE BAY
This plan features a walk-out basement with a large recreation room.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • DETAIL SHEET

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

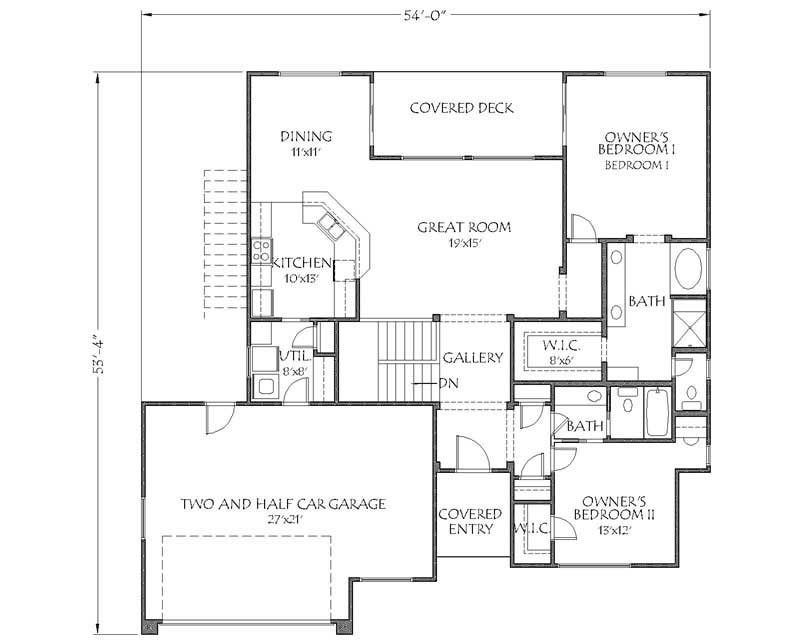

Home Plan: #125-1016 Floor Plan First Story - main Floor Plan First Story of Contemporary Plan #125-1016

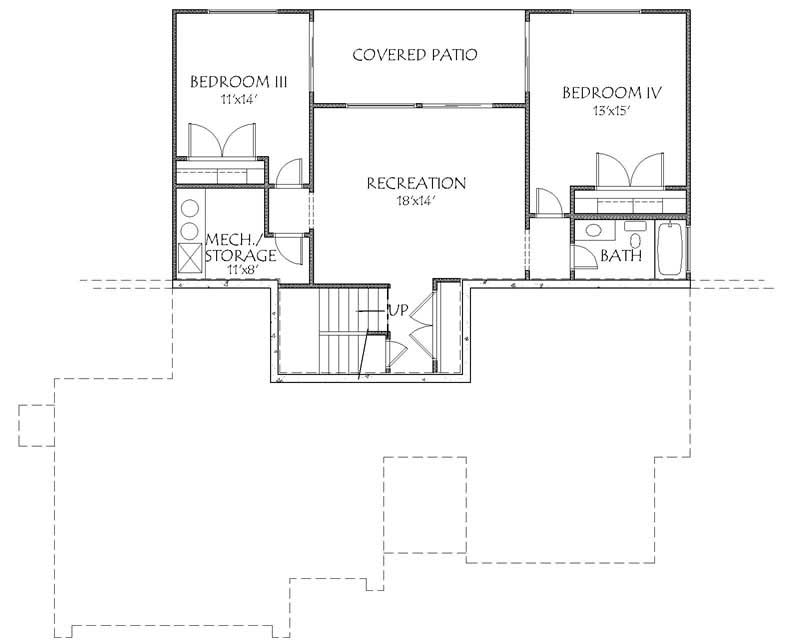

#125-1016 Floor Plan Basement - basement Floor Plan Basement of Contemporary Plan #125-1016
Home Plan: #125-1016 Floor Plan First Story - main Floor Plan First Story of Contemporary Plan #125-1016
#125-1016 Floor Plan Basement - basement Floor Plan Basement of Contemporary Plan #125-1016
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 125-1016
Floors:
1
Bedrooms:
4
Full Baths:
3

Square Footage

Heated Sq Feet:
1560
Main Floor:
1560
Unfinished Sq Ft:
Garage :
548

Dimensions

Width:
54' 0"
Depth:
53' 0"

Architectural Styles

Contemporary
Southwest

Exterior Wall Material

Stucco

Roof Pitch

5/12

Ceiling Height

10 Foot Ceiling

Garage Type

Front Entry

Exterior Wall Framing

2x4

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
