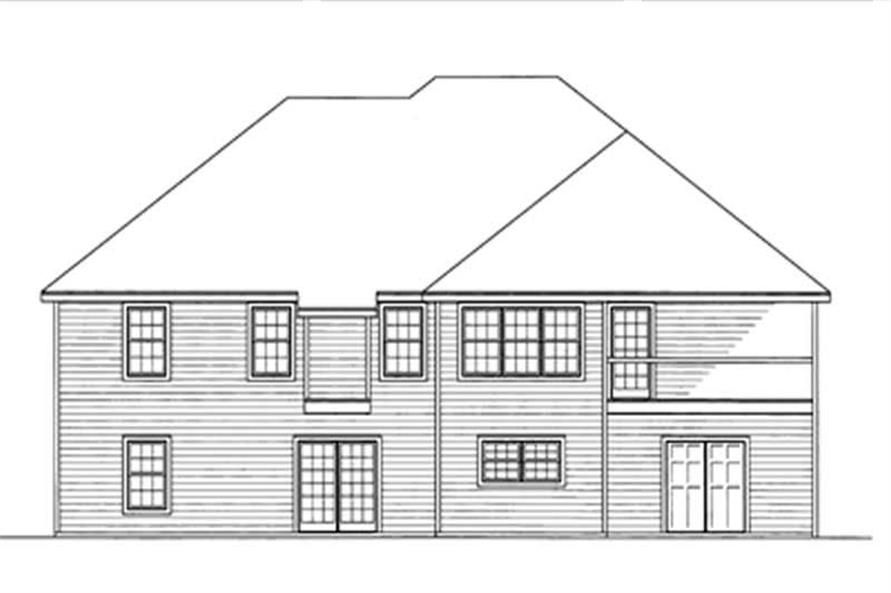

Rear Elevation
172-1035: Home Other Image-Front View

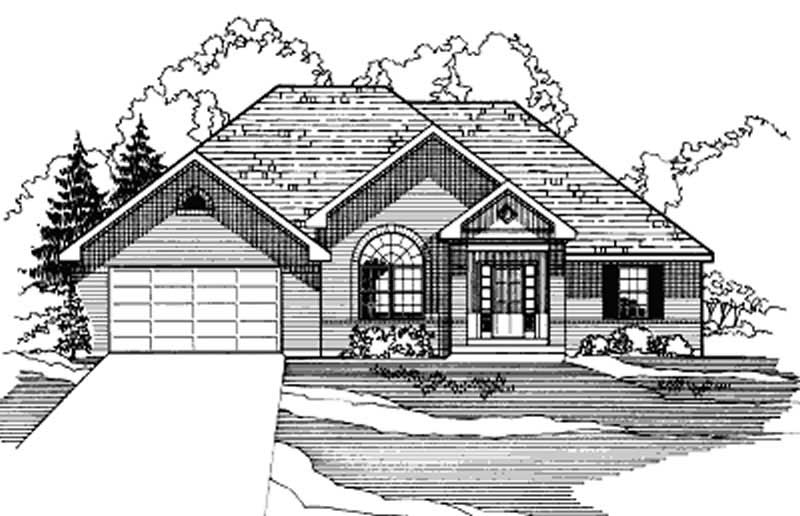

4-Bedroom, 1893 Sq Ft Contemporary House Plan - 172-1035 - Front Exterior
Rear Elevation
172-1035: Home Other Image-Front View

About Plan # 172-1035

About Plan # 172-1035

1893 SQUARE FEET 4 BEDROOMS 3 FULL BATH 1 HALF BATH
1 FLOOR 58' 0" WIDTH 58' 4" DEPTH 2 GARAGE BAY
The Huntington has a great screened porch for those summer evenings. Also, you'll find a main level laundry convenient at the garage entrance to the home, a formal dining room and vaulted great room.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

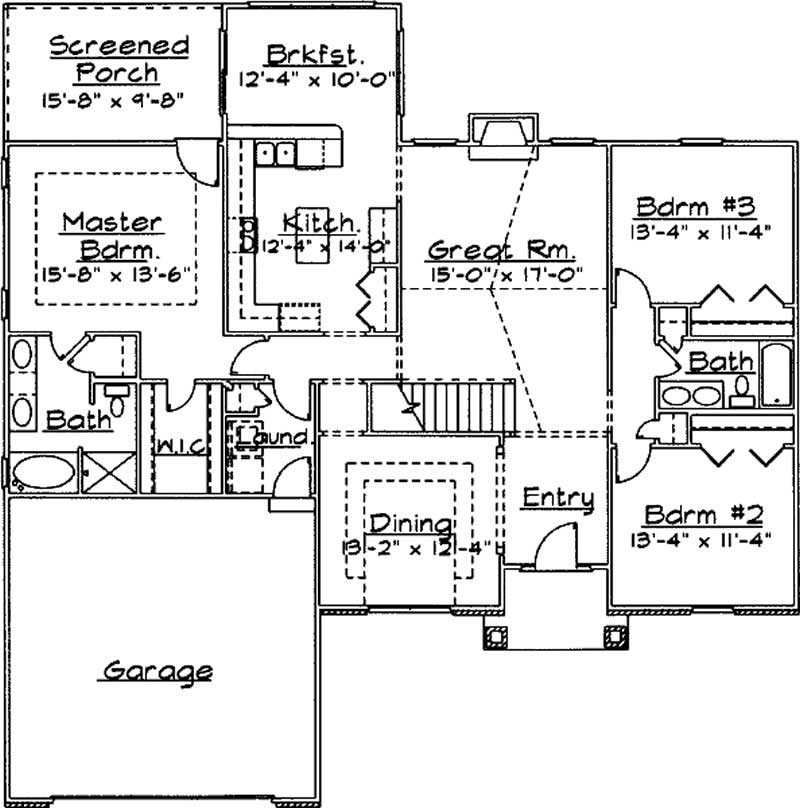

Home Plan: #172-1035 Floor Plan First Story - main level Floor Plan First Story of Contemporary Plan #172-1035

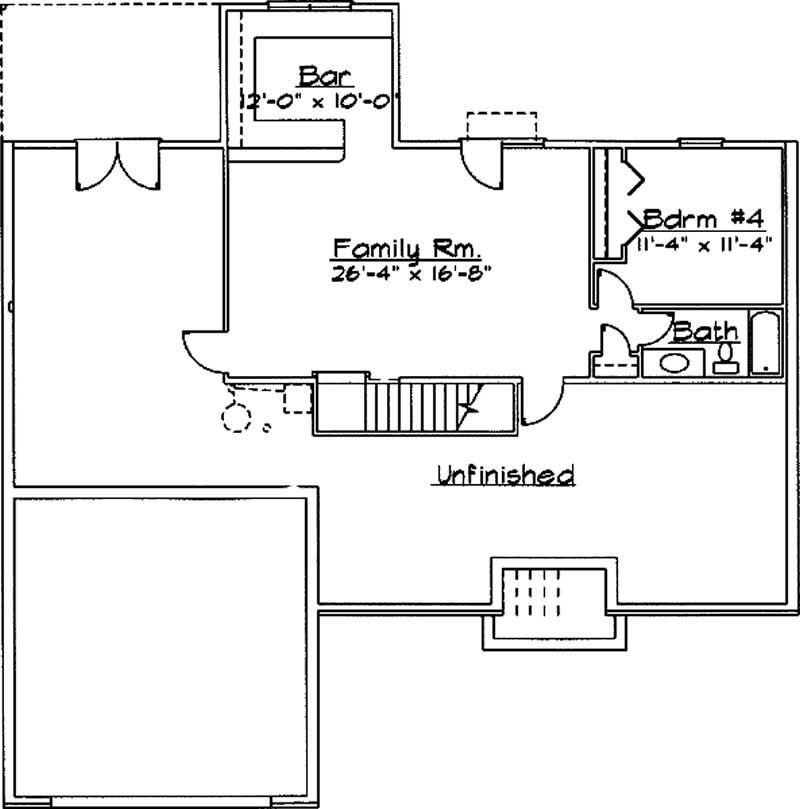

#172-1035 Floor Plan Basement - basement Floor Plan Basement of Contemporary Plan #172-1035
Home Plan: #172-1035 Floor Plan First Story - main level Floor Plan First Story of Contemporary Plan #172-1035
#172-1035 Floor Plan Basement - basement Floor Plan Basement of Contemporary Plan #172-1035
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 172-1035
Floors:
1
Bedrooms:
4
Full Baths:
3
Half Baths:
1

Square Footage

Heated Sq Feet:
1893
Main Floor:
1893
Unfinished Sq Ft:
Lower Floor:
1741
Garage :
577

Dimensions

Width:
58' 0"
Depth:
58' 4"
Ridge Height:
23' 0"

Architectural Styles

European
French
Contemporary
Georgian

Exterior Wall Material

Vinyl Siding
Brick
Stucco

Roofing Type

Hip

Roofing Material

Other Composites

Roof Pitch

9/12

Ceiling Height

8 Foot Ceiling

Special Feature

Dining Room
Main Level Laundry
Color Photos
Color Photos

Garage Type

Attached Garage

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
