2-Bedroom, 1370 Sq Ft Coastal Plan with Main Floor Master

Front elevation of Coastal home (ThePlanCollection: House Plan #196-1133)

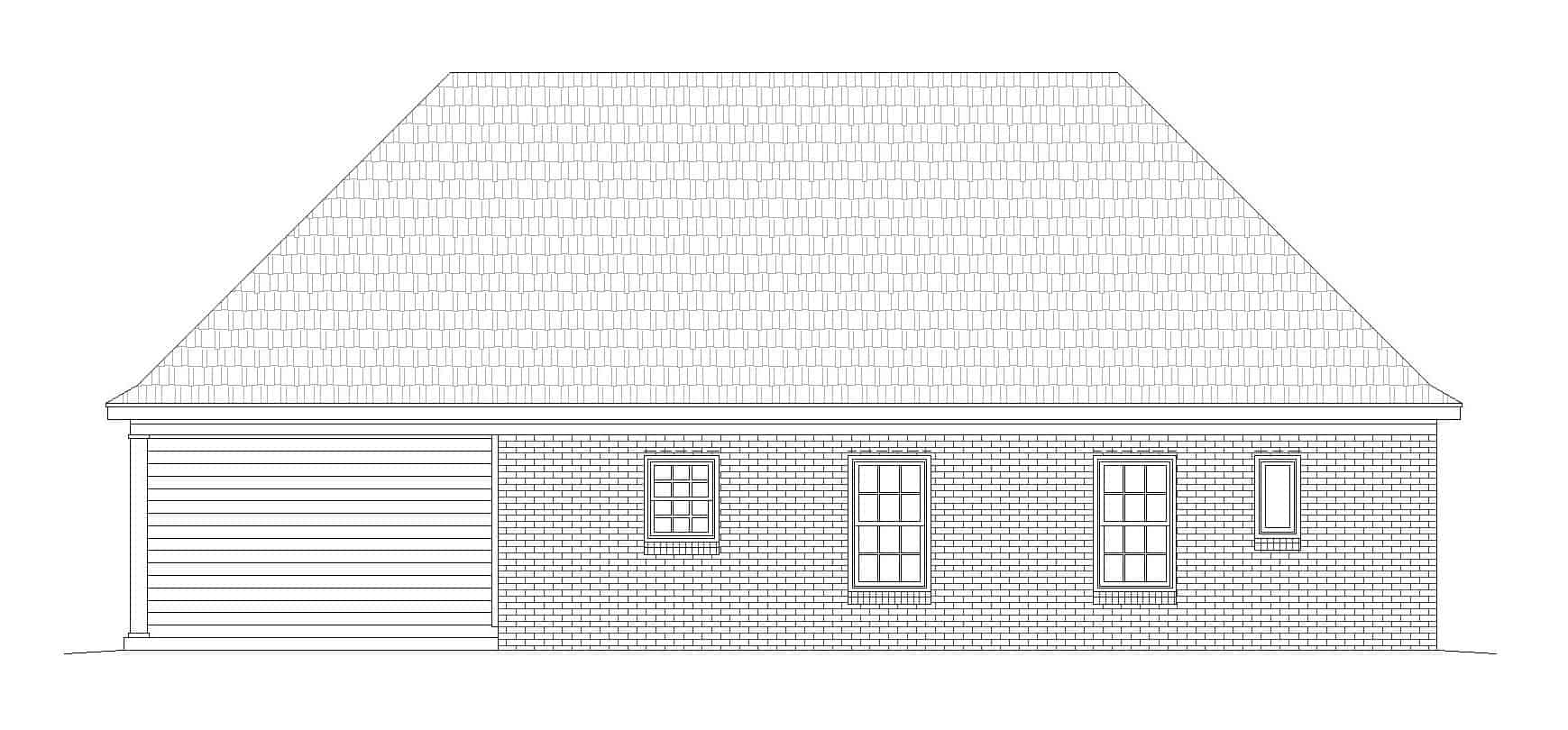

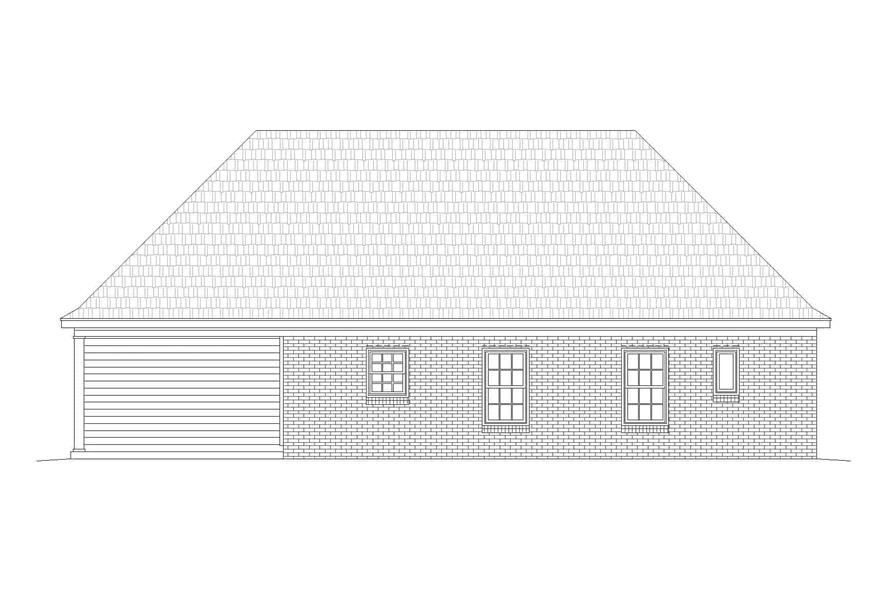

196-1133: Home Plan Rear Elevation

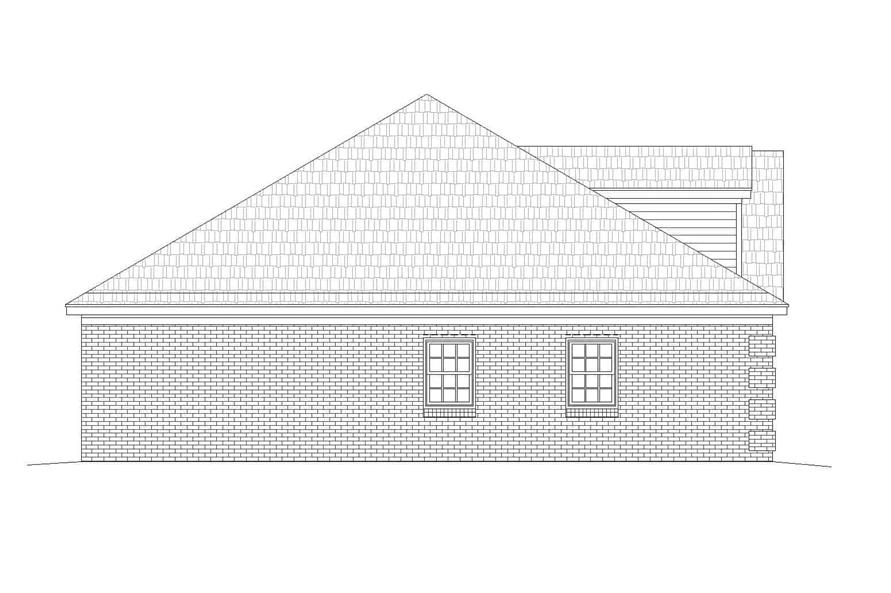

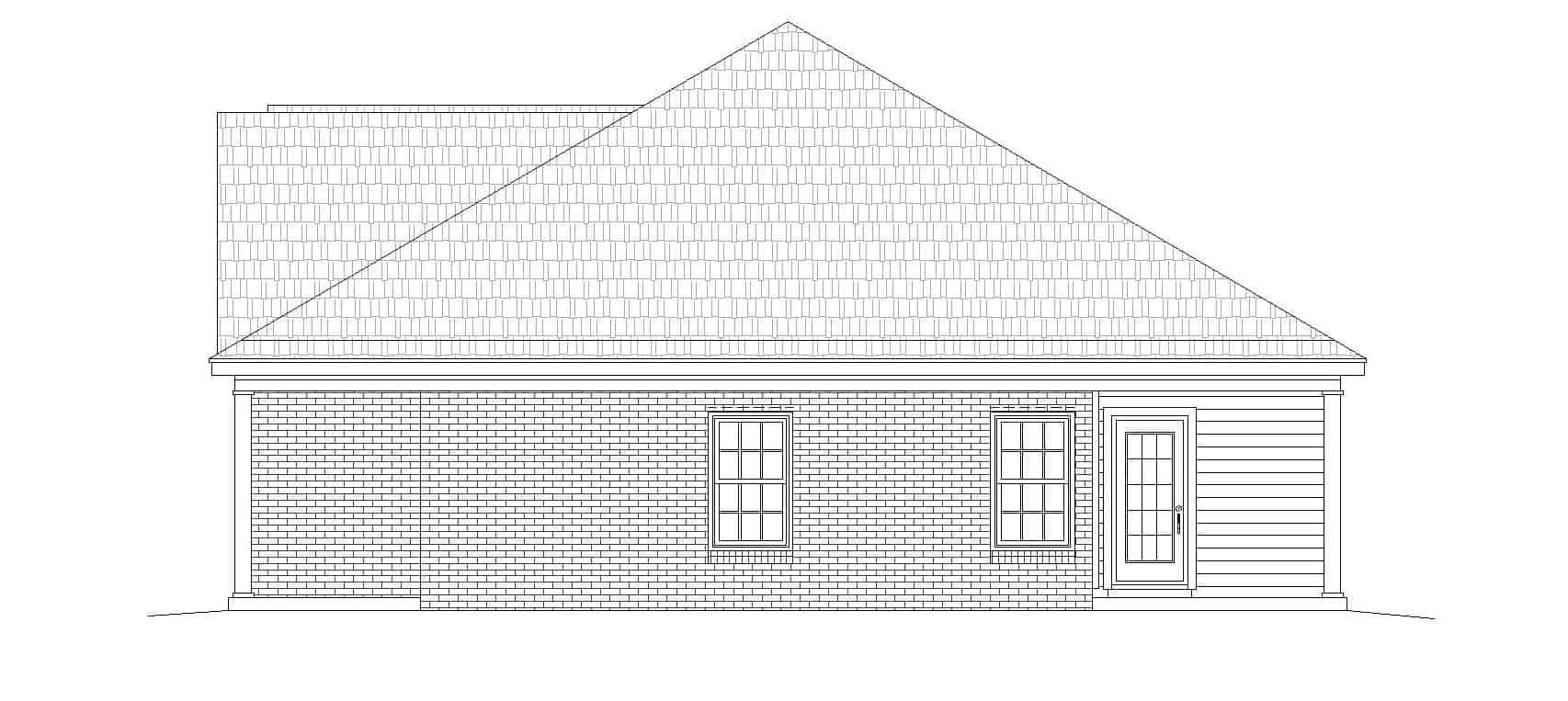

196-1133: Home Plan Left Elevation
196-1133: Home Plan Right Elevation

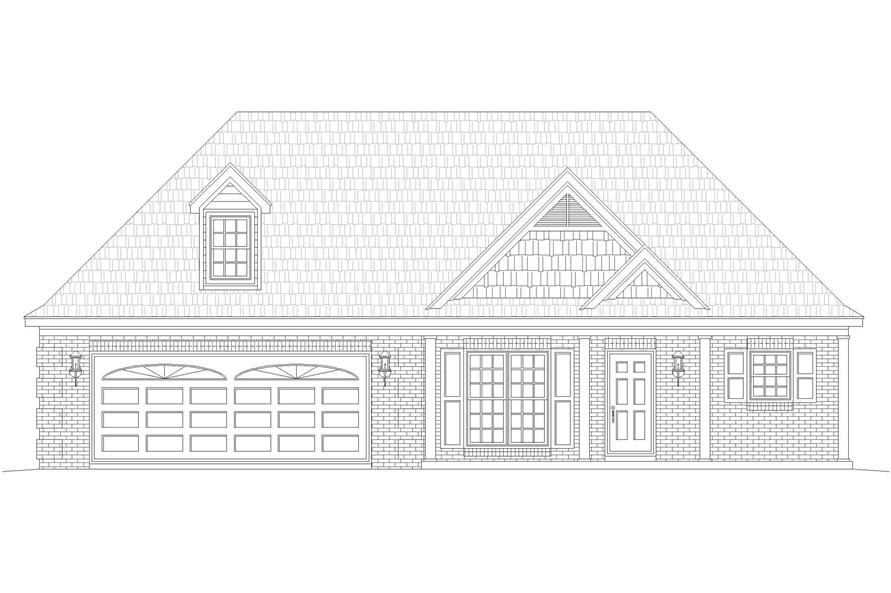

196-1133: Home Plan Front Elevation
196-1133: Home Plan Rendering
2-Bedroom, 1370 Sq Ft Coastal House Plan - 196-1133 - Front Exterior
196-1133: Home Plan Rear Elevation

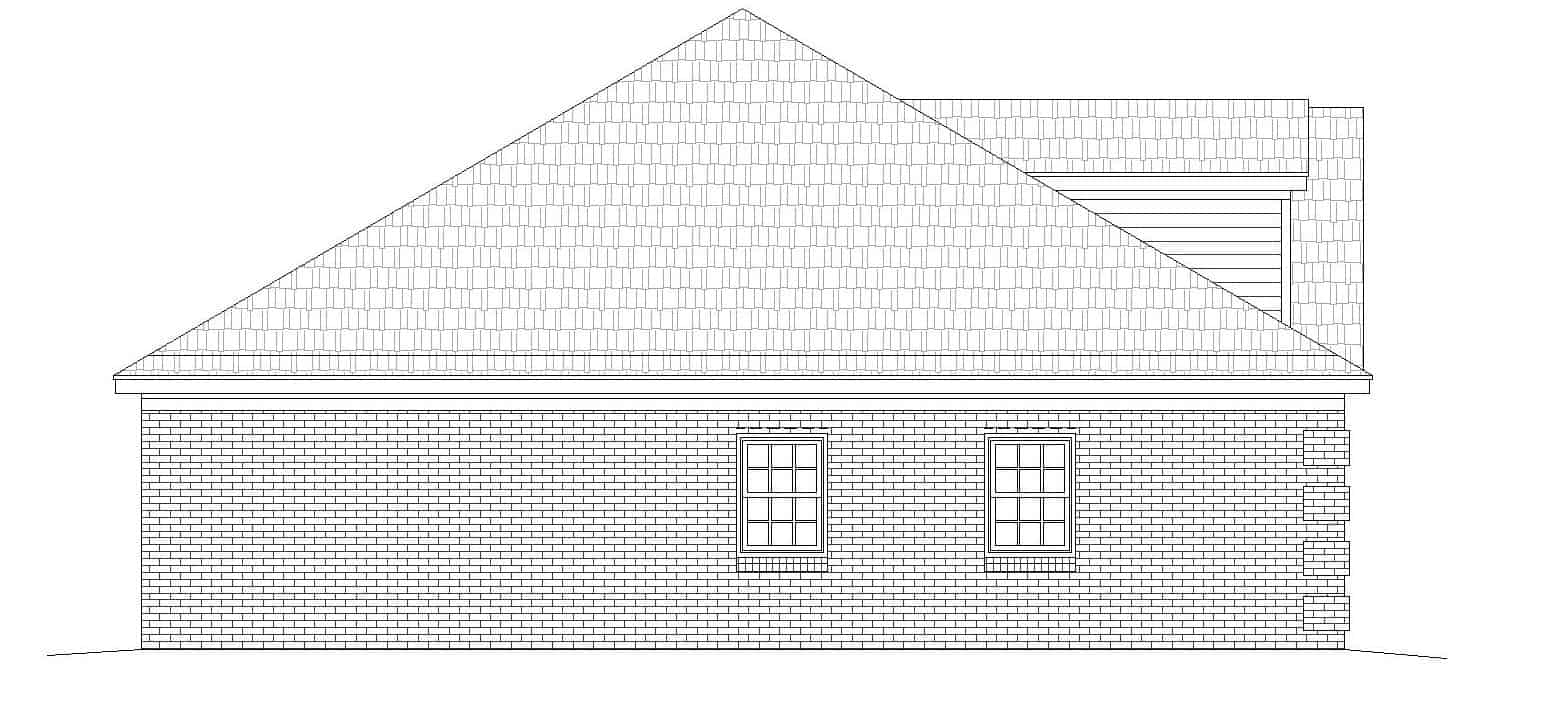

196-1133: Home Plan Left Elevation
196-1133: Home Plan Right Elevation

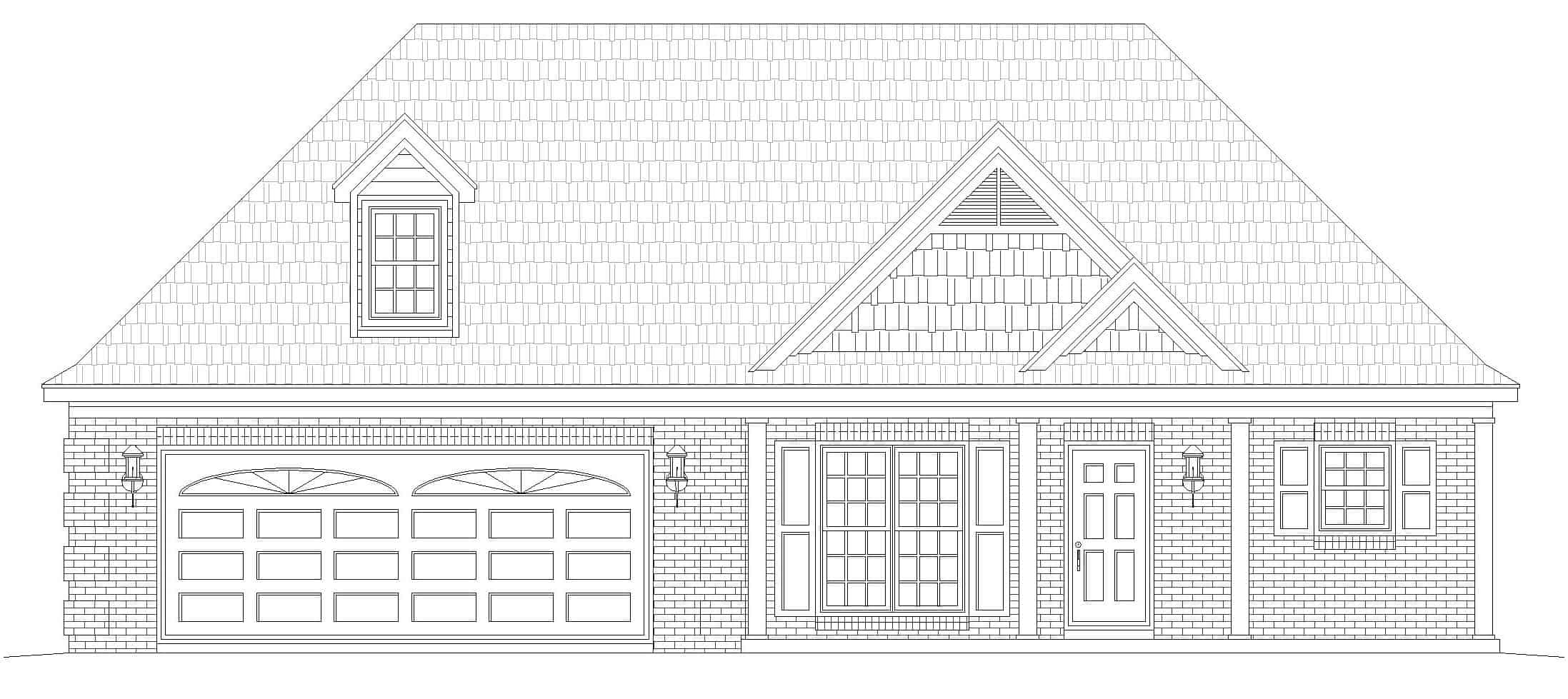

196-1133: Home Plan Front Elevation
196-1133: Home Plan Rendering

About Plan # 196-1133

About Plan # 196-1133

1370 SQUARE FEET 2 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 52' 7" WIDTH 43' 8" DEPTH 2 GARAGE BAY

This lovely Coastal style home with Country influences (House Plan #196-1133) has 1370 square feet of living space. The 1 story floor plan includes 2 bedrooms.

Each plan set includes the following:

  • FLOOR PLAN: Floor plan drawings indicating dimensions for construction
  • FOUNDATION PLAN: Dimensioned drawings describing specific foundation conditions for the structure
  • ROOF PLAN: Drawings indicating roof slopes and unique conditions
  • ELECTRICAL LAYOUT: Basic layout showing the suggested location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • EXTERIOR ELEVATIONS: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • BUILDING SECTIONS: Drawings cut through important locations in the structure
  • CONSTRUCTION DETAILS: Drawings showing specific construction of building elements at a large scale

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

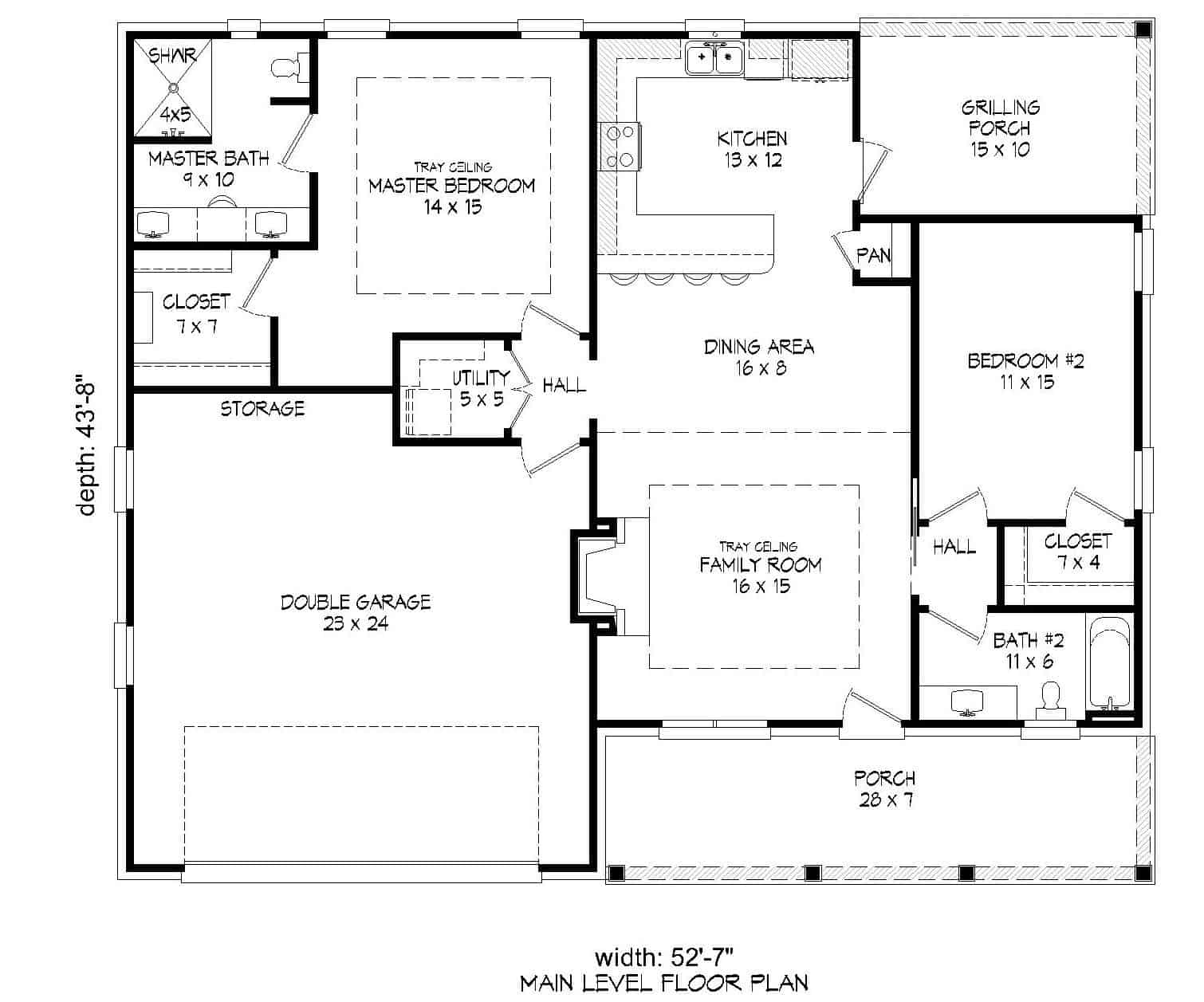

Home Plan: #196-1133 Floor Plan First Story - main level Floor Plan Main Level of Coastal Plan #196-1133
Home Plan: #196-1133 Floor Plan First Story - main level Floor Plan Main Level of Coastal Plan #196-1133
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 196-1133
Floors:
1
Bedrooms:
2
Full Baths:
2
Garage :
2

Square Footage

Heated Sq Feet:
1370
Main Floor:
1370
Unfinished Sq Ft:
Garage :
576
Porch :
349

Dimensions

Width:
52' 7"
Depth:
43' 8"
Ridge Height:
22' 3"

Architectural Styles

Coastal
Country
Vacation Homes

Exterior Wall Material

Brick
Shakes

Roofing Type

Hip

Roofing Material

Asphalt Shingles

Roof Pitch

12/12
7/12

Ceiling Height

9 Foot Ceiling

Special Feature

Family Room
Main Level Laundry
Open Floor Plan
Split Bathroom
Storage

Garage Type

Attached Garage
Front Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x4

Kitchen Features

Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Main Floor Master
Master Bathroom
Split Master Bedroom
Walk In Closet

Additional Notes from Designer

NOTE FROM DESIGNER REGARDING PLAN PURCHASES: 80% of a 5 set purchase price can be applied to any PDF or CAD license upgrade. Additionally, 80% of PDF Study purchase price can be applied to any CAD or PDF license upgrade.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

Stamped "Not for Construction," this PDF file set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
