1-Bedroom, 1309 Sq Ft Modern Plan with Open Concept Kitchen

Front elevation of Modern home (ThePlanCollection: House Plan #196-1174)
196-1174: Home Plan Rear Elevation
196-1174: Home Plan Left Elevation
196-1174: Home Plan Right Elevation
196-1174: Home Plan Front Elevation
1-Bedroom, 1309 Sq Ft Modern House Plan - 196-1174 - Front Exterior
196-1174: Home Plan Rear Elevation
196-1174: Home Plan Left Elevation
196-1174: Home Plan Right Elevation
196-1174: Home Plan Front Elevation

About Plan # 196-1174

About Plan # 196-1174

1309 SQUARE FEET 1 BEDROOMS 1 FULL BATH 1 HALF BATH
2 FLOOR 30' 9" WIDTH 46' 9" DEPTH 2 GARAGE BAY

This marvelous home is sure to capture your attention with its modern design and looks. Perfect for a tiny residence or a guest house/studio as part of a larger estate, this earth-friendly design is very flexible; there is no end to the uses for this exciting modern design! The magnificent balcony will allow you to enjoy and observe nature while being protected from the discomfort due to the weather outside. This 2-story floor plan has 1309 square feet of living space and includes 1 bedroom.

Each plan set includes the following:

  • FLOOR PLAN: Floor plan drawings indicating dimensions for construction
  • FOUNDATION PLAN: Dimensioned drawings describing specific foundation conditions for the structure
  • ROOF PLAN: Drawings indicating roof slopes and unique conditions
  • ELECTRICAL LAYOUT: Basic layout showing the suggested location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • EXTERIOR ELEVATIONS: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • BUILDING SECTIONS: Drawings cut through important locations in the structure
  • CONSTRUCTION DETAILS: Drawings showing specific construction of building elements at a large scale

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

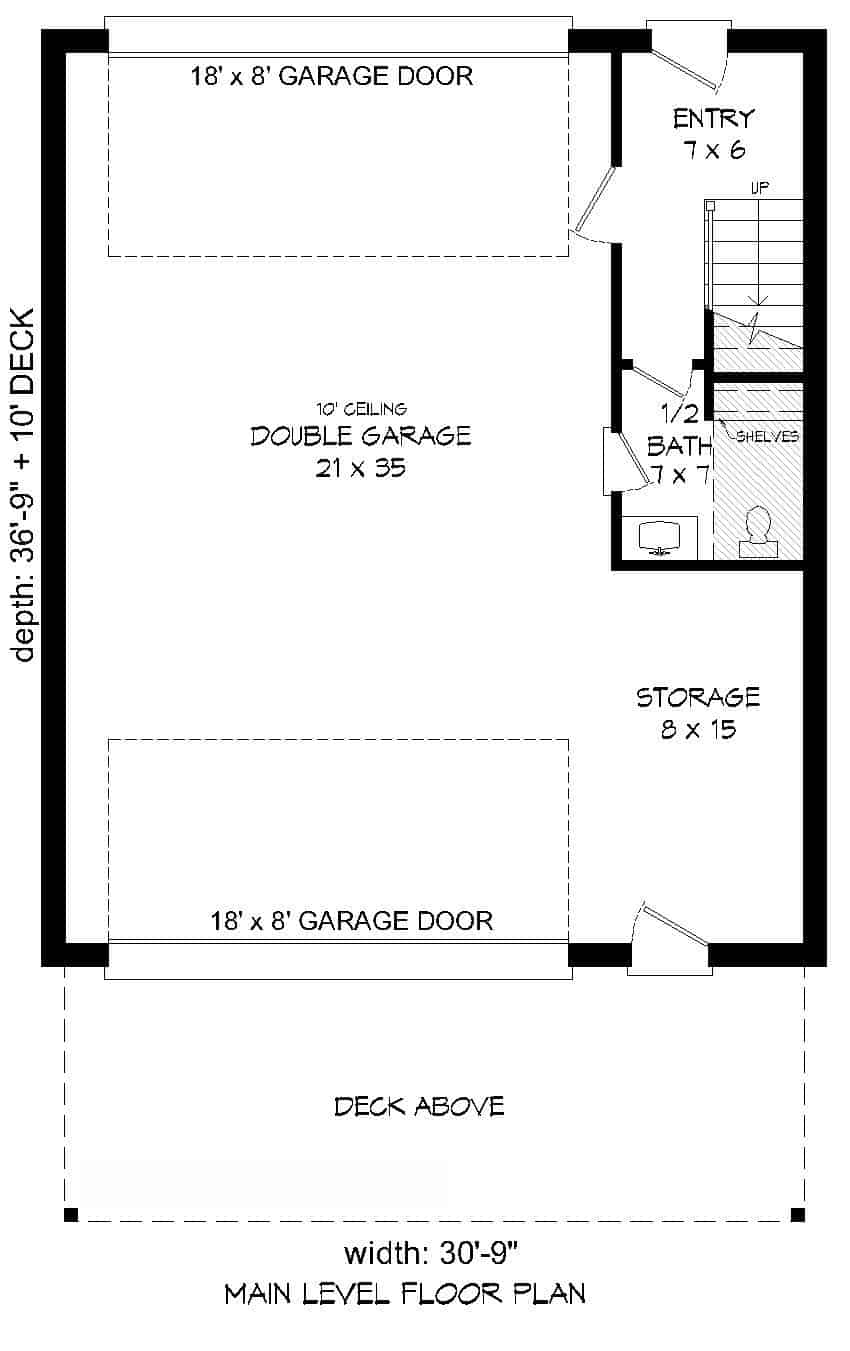

Home Plan: #196-1174 Floor Plan First Story - main level Floor Plan Main Level of Modern Plan #196-1174

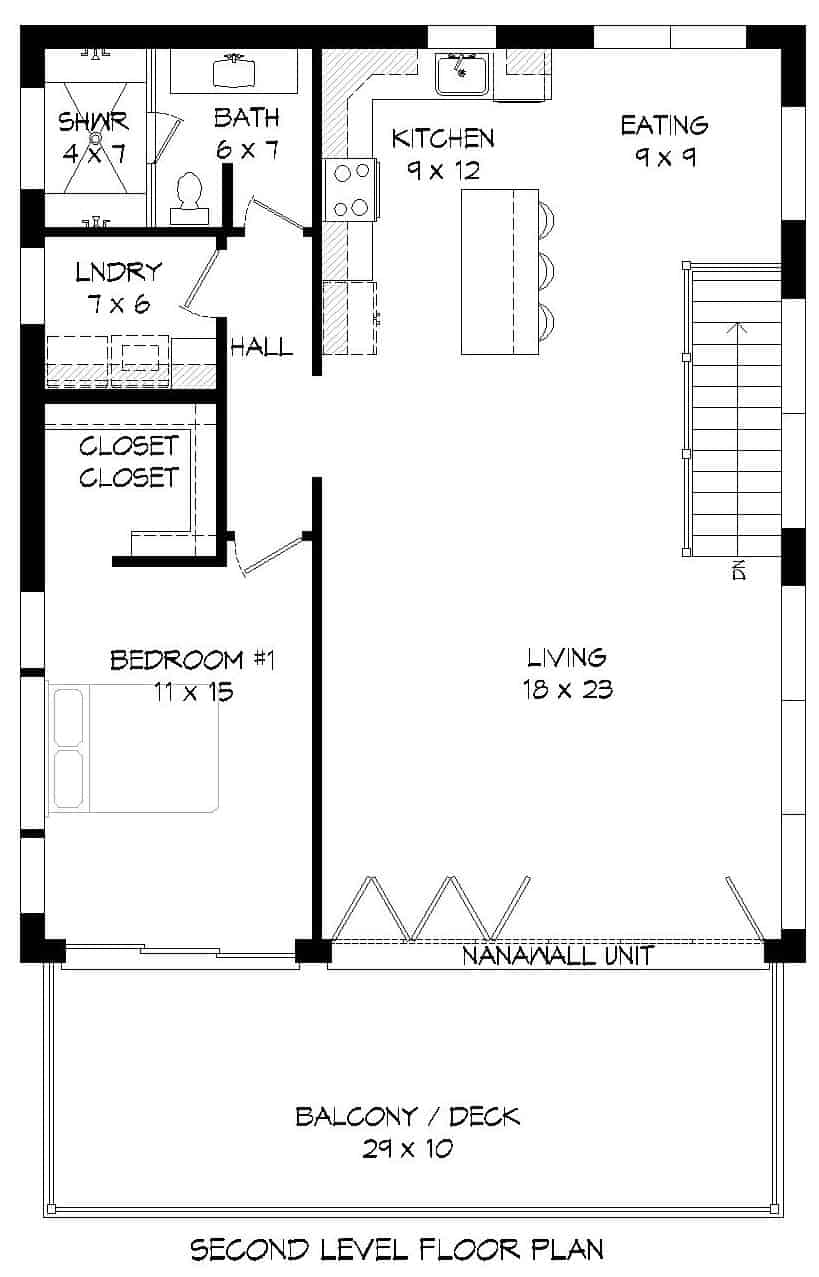

#196-1174 Floor Plan Second Story - upper level Floor Plan Upper Level of Modern Plan #196-1174
Home Plan: #196-1174 Floor Plan First Story - main level Floor Plan Main Level of Modern Plan #196-1174
#196-1174 Floor Plan Second Story - upper level Floor Plan Upper Level of Modern Plan #196-1174
