1-Bedroom, 1305 Sq Ft Country Plan with Master Bathroom

Front elevation of Country home (ThePlanCollection: House Plan #170-1422)
1-Bedroom, 1305 Sq Ft Country Home Plan - 170-1422 - Main Exterior

About Plan # 170-1422

About Plan # 170-1422

1305 SQUARE FEET 1 BEDROOMS 1 FULL BATH 1 HALF BATH
1 FLOOR 65' 0" WIDTH 52' 0" DEPTH 0 GARAGE BAY

The porch that wraps all around the home has cover for all types of weather. The living area, kitchen and dining area all open to each other and take half of the home. The other half is mostly the master suite with some space for the utilities room and a 1/2 bathroom.  Please Note: Shipment of this plan may take up to TWO weeks after initial order is received.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FRAMING SECTION
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. It includes cabinet and stair details.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

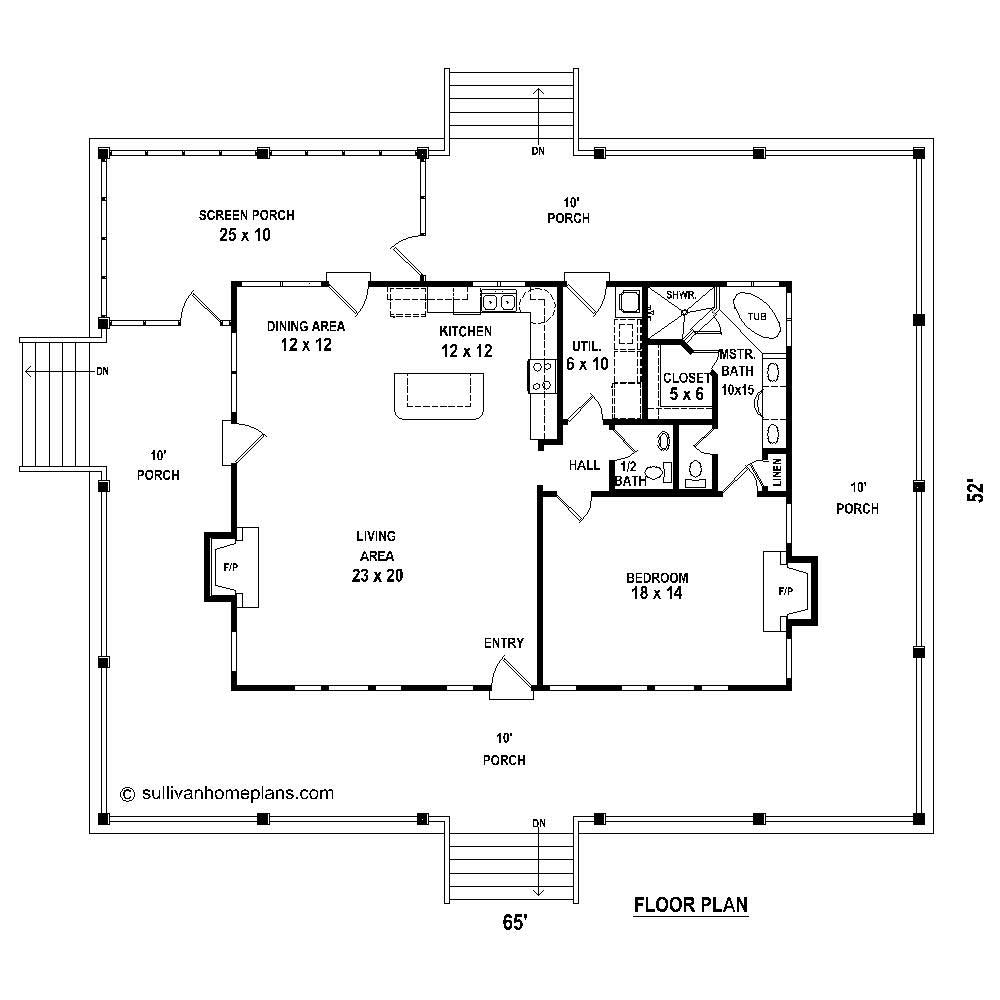

Home Plan: #170-1422 Floor Plan First Story - first story Floor Plan First Story of Country Plan #170-1422
Home Plan: #170-1422 Floor Plan First Story - first story Floor Plan First Story of Country Plan #170-1422
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 170-1422
Floors:
1
Bedrooms:
1
Full Baths:
1
Half Baths:
1

Square Footage

Heated Sq Feet:
1305
Main Floor:
1305
Unfinished Sq Ft:
Lower Floor:
1362

Dimensions

Width:
65' 0"
Depth:
52' 0"

Architectural Styles

Country
Small House Plans

Exterior Wall Material

Wood Siding

Roofing Type

Gable

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Main Level Laundry

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island

Porches and Exterior Features

Screened Porch/Sunroom
Wrap Around Porch

Master Suite Features

Fireplace in Master
Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

PLEASE NOTE: Some plans may take 2-3 weeks to receive! Additionally, not ALL plans from this designer are available in CAD or PDF, some additional charges may apply. Contact us with any questions or concerns BEFORE ordering! Thank you!

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
