About Plan # 105-1036

About Plan # 105-1036

1114 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 25' 0" WIDTH 39' 0" DEPTH 1 GARAGE BAY
The cathedral ceiling and a warm fireplace grace the Great Room of this rustic chalet. Two sets of sliding glass doors lead to the wide, wraparound deck. The kitchen features a six-person snack bar and is steps away from the stacked laundry facilities. A full bath is shared by the two main-floor bedrooms. The master bedroom also contains a cathedral ceiling, a private bath and roomy closets.

Each plan set includes the following:

  • Elevations
  • Sections - Include structural design & specifications
  • Kitchen cabinet elevations
  • Floor Plan
  • Roof Plan
  • Typical wall section
  • Construction & Specification notes
  • Special detail sections
  • Plumbing riser diagram
  • Window and door sizes
  • Structural design joists and beams
  • Electrical Layout
  • Special Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and location
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

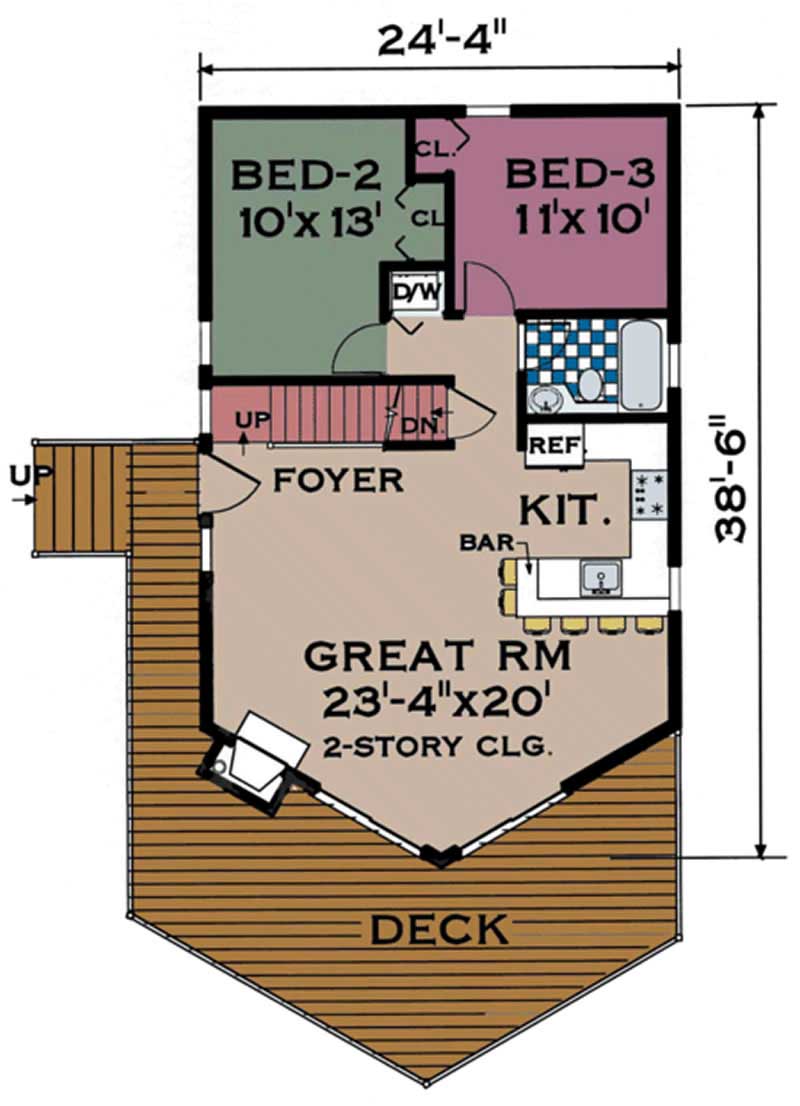

Home Plan: #105-1036 Floor Plan First Story Floor Plan First Story of Vacation Homes Plan #105-1036

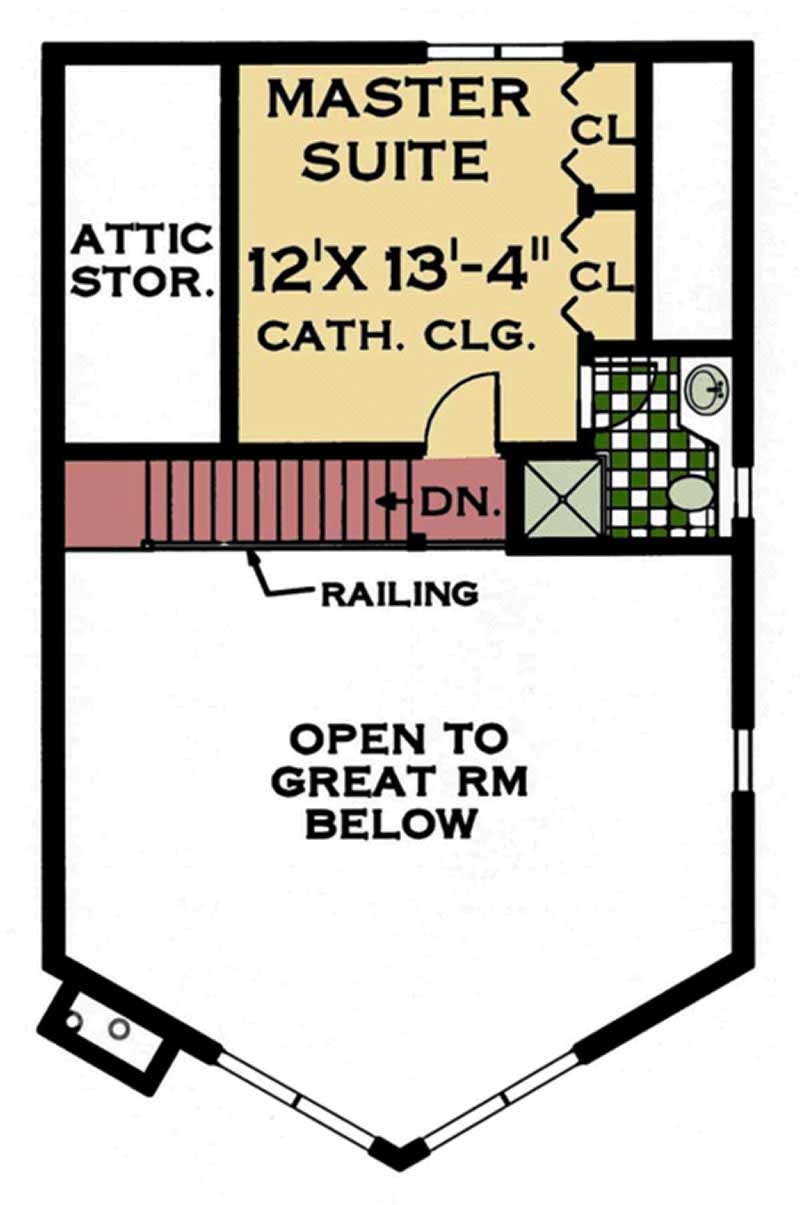

#105-1036 Floor Plan Second Story Floor Plan Second Story of Vacation Homes Plan #105-1036
Home Plan: #105-1036 Floor Plan First Story Floor Plan First Story of Vacation Homes Plan #105-1036
#105-1036 Floor Plan Second Story Floor Plan Second Story of Vacation Homes Plan #105-1036
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 105-1036
Floors:
2
Bedrooms:
3
Full Baths:
2

Square Footage

Heated Sq Feet:
1114
Main Floor:
854
Upper Floor:
260
Unfinished Sq Ft:

Dimensions

Width:
25' 0"
Depth:
39' 0"

Architectural Styles

Vacation Homes

Exterior Wall Material

Wood Siding

Special Feature

Fireplace

Garage Type

Attached Garage

Exterior Wall Framing

2x4

Building Lot Type

Narrow Lot Design

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
