5-Bedroom, 2499 Sq Ft Country Home Plan - 105-1040 - Main Exterior

About Plan # 105-1040

About Plan # 105-1040

2499 SQUARE FEET 5 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 75' 0" WIDTH 43' 0" DEPTH 2 GARAGE BAY
Summertime lemonade will taste great when enjoyed from the shady front porch of this home. Inside, fireplaces grace the living room and the Great Room, which are separated by French pocket doors. A TV nook borders the fireplace in the Great Room. Restful nights will be the norm in the master suite, which boasts a cathedral ceiling and a private bath with a whirlpool tub.

Each plan set includes the following:

  • Elevations
  • Sections - Include structural design & specifications
  • Kitchen cabinet elevations
  • Floor Plan
  • Roof Plan
  • Typical wall section
  • Construction & Specification notes
  • Special detail sections
  • Plumbing riser diagram
  • Window and door sizes
  • Structural design joists and beams
  • Electrical Layout
  • Special Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Framing layouts with beam sizes and location
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

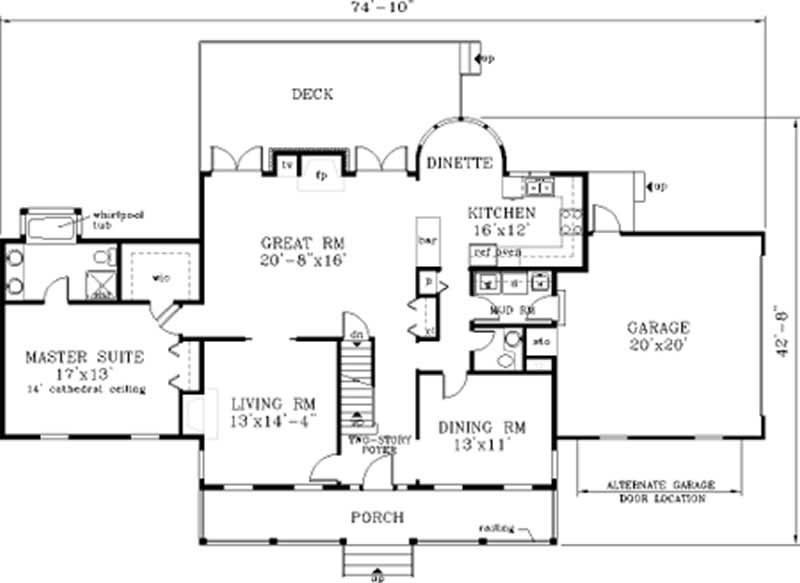

Home Plan: #105-1040 Floor Plan First Story Floor Plan First Story of Country Plan #105-1040

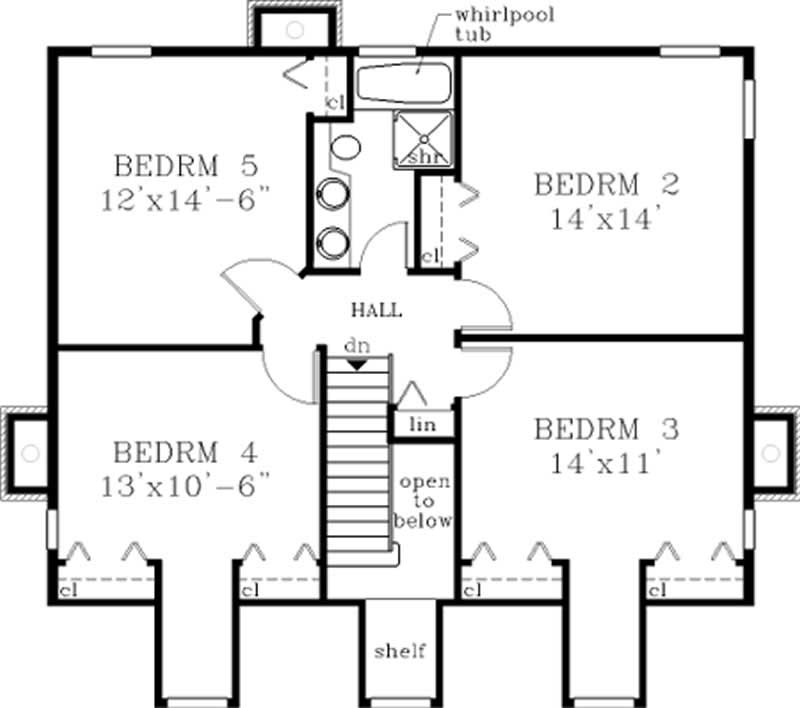

#105-1040 Floor Plan Second Story Floor Plan Second Story of Country Plan #105-1040
Home Plan: #105-1040 Floor Plan First Story Floor Plan First Story of Country Plan #105-1040
#105-1040 Floor Plan Second Story Floor Plan Second Story of Country Plan #105-1040
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 105-1040
Floors:
2
Bedrooms:
5
Full Baths:
2

Square Footage

Heated Sq Feet:
2499
Main Floor:
1571
Upper Floor:
928
Unfinished Sq Ft:

Dimensions

Width:
75' 0"
Depth:
43' 0"

Architectural Styles

Country
Southern

Exterior Wall Material

Wood Siding

Special Feature

Fireplace

Garage Type

Attached Garage

Exterior Wall Framing

2x4

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
