3-Car, 1 Bedroom, Garage

Main image for house plan # 9464
1-Bedroom, 188 Sq Ft Garage House Plan - 132-1285 - Front Exterior

About Plan # 132-1285

About Plan # 132-1285

188 SQUARE FEET 1 BEDROOMS 0 FULL BATH 0 HALF BATH
1 FLOOR 48' 0" WIDTH 26' 0" DEPTH 3 GARAGE BAY
*Standard Frame Construction *Garage/Shop Style *3 Car Garage *Unfinished Attic *Shop *Covered Breezeway/Porch

Each plan set includes the following:

  • FLOOR PLAN: Includes interior and exterior dimensions, window/door schedule, wall framing details.
  • FOUNDATION PLAN: Shows footing, stem wall, and slab placement; includes all connection details.
  • ROOF & FLOOR FRAMING PLANS: Shows truss/rafter placements, including all beams/connection details.
  • ELECTRICAL LAYOUT
  • FRONT, REAR, AND SIDE ELEVATIONS: Shows the home on all four sides, calls out exterior finishes, rooflines, window and door locations.
  • CROSS SECTIONS: Cut through view of the structure from roof to foundation, shows framing, plate heights, insulation, etc. Includes general notes/details to cover the entirety of the project.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

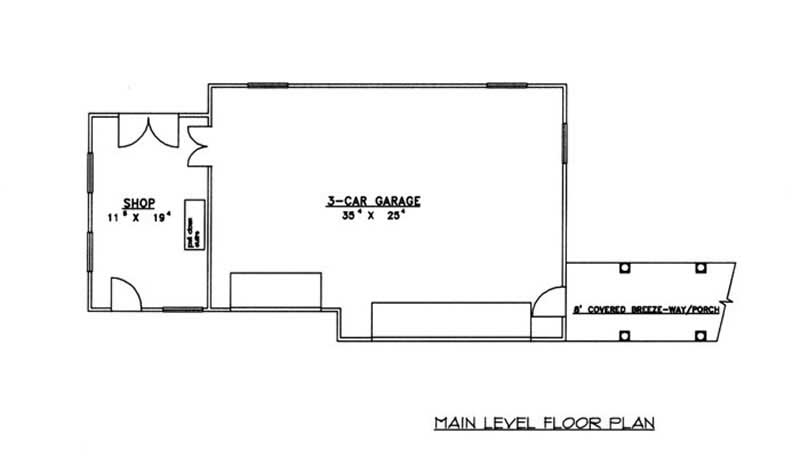

Home Plan: #132-1285 Floor Plan First Story - main level Floor Plan First Story of Garage Plan #132-1285

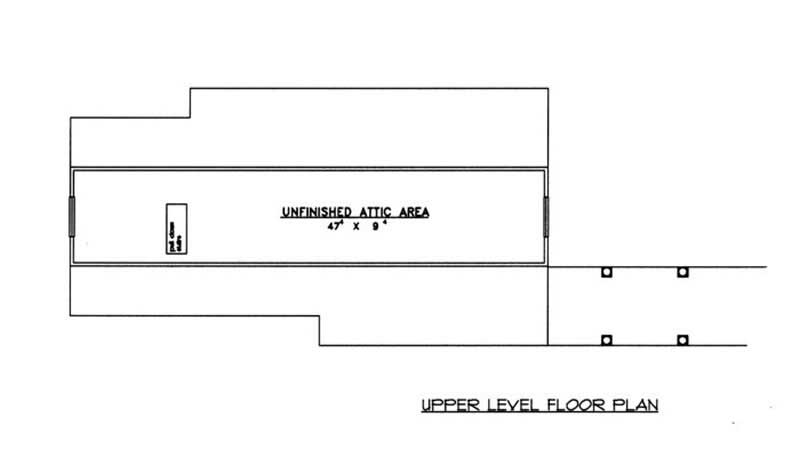

#132-1285 Floor Plan Second Story - upper level Floor Plan Second Story of Garage Plan #132-1285
Home Plan: #132-1285 Floor Plan First Story - main level Floor Plan First Story of Garage Plan #132-1285
#132-1285 Floor Plan Second Story - upper level Floor Plan Second Story of Garage Plan #132-1285
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 132-1285
Floors:
1
Bedrooms:
1

Square Footage

Heated Sq Feet:
188
Unfinished Sq Ft:
Bonus Room:
188
Garage :
1137

Dimensions

Width:
48' 0"
Depth:
26' 0"
Ridge Height:
19'2' 0"

Architectural Styles

Garage

Exterior Wall Material

Aluminum Siding
Vinyl Siding
Wood Siding

Roof Pitch

8/12

Ceiling Height

9 Foot Ceiling

Garage Type

Attached Garage

Exterior Wall Framing

2x6

Porches and Exterior Features

Breezeway

Additional Notes from Designer

PLEASE NOTE! The CAD - Unlimited package is NOT an unlimited license - it is a license to build up to 5 homes.
