2-Bedroom, 3284 Sq Ft Concrete Block/ ICF Design Plan with Covered Front Porch

Log Home Plans Front elevation.

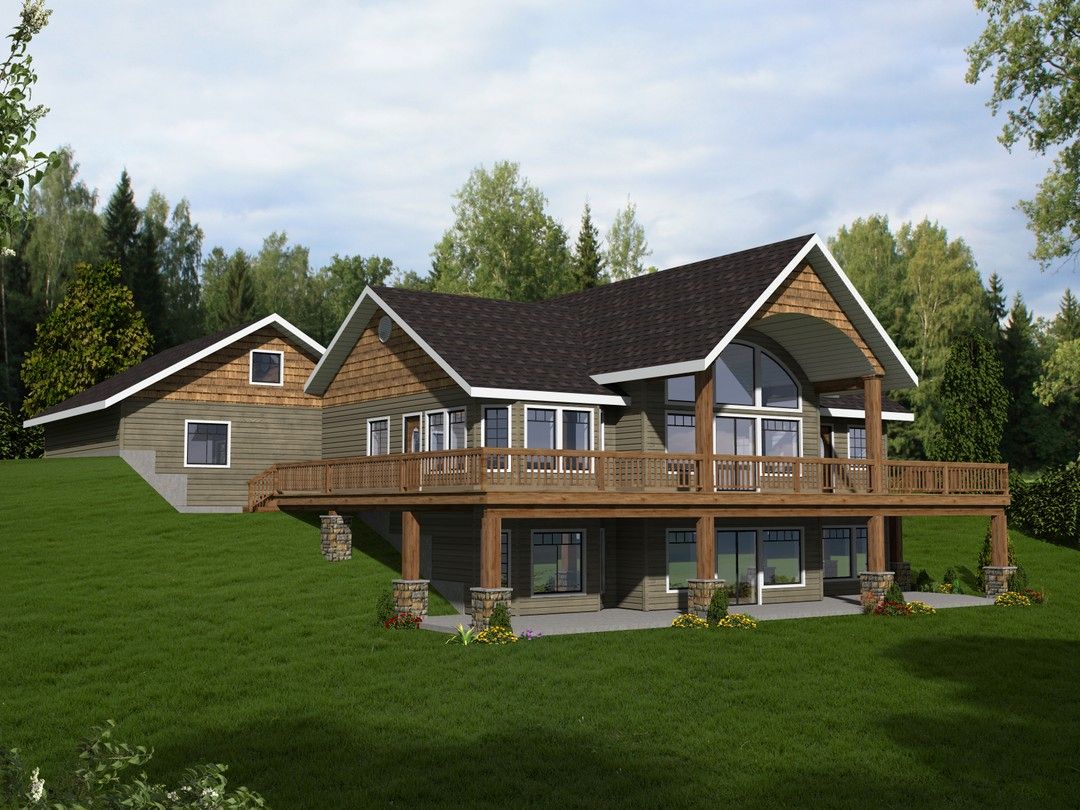

2-Bedroom, 3284 Sq Ft Concrete Block/ ICF Design Home Plan - 132-1351 - Main Exterior

About Plan # 132-1351

About Plan # 132-1351

3284 SQUARE FEET 2 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 68' 0" WIDTH 72' 0" DEPTH 2 GARAGE BAY
These House Plans are unique in that they use Insulated Concrete Form Construction and incorporate a Modern Style. These Cabin House Plans have a daylight basement with a family room, storage area, a covered porch and much more. The Main Level has a 2 Car Garage which leads to a partially covered wrap-around deck. The Deck itself has multiple access to the interior of the home and a built-in spa/hot tub. Inside the home is a Large Great Room, which joins with the kitchen and dining room. Also on the main level is the Master Suite with matching walk-in closets and master bath. Also note the Den/Office right off the foyer.

Each plan set includes the following:

  • FLOOR PLAN: Includes interior and exterior dimensions, window/door schedule, wall framing details.
  • FOUNDATION PLAN: Shows footing, stem wall, and slab placement; includes all connection details.
  • ROOF & FLOOR FRAMING PLANS: Shows truss/rafter placements, including all beams/connection details.
  • ELECTRICAL LAYOUT
  • FRONT, REAR, AND SIDE ELEVATIONS: Shows the home on all four sides, calls out exterior finishes, rooflines, window and door locations.
  • CROSS SECTIONS: Cut through view of the structure from roof to foundation, shows framing, plate heights, insulation, etc. Includes general notes/details to cover the entirety of the project.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

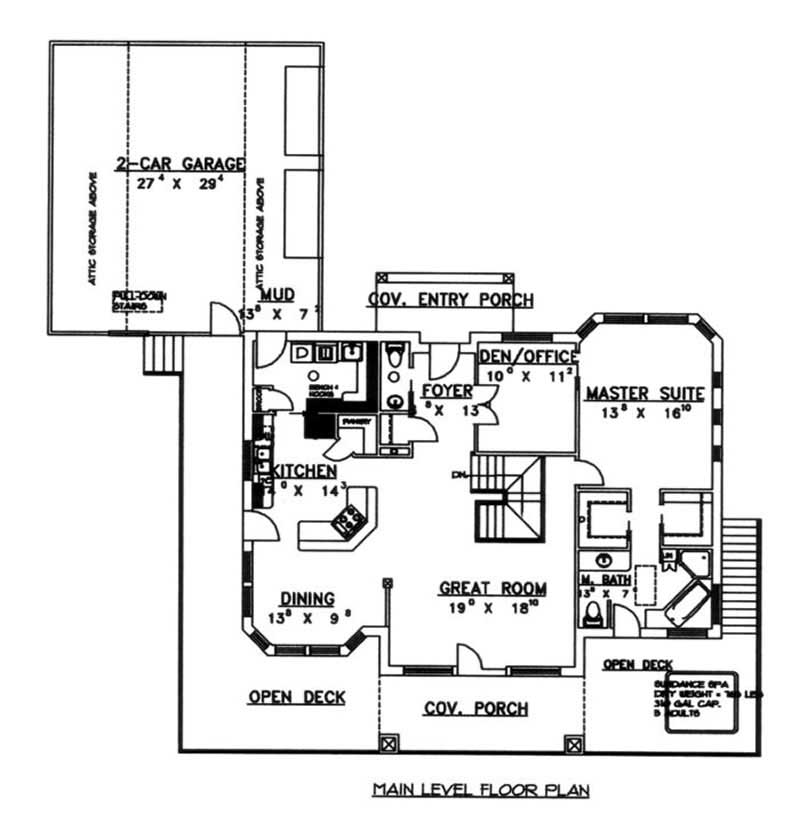

Home Plan: #132-1351 Floor Plan First Story - main level Floor Plan First Story of Concrete Block/ ICF Design Plan #132-1351

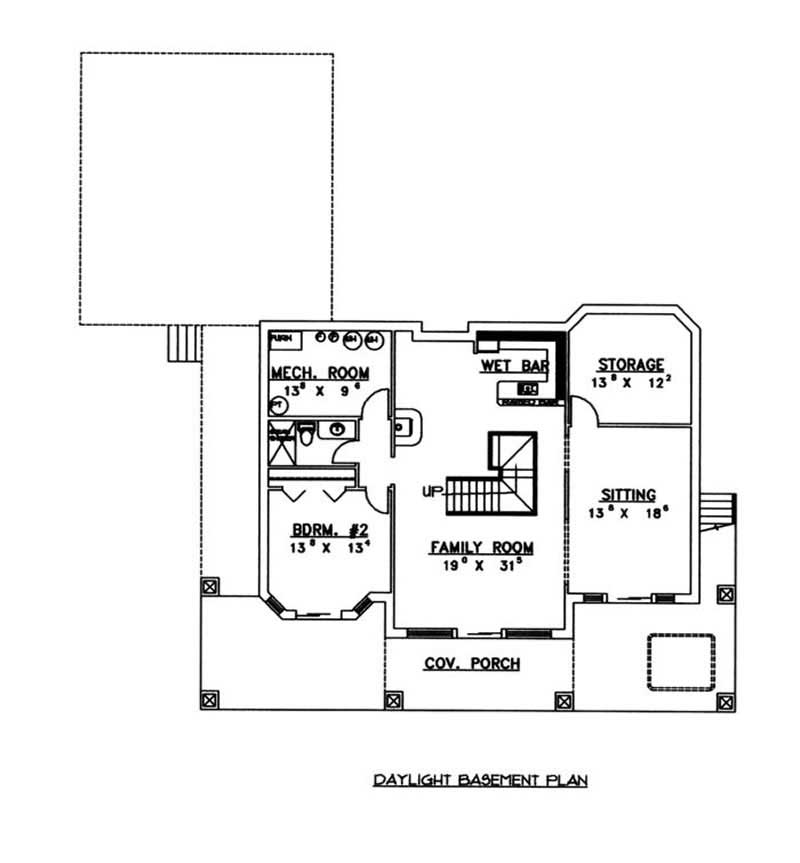

#132-1351 Floor Plan Basement - basement Floor Plan Basement of Concrete Block/ ICF Design Plan #132-1351
Home Plan: #132-1351 Floor Plan First Story - main level Floor Plan First Story of Concrete Block/ ICF Design Plan #132-1351
#132-1351 Floor Plan Basement - basement Floor Plan Basement of Concrete Block/ ICF Design Plan #132-1351
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 132-1351
Floors:
2
Bedrooms:
2
Full Baths:
3

Square Footage

Heated Sq Feet:
3284
Main Floor:
1642
Unfinished Sq Ft:
Lower Floor:
1642
Garage :
836

Dimensions

Width:
68' 0"
Depth:
72' 0"

Architectural Styles

Concrete Block/ ICF Design
Log Cabin
Vacation Homes

Exterior Wall Material

Wood Siding

Roofing Type

Gable

Special Feature

Den
Dining Room
Family Room
Home Office
Main Level Laundry
Mud Room
Split Bathroom
Storage

Garage Type

Attached Garage
Courtyard Entry

Building Lot Type

Up Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Peninsula/Eating Bar
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Sundeck

Master Suite Features

Main Floor Master
Master Bathroom
Private Deck
Walk In Closet

Additional Notes from Designer

PLEASE NOTE! The CAD - Unlimited package is NOT an unlimited license - it is a license to build up to 5 homes.

PRICING OPTIONS

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
