4-Bedroom, 3454 Sq Ft Craftsman Plan with Dining Room

Front elevation of Craftsman home (ThePlanCollection: House Plan #115-1219)

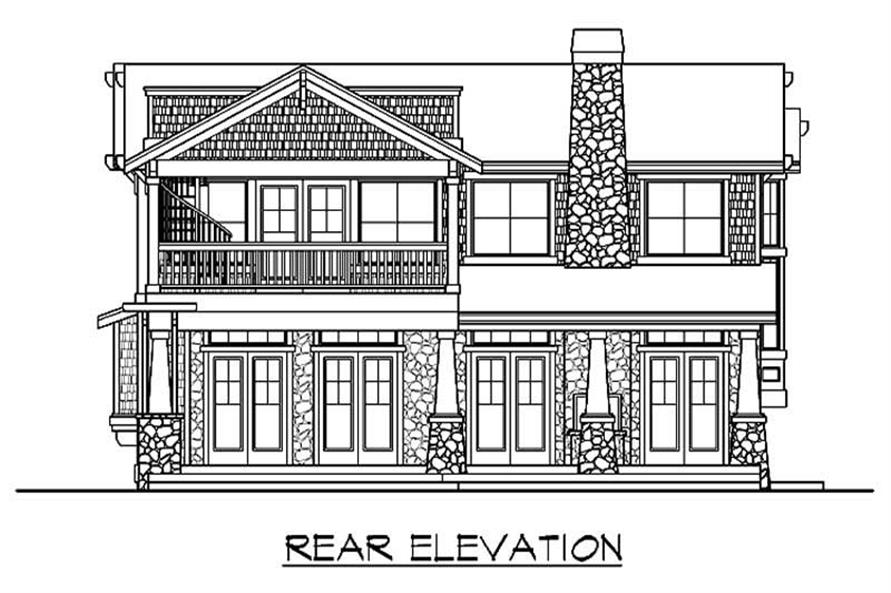

Rear Elevation
4-Bedroom, 3454 Sq Ft Home Plan - 115-1219 - Main Exterior
Rear Elevation

About Plan # 115-1219

About Plan # 115-1219


This stunning Craftsman home speaks for itself! Notice some of the following as you're reviewing this plan: the fireplace in the great room doubles as the fireplace for the walkout deck on the main floor level; the kitchen is incredibly spacious, as is the pantry located directly across from the mudroom; the service sinks and bars in the dining room, kitchen, and on the balcony; front upstairs bedrooms each have a private balcony and all upstairs bedrooms have private entrances to full bathrooms; the laundry room has a look-out window over the great room; the master suite has a private indoor balcony over the great room, a private deck with a spiral staircase to an eagle's nest for miles of gorgeous views, a spacious bedroom area, a beautiful master bathroom, and a titanic walk-in closet. All of these things combined with large basement areas such as a den, rec room, and storage space will ensure that you can get rid of your storage shed. Note: finished basement adds 1457 living square feet to the plan.

Each plan set includes the following:

  • DETAIL SHEET: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • FLOOR PLAN: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • FOUNDATION PLAN: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information.
  • ROOF PLAN: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
  • FRONT, REAR, AND SIDE ELEVATIONS: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • BUILDING SECTION SHEET: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.


Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

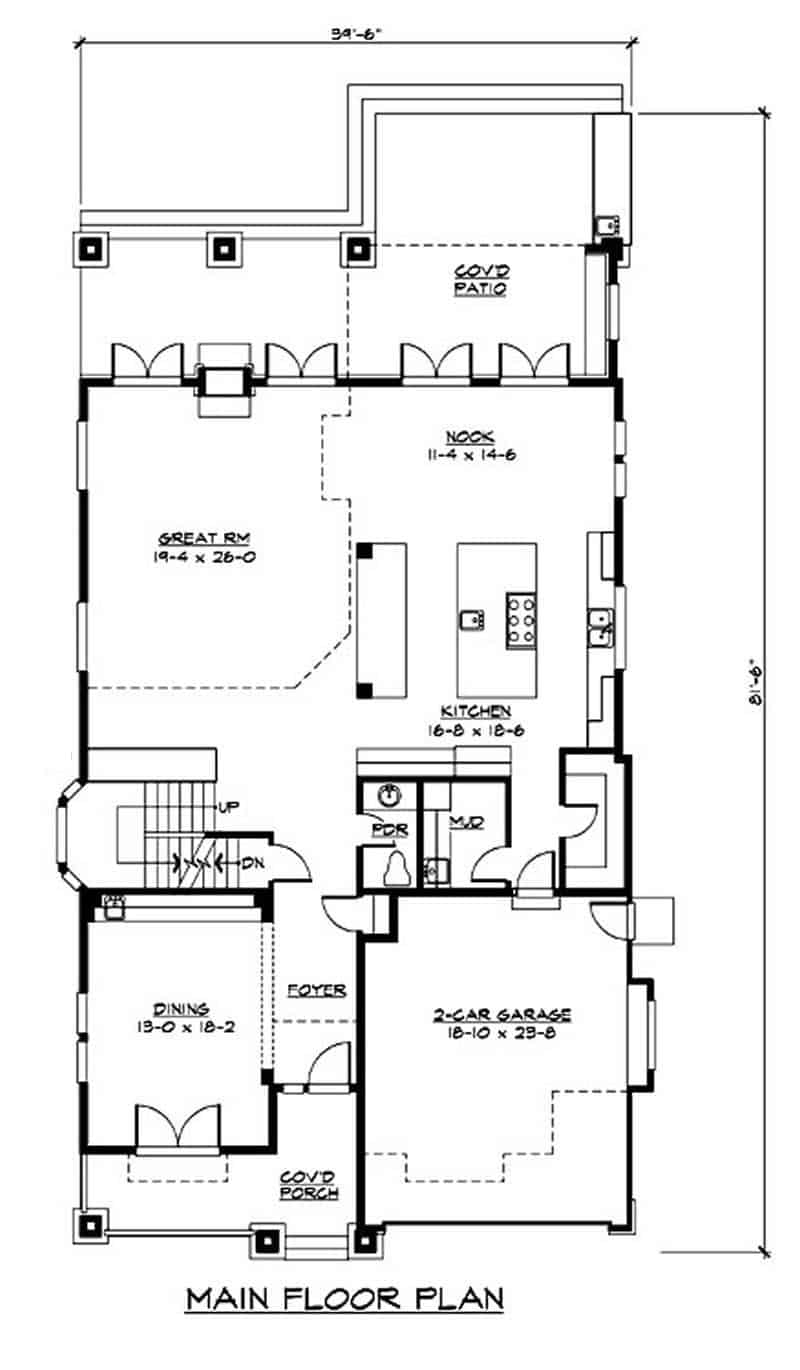

Home Plan: #115-1219 Floor Plan First Story - first story Floor Plan First Story of Plan #115-1219

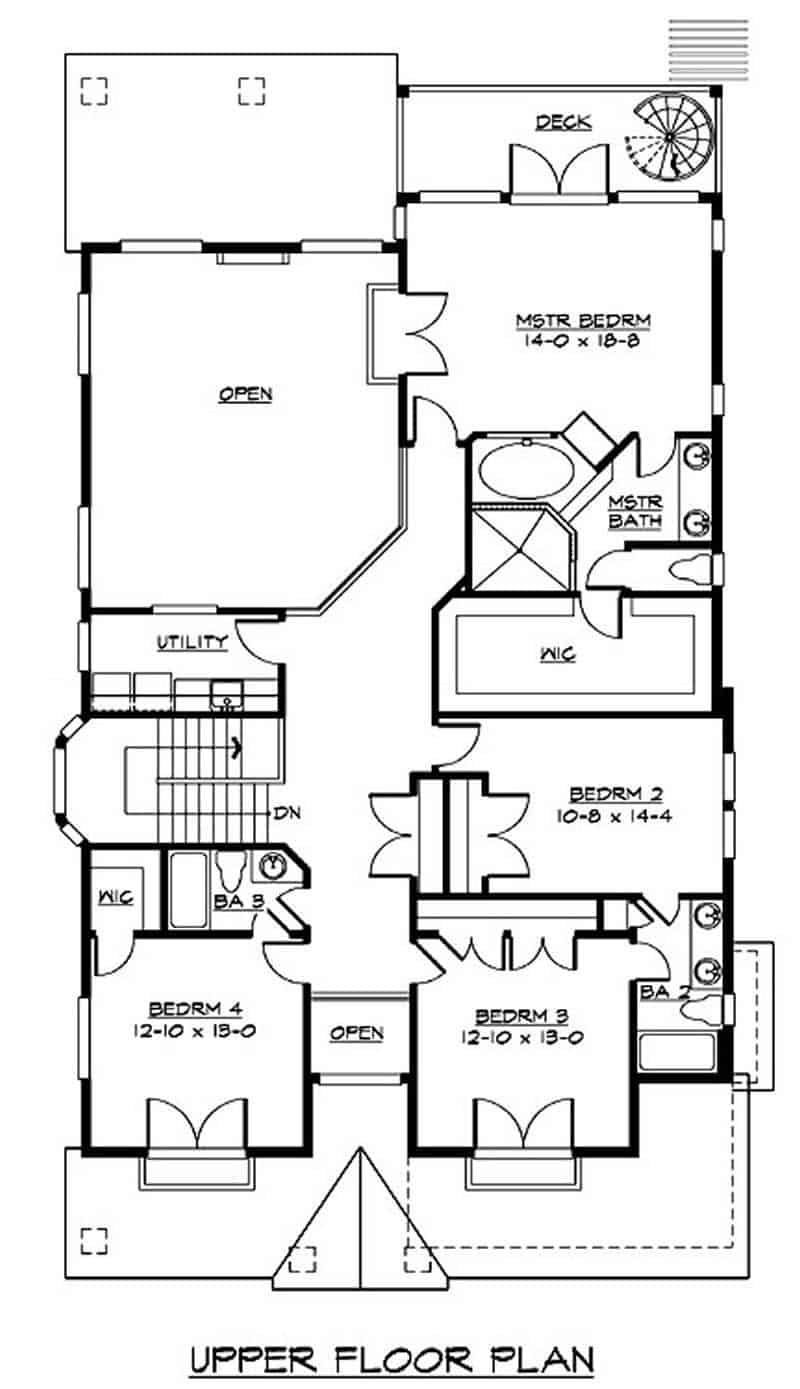

#115-1219 Floor Plan Second Story - second story Upper Level of Craftsman Plan #115-1219

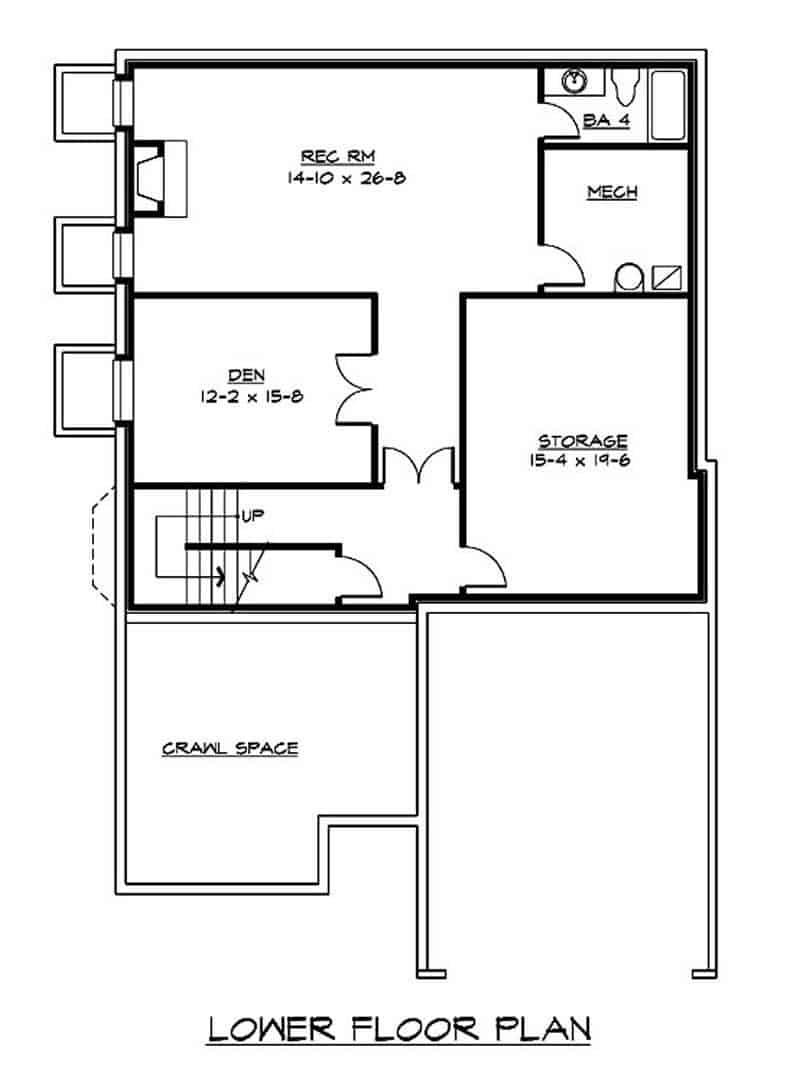

#115-1219 Floor Plan Basement - basement Basement of Craftsman Plan #115-1219
