3-Bedroom, 2918 Sq Ft Concrete Block/ ICF Design Plan with Master Bathroom
Photographs may reflect modified designs. Copyright held by designer.
| 2918 SQUARE FEET | 3 BEDROOMS | 3 FULL BATH | 0 HALF BATH |
| 3 FLOOR | 32' 0" WIDTH | 42' 0" DEPTH | 0 GARAGE BAY |
*Insulated Concrete Form Home *Large Living Room *Large Entry *Office *Large Kitchen With Pantry *Vaulted Master Suite *Balcony Deck *Loft *Storage *Attic
Each plan set includes the following:
- Exterior elevations: shows the home on all four sides, calls out exterior finishes, rooflines, window and door locations.
- Floor plans: includes interior and exterior dimensions, window/door schedule, wall framing details.
- Foundation plan: shows footing, stem wall, and slab placement, including all connection details.
- Floor and roof framing plans show truss/rafter placements, including all beams/connection details.
- Cross-sections: cut-through view of the structure from roof to foundation, shows framing, plate heights, insulation, etc.
- Electrical layout
- General notes/details to cover the entirety of the project
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images

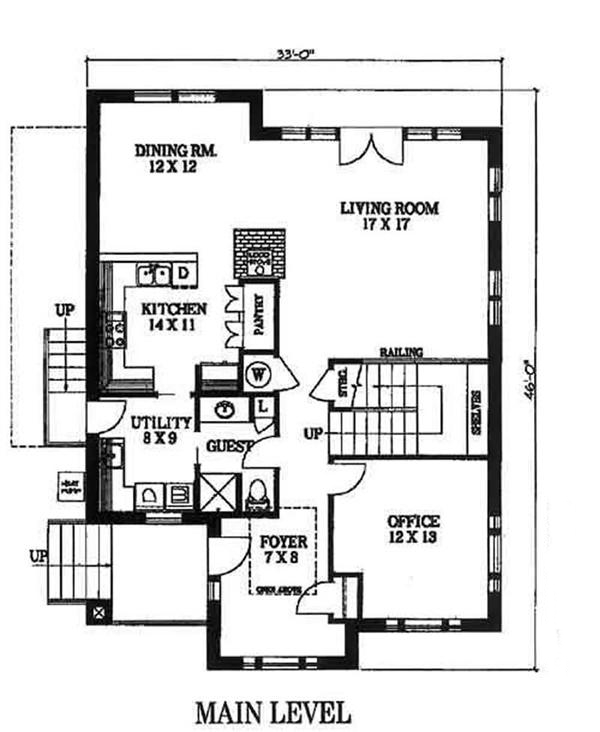

Home Plan: #132-1278 Floor Plan First Story
-
main level
![Floor Plan First Story of Concrete Block/ ICF Design Plan #132-1278]( "132-1278: Floor Plan Main Level")

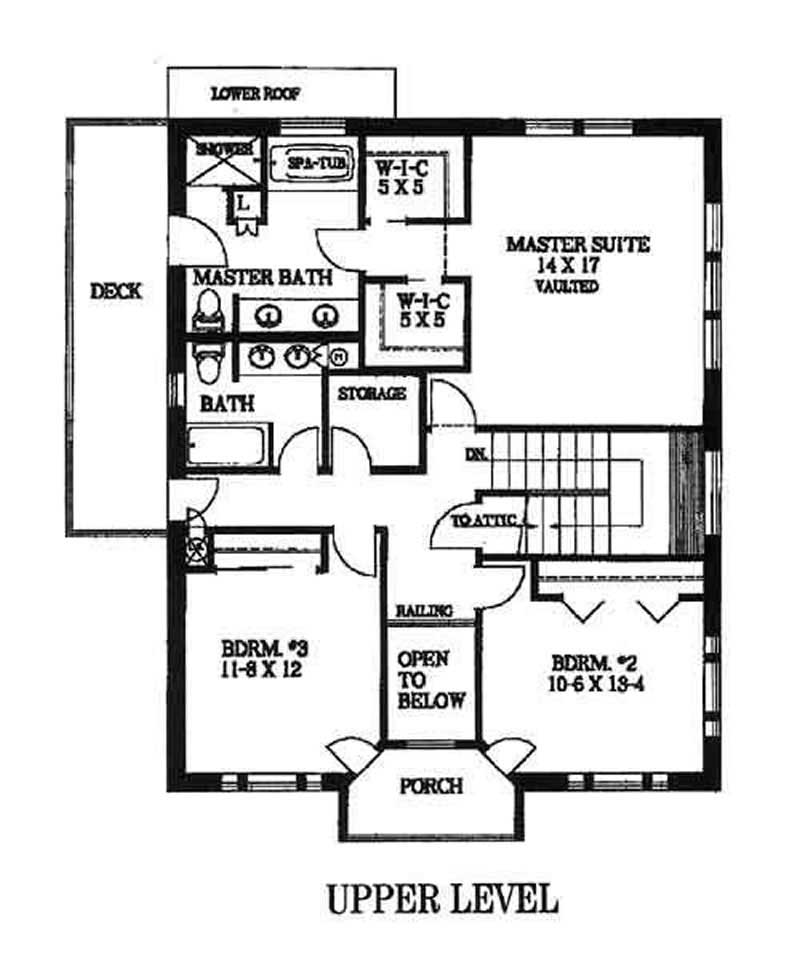

#132-1278 Floor Plan Second Story
-
second floor
![Floor Plan Second Story of Concrete Block/ ICF Design Plan #132-1278]( "SECOND FLOOR")
Home Plan: #132-1278 Floor Plan First Story
-
main level
![Floor Plan First Story of Concrete Block/ ICF Design Plan #132-1278]( "132-1278: Floor Plan Main Level")
#132-1278 Floor Plan Second Story
-
second floor
![Floor Plan Second Story of Concrete Block/ ICF Design Plan #132-1278]( "SECOND FLOOR")
Special Offer
Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!
To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.
Additional specs and features
Summary Information
Plan #:
# 132-1278
Floors:
3
Bedrooms:
3
Full Baths:
3
Square Footage
Heated Sq Feet:
2918
Main Floor:
1182
Upper Floor:
1165
Third Floor:
571
Unfinished Sq Ft:
Dimensions
Width:
32' 0"
Depth:
42' 0"
Ridge Height:
35-6' 0"
Architectural Styles
Craftsman
Concrete Block/ ICF Design
Exterior Wall Material
Shakes
Roof Pitch
8/12
Ceiling Height
9 Foot Ceiling
8 Foot Ceiling
Building Lot Type
Narrow Lot Design
Additional Notes from Designer
PLEASE NOTE! The CAD - Unlimited package is NOT an unlimited license - it is a license to build up to 5 homes.
PRICING OPTIONS
Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.
For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.
A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.
Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.
For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.
ADDITIONAL INFORMATION
All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.
All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.
The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
