3-Bedroom, 5040 Sq Ft Craftsman Plan with Covered Front Porch
Related House Plans
Photographs may reflect modified designs. Copyright held by designer.
3-Bedroom, 5040 Sq Ft Craftsman Plan with Covered Front Porch
| 5040 SQUARE FEET | 3 BEDROOMS | 4 FULL BATH | 0 HALF BATH |
| 2 FLOOR | 117' 6" WIDTH | 46' 0" DEPTH | 4 GARAGE BAY |
*Standard Frame Construction
*Porta Cocher
*Utility Room With Island
*large Kitchen Pantry
*Vaulted Dining Room
*Vaulted Kitchen With Island
*Large Vaulted Great Room With Window Seat
*Memorobilia Room
*Large Office
*Large Recreation Rooom With Corner Fireplace
*Shop
*2-Car Garage On Basement Level
*2-Car Garage On Main Level
*Storage Room
*Mechanical Room
*Loft/Excercise Room
*Master Suite With Corner Fireplace
*Beam Roof In Master Suite
*Upper Level Open To Below
*His and Hers Bathroom
Each plan set includes the following:
- FLOOR PLAN: Includes interior and exterior dimensions, window/door schedule, wall framing details.
- FOUNDATION PLAN: Shows footing, stem wall, and slab placement; includes all connection details.
- ROOF & FLOOR FRAMING PLANS: Shows truss/rafter placements, including all beams/connection details.
- ELECTRICAL LAYOUT
- FRONT, REAR, AND SIDE ELEVATIONS: Shows the home on all four sides, calls out exterior finishes, rooflines, window and door locations.
- CROSS SECTIONS: Cut through view of the structure from roof to foundation, shows framing, plate heights, insulation, etc. Includes general notes/details to cover the entirety of the project.
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
Write Your Own Review
FLOOR PLANS Flip Images

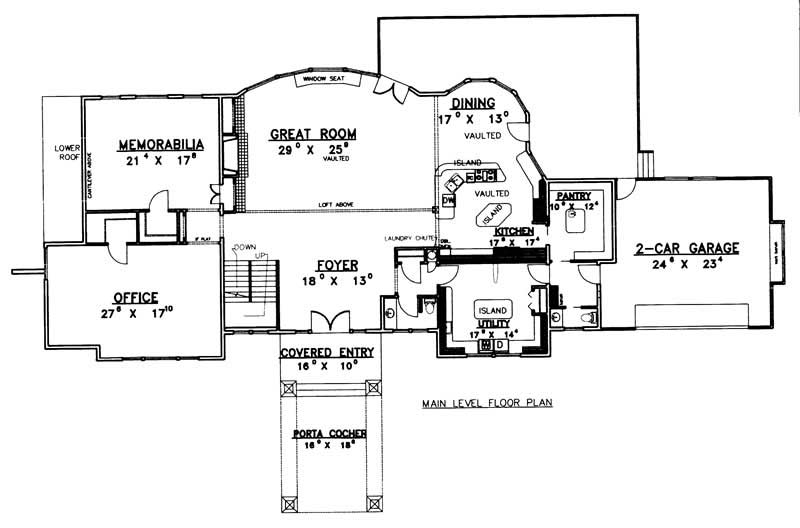

Home Plan: #132-1324 Floor Plan First Story
-
main
![Floor Plan First Story of Craftsman Plan #132-1324]( "MAIN FLOOR PLAN")

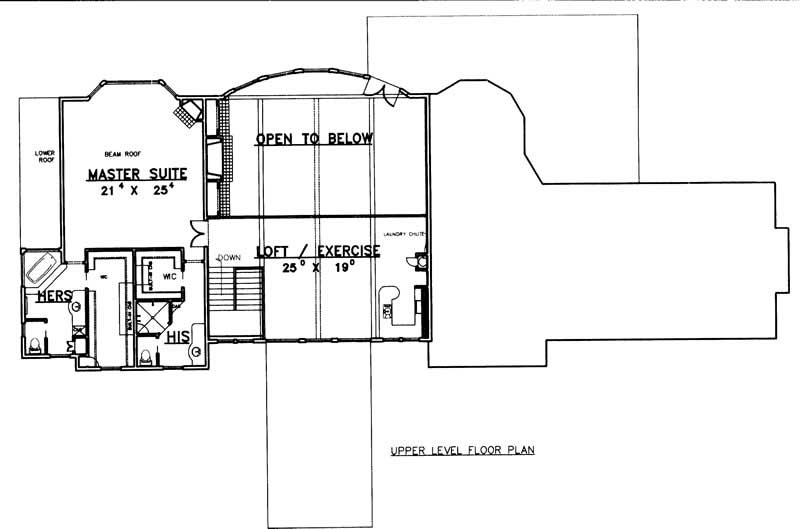

#132-1324 Floor Plan Second Story
-
second
![Floor Plan Second Story of Craftsman Plan #132-1324]( "SECOND FLOOR PLAN")

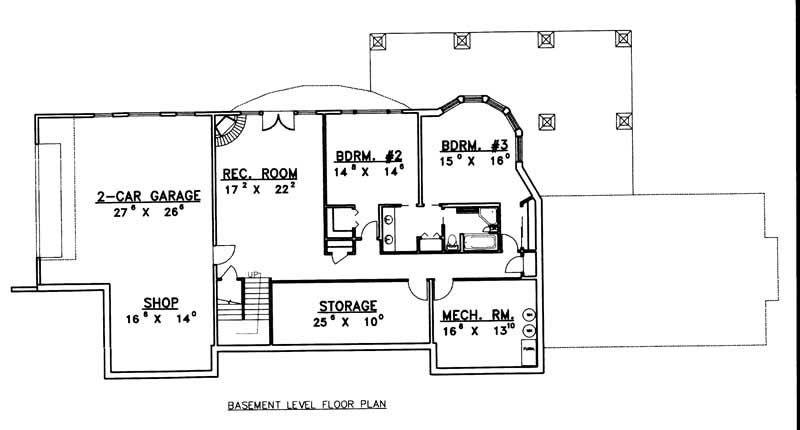

#132-1324 Floor Plan Basement
-
