Front Elevation of this Multi-Level House (#132-1403) at The Plan Collection.
3-Bedroom, 2070 Sq Ft Multi-Level Home Plan - 132-1403 - Main Exterior

About Plan # 132-1403

About Plan # 132-1403

2070 SQUARE FEET 3 BEDROOMS 3 FULL BATH 0 HALF BATH
1 FLOOR 48' 0" WIDTH 36' 10" DEPTH 2 GARAGE BAY
*Standard Frame Construction *Covered Entry *Large Living Room *Kitchen Island *Breakfast Bar *Recreation Room *Deck *Two Car Garage *Shop Area

Each plan set includes the following:

  • Exterior elevations: shows the home on all four sides, calls out exterior finishes, rooflines, window and door locations.
  • Floor plans: includes interior and exterior dimensions, window/door schedule, wall framing details.
  • Foundation plan: shows footing, stem wall, and slab placement, including all connection details.
  • Floor and roof framing plans show truss/rafter placements, including all beams/connection details.
  • Cross-sections: cut-through view of the structure from roof to foundation, shows framing, plate heights, insulation, etc.
  • Electrical layout
  • General notes/details to cover the entirety of the project

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

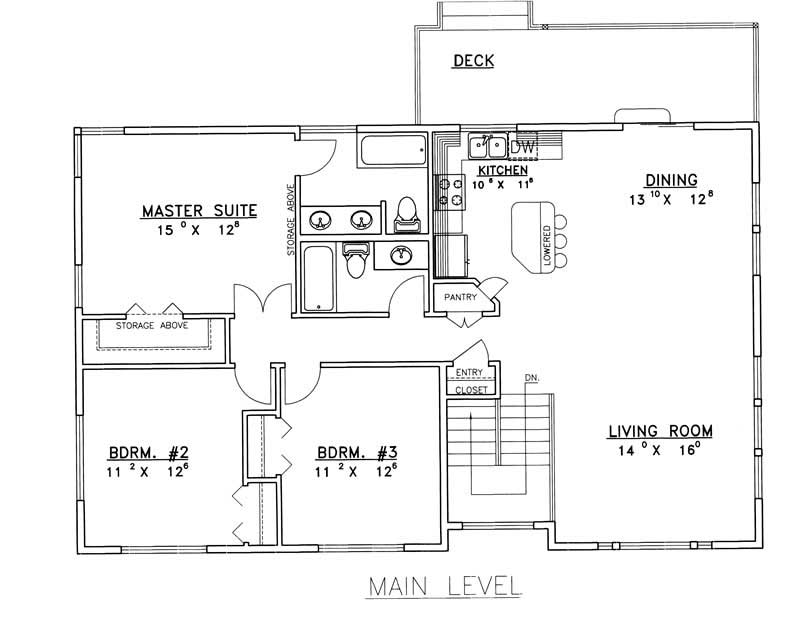

Home Plan: #132-1403 Floor Plan First Story Floor Plan First Story of Multi-Level Plan #132-1403

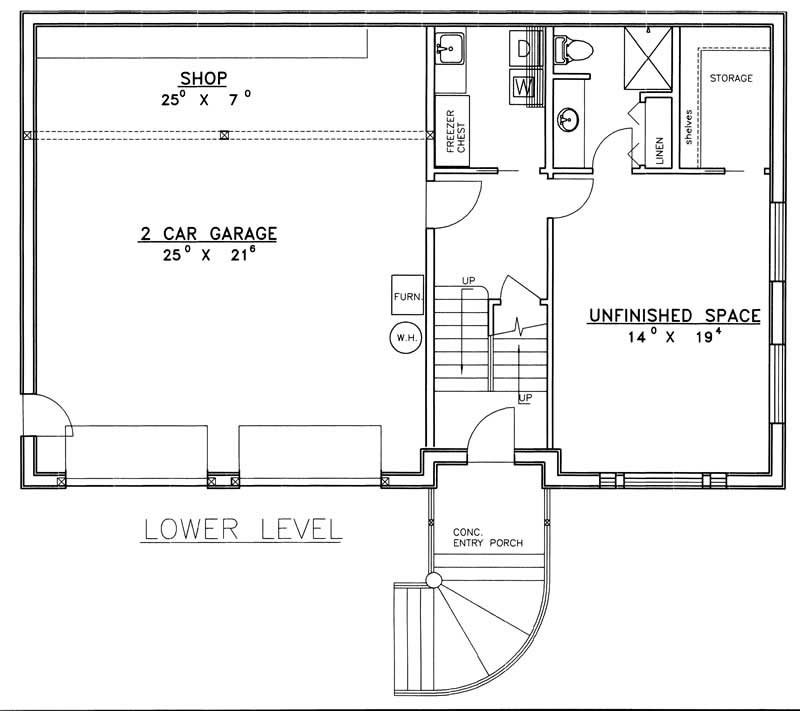

#132-1403 Floor Plan Basement - basement Floor Plan Basement of Multi-Level Plan #132-1403
Home Plan: #132-1403 Floor Plan First Story Floor Plan First Story of Multi-Level Plan #132-1403
#132-1403 Floor Plan Basement - basement Floor Plan Basement of Multi-Level Plan #132-1403
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 132-1403
Floors:
1
Bedrooms:
3
Full Baths:
3

Square Footage

Heated Sq Feet:
2070
Main Floor:
1425
Unfinished Sq Ft:
Lower Floor:
645
Garage :
764

Dimensions

Width:
48' 0"
Depth:
36' 10"
Ridge Height:
26-0' 0"

Architectural Styles

Multi-Level

Exterior Wall Material

Vinyl Siding
Wood Siding

Roof Pitch

6/12

Ceiling Height

9 Foot Ceiling
8 Foot Ceiling

Garage Type

Attached Garage

Exterior Wall Framing

2x6

Kitchen Features

Kitchen Island

Additional Notes from Designer

PLEASE NOTE! The CAD - Unlimited package is NOT an unlimited license - it is a license to build up to 5 homes. ATTENTION! Printed sets can ONLY be sent via ground shipping. NO priority or express shipping is available. ATTENTION! Printed sets can ONLY be sent by ground - NO priority or express shipping on printed sets!

PRICING OPTIONS

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
