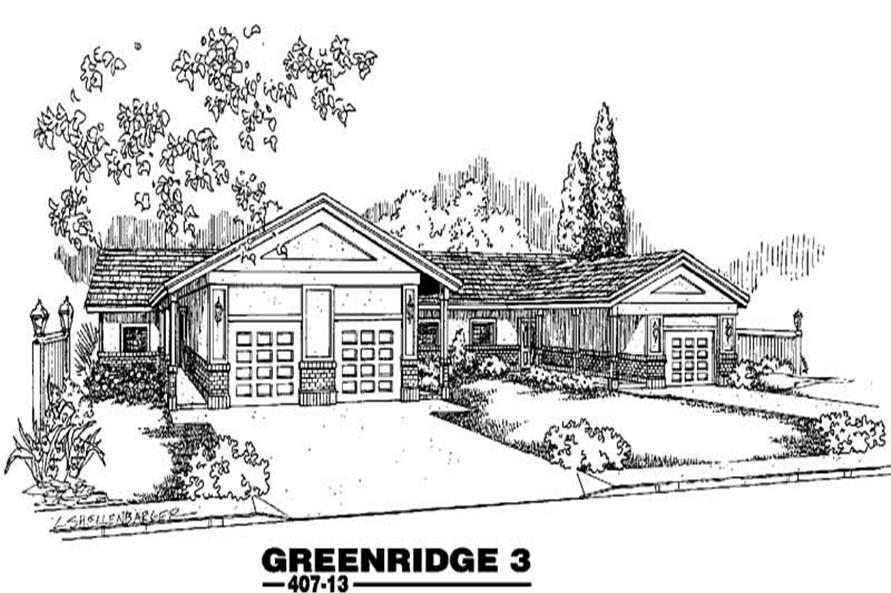

Front view of Duplex/Multi-Family home (ThePlanCollection: House Plan #145-1611)
6-Bedroom, 3719 Total Sq Ft Triplex Plan- 145-1611 - Front Exterior

About Plan # 145-1611

About Plan # 145-1611

3719 SQUARE FEET 6 BEDROOMS 5 FULL BATH 0 HALF BATH
1 FLOOR 82' 0" WIDTH 62' 0" DEPTH 1 GARAGE BAY
This triplex ranch has 3719 total living sq ft. The 1-story floor plan includes 3 units with 2 bedrooms per unit. Unit 1= 928 s.f. Unit 2= 896 s.f. Unit 3= 994 s.f. This triplex ranch has 3719 total living sq ft.

Each plan set includes the following:

  • Floor plans
  • Foundations
  • Elevations
  • Framing
  • Electrical
  • Roofing
  • Detailed Construction Notes

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

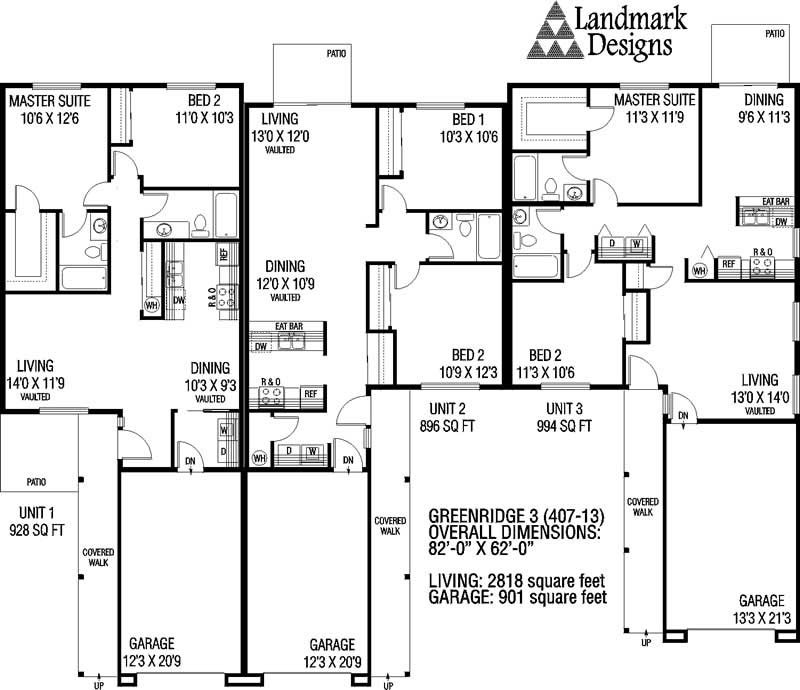

Home Plan: #145-1611 Floor Plan First Story Floor Plan First Story of Plan #145-1611
Home Plan: #145-1611 Floor Plan First Story Floor Plan First Story of Plan #145-1611
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 145-1611
Floors:
1
Bedrooms:
6
Full Baths:
5

Square Footage

Heated Sq Feet:
3719
Main Floor:
2818
Unfinished Sq Ft:
Garage :
272

Dimensions

Width:
82' 0"
Depth:
62' 0"
Ridge Height:
18' 0"

Architectural Styles

Ranch
Duplex/Multi-Unit
Traditional

Roof Pitch

5/12

Ceiling Height

8 Foot Ceiling

Special Feature

Main Level Laundry
Vaulted Ceilings

Garage Type

Attached Garage

Exterior Wall Framing

2x6

Porches and Exterior Features

Covered Front Porch

Master Suite Features

Main Floor Master

Additional Notes from Designer

Unit 1= 928 s.f. Unit 2= 896 s.f. Unit 3= 994 s.f.


NOTE: Due to a family emergency, NO modifications are available with this designer at this time. If you would like to purchase a CAD or Right Reading Reverse, please contact us for availability and price as not all plans are available in CAD or RRR.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
