Luxury European style house (ThePlanCollection: Plan #201-1004)
3-Bedroom, 3110 Sq Ft Luxury Home - Plan #201-1004 - Main Exterior

About Plan # 201-1004

About Plan # 201-1004

3110 SQUARE FEET 3 BEDROOMS 4 FULL BATH 0 HALF BATH
1.5 FLOOR 87' 2" WIDTH 65' 4" DEPTH 2 GARAGE BAY

This splendid Luxury style home with European characteristics (Plan #201-1004) has 3110 square feet of living space – and 3854 square feet of total finished and unfinished space under the roof. The attractive 1.5-story home's floor plan includes 3 bedrooms and 4 bathrooms.

Each plan set includes the following:

  • COVER SHEET
  • CEILING JOIST FRAMING PLAN
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

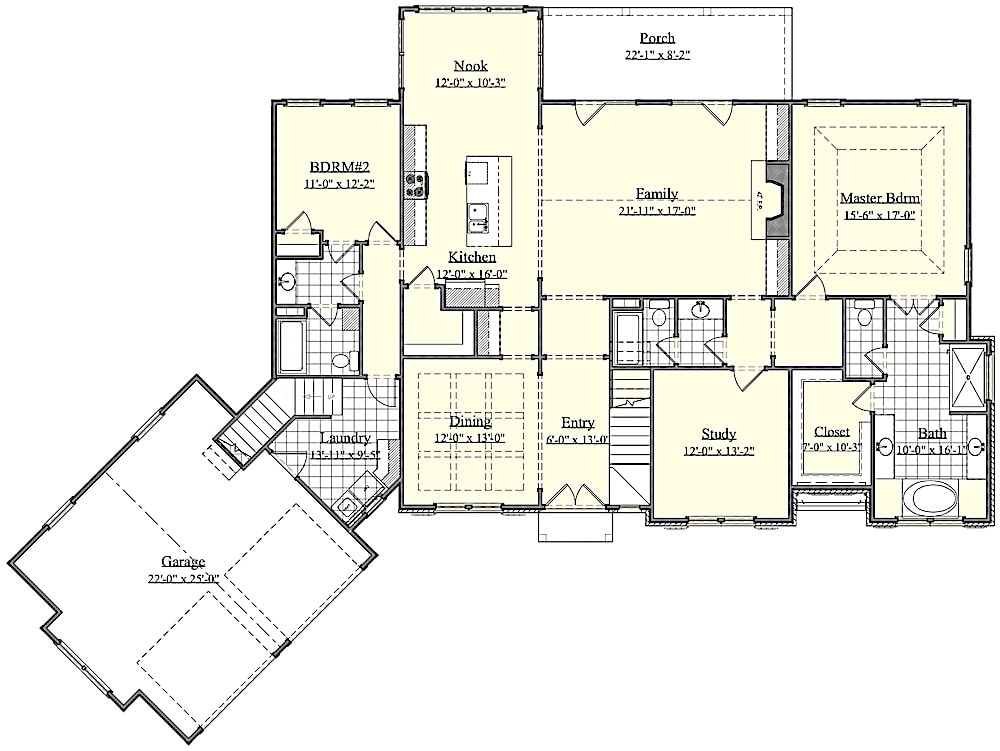

Home Plan: #201-1004 Floor Plan First Story - main level Floor Plan Main Level of Traditional Plan #201-1004

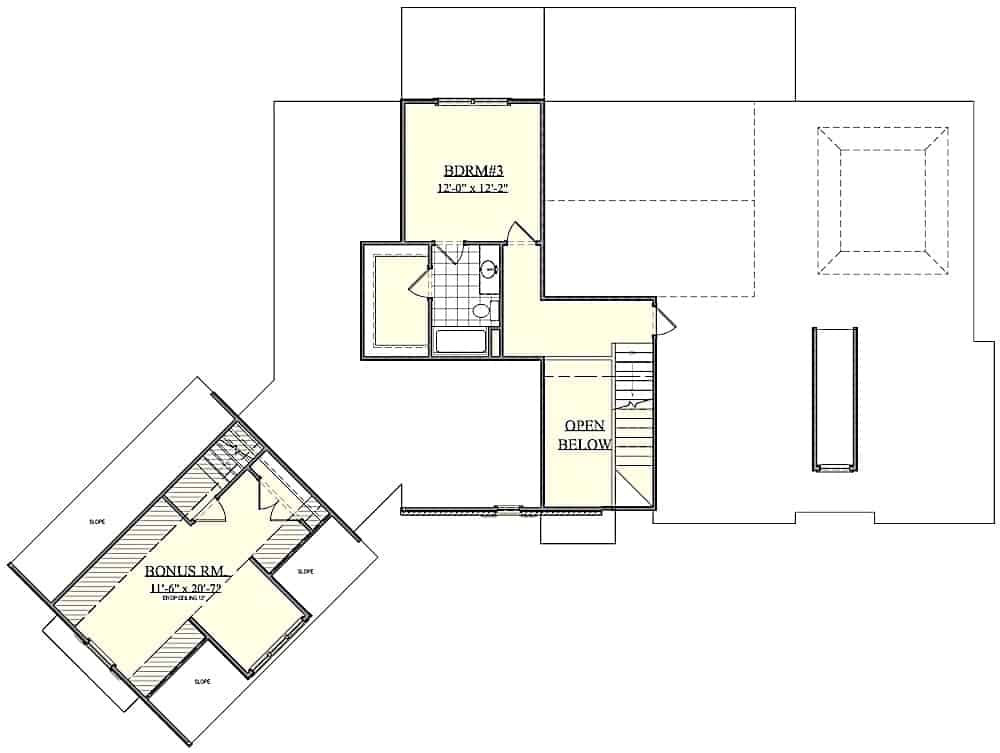

#201-1004 Floor Plan Second Story - upper level Floor Plan Upper Level of Traditional Plan #201-1004
