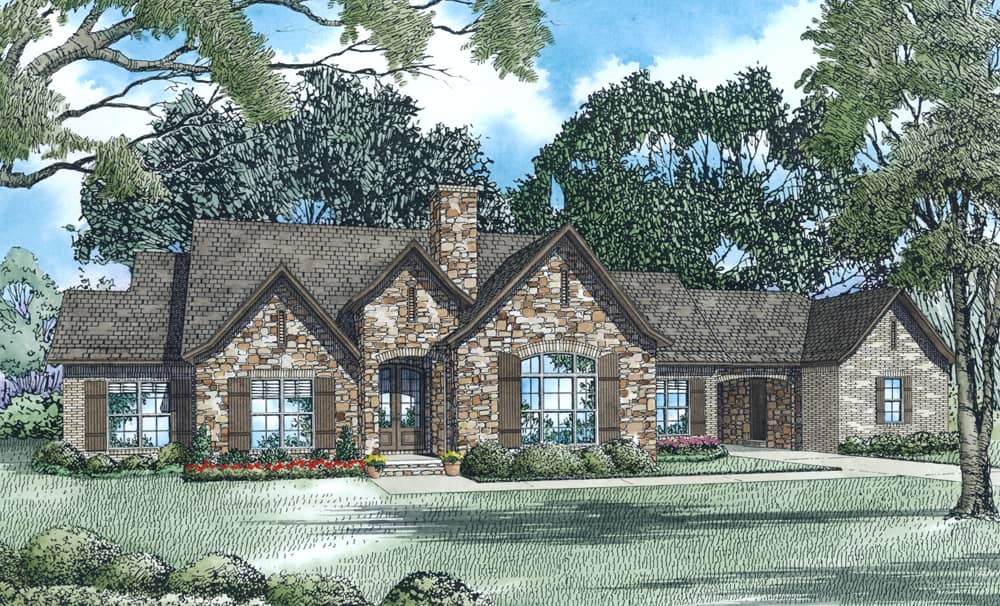

Front Elevation of this Ranch House (#153-2004) at The Plan Collection.

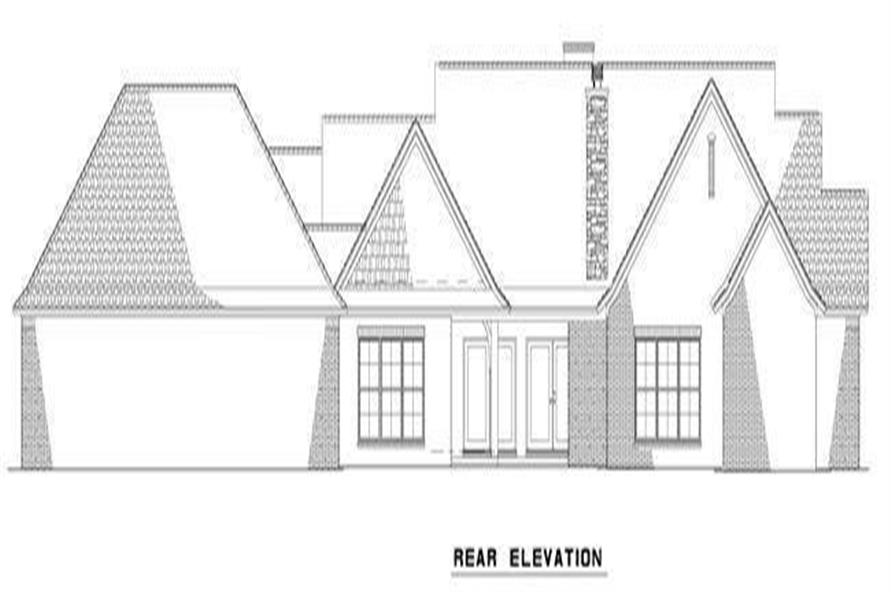

153-2004: Home Plan Rear Elevation

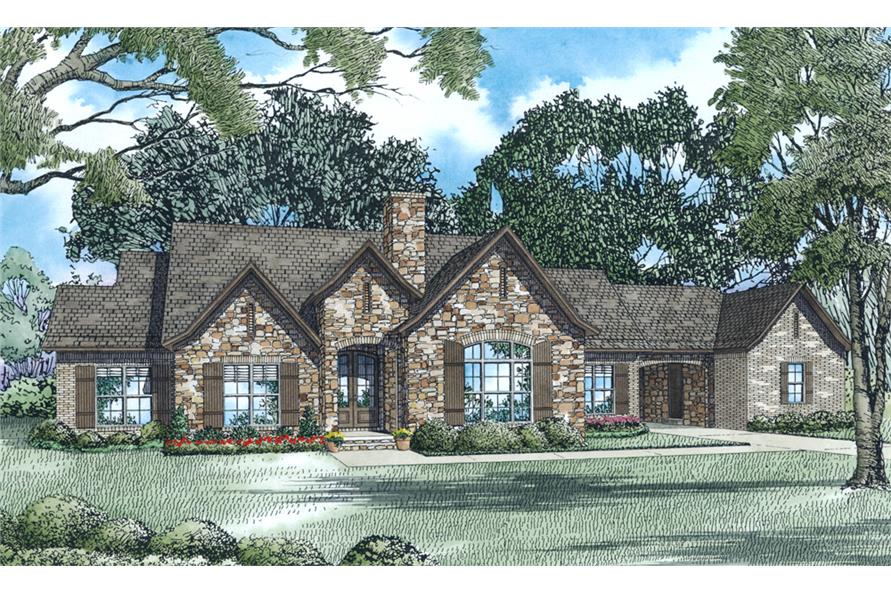

3-Bedroom, 2118 Sq Ft Ranch House Plan - 153-2004 - Front Exterior
153-2004: Home Plan Rear Elevation

About Plan # 153-2004

About Plan # 153-2004

2118 SQUARE FEET 3 BEDROOMS 2 FULL BATH 0 HALF BATH
1 FLOOR 101' 4" WIDTH 85' 4" DEPTH 4 GARAGE BAY

With just over 2110 living square feet, this country rustic ranch is both impressive yet inviting. The gable rooflines, the stone exterior, the arches in the doorways and windows. All of this attention to detail truly creates gorgeous curb appeal. For those driving up to the home, there is the porte-cochere for an easy entry during poor weather and the fantastic motor court with garage space for four cars.

Walk up to the main porch and pass through the double doors to the foyer with 10-foot ceilings. The foyer then opens up to the great room highlighted by a vaulted ceiling, large fireplace, and windows/access to the outdoor living/grilling porch. Just beyond the great foom is the dining area which opens up to the kitchen. The eating bar comfortably seats four while a large pantry is perfect for that needed extra storage. To keep things tidy, there is a kids' nook/mudroom with access to the motor cour as well as the rear of the home. Plus, there is a game room!

On the other side of the house design are three bedrooms and two full baths. Bedrooms #2 and #3 share a hall bathroom with double sinks and a split design separating the tub and toilet. The master suite is worth a closer look. A 10-foot boxed ceiling makes a lasting impression. The master bathroom includes a double-sink vanity, a glass shower with a seat, and a large tub. There is also a huge walk-in closet.

Each plan set includes the following:

  • floorplan

  •  4 side exterior elevations,

  • electrical plan,

  • birds-eye view of the roof,

  • foundation plan,

  • and some miscellaneous details.

    Please Note

    We do not offer plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

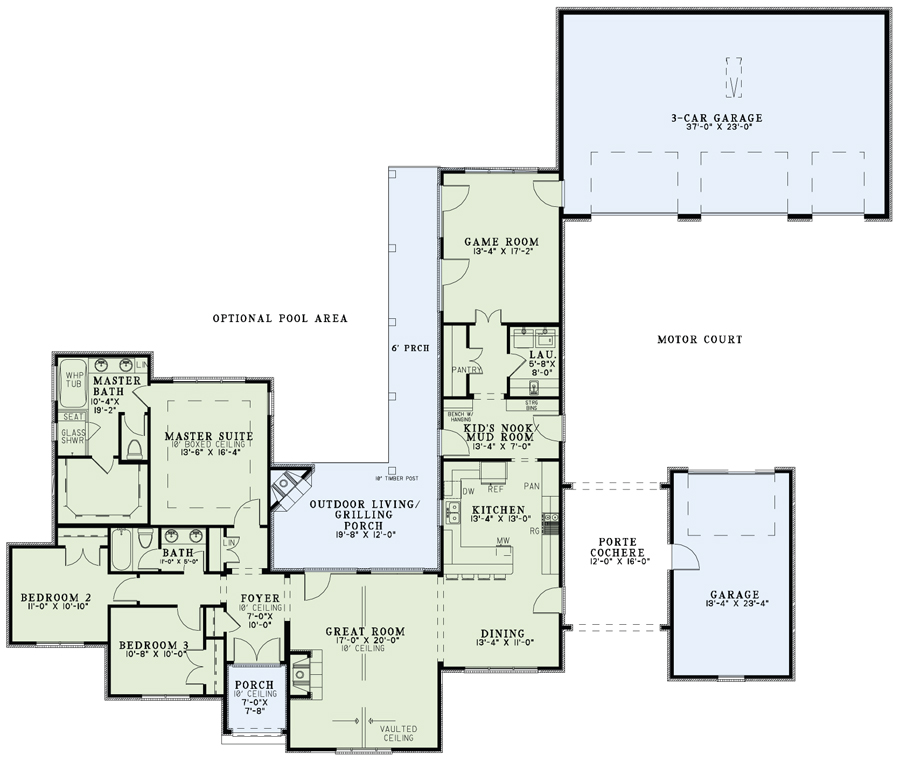

Home Plan: #153-2004 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #153-2004
Home Plan: #153-2004 Floor Plan First Story - main level Floor Plan First Story of Ranch Plan #153-2004
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 153-2004
Floors:
1
Bedrooms:
3
Full Baths:
2
Garage :
4

Square Footage

Heated Sq Feet:
2118
Main Floor:
2118
Unfinished Sq Ft:
Garage :
1454
Porch :
498

Dimensions

Width:
101' 4"
Depth:
85' 4"
Ridge Height:
22' 11"

Architectural Styles

Country
European
Ranch
Texas Style
Rustic

Exterior Wall Material

Brick
Rock/Stone

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Roof Pitch

12/12

Ceiling Height

9 Foot Ceiling

Special Feature

Fireplace
Mud Room
Game Room
Main Level Laundry
Vaulted Ceilings
Open Floor Plan
L-Shaped

Garage Type

Attached Garage

Fireplaces

Two Fireplaces

Exterior Wall Framing

2x4

Building Lot Type

Flat Site

Kitchen Features

Walk-in Pantry
Outdoor Kitchen
Peninsula/Eating Bar

Porches and Exterior Features

Wrap Around Porch
Covered Front Porch
Covered Rear Porch
Porte-Cochere

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

Additional Notes from Designer

Plans by this designer do NOT usually come with FRAMING - some plans may have framing available for an extra fee - please contact us to find out about a specific plan & we will check with the designer!! Additionally: For this designer, if you choose optional features such as but not limited to: 2x6 framing, reverse or optional basement, the designer will need an additional 2-5 business days to adjust the plan accordingly. Please keep this in mind when choosing your shipping option. If you would like Express or Priority shipping, the designer will ship the plan to you using the method you choose but you will still have the 2-5 business day waiting period BEFORE they ship! Please feel free to contact us with any questions! PLEASE NOTE: Multi-licenses are available. The plans do not come with ICF specifications. If ICF construction method is desired, the CAD plan can be purchased and then forwarded to the ICF dealer and they’ll do a takeoff to assist with that specific projec

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Five printed sets and a NON-modifiable, print-only PDF with a complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
