3-Bedroom, 2429 Sq Ft Southwest Plan with Covered Rear Porch

108-1698 front elevation

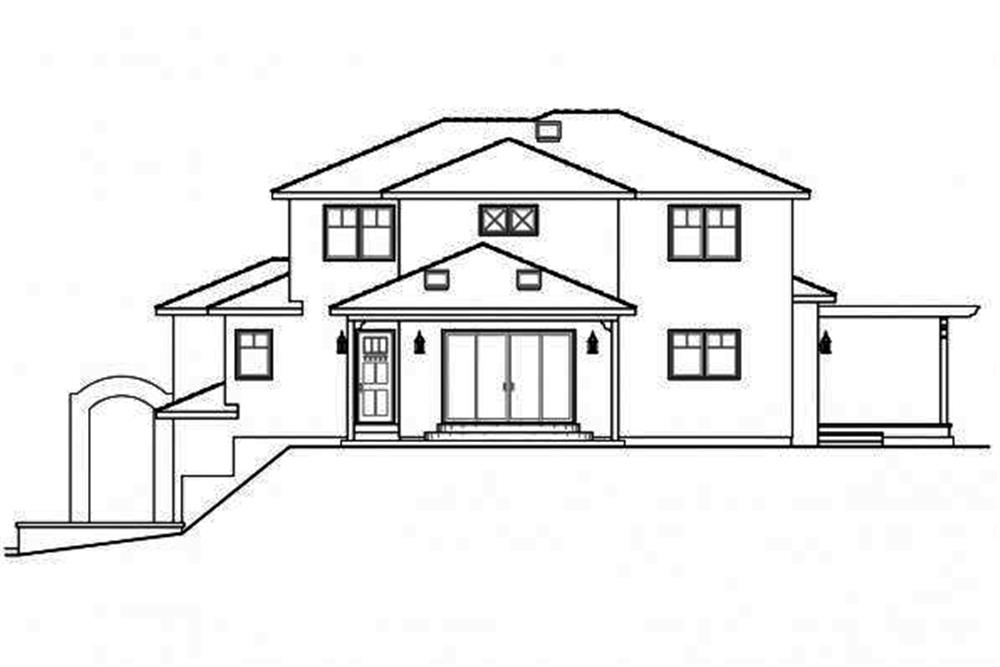

108-1698: Home Plan Rear Elevation

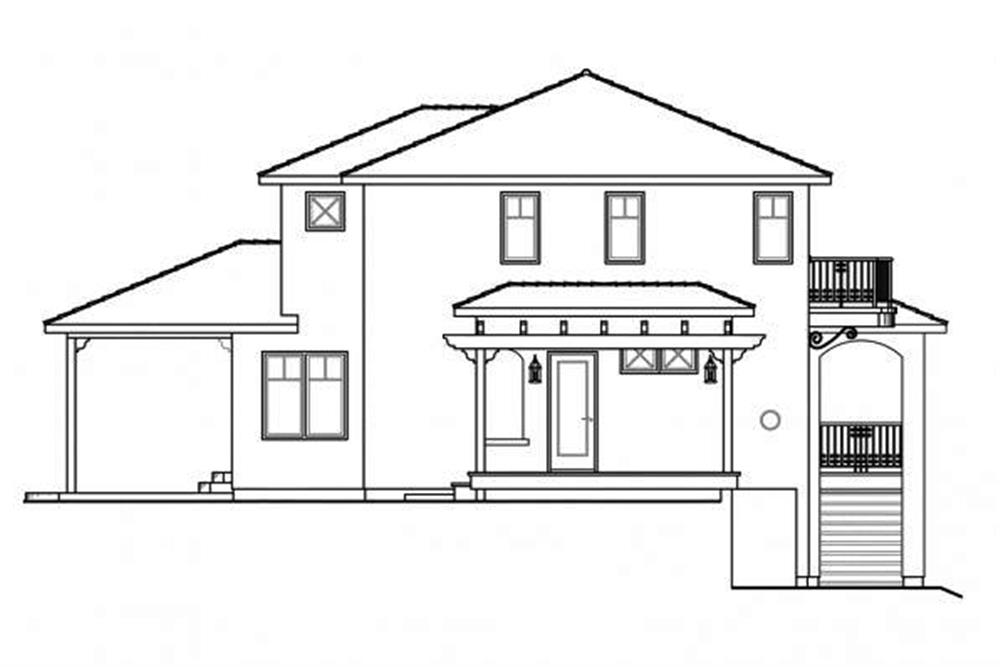

108-1698: Home Plan Left Elevation

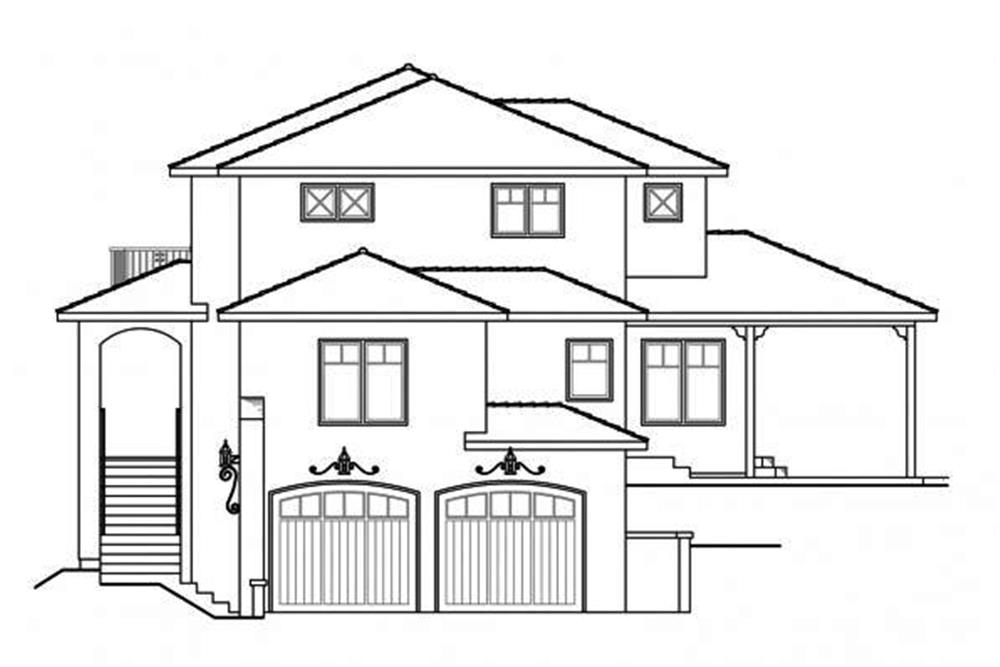

108-1698: Home Plan Right Elevation
3-Bedroom, 2429 Sq Ft Southwest House Plan - 108-1698 - Front Exterior
108-1698: Home Plan Rear Elevation
108-1698: Home Plan Left Elevation
108-1698: Home Plan Right Elevation

About Plan # 108-1698

About Plan # 108-1698

2429 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
3 FLOOR 68' 0" WIDTH 52' 0" DEPTH 2 GARAGE BAY

This impressive Southwest style home with Spanish influences (House Plan #108-1714) has 2429 square feet of living space. The 3 story floor plan includes 3 bedrooms. Designed for a side sloped lot, this home makes a statement both outside and inside.

Each plan set includes the following:

  • Artist’s rendering of the home,

  • Front/Rear/Left and Right Elevations,

  • Main floor plan, Second or Basement floor plans (if applicable),

  • Foundation plan and detail,

  • Floor framing plan,

  • Roof framing plan, supporting details and

  • Electric layout.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

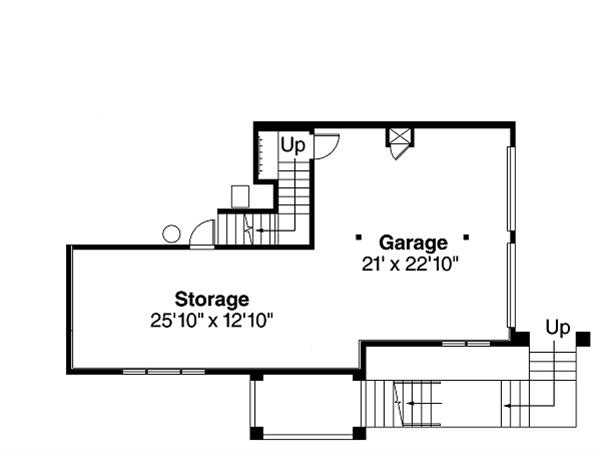

Home Plan: #108-1698 Floor Plan Basement - lower level Floor Plan Basement of Southwest Plan #108-1698

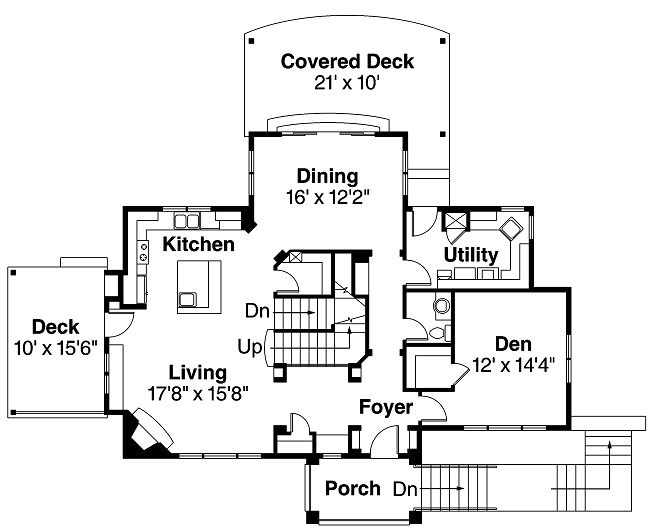

#108-1698 Floor Plan First Story - main level Floor Plan First Story of Southwest Plan #108-1698

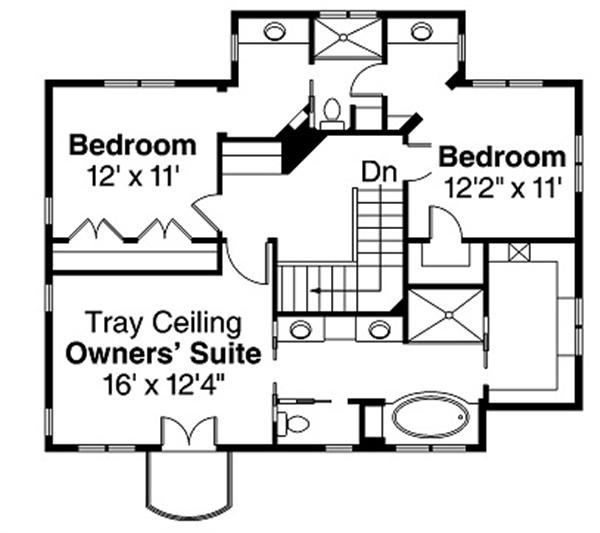

#108-1698 Floor Plan Second Story - second level Floor Plan Second Story of Southwest Plan #108-1698
