3-Bedroom, 3618 Sq Ft Tuscan Plan with Friend's Entry

Main image for house plan # 19696
3-Bedroom, 3618 Sq Ft Tuscan Home Plan - 156-2329 - Main Exterior

About Plan # 156-2329

About Plan # 156-2329

3618 SQUARE FEET 3 BEDROOMS 4 FULL BATH 1 HALF BATH
3 FLOOR 43' 0" WIDTH 57' 8" DEPTH 2 GARAGE BAY
The OHP-990174 home plan is a three story, Tuscan Style house plan with 3618 total living square feet. This home plan has 3 bedrooms, 4 bathrooms, and a 2 car garage. The main level of this house plan has the great room, the breakfast and kitchen area, and the study. The second floor plan has the master bedroom and bath along with having the 2 other bedrooms. The third floor plan has a bonus area. This home plan has a great Tuscan design.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY

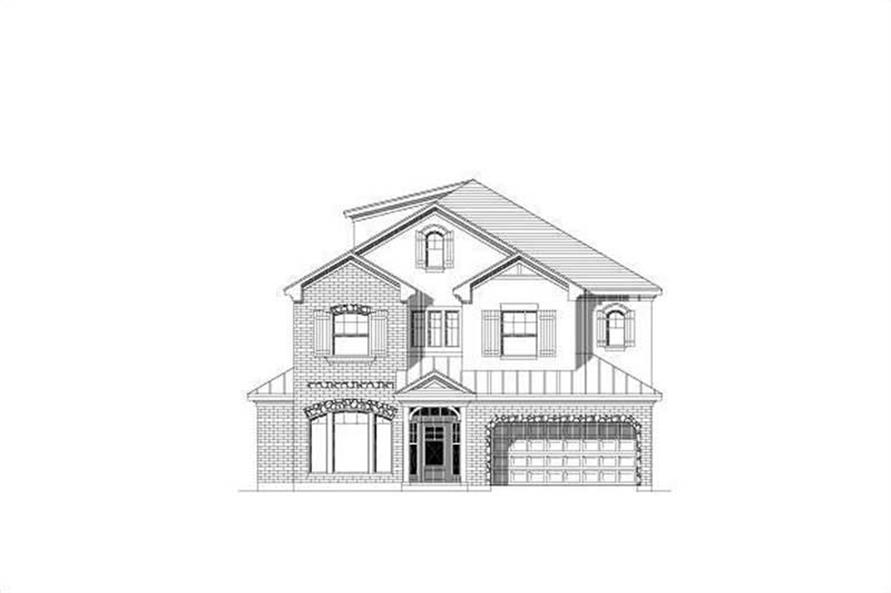

  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor. This includes wall sections.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

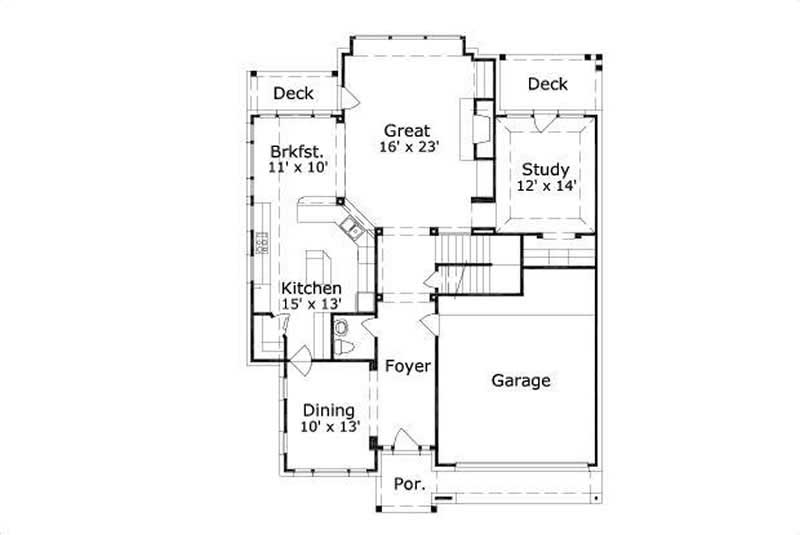

Home Plan: #156-2329 Floor Plan First Story - main level Floor Plan First Story of Tuscan Plan #156-2329

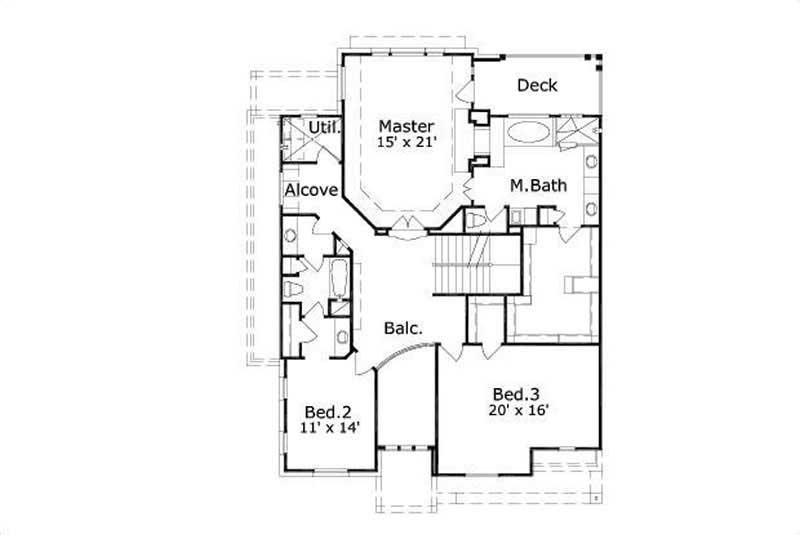

#156-2329 Floor Plan Second Story - second level Floor Plan Second Story of Tuscan Plan #156-2329

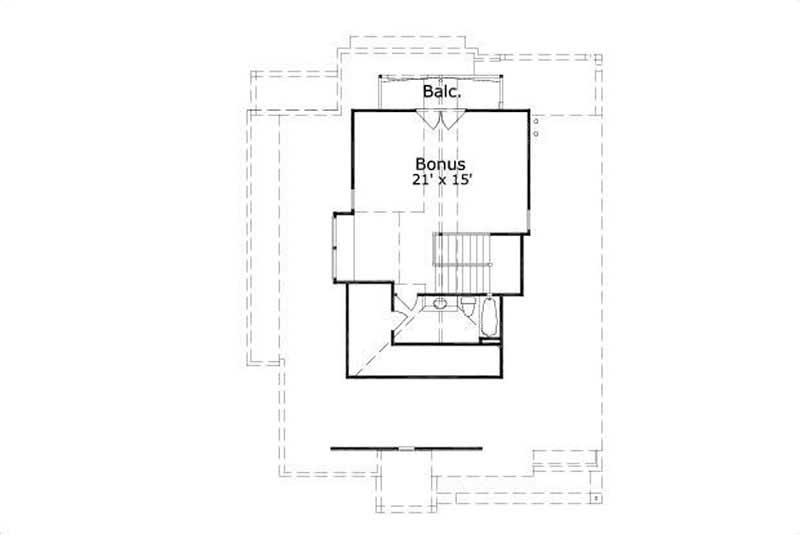

#156-2329 Floor Plan Third Story - third level Floor Plan Third Story of Tuscan Plan #156-2329
Home Plan: #156-2329 Floor Plan First Story - main level Floor Plan First Story of Tuscan Plan #156-2329
#156-2329 Floor Plan Second Story - second level Floor Plan Second Story of Tuscan Plan #156-2329
#156-2329 Floor Plan Third Story - third level Floor Plan Third Story of Tuscan Plan #156-2329
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 156-2329
Floors:
3
Bedrooms:
3
Full Baths:
4
Half Baths:
1

Square Footage

Heated Sq Feet:
3618
Main Floor:
1570
Upper Floor:
1643
Third Floor:
405
Unfinished Sq Ft:

Dimensions

Width:
43' 0"
Depth:
57' 8"
Ridge Height:
34'2' 0"

Architectural Styles

Tuscan

Exterior Wall Material

Brick
Stucco

Roofing Type

Hip

Ceiling Height

10 Foot Ceiling
9 Foot Ceiling

Building Lot Type

Narrow Lot Design

Additional Notes from Designer

Please Note: CAD files may take up to 3 business days to receive - please contact us for availability.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
