4-Bedroom, 6009 Sq Ft Luxury Home Plan - 107-1041 - Main Exterior
HOME PLAN AA

About Plan # 107-1041

About Plan # 107-1041

6009 SQUARE FEET 4 BEDROOMS 5 FULL BATH 1 HALF BATH
2 FLOOR 54' 9" WIDTH 82' 2" DEPTH 3 GARAGE BAY

This is a two-story Luxurious, Mediterranean house plan with 6009 total living square feet. These home plans have 4 bedrooms, 5 bathrooms, and a 3-car garage. The foyer leads you into the large living room. To the left of the living room is a bedroom and the library. To the right is the kitchen and the dining and family rooms. The upper floor plan has the master bedroom, fully equipped with a balcony and sitting area. There are also two other bedrooms as well as a media room. This plan is as good as it gets for the Mediterranean style.

Each plan set includes the following:

  • Floor plan
  • Kitchen & Bath layout
  • Exterior elevations
  • Sections
  • Structural plans
  • Foundation plan
  • Roof plan
  • Mechanical layout
  • Electrical layout

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

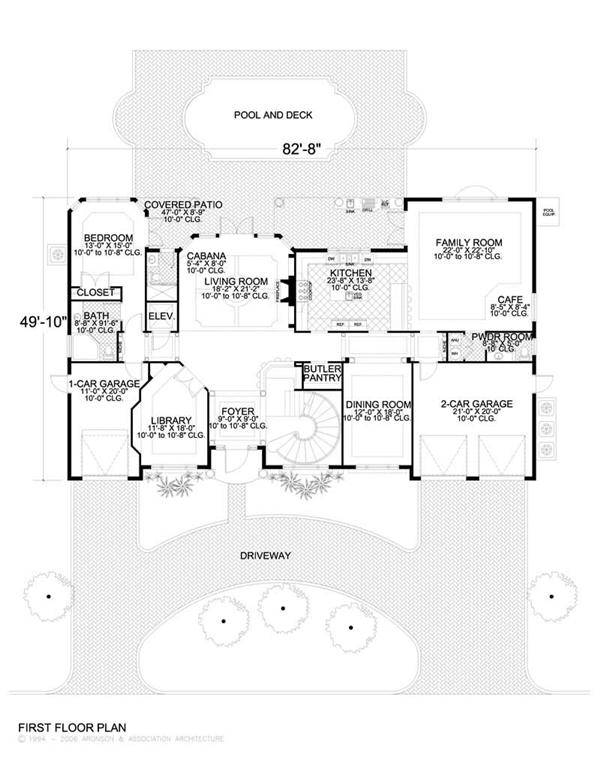

Home Plan: #107-1041 Floor Plan First Story - main level Floor Plan First Story of Luxury Plan #107-1041

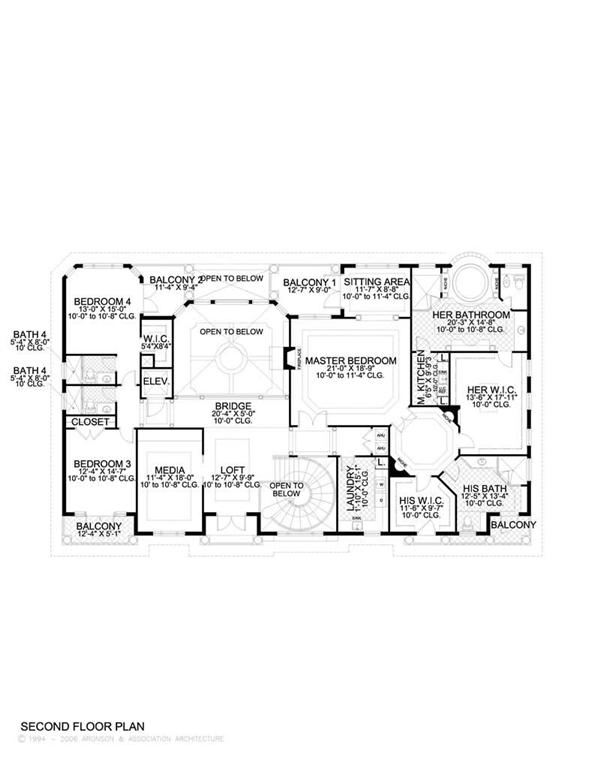

#107-1041 Floor Plan Second Story - second level Floor Plan Second Story of Luxury Plan #107-1041
Home Plan: #107-1041 Floor Plan First Story - main level Floor Plan First Story of Luxury Plan #107-1041
#107-1041 Floor Plan Second Story - second level Floor Plan Second Story of Luxury Plan #107-1041
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 107-1041
Floors:
2
Bedrooms:
4
Full Baths:
5
Half Baths:
1

Square Footage

Heated Sq Feet:
6009
Main Floor:
2926
Upper Floor:
3083
Unfinished Sq Ft:
Garage :
704

Dimensions

Width:
54' 9"
Depth:
82' 2"
Ridge Height:
34' 5"

Architectural Styles

Mediterranean
Luxury
Concrete Block/ ICF Design

Exterior Wall Material

Stucco

Roofing Type

Hip

Roofing Material

Other Composites

Roof Pitch

5/12

Special Feature

Fireplace
Swimming Pool
Dining Room
Family Room
Library
Media Room
Vaulted Ceilings
Elevator
Balcony
Second Level Laundry

Garage Type

Attached Garage
Front Entry

Exterior Wall Framing

Concrete

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Nook/Breakfast Area
Walk-in Pantry
Peninsula/Eating Bar

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch
Sundeck

Master Suite Features

Master Bathroom
Walk In Closet
Sitting Area
Private Deck

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.

Package & Price Help
Select Plan Package
Select Foundation
  {{addOnOption.Cost | currency:"$"}}
{{addOnOption.Cost | currency:"$"}}
{{addOnOption.InventoryOptionName}}
  {{addOnOption.Cost | currency:"$"}}
{{addOnOption.InventoryOptionName}}
  {{addOnOption.Cost | currency:"$"}}

How much will this plan cost to build?

- OR -

Modify this plan

This plan can be customized
Contact us for free quote

Modify this plan

This plan can be customized
Contact us for free quote
