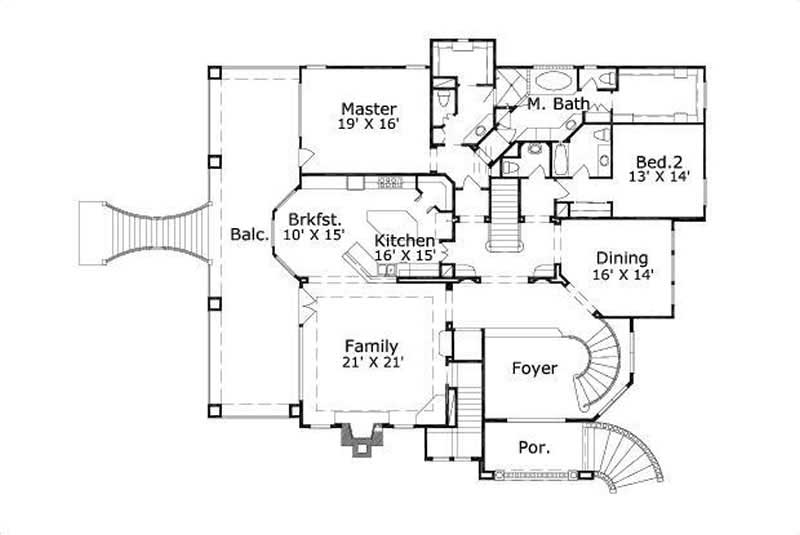

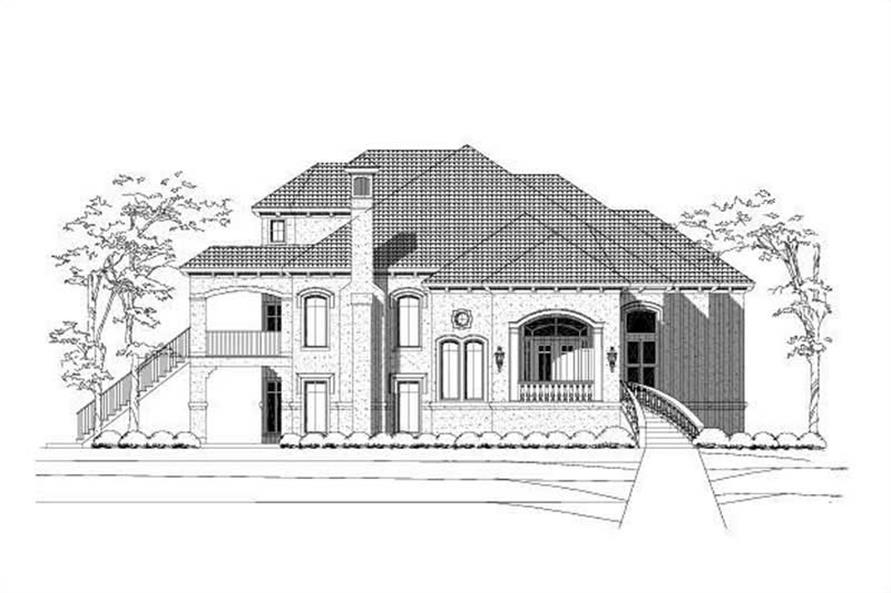

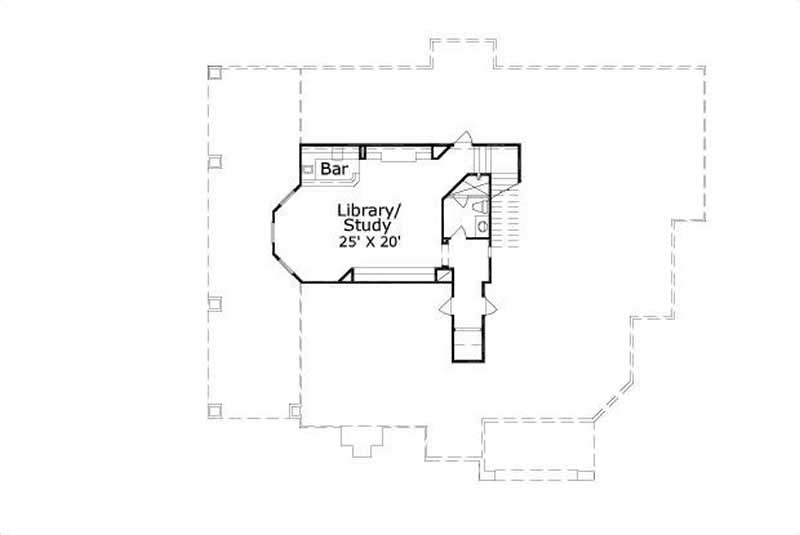

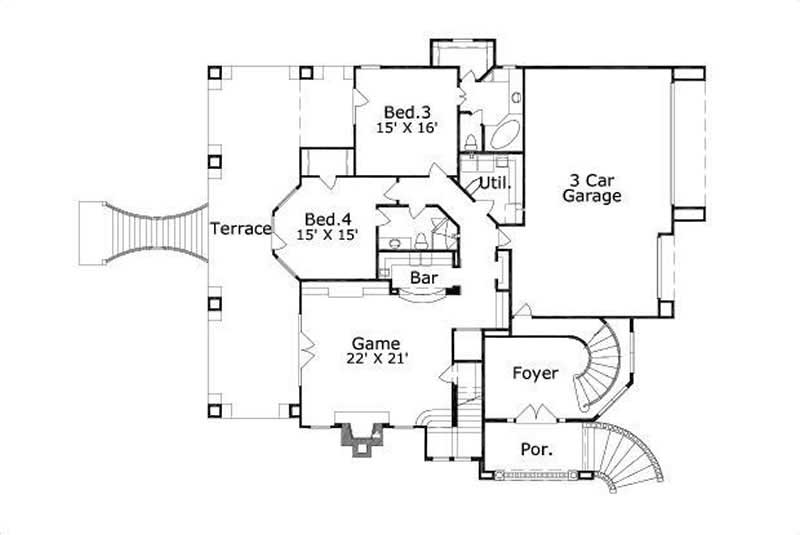

Home plan number 194 is a three story, Mediterranean style home with a total square footage of 5,302. There are 4 bedrooms and 5 and 1/2 bathrooms, along with a swing entry, front loading, 3 car garage. The master bedroom includes a sitting area and seperate closet. Plan number 194 has a covered front porch, terrace, and side porch. There is also an exterior balcony. Special features include a bar, foyer, unfinished storage, coffee/juice bar, gallery, optional elevator and tile roof.
Each plan set includes the following:
- Floor Plans
- Electrical Layout
- Building Sections
- Roofing Plan
- Interior Elevations
- General Details
- Wall Sections
These items are NOT included:
- Architectural or Engineering Stamp - handled locally if required.
- Site Plan - handled locally when required.
- Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
- Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
- Energy calculations - handled locally when required.
