4-Bedroom, 7950 Sq Ft Country Plan with Courtyard

Main image for country house plans # 15148

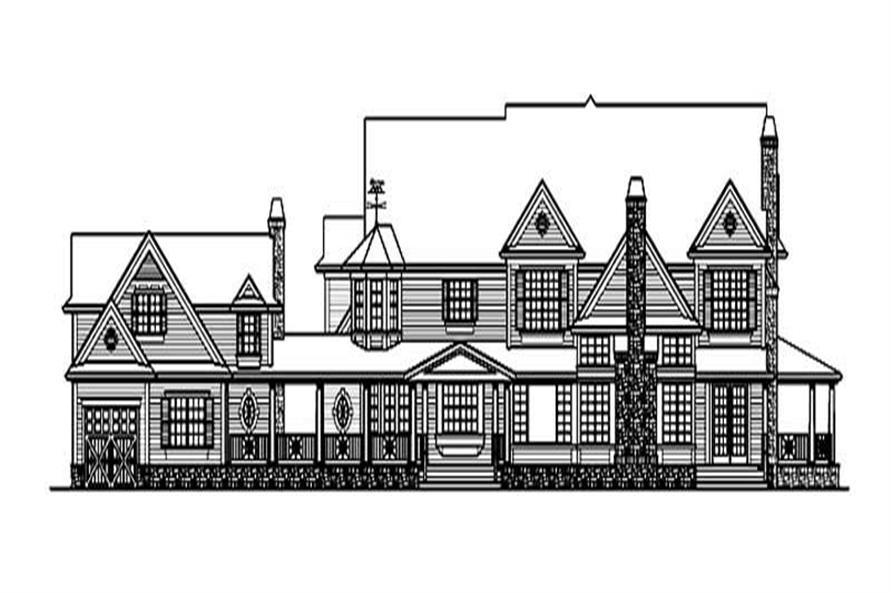

Rear Elevation
4-Bedroom, 7950 Sq Ft Country Home Plan - 115-1144 - Main Exterior
Rear Elevation

About Plan # 115-1144

About Plan # 115-1144

7950 SQUARE FEET 4 BEDROOMS 5 FULL BATH 1 HALF BATH
2 FLOOR 125' 0" WIDTH 71' 0" DEPTH 4 GARAGE BAY

House Plan #115-1144 is a Country Victorian with luxurious size and features. The house plans accommodate every kind of entertainment, both formal and informal, and have plenty of space allocated to guests. A detached garage with upper apartment is perfect for your friends, family, college bound child, in-laws, and even for rental space. The main floor enjoys and grand entrance with formal spaces like a living and dining room. The rotunda just ahead houses the stairs, a private half bath, and convenient storage. Beyond lies the informal areas namely the family room, dining nook, and kitchen. A den with a private computer nook has it's own entrance and is perfect for operating a business. The upper floor is dedicated to the bedrooms, including an immaculate master suite. A large bonus room provides great storage, and can become anything you desire, such as a theater room, play area, craft room, etc.

Each plan set includes the following:

  • DETAIL SHEET: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • FLOOR PLAN: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • FOUNDATION PLAN: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information.
  • ROOF PLAN: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
  • FRONT, REAR, AND SIDE ELEVATIONS: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • BUILDING SECTION SHEET: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

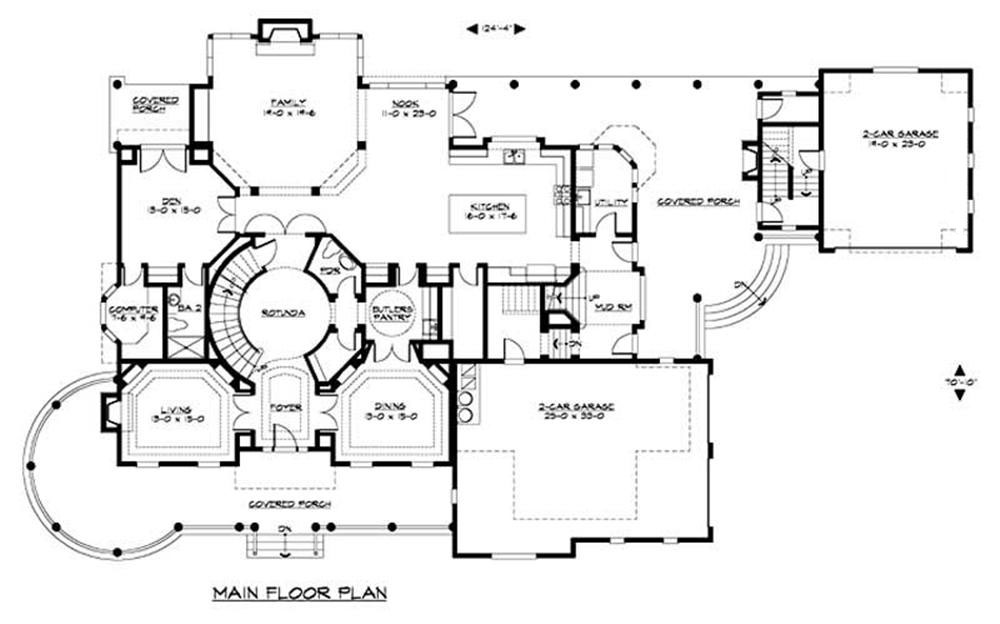

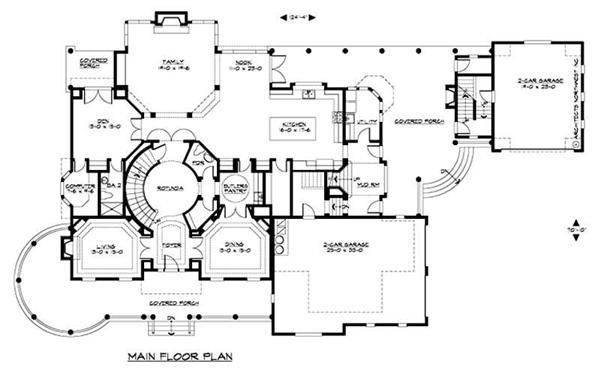

Home Plan: #115-1144 Floor Plan First Story - first story Floor Plan First Story of Country Plan #115-1144

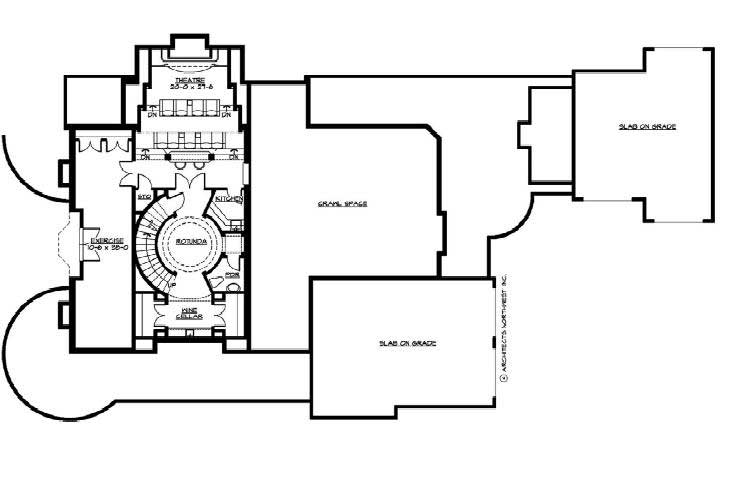

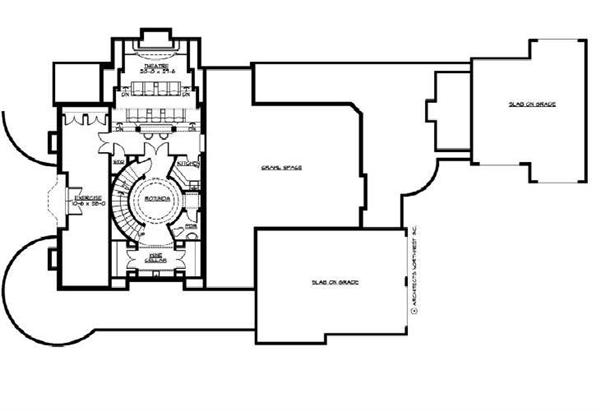

#115-1144 Floor Plan Basement - basement Floor Plan Basement of Country Plan #115-1144

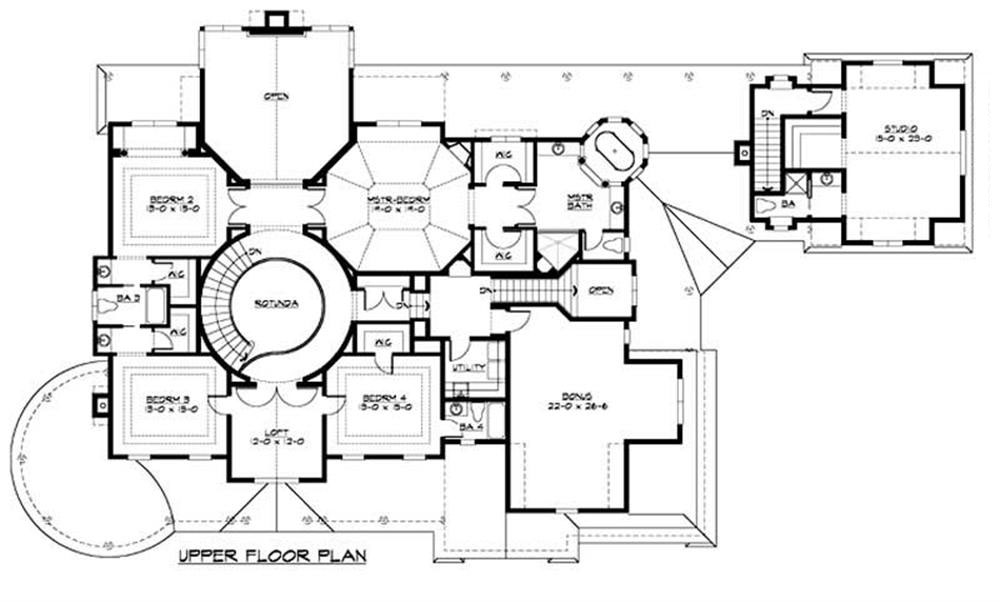

#115-1144 Floor Plan Second Story - second story Floor Plan Second Story of Country Plan #115-1144
Home Plan: #115-1144 Floor Plan First Story - first story Floor Plan First Story of Country Plan #115-1144
#115-1144 Floor Plan Basement - basement Floor Plan Basement of Country Plan #115-1144
#115-1144 Floor Plan Second Story - second story Floor Plan Second Story of Country Plan #115-1144
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 115-1144
Floors:
2
Bedrooms:
4
Full Baths:
5
Half Baths:
1

Square Footage

Heated Sq Feet:
7950
Main Floor:
2895
Upper Floor:
3545
Unfinished Sq Ft:

Dimensions

Width:
125' 0"
Depth:
71' 0"

Architectural Styles

Country
Farmhouse
In-Law Suite
Luxury
Victorian

Exterior Wall Material

Rock/Stone
Wood Siding

Roofing Type

Gable

Roofing Material

Asphalt Shingles

Special Feature

Apartment
Balcony
Bonus Room
Den
Dining Room
Family Room
Fireplace
Game Room
Guest Room
Home Office
Main Level Laundry
Mud Room
Split Bathroom
Storage
Vaulted Ceilings
Workshop

Garage Type

Attached Garage
Courtyard Entry
Detached Garage
Side Entry

Fireplaces

Four Fireplaces

Building Lot Type

Flat Site

Kitchen Features

Butler's Pantry
Kitchen Island
Nook/Breakfast Area
Walk-in Pantry

Porches and Exterior Features

Breezeway
Covered Front Porch
Covered Lanai
Covered Rear Porch
Friend's Entry
Wrap Around Porch

Master Suite Features

Fireplace in Master
Master Bathroom
Second Floor Master
Sitting Area
Walk In Closet

Additional Notes from Designer

Please Note: The plans by this designer DO NOT include electrical plans or electrical layout plans. NOTE: If you are building this home in Washington State, please contact us BEFORE placing your order!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. A PDF of the working drawings will also be emailed. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
