4-Bedroom, 5516 Sq Ft Luxury Home Plan - 125-1177 - Main Exterior
DR HOMEPLANS

About Plan # 125-1177

About Plan # 125-1177

5516 SQUARE FEET 4 BEDROOMS 4 FULL BATH 0 HALF BATH
1 FLOOR 76' 0" WIDTH 49' 0" DEPTH 2 GARAGE BAY
The Southwood home plans is one of our single story, Southwest, Luxury house plans with up to 5516 total living square feet. This home plan has 4 bedrooms, 4 bathrooms, and a 2 car garage. These plans have a full main level with 3008 total living square feet as well as a full basement with 2508 total living square feet. You can finish the basement level for an additional two large recreation rooms as well as 3 more bedrooms. These Luxurious, Southwest, Traditional house plans are the perfect choice for whatever your house plan needs may be!

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc.

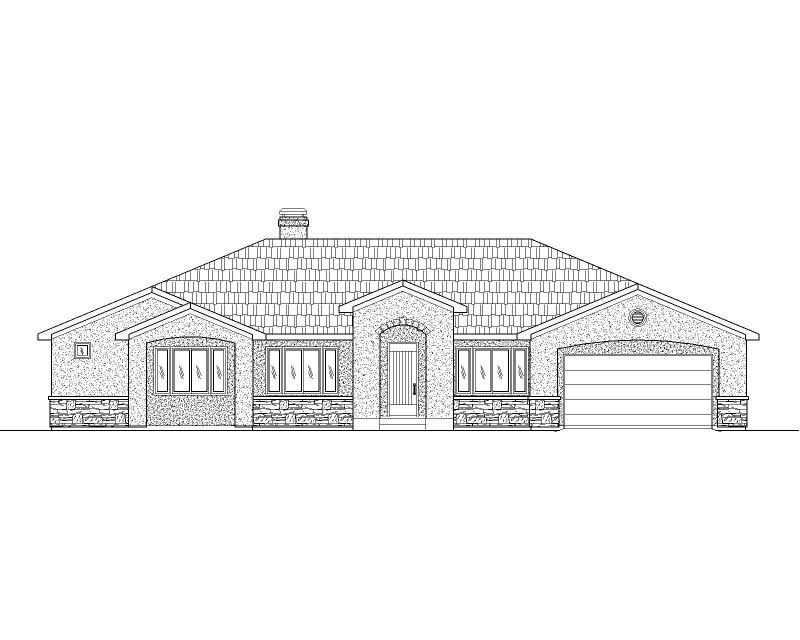

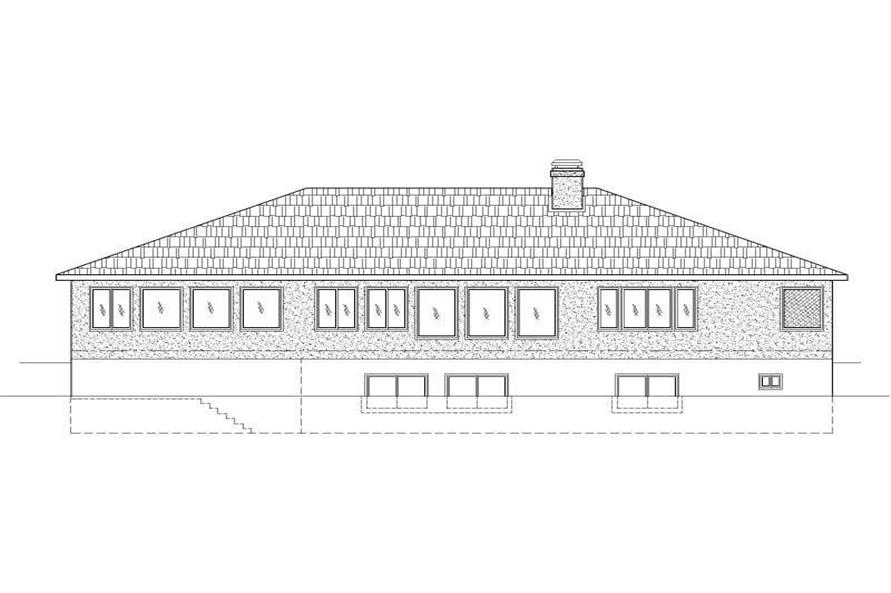

  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • DETAIL SHEET

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

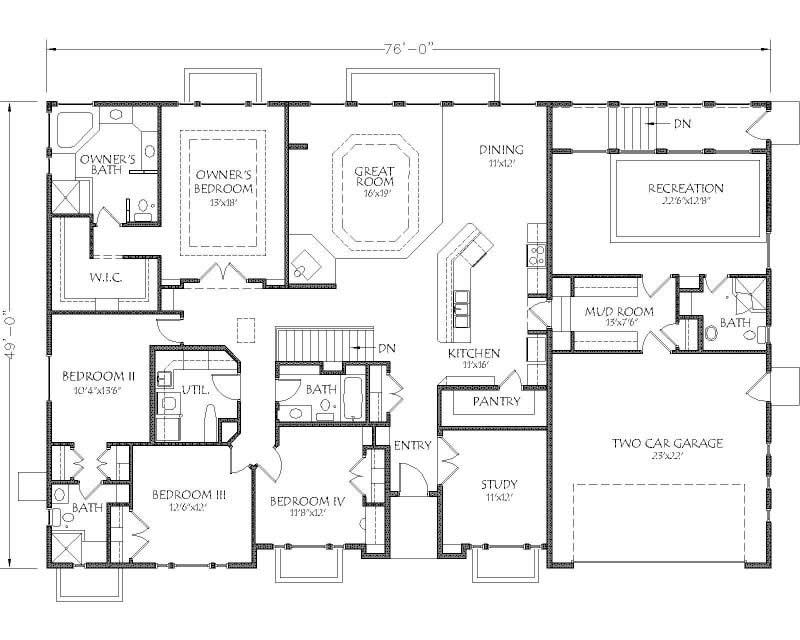

Home Plan: #125-1177 Floor Plan First Story - main level Floor Plan First Story of Luxury Plan #125-1177

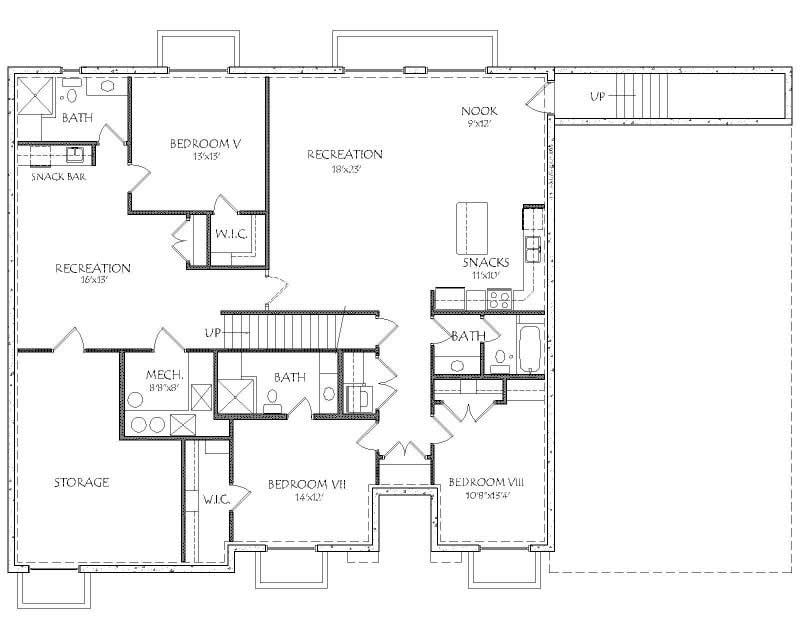

#125-1177 Floor Plan Basement - basement Floor Plan Basement of Luxury Plan #125-1177
Home Plan: #125-1177 Floor Plan First Story - main level Floor Plan First Story of Luxury Plan #125-1177
#125-1177 Floor Plan Basement - basement Floor Plan Basement of Luxury Plan #125-1177
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 125-1177
Floors:
1
Bedrooms:
4
Full Baths:
4

Square Footage

Heated Sq Feet:
5516
Main Floor:
3008
Unfinished Sq Ft:
Lower Floor:
2508
Garage :
519

Dimensions

Width:
76' 0"
Depth:
49' 0"

Architectural Styles

Southwest
Luxury
Traditional

Exterior Wall Material

Stucco
Rock/Stone

Roofing Type

Hip

Roof Pitch

5/12

Ceiling Height

9 Foot Ceiling

Special Feature

Dining Room
Home Office
Game Room
Main Level Laundry

Garage Type

Attached Garage
Front Entry

Exterior Wall Framing

2x6

Kitchen Features

Walk-in Pantry

Master Suite Features

Main Floor Master
Master Bathroom
Walk In Closet

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build unlimited number of homes with no re-use fees. PDF copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
