3-Bedroom, 965 Sq Ft Multi-Unit Home Plan - 153-1666 - Main Exterior
Elevations

About Plan # 153-1666

About Plan # 153-1666

965 SQUARE FEET 3 BEDROOMS 1 FULL BATH 0 HALF BATH
1 FLOOR 96' 8" WIDTH 37' 6" DEPTH 1 GARAGE BAY

This attractive country ranch duplex has 965 living sq ft per unit. The 1-story floor plan includes 3 bedrooms per unit. In total, the structure has 1930 living square feet, 6 bedrooms, and 2 full baths.

Units 1 and 2 are similar in features. 8-inch column on the front porch, entry to great room with a snack bar to kitchen, kitchen with access to grilling porch, master suite with walk-in closet and access to bath, bedrooms 2 and 3 with ample closet space available, 8-inch columns on grilling porch, storage in garage.


Each plan set includes the following:

  • floorplan

  •  4 side exterior elevations,

  • electrical plan,

  • birds-eye view of the roof,

  • foundation plan,

  • and some miscellaneous details.

    Please Note

    We do not offer plumbing, HVAC, or window scheduling. This will have to be done on a local level, probably by your building team!



These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

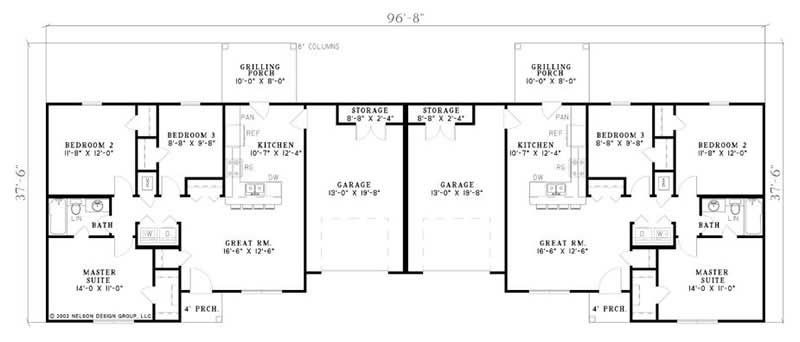

Home Plan: #153-1666 Floor Plan First Story - main Floor Plan First Story of Multi-Unit Plan #153-1666
Home Plan: #153-1666 Floor Plan First Story - main Floor Plan First Story of Multi-Unit Plan #153-1666
