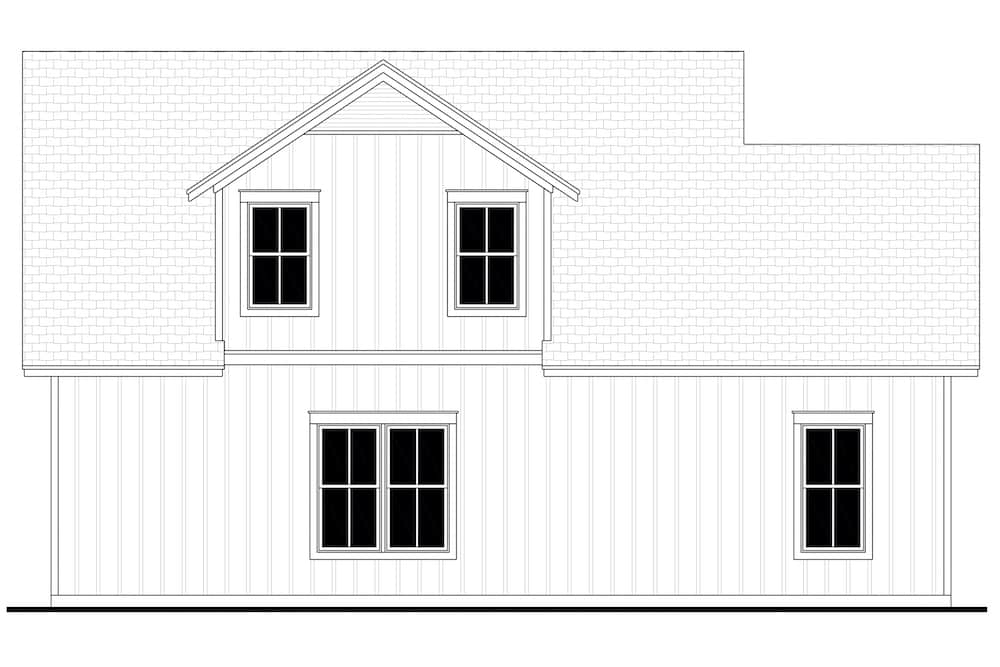

142-1249: Home Plan Rear Elevation

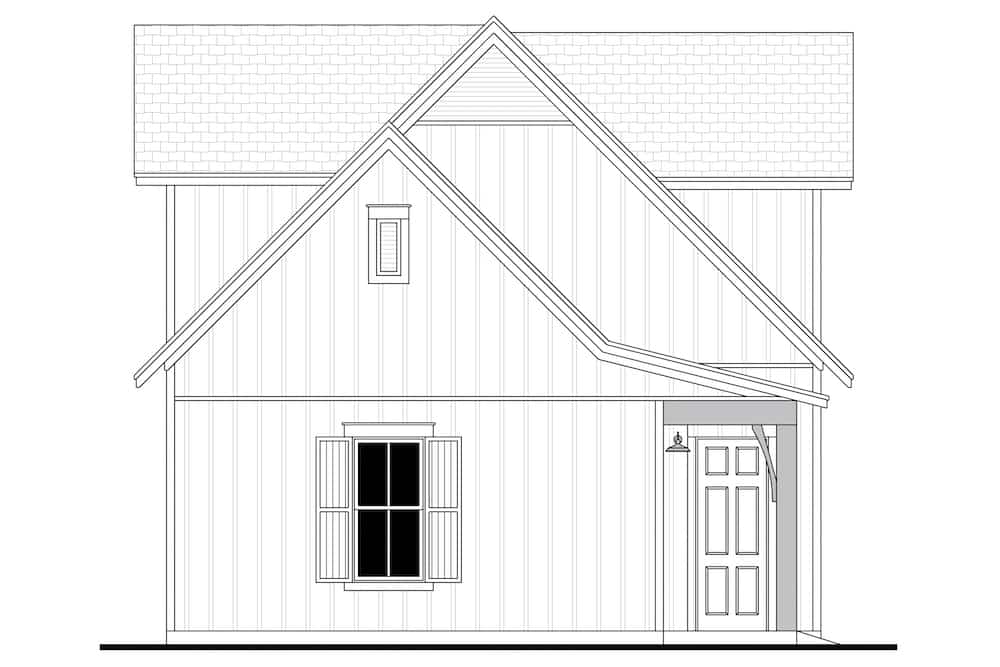

142-1249: Home Plan Left Elevation

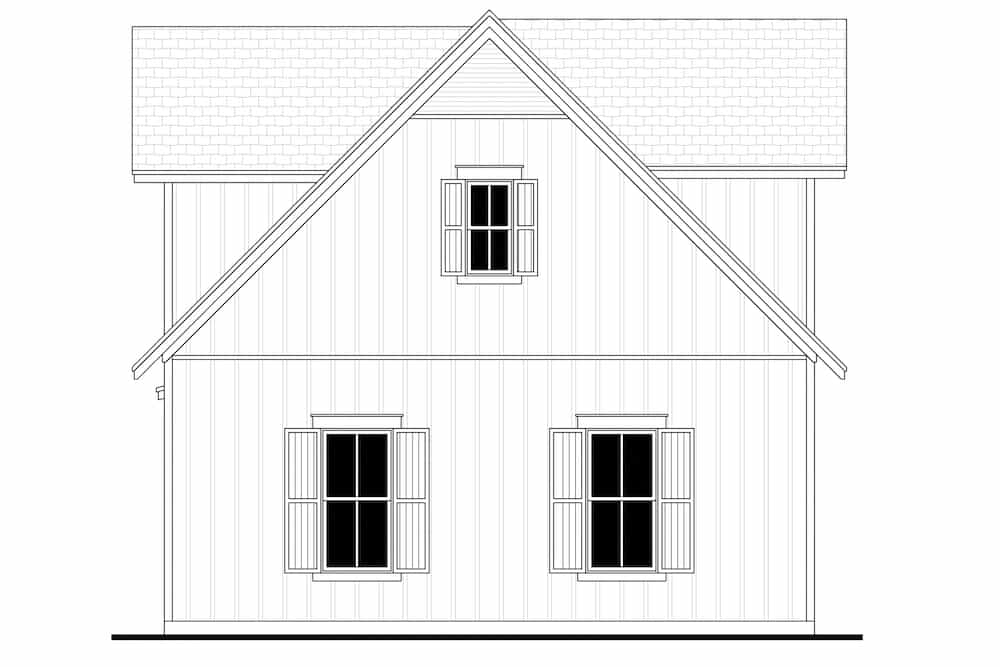

142-1249: Home Plan Right Elevation

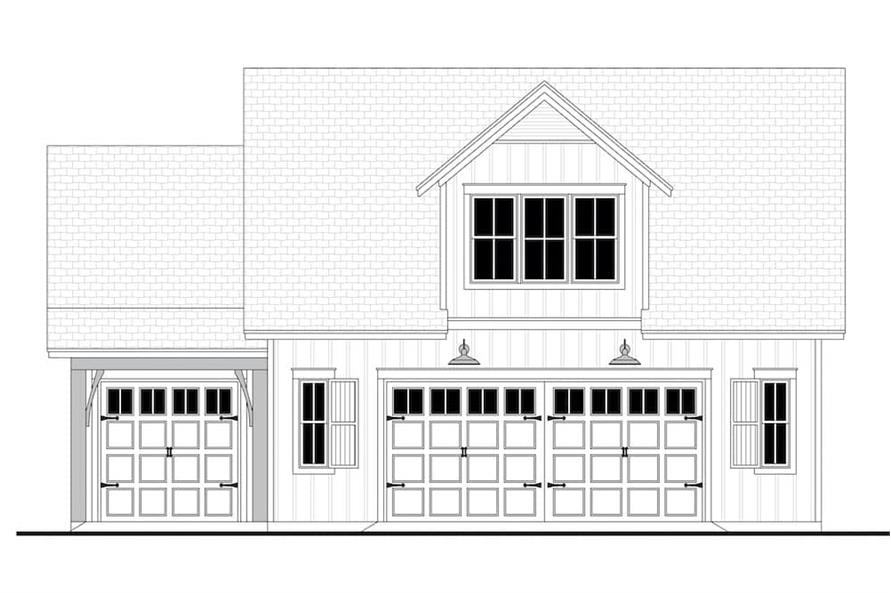

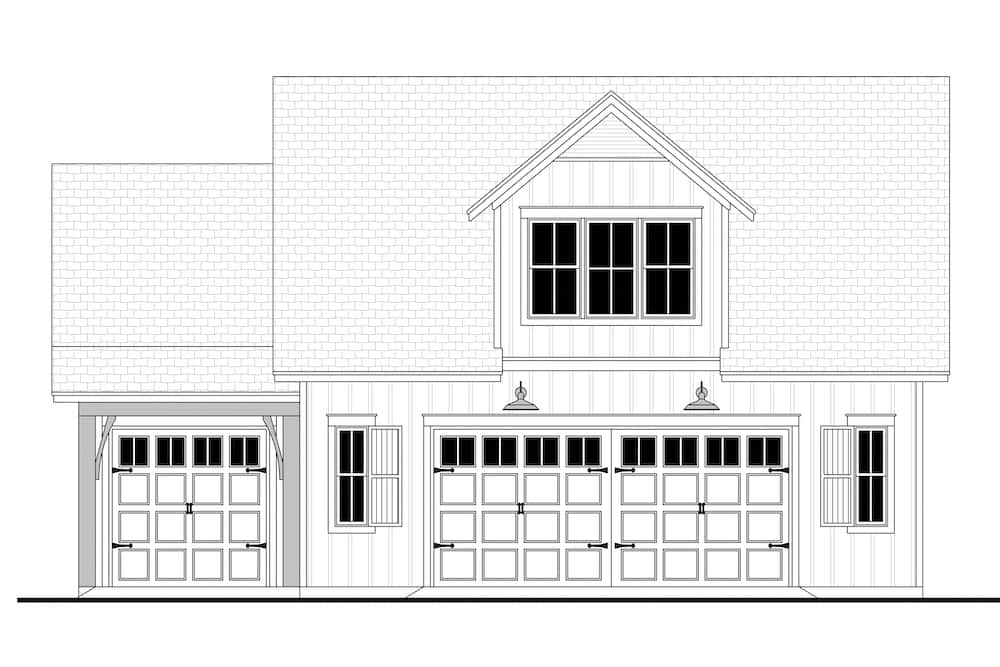

142-1249: Home Plan Front Elevation
1-Bedroom, 522 Sq Ft Garage Plan #142-1249 - Main Exterior
142-1249: Home Plan Rear Elevation
142-1249: Home Plan Left Elevation
142-1249: Home Plan Right Elevation
142-1249: Home Plan Front Elevation

About Plan # 142-1249

About Plan # 142-1249

522 SQUARE FEET 1 BEDROOMS 1 FULL BATH 0 HALF BATH
2 FLOOR 42' 0" WIDTH 27' 0" DEPTH 3 GARAGE BAY

This great 2-story garage plan, which would blend well with a Colonial or Cape Cod style home, has 522 square feet of heated and cooled living space, including a bedroom, full bathroom, kitchen, living room, and laundry space – great as an in-law suite or as guest quaters. The 3-car garage has 1,063 square feet that can accommodate extra space for storage or a workshop.

Each plan set includes the following:

  • Cover sheet
  • Foundation plan
  • Dimensional floor plan
  • Exterior views
  • Roof plan
  • Electrical layout
  • Wall section(s)
  • Building section(s)
  • Cabinet elevations

.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.
  • No Framing

Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

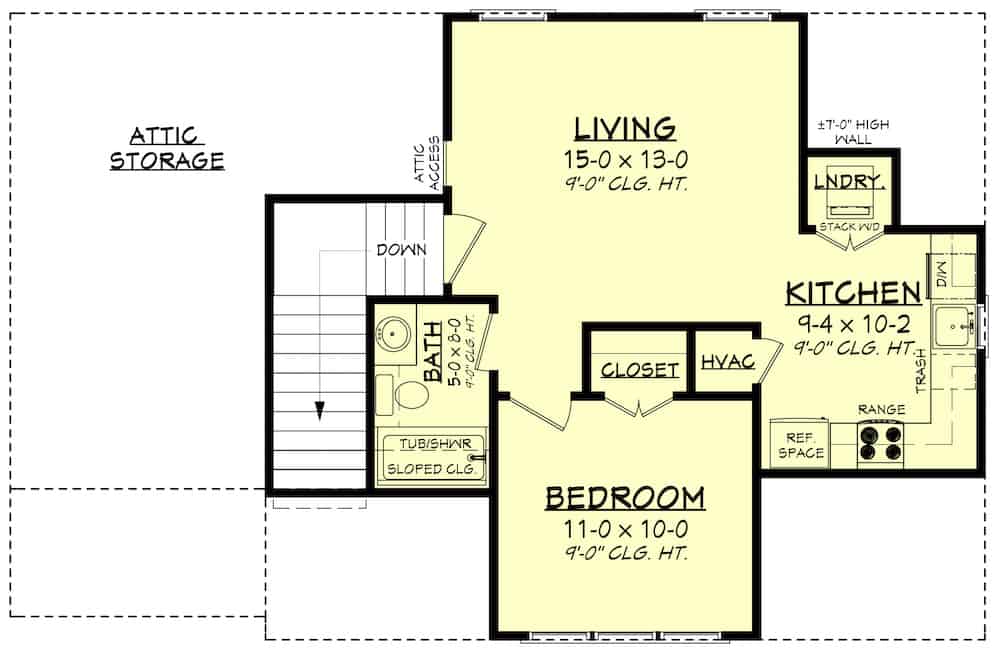

Home Plan: #142-1249 Floor Plan Second Story - upper level Floor Plan Upper Level of Garage Plan #142-1249

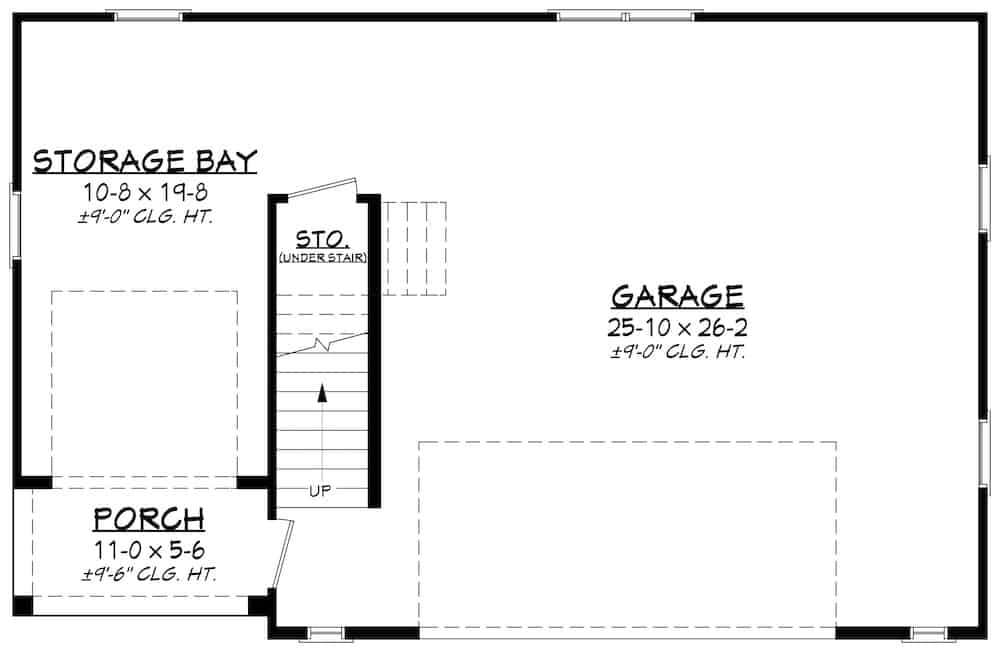

#142-1249 Floor Plan Garage - garage Floor Plan Garage of Garage Plan #142-1249
Home Plan: #142-1249 Floor Plan Second Story - upper level Floor Plan Upper Level of Garage Plan #142-1249
#142-1249 Floor Plan Garage - garage Floor Plan Garage of Garage Plan #142-1249
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 142-1249
Floors:
2
Bedrooms:
1
Full Baths:
1
Garage :
3

Square Footage

Heated Sq Feet:
522
Upper Floor:
522
Unfinished Sq Ft:
Garage :
1063
Porch :
61

Dimensions

Width:
42' 0"
Depth:
27' 0"

Architectural Styles

Colonial
Garage
Cape Cod
Garage w/Apartments

Exterior Wall Material

Vinyl Siding
Wood Siding

Roofing Type

Gable
Gable/Dormer

Roofing Material

Asphalt Shingles

Roof Pitch

12/12
3/12
8/12
10/12

Ceiling Height

9 Foot Ceiling

Special Feature

Storage
Second Level Laundry

Garage Type

Detached Garage
Front Entry

Exterior Wall Framing

2x4

Building Lot Type

Narrow Lot Design

Kitchen Features

Eat-In Kitchen

Porches and Exterior Features

Covered Front Porch

Master Suite Features

Second Floor Master

Additional Notes from Designer

On some plans, Basement Foundations, Walkout Basement Foundations & 2x6 Conversions could take up to ONE WEEK to produce. Materials Lists could take up to FOUR WEEKS to produce and they will be for the ORIGINAL plan! Any modifications will NOT be reflected on the Materials List. NOTE FROM DESIGNER: If you purchase a CAD, you will automatically receive the unlimited build license - no need to purchase separately!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build an unlimited number of homes with no re-use fees. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
