4-Bedroom, 4145 Sq Ft Victorian Plan with Covered Front Porch

Main image for house plan # 15051
Home Plan Rear Elevation
4-Bedroom, 4145 Sq Ft Victorian Home Plan - 115-1130 - Main Exterior
Home Plan Rear Elevation

About Plan # 115-1130

About Plan # 115-1130

4145 SQUARE FEET 4 BEDROOMS 3 FULL BATH 0 HALF BATH
2 FLOOR 69' 0" WIDTH 80' 0" DEPTH 3 GARAGE BAY

This is an exceptional Victorian exterior and a large interior floor plan, spanning out 4,145 total living square feet!  With an exceptional larger front porch the foyer leads to the beautifully centered rotunda. With 4 bedrooms and 3 bathrooms this plan is perfect for any growing family.  This plan comes with a great open floor plan.  This plan was designed for the family that entertains. With an oversized family room that leads to the kitchen and large covered porch this home gives guest a vast amount of space to relax and enjoy the beautiful architecture of this home.

Each plan set includes the following:

  • DETAIL SHEET: The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • FLOOR PLAN: Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • FOUNDATION PLAN: The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information.
  • ROOF PLAN: The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.
  • FRONT, REAR, AND SIDE ELEVATIONS: Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • BUILDING SECTION SHEET: Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

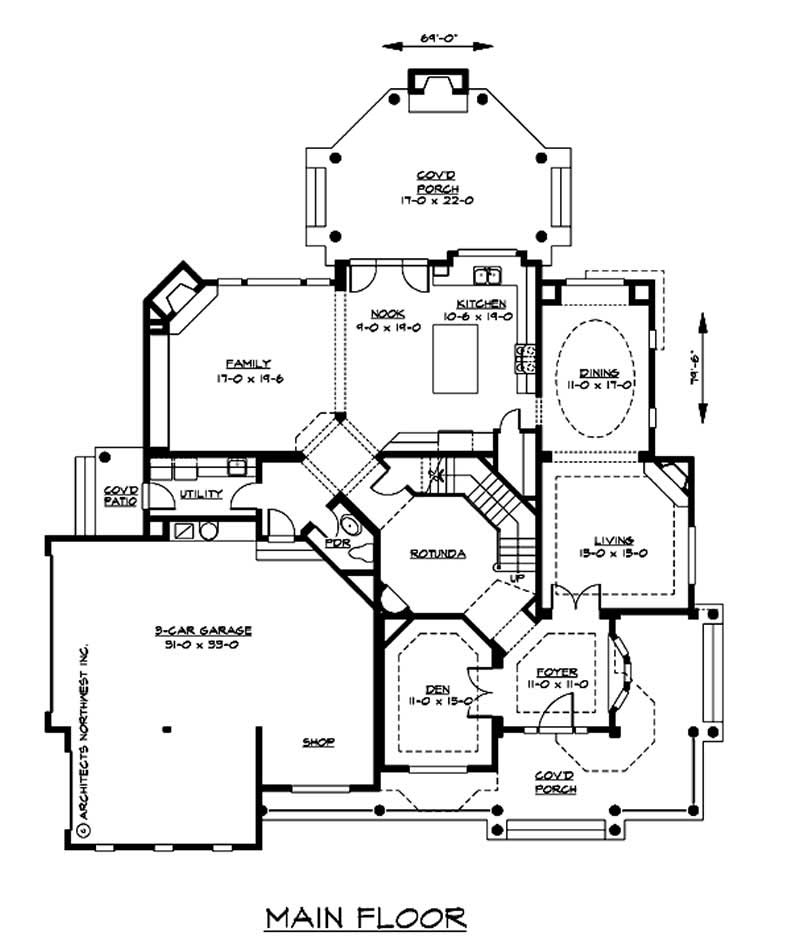

Home Plan: #115-1130 Floor Plan First Story - main Floor Plan First Story of Victorian Plan #115-1130

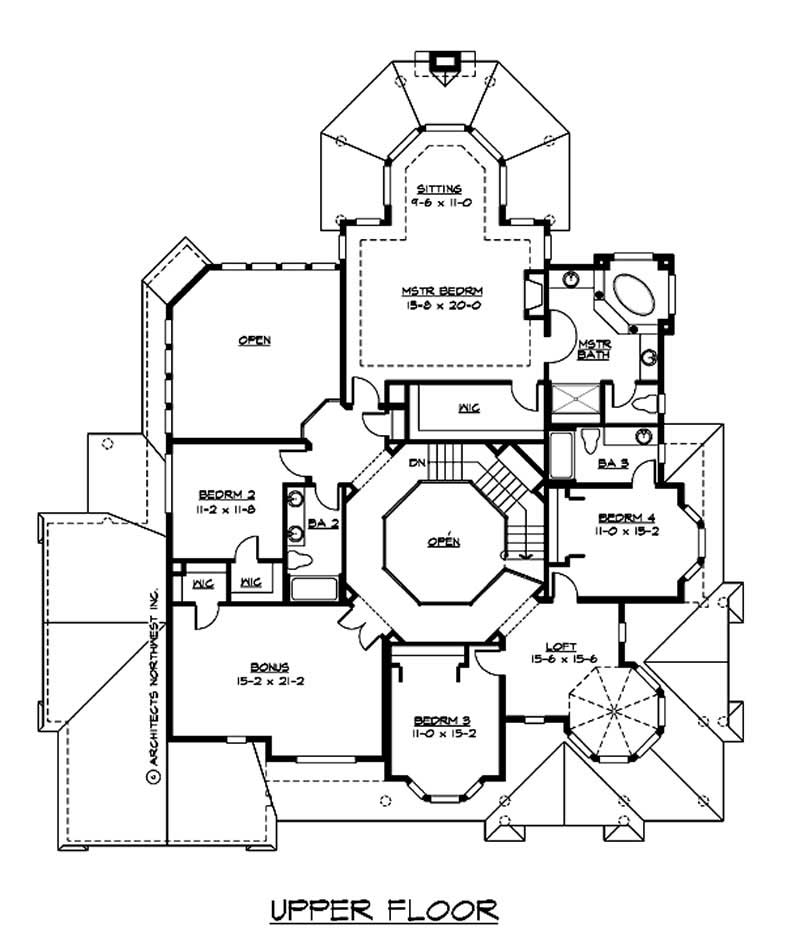

#115-1130 Floor Plan Second Story - second story Floor Plan Second Story of Victorian Plan #115-1130
Home Plan: #115-1130 Floor Plan First Story - main Floor Plan First Story of Victorian Plan #115-1130
#115-1130 Floor Plan Second Story - second story Floor Plan Second Story of Victorian Plan #115-1130
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 115-1130
Floors:
2
Bedrooms:
4
Full Baths:
3

Square Footage

Heated Sq Feet:
4145
Main Floor:
1985
Upper Floor:
2160
Unfinished Sq Ft:

Dimensions

Width:
69' 0"
Depth:
80' 0"

Architectural Styles

Victorian

Exterior Wall Material

Brick

Special Feature

Bonus Room
Dining Room
Fireplace
Loft
Main Level Laundry
Open Floor Plan
Second Level Laundry

Garage Type

Attached Garage

Fireplaces

Four Fireplaces

Building Lot Type

Flat Site

Kitchen Features

Kitchen Island
Walk-in Pantry

Porches and Exterior Features

Covered Front Porch
Covered Rear Porch

Master Suite Features

Fireplace in Master
Master Bathroom
Sitting Area
Walk In Closet

Additional Notes from Designer

Please Note: The plans by this designer DO NOT include electrical plans or electrical layout plans. NOTE: If you are building this home in Washington State, please contact us BEFORE placing your order!

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. A PDF of the working drawings will also be emailed. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
