4-Bedroom, 3009 Sq Ft Country Plan with Covered Rear Porch

Main image for house plan # 2437
4-Bedroom, 3009 Sq Ft Country Home Plan - 176-1000 - Main Exterior

About Plan # 176-1000

About Plan # 176-1000

3009 SQUARE FEET 4 BEDROOMS 4 FULL BATH 1 HALF BATH
2 FLOOR 72' 0" WIDTH 57' 0" DEPTH 3 GARAGE BAY

With formal living/dining rooms and large bedrooms, this great floor plan was designed to formally entertain your guests. The curb appeal of this home should be welcomed by any neighborhood. Builders and homeowners love this floor plan because of it eligant, yet simple design. This plan truely is the best of both worlds.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • ELECTRICAL LAYOUT: Specifications, notes, schedules, and plan defining the location of panels, service, lighting fixtures, switches, outlets, fans, etc. NOTE – PLEASE VERIFY
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

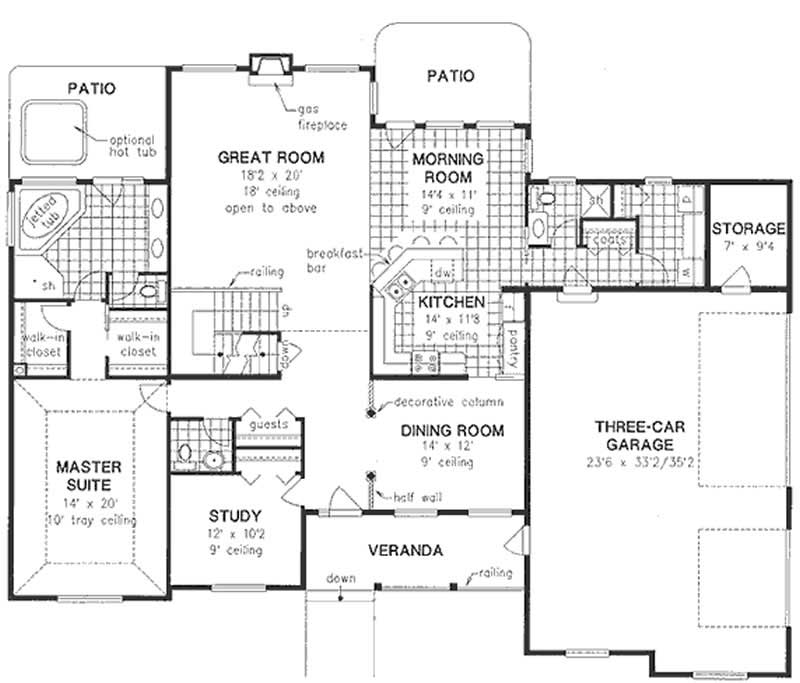

Home Plan: #176-1000 Floor Plan First Story - main elevation Floor Plan First Story of Country Plan #176-1000

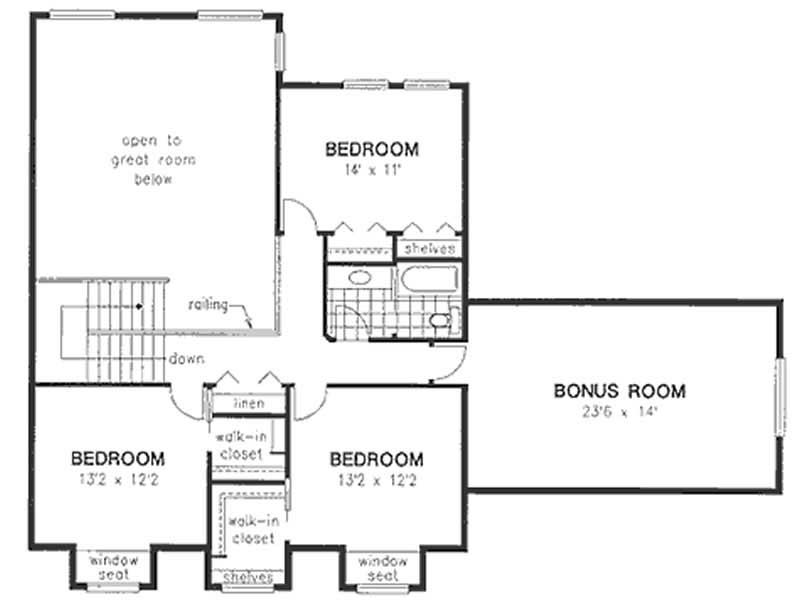

#176-1000 Floor Plan Second Story - upper elevation Floor Plan Second Story of Country Plan #176-1000
Home Plan: #176-1000 Floor Plan First Story - main elevation Floor Plan First Story of Country Plan #176-1000
#176-1000 Floor Plan Second Story - upper elevation Floor Plan Second Story of Country Plan #176-1000
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 176-1000
Floors:
2
Bedrooms:
4
Full Baths:
4
Half Baths:
1

Square Footage

Heated Sq Feet:
3009
Main Floor:
2142
Upper Floor:
867
Unfinished Sq Ft:

Dimensions

Width:
72' 0"
Depth:
57' 0"
Ridge Height:
31' 0"

Architectural Styles

Country

Roofing Type

Gable

Special Feature

Dining Room
Guest Room

Garage Type

Attached Garage

Fireplaces

One Fireplace

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five full printed sets with a license to build one home. This is the minimum number of sets you can build from.

Eight full printed sets with a license to build one home. Gives you extra sets needed for those using a general contractor.

A full set of construction drawings printed on a reproducible medium. Allows you to make as many copies as needed. Includes license to build one home and a copyright release to make as many modifications as you see fit. Delivered by mail.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

Stamped "Not for Construction," this set allows you to review the home plan in detail and obtain bids. It is illegal to build a house from plans stamped this way and, due to copyright laws, they can not be copied.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
