Craftsman House Plans - Home Design VH-R2581

Images/Plans copyrighted by designer. Photos may reflect homeowner modifications.

About House Plan #135-1045

2581

Sq Ft

5

Bedrooms

3

Baths

1

Half Baths

3

Cars

1

Stories

88' 0'

Width

48

Depth

From$1725What's included

STEP 1

How much will it cost to build?

Estimate your costs based on your location and materials.

Start with Instant Estimator

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Floor Plans

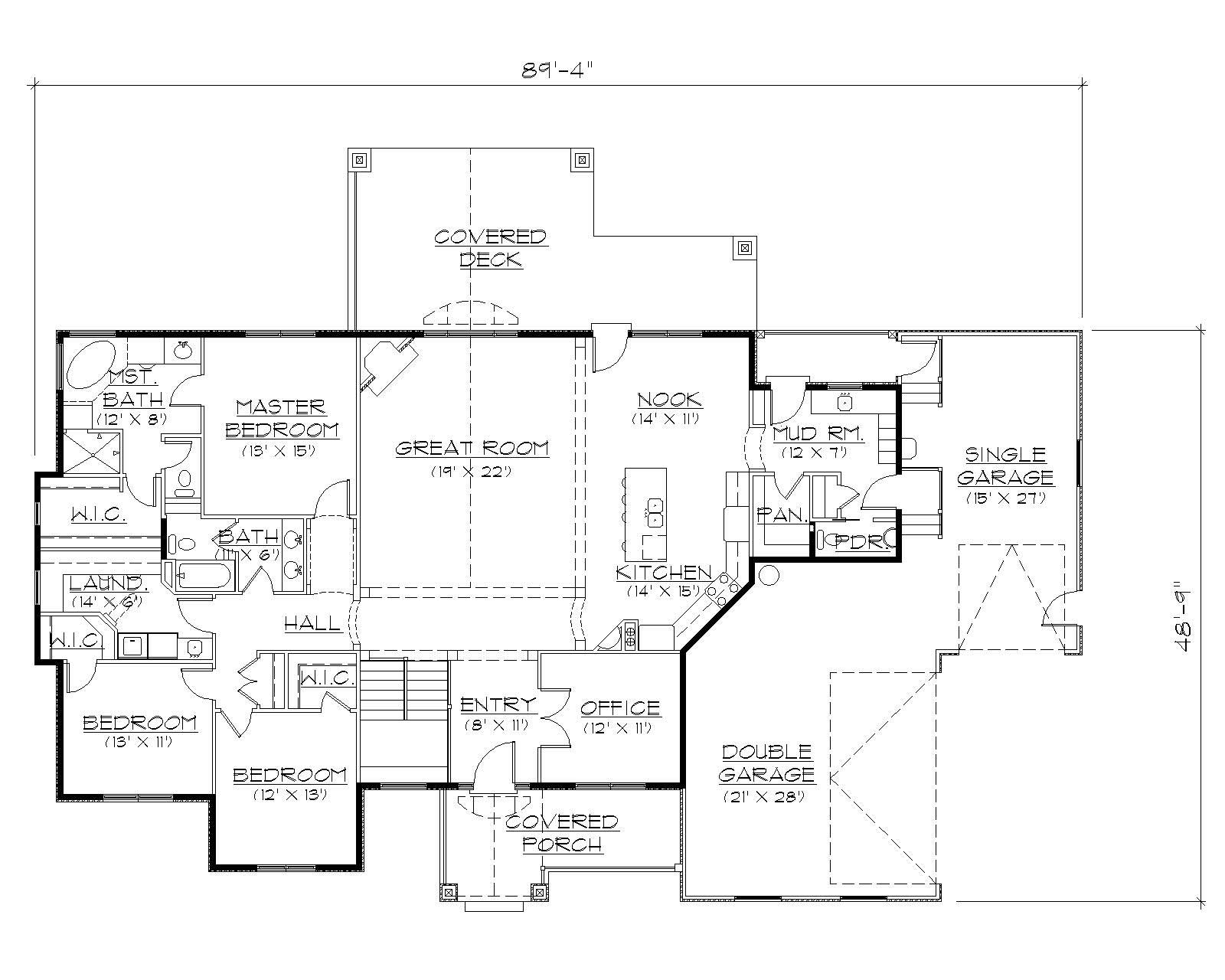

Floor Plan First Story

Can I modify this plan?

Yes! This plan can be customized—contact us for a free quote.

Additional Notes from Designer

PLEASE NOTE! If you order an optional foundation and a materials list, the materials list will NOT include the optional foundation, only the standard foundation. The designer can provide an updated materials list for a fee, so please ask for a quote!

House Plan Description

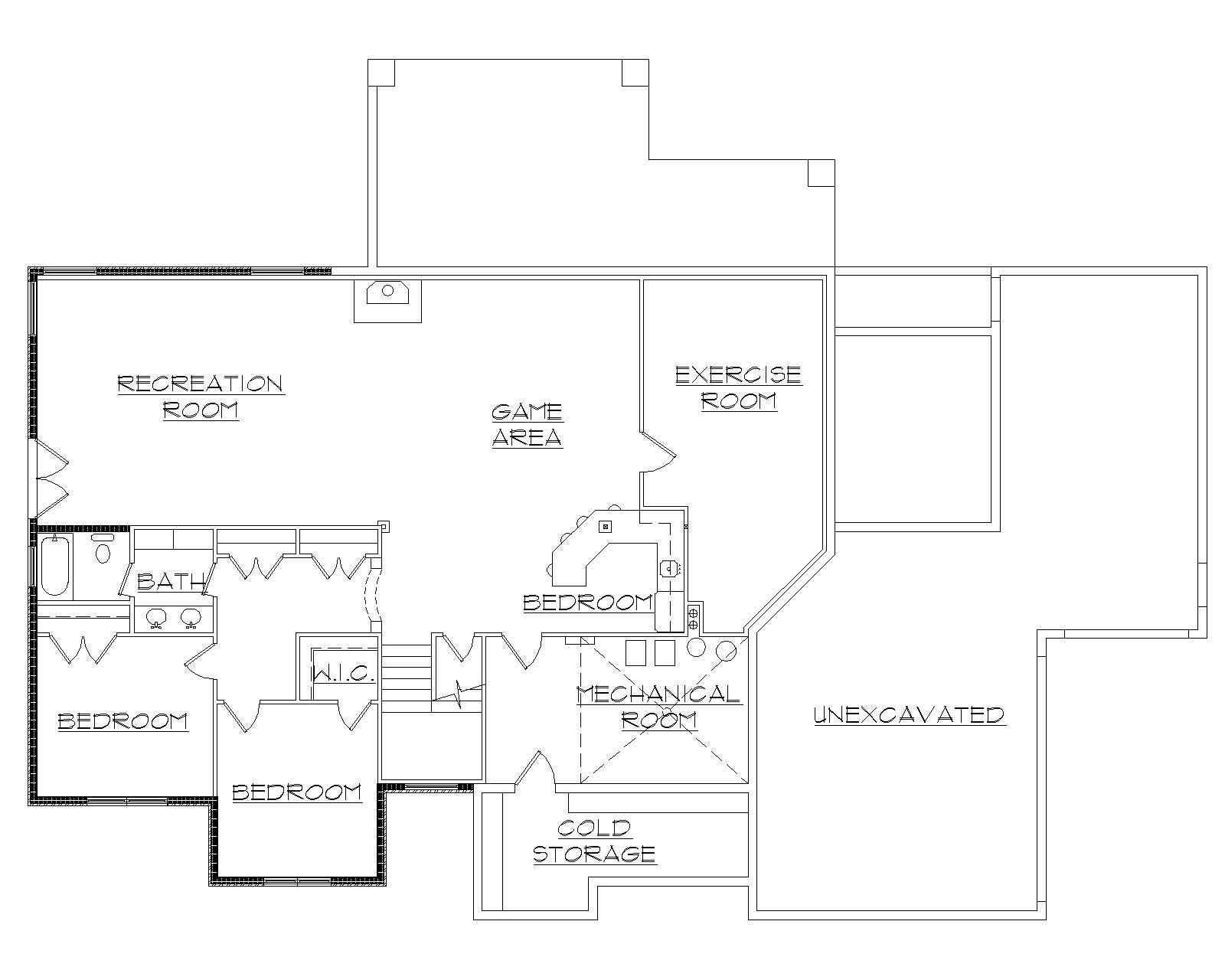

This Mountain style home features split triple garage and a floor plan that includes everything from the usual great room to an exercise room in the basement.

Home Details

Summary

Plan #:135-1045

Floors:1

Bedrooms:5

Full Baths:3

Half Baths:1

Garage:

Square Footage

Heated Area::2581 Sq. Ft.

Main Floor:2581 Sq. Ft.

Dimensions

Depth:48' 9''

Ridge Height:22'10"' 0''

Architectural Styles

Craftsman

Exterior Wall Material

Rock/StoneWood Siding

Roofing Type

Hip

Roof Pitch

6/12

Ceiling Height

9 Foot Ceiling

Special Feature

FireplaceHome OfficeMud RoomGame RoomMain Level LaundryStorageExercise Room

Garage Type

Side EntryFront Entry

Fireplaces

One Fireplace

Exterior Wall Framing

2x6

Building Lot Type

Side Slope Site

Kitchen Features

Kitchen IslandNook/Breakfast AreaWalk-in PantryPeninsula/Eating Bar

Porches and Exterior Features

Covered Front PorchCovered Rear Porch

Master Suite Features

Main Floor MasterMaster BathroomWalk In Closet

How much will it cost to build?

Estimate your costs based on your location and materials.

-OR-

What's the differnce?

What’s Included

Most plan sets include the following:

Cover

General notes

Foundation/Footing plan

Basement plan

Floor framing plan

Main level plan

Upper-level floor framing (if applicable)

Upper floor plan (if applicable)

Roof framing plan

Building sections/details

Electrical layout

What’s Not Included

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required.

Site Plan - handled locally when required.

Mechanical Drawings (location of heating and air equipment and ductwork) - your subcontractors handle this.

Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.

Energy calculations - handled locally when required.

Additional Information

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
