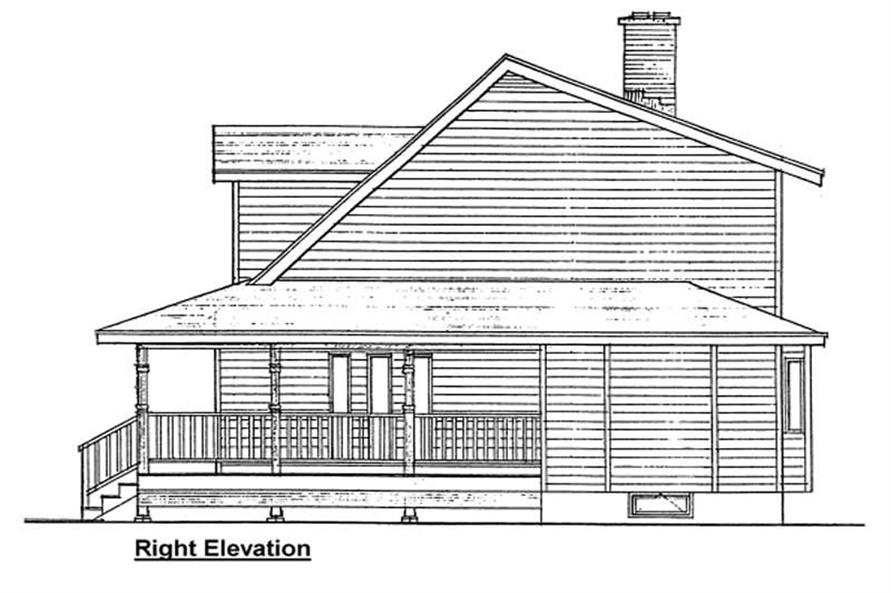

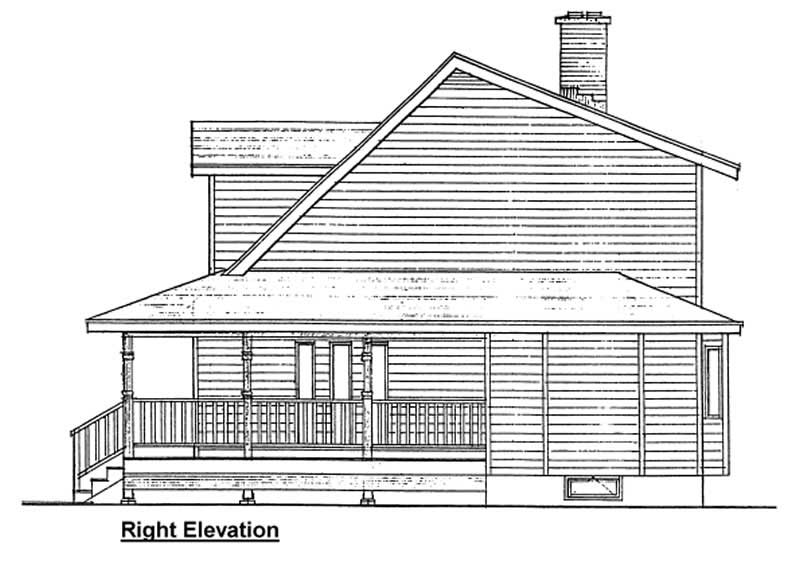

RIGHT ELEVATION

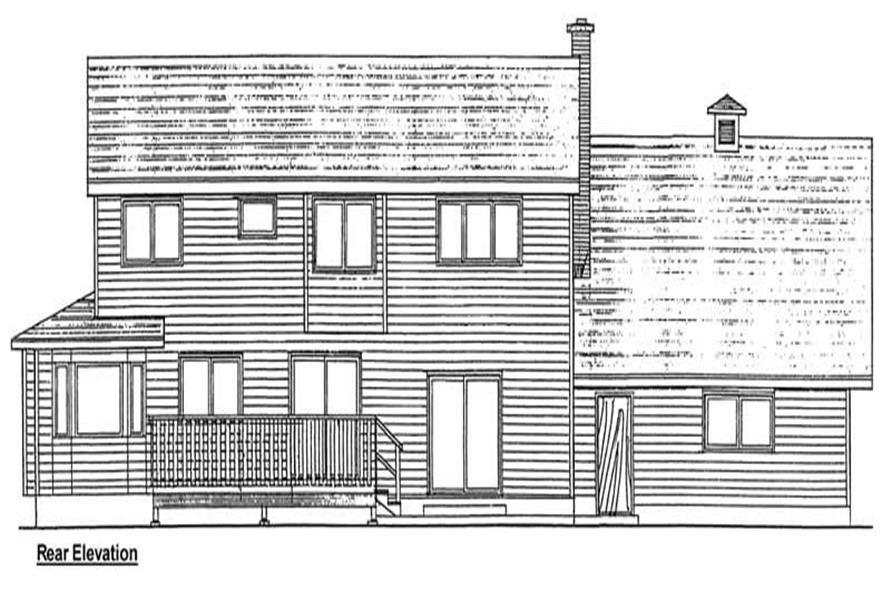

REAR ELEVATION

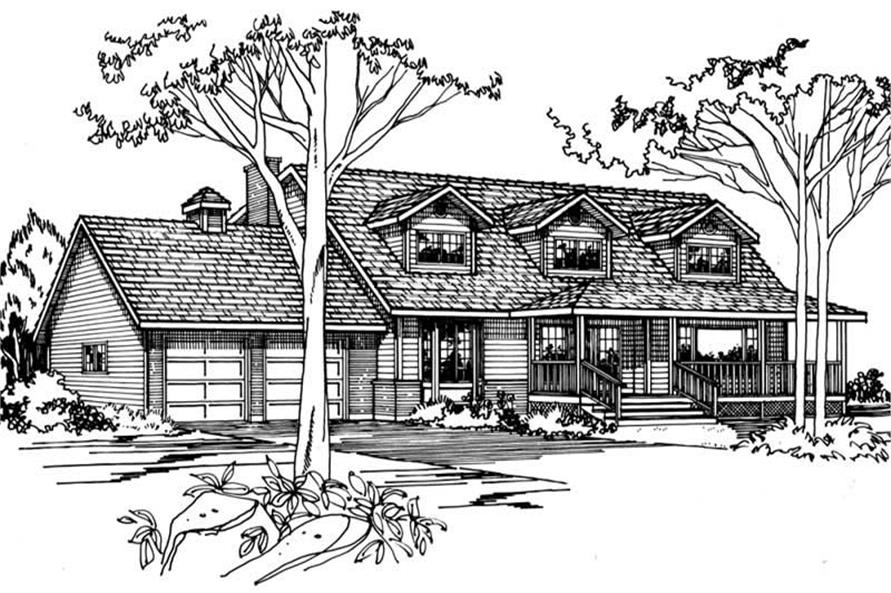

FRONT ELEVATION

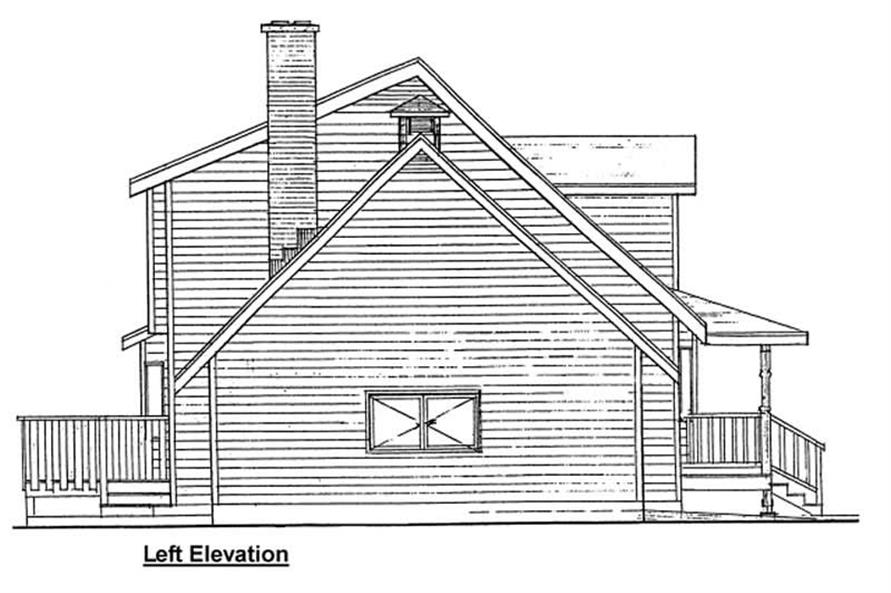

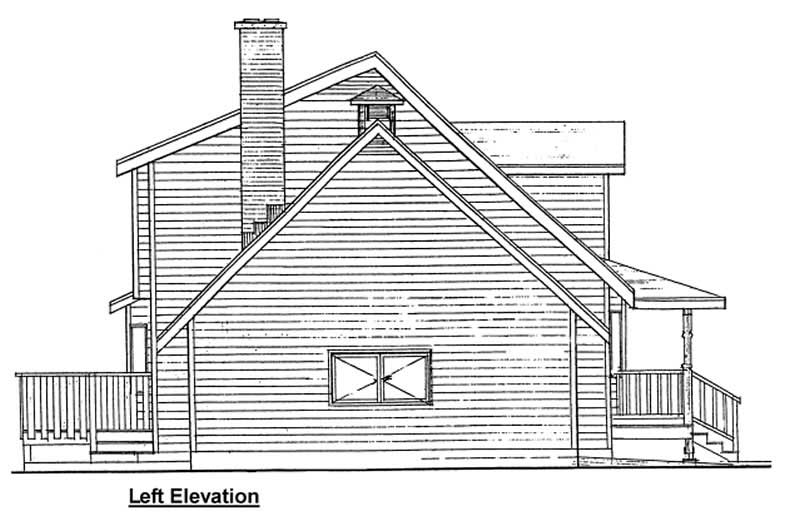

LEFT ELEVATION

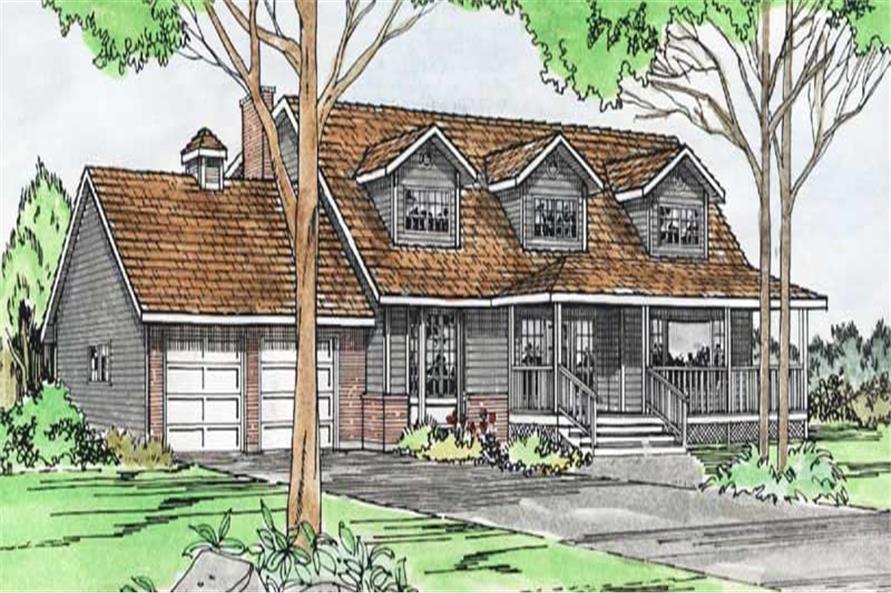

4-Bedroom, 2370 Sq Ft Cape Cod House Plan - 177-1011 - Front Exterior
RIGHT ELEVATION
REAR ELEVATION
FRONT ELEVATION
LEFT ELEVATION

About Plan # 177-1011

About Plan # 177-1011

2370 SQUARE FEET 4 BEDROOMS 2 FULL BATH 0 HALF BATH
2 FLOOR 71' 0" WIDTH 35' 0" DEPTH 2 GARAGE BAY

Description: The cool shelter of a wrap-around porch beckons as you approach this country charmer. The large foyer with its curved staircase provides you with an unequalled visual treat. A large conveniently planned family area awaits you, which features a wood-burning fireplace and easy access to either pool or patio.

Each plan set includes the following:

  • Electrical Layout
  • Elevations
  • Foundation
  • Typically Roof Trusses, a few A-Frames might have the Stick Frame, but mostly roof trusses
  • Wall Section
  • Building Sections
  • Material list available for purchase
  • Cabinet elevations will vary depending on the plan (plans with inside modeling will typically have the cabinet elevations)

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

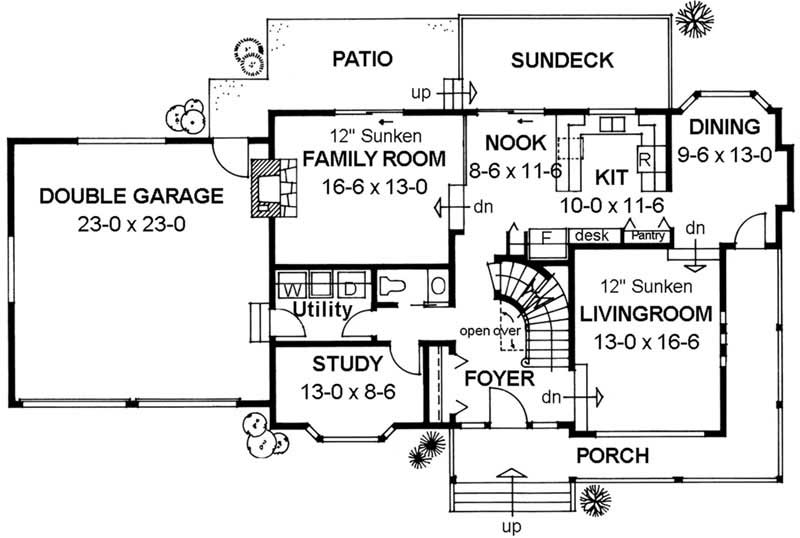

Home Plan: #177-1011 Floor Plan First Story - main Floor Plan First Story of Cape Cod Plan #177-1011

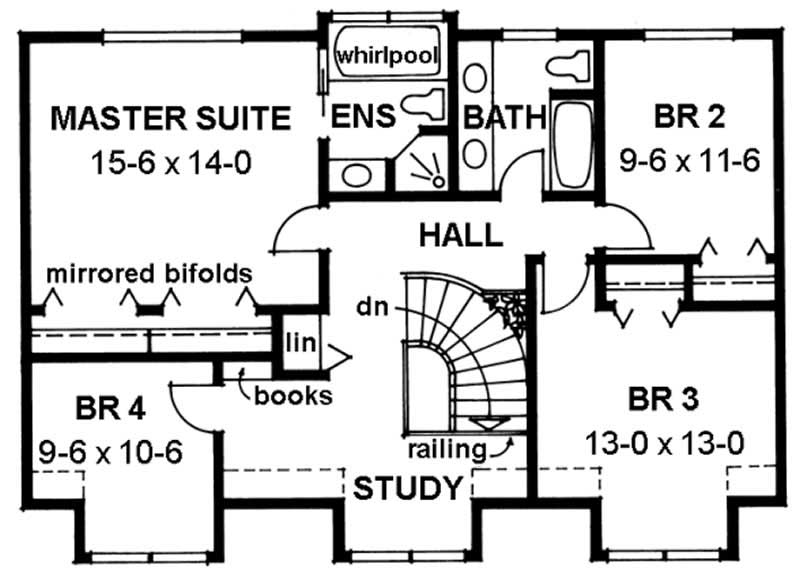

#177-1011 Floor Plan Second Story - second Floor Plan Second Story of Cape Cod Plan #177-1011
Home Plan: #177-1011 Floor Plan First Story - main Floor Plan First Story of Cape Cod Plan #177-1011
#177-1011 Floor Plan Second Story - second Floor Plan Second Story of Cape Cod Plan #177-1011
Special Offer

Order a Cost-to-Build Report and get $100 off a plan priced $500 or more!

To get started, click the “Order a Cost-to-Build Report” button above; then on the next page, click “Order Now and Get $100 Coupon” for your promo code.

Additional specs and features

Summary Information

Plan #:
# 177-1011
Floors:
2
Bedrooms:
4
Full Baths:
2

Square Footage

Heated Sq Feet:
2370
Main Floor:
1252
Upper Floor:
1118
Unfinished Sq Ft:

Dimensions

Width:
71' 0"
Depth:
35' 0"

Architectural Styles

Country
Cape Cod

Exterior Wall Material

Vinyl Siding

Roof Pitch

Other

Ceiling Height

8 Foot Ceiling

Special Feature

Fireplace

Garage Type

Attached Garage

Exterior Wall Framing

2x6

Additional Notes from Designer

No BCIN available. We advise you purchase a CAD and use a local engineer for BCIN Additional Use Licenses and Unlimited Use Licenses are available. After purchasing the plan, the designer will charge you separately for the additional licenses.

PRICING OPTIONS

A full set of construction drawings in digital PDF format emailed to you. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

Five printed sets and a modifiable PDF with complete set of working drawings. The PDF is emailed while the 5 sets ship. Comes with a license to build one home. PDF includes copyright release to make modifications (only minor nonstructural recommended); print as many sets as you need.

For use by design professionals, this set contains all of the CAD files for your home and will be emailed to you. Comes with a license to build one home. Recommended if making major modifications to your plans.

ADDITIONAL INFORMATION

All sales of house plans, modifications, and other products found on this site are final. No refunds or exchanges can be given once your order has begun the fulfillment process. Please see our Policies for additional information.

All plans offered on ThePlanCollection.com are designed to conform to the local building codes when and where the original plan was drawn.

The homes as shown in photographs and renderings may differ from the actual blueprints. For more detailed information, please review the floor plan images herein carefully.
