3-Bedroom, 2260 Sq Ft European Plan with Eat-In Kitchen

Main image for house plan # 3215

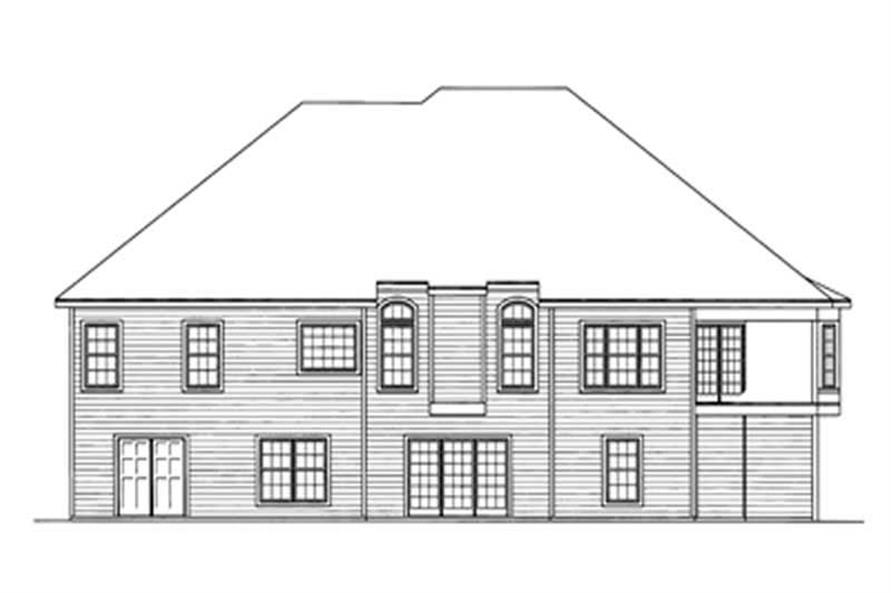

Rear Elevation
3-Bedroom, 2260 Sq Ft European House Plan - 172-1017 - Front Exterior
Rear Elevation

About Plan # 172-1017

About Plan # 172-1017

2260 SQUARE FEET 3 BEDROOMS 2 FULL BATH 1 HALF BATH
1 FLOOR 67' 0" WIDTH 50' 4" DEPTH 2 GARAGE BAY
The Bedford has a Screened Porch access off Breakfast, Convenient Laundry location, Raised ceilings at Entry and Great Room, large family room in basement w/ wet bar, and more.

Each plan set includes the following:

  • FLOOR PLAN: Showing all dimensions, window and door locations, laminated beams, columns, floor materials, ceiling heights, fireplace size, and specifications.
  • FOUNDATION PLAN: Dimensioned plan detailing the location and size of footings, slabs, reinforcing steel, and other structural elements that are required to support the load of the upper floors.
  • ROOF PLAN: Dimensioned plan showing the elements that make up the roof, including notation of spacing and schematics of peaks and valleys.
  • FRONT, REAR, AND SIDE ELEVATIONS: The front, rear, and side elevations of the house as drawn. Shows placement of doors & windows on exterior of house, as well as roof pitches, ridge heights, and locations of chimney, exterior vents, etc. The elevations show the positioning of the final grade of the lot, exterior finishes, and other details that are necessary to give the home exterior architectural styling.
  • CROSS SECTIONS AND INTERIOR DETAILS: Explain certain special conditions more appropriately. A cross section is basically a view of the home (or parts of the home) if it were sliced down the center. These details can be helpful for the contractor.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required.
  • Site Plan - handled locally when required.
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this.
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this.
  • Energy calculations - handled locally when required.




Write Your Own Review
Submit your changes for a FREE quote.
Submit your changes for a FREE quote.

FLOOR PLANS Flip Images

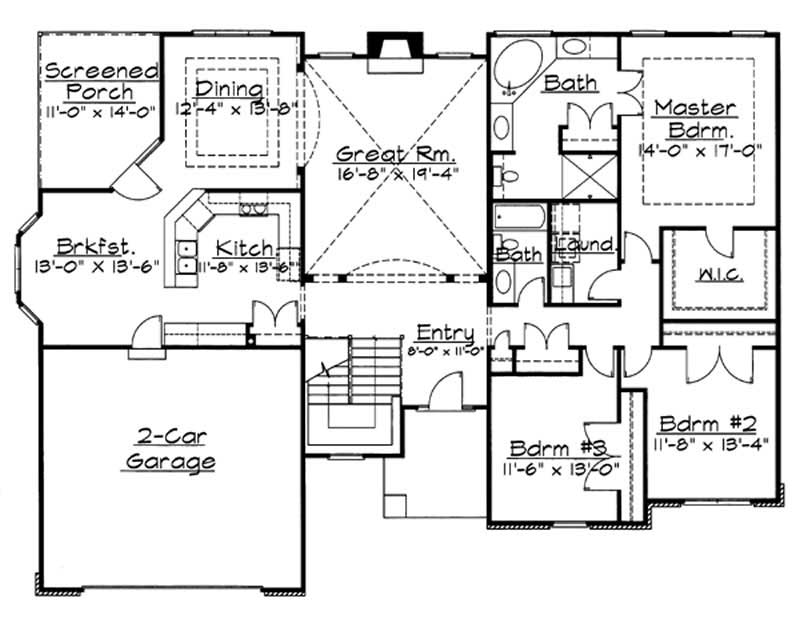

Home Plan: #172-1017 Floor Plan First Story - main level Floor Plan First Story of European Plan #172-1017

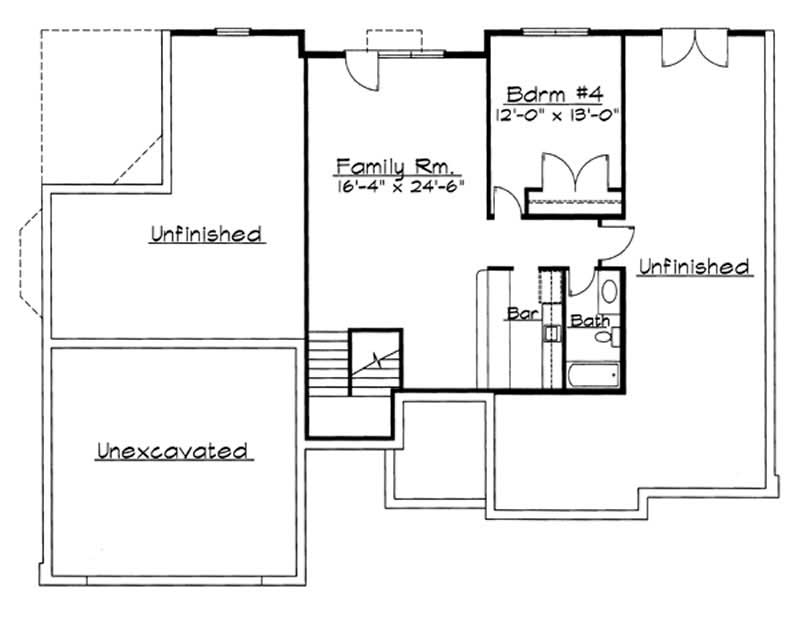

#172-1017 Floor Plan Basement - basement Floor Plan Basement of European Plan #172-1017
Home Plan: #172-1017 Floor Plan First Story - main level Floor Plan First Story of European Plan #172-1017
#172-1017 Floor Plan Basement - basement Floor Plan Basement of European Plan #172-1017
